Granary replenishment operations

In the daily granary replenishment operations of bulk grains, it is often necessary to load and unload bulk grains from cars and  grain stacks and then transport it to granaries or grain warehouses with the purpose of replenishment ,this solution supply ways to solve how to transport grain from grain trucks or grain stacks to the grain warehouse where is already have a certain height of grain  .


Grain transportation from grain stacks to granaries or grain warehouses

[Scope of application]: Transfer grain on the grain vehicle to a flat grain warehouse with a certain amount of grain


[Device Configuration]


Unloading equipment: Bulk grain unloading belt conveyor


Conveying equipment: Moblie packaged and bulk grain belt conveyor , Mobile telescopic belt conveyor

Cleaning equipment: Mobile cleaning vibrating screen,Singal vibration environmental protection cleaning screen,Specific gravity cleaning screen separator

Replenishmente equipment: Mobile telescopic hydraulic lifting and filling belt conveyor







[Assembly line processing capacity]:

1. Transport 20-50 tons of bulk grain per hour


In the conveying line, the conveying and cleaning equipment uses a Bulk grain unloading belt c
onveyor, a Specific gravity cleaning screen separator.



2. Transport 50-80 tons of bulk grain per hour

In the conveying line, the conveying and cleaning equipment uses a Bulk grain unloading belt conveyor,  and an Singal vibration environmental protection cleaning screen
.
3. Transport 80-100 tons of bulk grain per hour

In the conveying line, the conveying and cleaning equipment uses a Bulk grain unloading belt conveyor,and a Mobile cleaning vibrating screen
.
Introduction of assembly line

In this process, the bulk grain on the car passes through the Bulk grain unloading belt conveyor and Moblie packaged and bulk grain belt conveyor and then it transported to the Mobile cleaning vibrating screen for cleaning, and then the cleaned grain is conveyed to the Mobile telescopic hydraulic lifting and filling belt conveyor through the Moblie packaged and bulk grain belt conveyor . And it is finally imported into the grain warehouse through the windows of the warehouse.


The specific model of the overall equipment of the assembly line can be determined according to the customer's requirements for output or cleaning effect, and the performance of the customer's existing equipment .Contact Huazhong experts


1.2 Replenishment operations from grain piles to grain warehouses

[Scope of application]: Replenishment operations from grain piles to grain warehouses with a certain pile height

[Equipment configuration] (The difference between this configuration and plan 1.1 is that 1.1 uses a Bulk grain unloading belt conveyor to unload grain, and plan 1.2 uses a grain scraper to unload grain):


Grain loading equipment: Mobile multi-function grain loading scraper


Conveying equipment: Moblie packaged and bulk grain belt conveyor , Mobile telescopic belt conveyor


Cleaning equipment: Mobile cleaning vibrating screen, Mobile cylinder grain cleaning screen


Replenishment equipment: Mobile hydraulic lifting and filling belt conveyor with grain throwing machine


[Assembly line processing capacity]:

80-100 tons of bulk grain per hour (using grain picking equipment and cleaning equipment)

Introduction to assembly line

In this process, the bulk grain is first picked up by the grain picking machine, and transported to the conveyor that is matched in series with it, and transported by the conveyor to the cleaning equipment for impurity screening. Then it is conveyed by the conveyor to the Mobile hydraulic lifting and filling belt conveyor with grain throwing machine, and finally the grain is transported to the grain warehouse through the windows of the warehouse.

1. The number of conveyors can be selected according to the size of the on-site transportation distance;

2. The conveyor model and belt bandwidth can be selected according to actual output requirements;

3. You can choose whether to equip with telescopic function and grain throwing function according to the actual needs of the site;

4. The matching cleaning equipment can be selected according to the cleaning effect of the grain and the requirements of the output.Contact Huazhong experts to get more information!

Highlights of equipment

Mobile hydraulic lifting and filling belt conveyor with grain throwing machine

1. Flexible movement. The lower part of the chassis is equipped with two walking wheels, and the other end is equipped with two universal wheels. The steel hub solid rubber wheels and ball bearings are used as the movement or steering mechanism of the chassis, which can easily move and turn the equipment to any direction.

2. Large lifting range. The equipment adopts a hydraulic lifting mechanism as the lifting mechanism, the lifting action is stable, reliable and free, and easy to operate. It can carry out siloing operations at any height within the adjustment range to meet the requirements of different heights of grain.

3. Large horizontal telescopic range. The electric telescopic mechanism is adopted, and the telescopic action runs smoothly and reliably, and can work in any position within the telescopic range.

4. The grain throwing machine (optional according to actual needs) can throw the grain to the length of 6-20 meters, and is equipped with a steering motor. The throwing of grain can be arbitrarily set within the range of plus or minus 90 degrees.


Mobile multi-function grain loading scraper
Grain micro scraper
Mobile Wing Wheel Grain Scraper
Air sieve specific gravity grain separator
Mobile cleaning vibrating screen
Mobile packaged and bulk grain belt conveyor

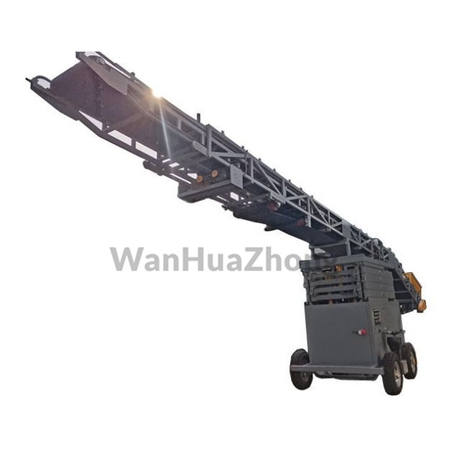

Mobile hydraulic telescopic lifting and filling belt conveyor

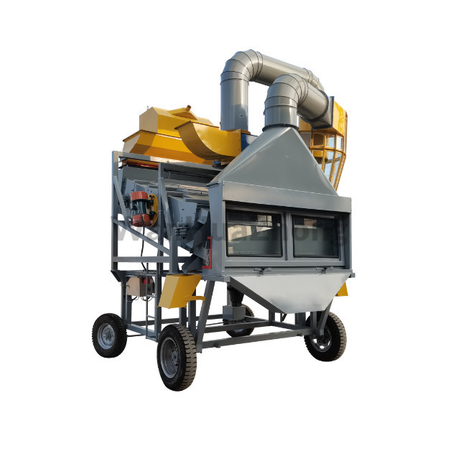

 Environmental protection single cleaning vibrating screen
Equipment parameter
Product name Model Amount Power (KW/unit) Processing capacity
Bulk grain unloading belt conveyor HZX 1 5.5 50-120T/H
Moblie packaged and bulk grain belt conveyor  HZD 2 6-14 50-200T/H
Mobile cleaning vibrating screen HZ2.2*2.4 1 15.2 80-100T/H
Steering telescopic loading belt conveyor HZSZZ 1 13.7-23.7 50-200T/H
Mobile multi-function grain loading scraper HZ550,HZ650,HZ800 1 10.25 30-100T/H
Mobile cylinder grain cleaning screen HZ-2000 1 9 50-80T/H
Mobile telescopic belt conveyor  HZDS 1 9-17 50-200T/H
Mobile hydraulic lifting and filling belt conveyor with grain throwing machine HZYBP 1 16.2-21.7 50-80T/H
Mobile telescopic hydraulic lifting and filling belt conveyor HZYSB 1 13.7-19.2 50-80T/H
