Bulk grain transportation solutions

1. Transport the bulk grain from the grain pile or granary to the grain vehicle

[Scope of application]: Transport the bulk grain in the grain pile or granary to the car

[Equipment selection]:

According to the customer's demand for the grain conveying output of the conveying line, the following grain handing equipment can be selected:

Conveying 30-100 tons (per hour): Grain micro scraper, or Mobile multi-function grain loading scraper, Mobile wing wheel grain scraper.

Conveying 100-200 tons (per hour): Multi-function steering grain scraper,Combined grain scraper.

→

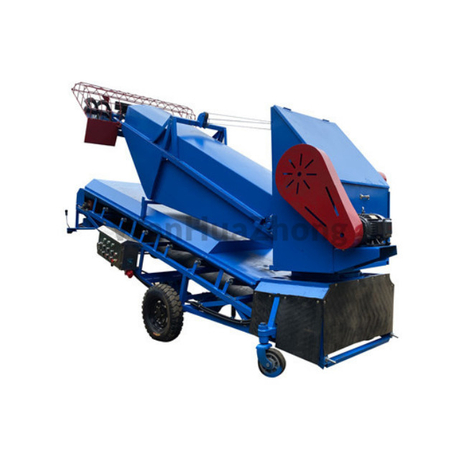

Mobile multi-function grain loading scraper

This mobile multi-function grain loading scraper is suitable for the national grain reserve, local large and small grain stations (station) and grain and oil, feed processing enterprises. It can carry out the scraping and transportation of bulk grain in the range of 180 degrees. It can cooperate with the conveyor to carry out bulk grain transportation, stacking, loading, unloading, turning-over and other operations. It has good performance and high output. This scraper has a dust removal system, which increases the safety of workers' clean production and reduces labor intensity. This mobile multi-function grain loading scraper for sale is a mature grain storage product of china anhui Huazhong Machinery Supporting Engineering Co., Ltd ,Product appearance, color and performance can be customized.

→

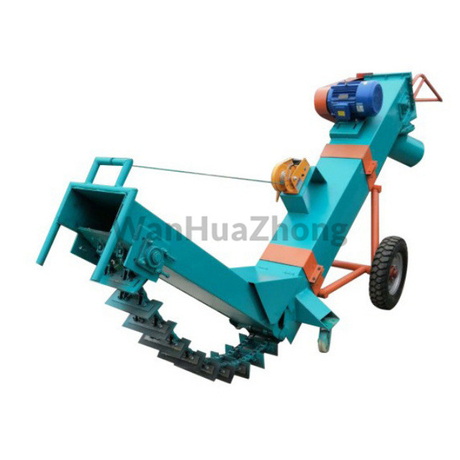

Grain micro scraper

This grain micro scraper for sale is a mature grain handing equipment of china grain storage equipment manufacturer Huazhong Machinery,Grain micro scraper for sale is a kind of bulk grain picking and loading equipment, suitable for large and medium-sized grain storage centers,small grain stations and individual industrial and commercial households and are used for grain scraping for filling operations, or with other conveying machinery to form an assembly line operation.

→

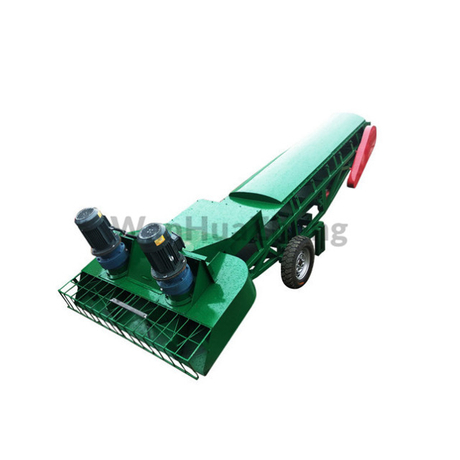

Mobile Wing Wheel Grain Scraper

This mobile Wing Wheel Grain Scraper for sale is a kind of bulk grain picking and loading equipment. It is suitable for large and medium-sized grain depots, central small grain stations and individual industrial and commercial households to pick up grain for filling operations, or use it with other conveying machinery to form an assembly line operation. It is a new type of grain storage machinery, integrating function of bulk grain turning over, bulk grain entering, exiting, picking, and filling.Product appearance, color and performance can be customized.

According to the size of the conveying distance of the site, these grain conveying equipment can be selected: Moblie packaged and bulk grain belt conveyor , Mobile telescopic belt conveyor.

Conveying equipment conveying capacity: 50-200 tons (per hour).

→

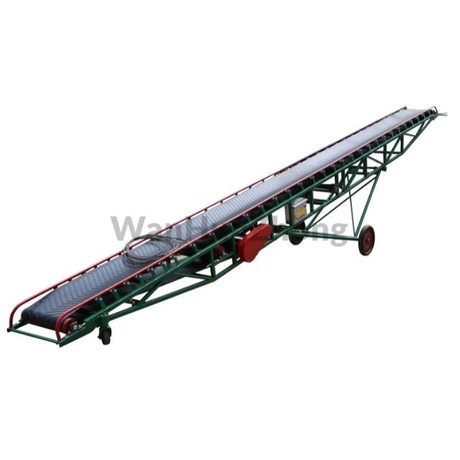

Mobile packaged and bulk grain belt conveyor

This mobile packaged and bulk grain belt conveyor for sale is a mature grain storage product of china anhui HuaZhong Machinery Supporting Engineering Co., Ltd ,which is the professional grain storage machinery manufacturer。This belt conveyor is actually used for the transportation, loading and unloading, palletizing, hoarding, warehouse storage and other warehouse operations of bulk and packaged grain or other small granular materials. It can be used in series or matched with other storage machines. Equipped with lifting device, can carry out operations at different heights. Product appearance, color and performance can be customized, appearance and performance are subject to actual shipment.

The grain cleaning equipment can be selected as follows:

Mobile cleaning vibrating screen (primary cleaning screen), Environmental protection cylinder vibration cleaning screen (cylinder screen, vibrating screen, pulse dust removal 3 in one), Specific gravity cleaning screen separator.

The processing capacity of the grain cleaning equipment determines the processing capacity of the entire process. Please choose according to your own needs and the performance of the equipment:

Mobile cleaning vibrating screen : 80-100 tons (per hour)

Environmental protection cylinder vibration cleaning screen : 50-80 tons (per hour)

Specific gravity cleaning screen separator.: 20-50 tons (per hour)

Use scenario 1

1. If you simply need to transport the grain from the grain pile or grain store to the car, you can directly select the Multi-function steering grain scraper, and one equipment can directly pick up the grain from the ground and transport it to the car.

Work flow: The Mobile multi-function grain loading scraper directly picks up the grain from the grain pile and transports it to the grain truck through the conveyor on the scraper.

Use scenario 2

1. If the space is limited and the car cannot drive directly into the granary, you can use the grain extension and tandem conveying equipment such as the Moblie packaged and bulk grain belt conveyor , Mobile telescopic belt conveyor and the grain picking machine;or the Combined grain scraper is used with a belt conveyor, which can also achieve the effect of long-distance grain picking and boarding. The conveying capacity of the assembly line using the Mobile multi-function grain loading scraper is 80-100 tons per hour.

2. According to the demand and budget of the amount of grain picking, you can choose the Grain micro scraper. The conveying capacity of the assembly line using the Grain micro scraper is 20-50 tons per hour.

3. If you are picking rice, you can choose a Mobile wing wheel grain scraper, because the damage to the rice is relatively small when this equipment picking the rice, and its picking capacity is 40-80 tons per hour.

Work process:

The grain scraper picks up the grain and transports the grain to the Moblie packaged and bulk grain belt conveyor or Mobile telescopic belt conveyor that is connected in series with it. The belt conveyor here only functions to extend the distance, and finally transports the grain to the car through this two type of ascending belt conveyor .

In this scenario, you can also use a Combined grain scraper +Moblie packaged and bulk grain belt conveyor. The Combined grain scraperis used to pick up the grain in the granary, and then the grain will be transported out of the warehouse through its longer conveyor belt, and finally passed Moblie packaged and bulk grain belt conveyor connected in series transports the grain to the car. When working, because the Combined grain scraper can carry out long-distance transportation, it reduces the number of equipment used in the assembly line, and can facilitate the adjustment of the location of the grain picking and grain conveying equipment, thereby reducing working time and workload. This transportation scheme is suitable for units with high requirements for grain transportation. For example, various national grain depots, grain processing plants, feed mills, chemical plants, etc.

Use scenario 3
On the basis of the second scenario, according to the customer's requirements for grain cleaning and cleaning volume, the following equipment can be selected in the process of grain cleaning equipment:

1. If you have higher requirements for the amount of grain cleaning, you can choose Mobile cleaning vibrating screen, which can clean 80-100 tons of grain per hour.

2. If you want to save the number of equipment and have a better grain cleaning effect, we strongly recommend the company's new product: Environmental protection cylinder vibration cleaning screen. This equipment combines cylinder, vibration, and pulse dust removal functions in one, and has been verified at the same time , The actual grain cleaning effect of this equipment is very good, it can clean 50-80 tons of grain per hour.

3. If you need to finely clean the grain, you can choose the Specific gravity cleaning screen separator provided by our company, which can clean 20-50 tons of grain per hour.

→

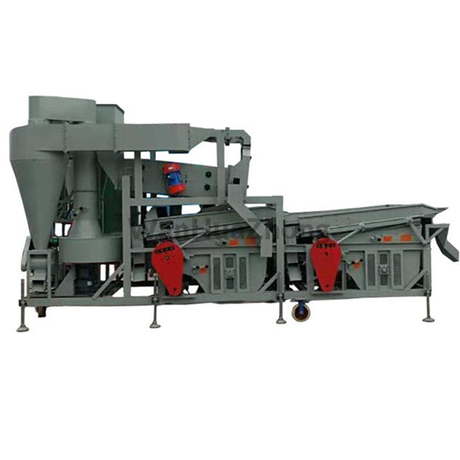

Air sieve specific gravity grain separator

This air sieve specific gravity grain separator for sale is a new type grain cleaner product of china grain storage equipment manufacturer Huazhong Machinery, This series of products integrates ultra-low speed non-crushing elevator, vertical air screen, cyclone dust removal system, and large-area specific gravity platform, which can remove dust, bran husks, abortive seeds, sprouts, moth-eaten grain, mildew grain, straw, large and small impurities.Product appearance, color and performance can be customized.

→

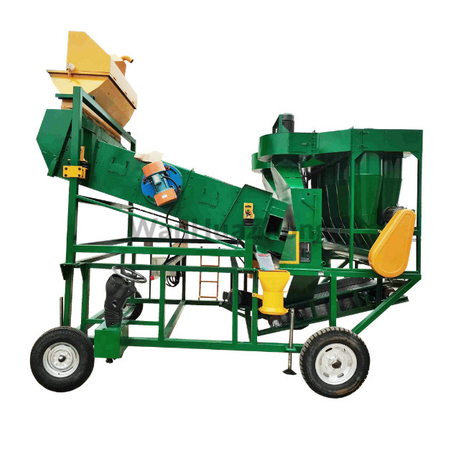

Mobile cleaning vibrating screen

This mobile cleaning vibrating screen(can also be called mobile cleaning vibrating sieve) for sale is suitable for processing grain, which can reduce the warehouse entry time and reduce labor intensity. The grain enters the vibrating screen from the feed hopper. The vibrating screen is a double-layer screen. The large and small impurities in the grain are separately sorted and cleaned. The primary cleaned grain is then cleaned by the wind separator to remove light impurities and dust.This product is suitable for cleaning operations when the cleaning requirements of grains are high. The cleaning effect is better, the design is advanced and reasonable, and the movement is flexible and convenient. Product appearance, color and performance can be customized, appearance and performance are subject to actual shipment.

→

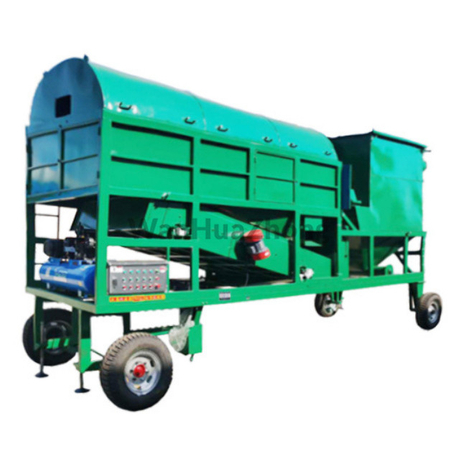

Environmental protection cylindrical grain cleaner

This environmental protection cylindrical grain cleaner for sale is a new type environmentally friendly grain cleaning machine of china grain storage equipment manufacturer Huazhong Machinery, This machine adds the pulse dust removal and impurity removal system to the original foundation of the cylinder cleaning sieve, eliminating the original cyclone separator. The grain enters the cylindrical sieve from the feeding port, and the grain flows from the lower pipe of the storage hopper into the inner sieve.Product appearance, color and performance can be customized.

Work process: First, the grain is picked up by the grain scraper, then the grain is transported into the grain cleaning equipment through the Moblie packaged and bulk grain belt conveyor, and then the grain is finally transported to the grain vehicle through the same belt conveyor.

The throughput of the pipeline is determined by the processing capacity of cleaning equipment.

Equipment parameter
Product name	Model	Amount	Power (KW/unit)	Processing capacity
Mobile multi-function grain loading scraper	HZ550,HZ650,HZ800	1	10.25	30-100T/H
Mobile automobile bulk grain side unloader	HZC	1	9.95	50-120T/H
Mobile wing wheel grain scraper	HZY	1	9.15	40-80T/H
Bulk grain unloading belt conveyor	HZX	1	5.5	50-200T/H
Moblie packaged and bulk grain belt conveyor	HZD	2	4.5-14	Bulk grain 50-200T/H, grain bag package 1200 T/H
Steering telescopic loading belt conveyor	HZSZZ	1	15.9-25.4	50-200T/H
Mobile cleaning vibrating screen	HZ2.2*2.4	1	15.2	80-100T/H
Environmental protection cylinder vibration cleaning screen	HZCZ	1	24.9	50-80T/H
Specific gravity cleaning screen separator	HZBZ	1	14.69-22.75	20-50T/H
Mobile telescopic belt conveyor	HZDS	1	17	Bulk grain 50-200T/H, grain bag package 1200 T/H
Combined grain scraper	HZ-ZH	1	17.2-20.2	100-200T/H
