HZW-A;HZW-B
WanHuaZhong
Product Description

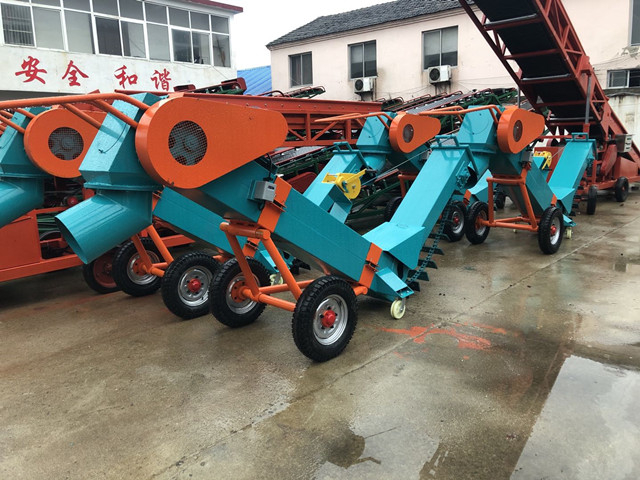

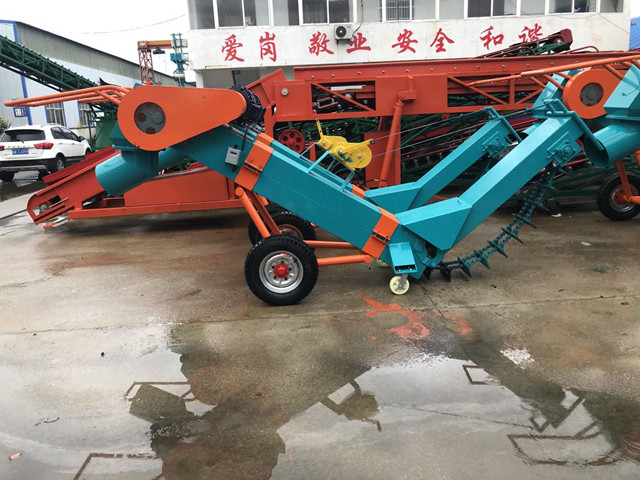

grain micro scraper for sale

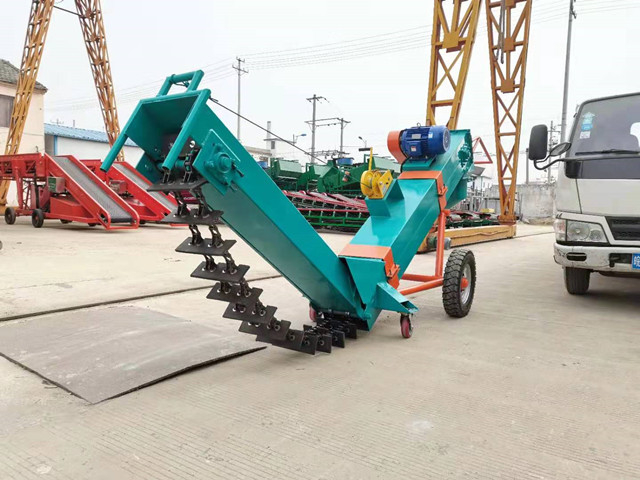

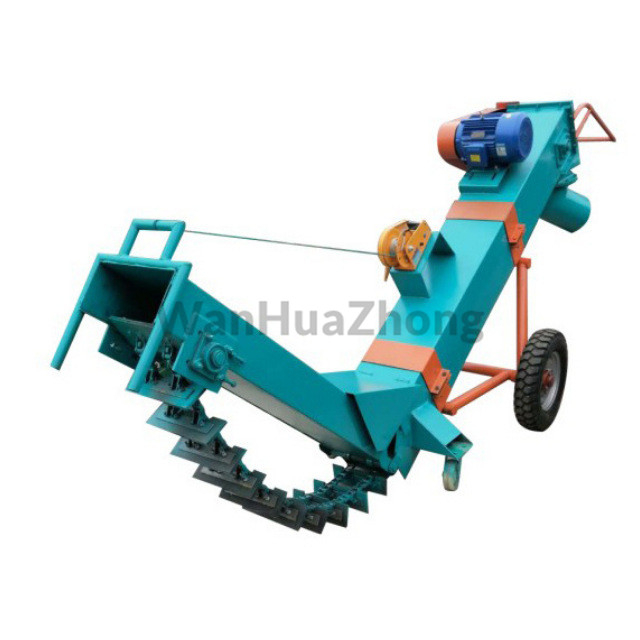

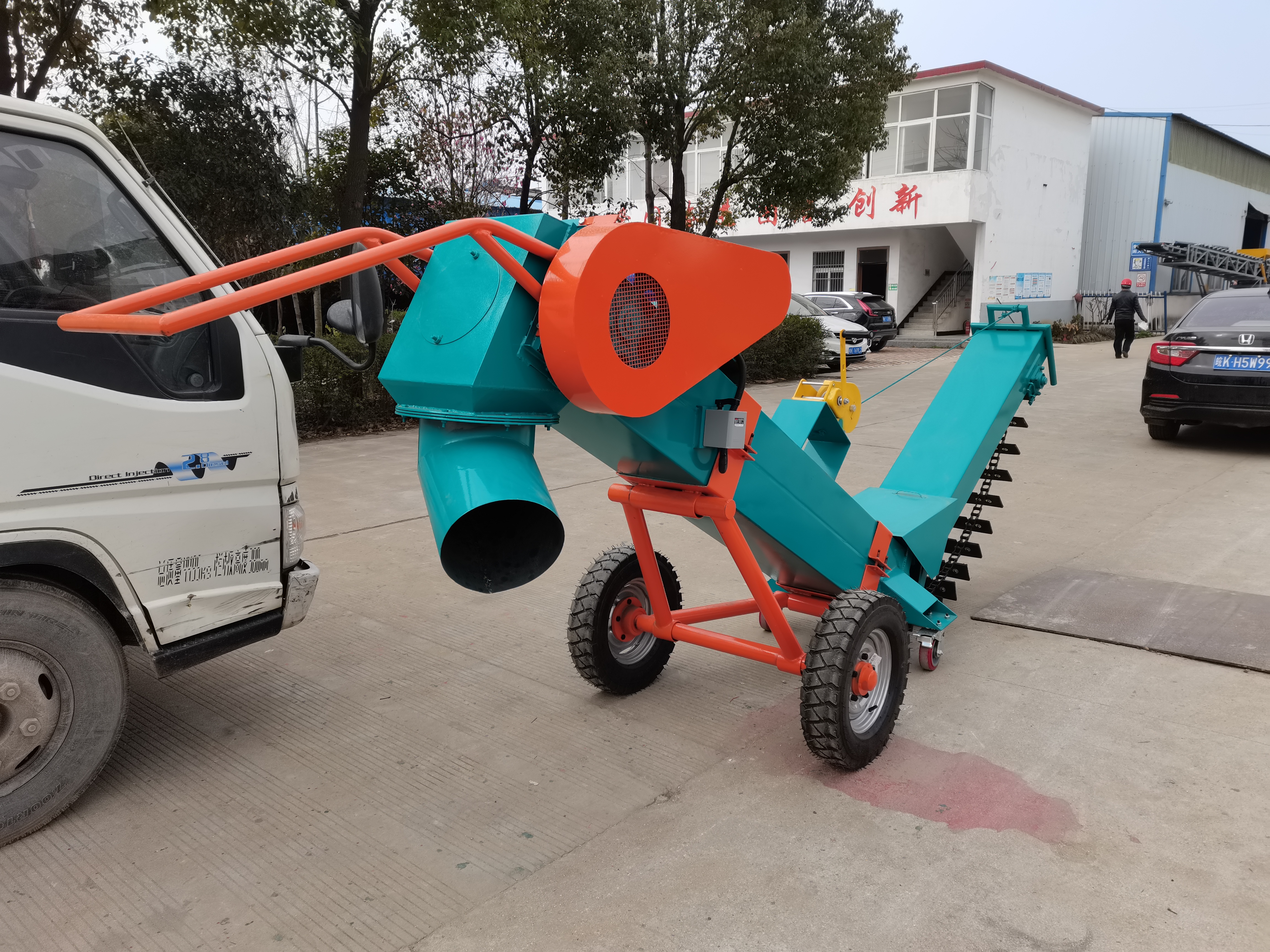

Grain micro scraper for sale

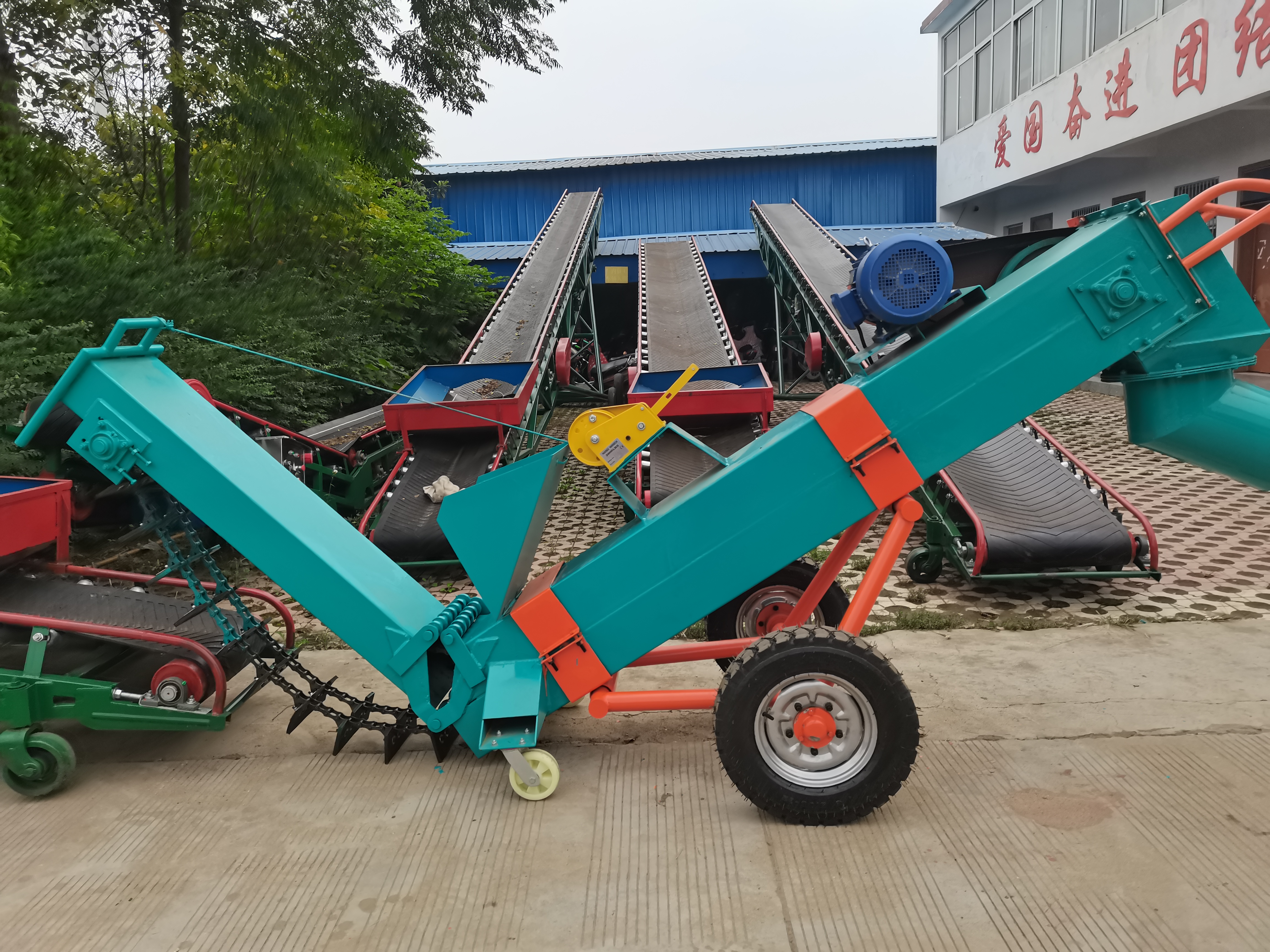

Grain micro scraper for sale
Introduction of grain micro scraper for sale
This grain micro scraper for sale is a mature grain handing product of china grain storage equipment manufacturer Huazhong Machinery,which has been tested by market and received wide acclaim from customers.
Main application of grain micro scraper for sale
Grain micro scraper for sale is a kind of bulk grain picking and loading equipment, suitable for large and medium-sized grain storage centers,small grain stations and individual industrial and commercial households and are used for grain scraping for filling operations, or with other conveying machinery to form an assembly line operation.
Production capacity of grain micro scraper:
20 tons/hour (single chain grain micro scraper)
40 tons/hour (double-chain grain micro scraper)
Features of grain micro scraper:
The grain micro scraper is a mobile lightweight scraper designed according to different working environments and processing requirements. The scraper part can be rotated with 360 degrees, which is convenient for expanding the working area. Its scraper power can be equipped with a diesel engine, which can be used when there is no external power supply in the field. Due to its small size and light weight, the lift of the front end of the scraping arm can pass. Artificial hoisting wire rope to achieve.Due to its small size and light weight, the lifting of the front end of the grain scraping arm can be achieved by manually hoisting the wire rope.
This product includes two models. One model uses a single chain for the picking structure, and the other uses a double chain for the picking structure. The difference between the two is reflected in the amount of picking per unit time. 40 tons of grain can be taked per hour by a double chain, and 20 tons of grain can be taked per hour by a single chain.
Like other products of our company, the appearance, color, and actual functions of the product can be customized according to customer requirements. Please contact our customer service staff for details.

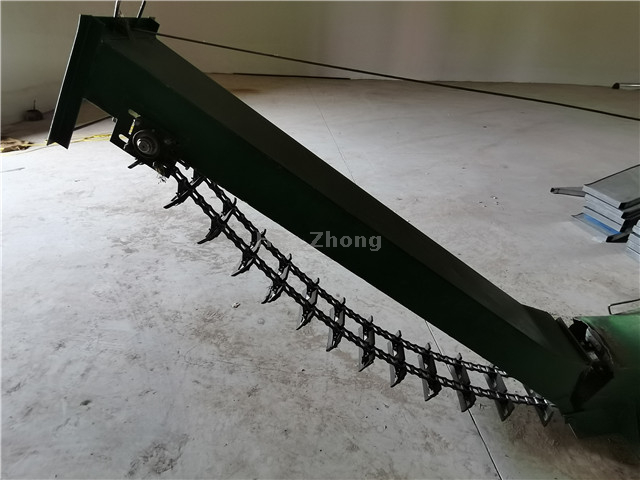

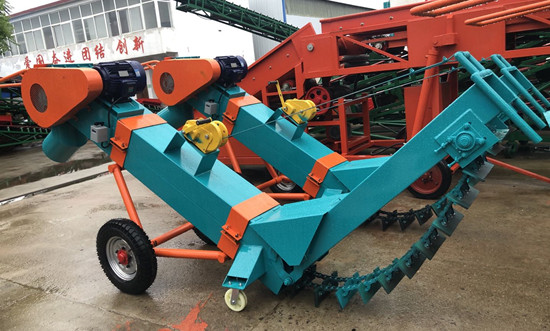

Double chain type

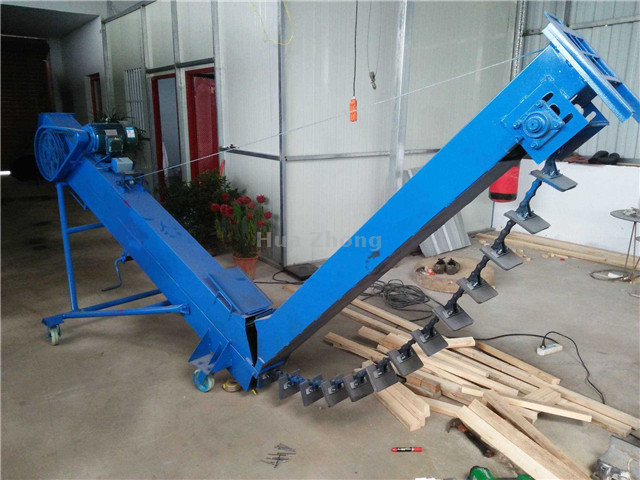

Single chain type
Parameters
Applicable Industries： | Grain depots, farms, ports, feed mills, fertilizer plants, grain processing plants etc | After Warranty Service： | Video technical support, Online support |
Nearby Ports: | Shanghai, Dalian, Tianjin, Qingdao | Material: | Steel/Iron |
Working environment humidity:: | 20%-99%RH | The speed of the chain of the scraper: | 2.5m/s |
Place of Origin: | Anhui, China | Brand Name: | WanHuaZhong |
Voltage: | 380V/50HZ | Ambient Temperature: | -40℃- +45℃ |
Certification: | ISO45001,ISO14001,ISO9001 | Warranty: | 1 Year |
After-sales Service : | Video technical support, Online support | Product Name: | Grain micro scraper |
Rated output: | 20-40t/h | Scraping Power: | 4kw |
Applicable objects: | Corn, rice, soybean, wheat and other bulk materials | Model: | HZW-A;HZW-B |
Speed of drive chain:: | 415 rpm / min |
Structural features

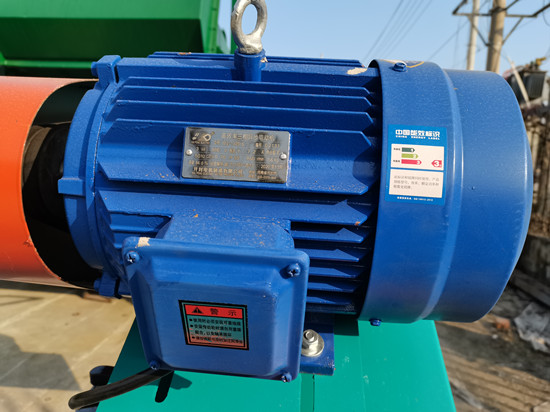

1.The motors of the grain micro scraper all use national standard copper core motors from well-known manufacturers (optional according to customer needs). It can also be configured with a diesel engine as a power source for operations far away from the power source. (Good motors have a long use time, compared with inferior motors, so there is no need to repair them frequently)

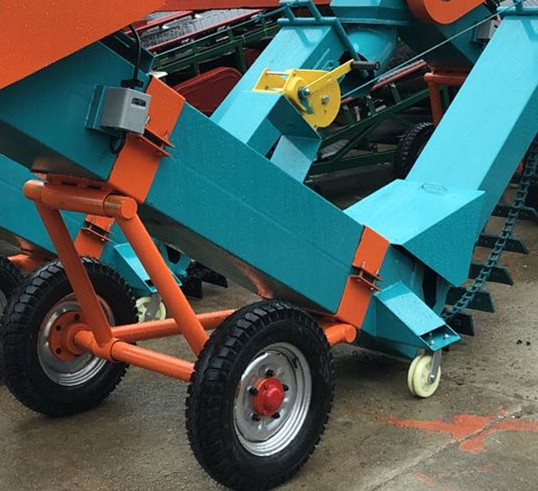

2. The lower part of the grain micro scraper, which used to support the walking part can use the steel frame slot combined with 4 universal wheels, or directly use the outrigger to combine with 2 inflatable walking wheels.
wheels
3. The body material of the grain micro scraper is made of high-strength and high-tensile steel.
4. The welding of the grain micro scraper combine CNC machine tools, welding robots and professional welders to ensure welding quality.

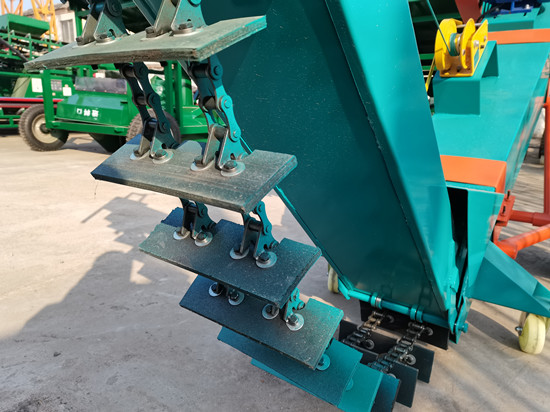

5. The scraper of the grain micro scraper adopts imported original rubber thickened scraper (wear-resistant, long service life).
scraper of the grain micro scraper

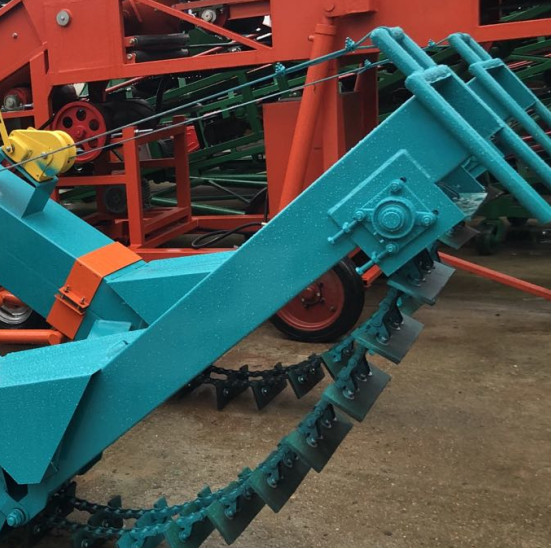

6.The bearings in the grain scraping device adopt domestic first-line bearing brands, such as Harbin brand, Wafangdian brand, and Luoyang brand bearings (customizable).
bearings in the grain scraping device

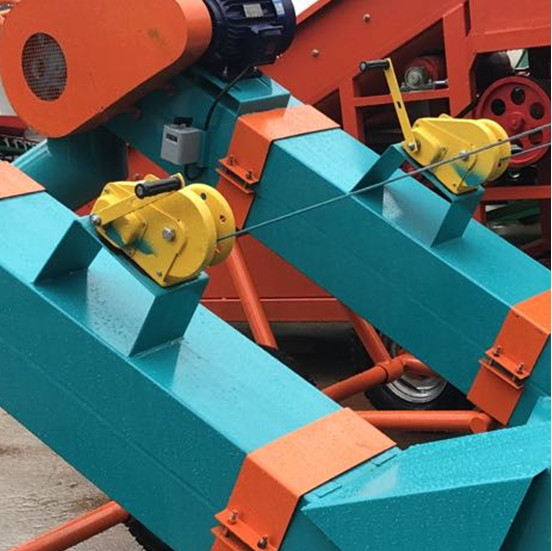

7.The hoisting lifter of the grain micro scraper uses the domestic national standard first-line brand, the repair rate is almost 0, and the model throughput design has obtained the national patent.
hoisting lifter of the grain micro scraper
Maintenance
1. Before using the micro chain scraper, check whether the fasteners of each part are firm, and if they are loose, tighten them.
2. If there is an abnormality in the work, stop the grain micro scraper immediately for inspection, and work only after the fault is eliminated.
3. Don't rush to work after starting the grain micro scraper, and work only after everything is normal.
4. The operator of the grain micro scraper is not allowed to leave the scene during the work.
5. When the grain micro scraper is not used for a long time, it should be cleaned and placed in a ventilated and dry place.
6. After working for 1000 hours, replace the grease of each bearing of the grain micro scraper.
