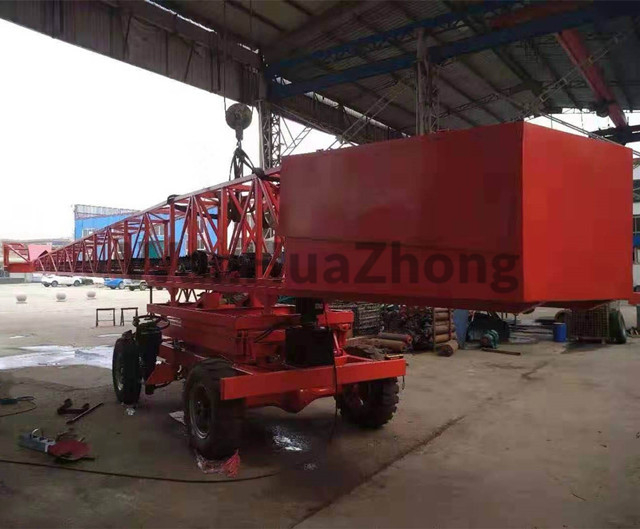

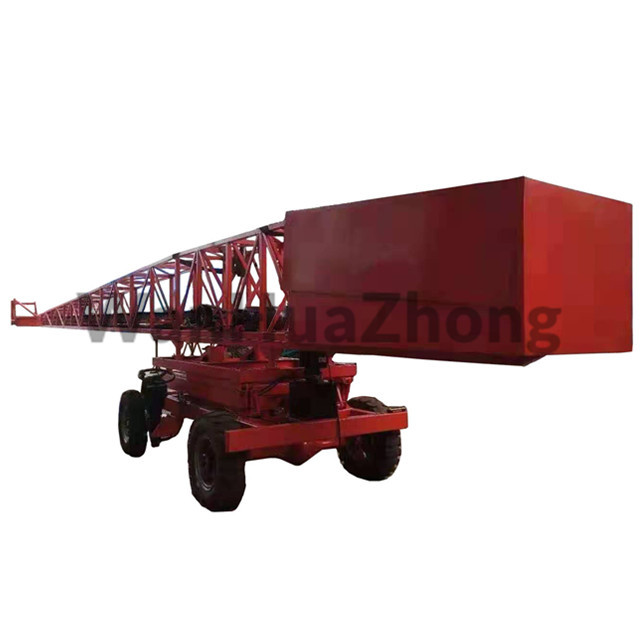

Mobile container grain unloader

Introduction of Mobile container grain unloader for sale:

The mobile container grain unloader for sale is a mature container grain unloading equipment of Anhui Huazhong Machinery Supporting Engineering Co., Ltd..

Processing capacity per hour of Mobile container grain unloader:  50-120 tons / hour.

Main aplication Characteristics of Mobile container grain unloader for sale:

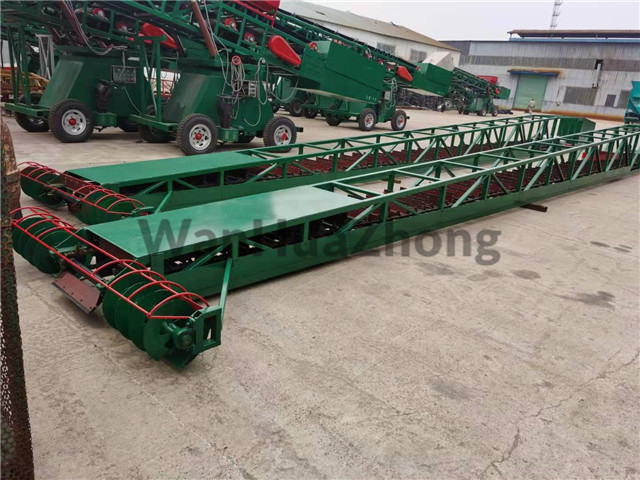

With hydraulic lifting function, it can carry out grain unloading operation for containers of different heights; the chain scraper conveying length can reach 15 meters, and can carry out grain unloading operation for containers of different lengths;

the head of mobile container grain unloader is equipped with a 2-meter wide screw unloading device for grain unloading which has high grain unloading efficiency;

This mobile container grain unloader for sale also equipped with steering wheel electric walking device, flexible and convenient to move.

Working principle of Mobile container grain unloader for sale

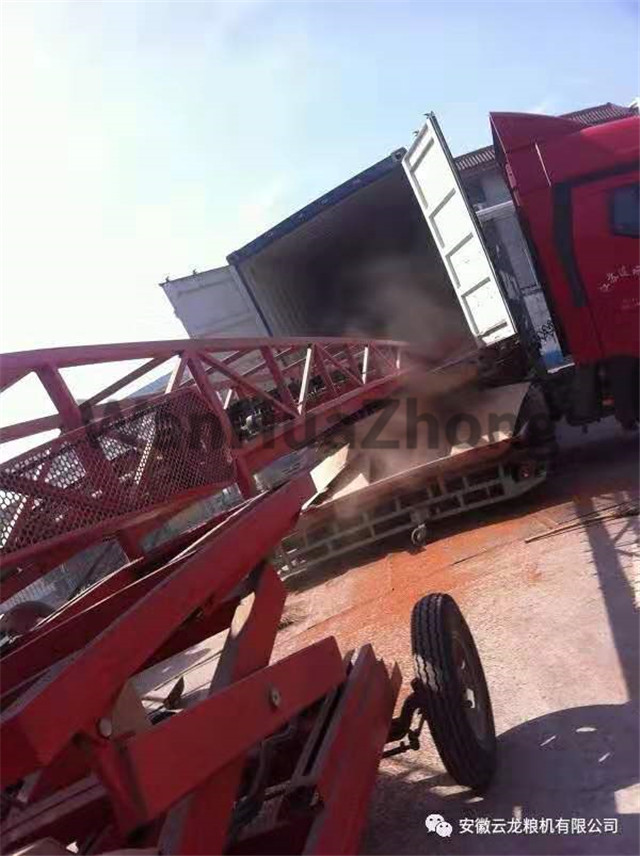

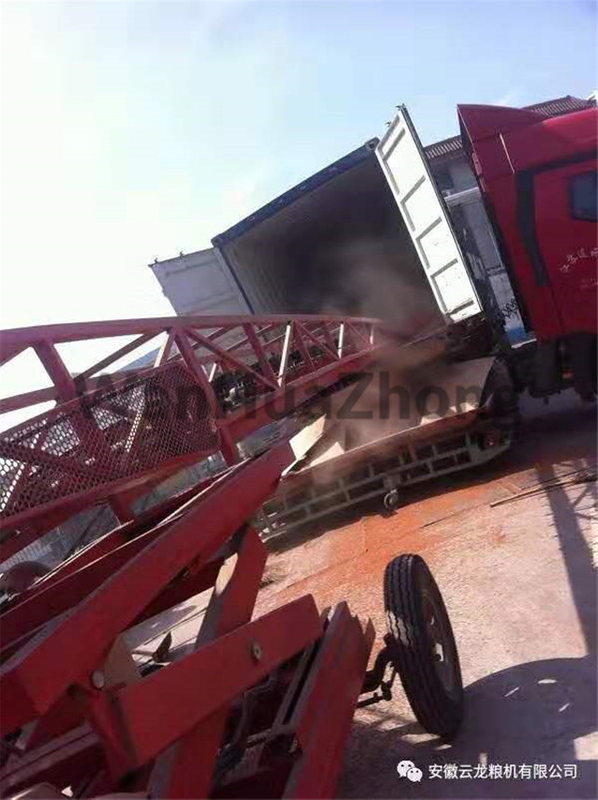

The head of the mobile container grain unloader is equipped with a 2-meter-wide screw unloading device. When the truck is unloaded, the hydraulic lifting system is raised to the container position, and the aforementioned screw unloading device is placed at the bottom of the container to start work.

The materials are collected at the middle scraper and transported out of the compartment by a chain scraper;

As the unloader moves, the spiral unloading device continuously advances into the container.And the material is continuously unloaded to the outside of the car, and the external conveying equipment connected to the container delivers the material to the designated location.

1. Mobile container grain unloader has hydraulic lifting function, and can unload grain operations for different height containers;

2. The mobile container grain unloader adopts an enhanced spiral unloading device. The spiral grain picking device is polished, which improves the life of the spiral grain picking device and can effectively prevent the grain picking device from scratching the grain.

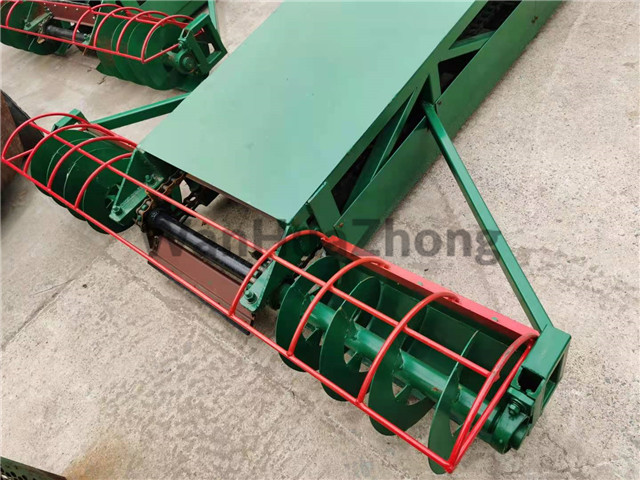

Grain picking device of mobile container grain unloader

3. The chain scraper conveying device has undergone abrasion resistance treatment and continuous work fatigue test, which improves the stability of equipment operation.

4. The electrical control box adopts a double-layer steel door to seal the box body. It is also equipped with anti-overload and anti-phase protection devices. It uses domestic well-known or joint venture brand electrical components. The external cable uses a special waterproof and dustproof power supply for quick connection. Its easy to maintenance, can effectively reduce electrical maintenance work.

5. The frame of the mobile container grain unloader is all welded by professional welders using high-strength steel plates. The high-quality continuous welding seam can meet the long-term and large-scale operation of the mobile container grain unloader.

6. The welding process is a combination of CNC machine tools, welding robots and professional welders to ensure welding quality.

7. The mobile container grain unloader has a driving device, which is flexible and convenient to move.

1. The surface of the steel components of the mobile container grain unloader is shot blasted, and the steel surface is free of visible grease, dirt, oxide scale, iron, zinc, and paint coatings. Any remaining traces are only points. Slight stains like striated or streaks.

2. The primer of mobile container grain unloader adopts brushing process, and the top coat adopts spraying process.

3. The coating of primer and middle layer of mobile container grain unloader are free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.

4. The primer of mobile container grain unloader adopts iron oxide zinc chromium primer, and the thickness of the dry paint film is greater than 40µm.

5.The top paint of the mobile container grain unloader adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.

1. Before using the mobile container grain unloader, check whether the fasteners of each part are firm, and if they are loose, tighten them.

2. If there is an abnormality during the work, the inspection of the mobile container grain unloader should be stopped immediately and the operation can be carried out after the fault is eliminated.

3. After starting the mobile container grain unloader, do not rush to work, wait until everything is normal before proceeding.

4. During the working process of the mobile container grain unloader, the operator shall not leave the scene.

5. When the mobile container grain unloader is not used for a long time, it should be cleaned and placed in a ventilated and dry place.

6. The mobile container grain unloader should replace the grease of each bearing after working for 1000 hours.

7. Keep the mobile container grain unloader clean during use, and regularly check whether there are any abnormalities such as wear, tear, crack, and bending. If it is found to be abnormal, it should be replaced or repaired;

8. The container double-chain scraper grain unloader shall be checked once a quarter and overhaul once a year during use;
