Mobile Wing Wheel Grain Scraper

Mobile Wing Wheel Grain Scraper

Introduction of Mobile Wing Wheel Grain Scraper for sale:40-80 tons/h

This Mobile Wing Wheel Grain Scraper is a mature product of china grain storage equipment manufacturer HuaZhong Machinery,which has been tested by market and received wide acclaim from customers.

Production volume per hour of Mobile Wing Wheel Grain Scraper for sale:

Main application of Mobile Wing Wheel Grain Scraper for sale:

The Mobile Wing Wheel Grain Scraper has the functions of picking and loading grain, conveying, filling, electric walking, etc. It is a kind of grain handing equipment for grabbing bulk grain, suitable for large and medium grain depots, small grain stations and grain processing plants  to pick up grain for filling operation, or use it with other conveying machinery to form a conveying assembly line operation. The grain scraper can conveniently, flexibly and automatically transport the grain to the follow-up equipment to achieve the purpose of conveying and filling the bulk grain out of the warehouse and the open field. This Mobile Wing Wheel Grain Scraper integrates bulk grain entering, exiting, handing, and filling into a whole, and can be combined with other grain machinery to form an assembly line operation. Compared with other type of grain scraper, the Mobile Wing Wheel Grain Scraper has less damage to the rice and is more suitable for grain picking and grain loading.

The Mobile Wing Wheel Grain Scraper also can be understood as one type of grain loading equipment or a grain bag unloader.

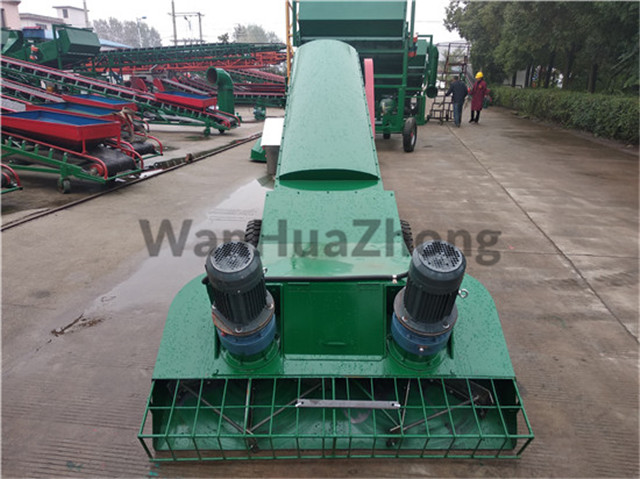

Front view of mobile wing wheel grain scraper

Customized Grain wing-wheel scraper

1,The rotary discharge pipe of the Mobile Wing Wheel Grain Scraper expands the conveying range and reduces the number of subsequent equipment movements.

2,Diesel engines can be used as a power source for operations far away from the power source.

3,The Mobile Wing Wheel Grain Scraper adopts a non-pumping rubber traveling wheel, which is resistant to wear and has a long service life.

4,The equipment welding of the Mobile Wing Wheel Grain Scraper adopts a combination of CNC machine tools, welding robots and professional welders to ensure the quality of welding.

5,The wing wheel is composed of two sets of fan blade-type collecting devices, which are equipped with a wear-resistant structure to extend the service life.

6,The walking part of the Mobile Wing Wheel Grain Scraper is composed of a walking wheel drive motor and a chain, and its function is to move the grain scraper.

1，The electrical control box of the Mobile Wing Wheel Grain Scraper is a device that can accommodate electrical components such as the motor start switch.On the box panel, there are buttons, indicator lights and power switch operation handles necessary to control the start and stop of the conveyor and other operations.The electrical control box adopts a double-layer steel door sealed structure, which can effectively waterproof and dustproof. The external cable of the control box adopts a special waterproof and dustproof power supply quick connector. It is equipped with anti-overload and anti-phase protection devices for easy maintenance. Reduce electrical maintenance work.

2，The box body of the Mobile Wing Wheel Grain Scraper is welded with stainless steel plates, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the explosion-proof grade reaches DIP A21.

3，There is enough space in the electrical control box of the Mobile Wing Wheel Grain Scraper for loading, unloading and maintenance of electrical components. The electrical control box has good stability when working under vibration and impact load conditions.

4,  The box of the Mobile Wing Wheel Grain Scraper is equipped with a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.

5,  All electrical protection grades of the Mobile Wing Wheel Grain Scraperare T4, IP54, and the insulation grade is F.

6,  All electrical components supporting the electrical control box of the Mobile Wing Wheel Grain Scraper are made of domestic first-line brands such as Delixi products, and all wiring phase sequences are consistent.

7, The air circuit breaker of the Mobile Wing Wheel Grain Scraper meets the operating requirements of AC3 load nature, and the load nature of the contactor is not less than AC3. The thermal relay can withstand the vibration of the contactor of the equipment and the conveyor equipment during normal operation.

Back view of Mobile Wing Wheel Grain Scraper

1. Before using the Mobile Wing Wheel Grain Scraper, check whether the fasteners of each part are firm, and if they are loose, tighten them.

2. After starting the Mobile Wing Wheel Grain Scraper, do not rush to work, wait until everything is normal before proceeding.

3. When the Mobile Wing Wheel Grain Scraper is not used for a long time, it should be cleaned and placed in a ventilated and dry place.

4. During the working process of the Mobile Wing Wheel Grain Scraper, the operator shall not leave the scene.

5. If there is an abnormality during the work, the inspection of the Mobile Wing Wheel Grain Scraper should be stopped immediately and the operation can be carried out after the fault is eliminated.

6. The Mobile Wing Wheel Grain Scraper should replace the grease of each bearing after working for 1000 hours.

7. If it is necessary to fill the bags, a material dispensing device is installed below the top of part of the conveyor to fill the bags.
