Grain Stacking operations

In the daily grain storage operation, it is usually necessary to transfer bulk grain from the grain vehicle to the granary, and this column provides a solution for this demand scenario:

Bulk Grain Transportation: transport bulk grain from grain vehicle to granary

[Scope of aplication]: transport the bulk grain from grain vehicle to granary

[Transportation Ability]: Transportation capacity is mainly dependent on (unloading equipment) and (cleaning equipment) to determine

[Equipment handling capacity and device selection]:

Equipment processing capacity per hour:

1, Mobile automobile bulk grain side unloader : 30-60 t/h

2, Bulk grain unloading belt conveyor: 50-200 t/h

3. Moblie packaged and bulk grain belt conveyor : 50-200 t/h

4, Steering telescopic loading belt conveyor: 50-200 t/h

Selection method: If the grain car is self-discharged, there is no need to choose a Mobile automobile bulk grain side unloader, if the grain car is a routine truck, don't have unloading the grain port, then you need to choose a Mobile automobile bulk grain side unloader to unload the grain to the Bulk grain unloading belt conveyor.

Cleaning equipment: Mobile cleaning vibrating screen(primary cleaning), Environmental protection cylinder vibration cleaning screen(cylinder screen, vibrating screen, pulse dust removal 3 in one), Specific gravity cleaning screen separator (fine cleaning sieve).

Cleaning capacity of cleaning equipment per hour:

1.Mobile cleaning vibrating screen: 80-100 t/h.

2, Environmental protection cylinder vibration cleaning screen (cylinder screen, vibrating screen, pulse dust 3 in one): 50-80 t/h.

3, Specific gravity cleaning screen separator: 20-50 t/h.

According to the customer's requirements for effects and volume of grain cleaning , you can choose the following equipment:

1, If you have higher requirements for the amount of grain cleaning, you can choose a Mobile cleaning vibrating screen, which can clean 80-100 tons of grain per hour.

2. If you want to save the number of equipment and have a better grain cleaning effect, we strongly recommend the company’s main star product: Environmental protection cylinder vibration cleaning screen . This equipment combines cylindrical screen, vibrating screen, and pulse dust removal functions in one. The actual grain cleaning effect has been verified to be very good, and it can process 50-80 tons of grain per hour.

3. If you need to finely clean the grain, you can choose the Specific gravity cleaning screen separator provided by our company, which can process 20-50 tons of grain per hour.Contact HuaZhong expert for more details！

Scenario 1: The grain truck has no self-unloading function (grain unloading equipment is required in the conveying line)

1. Transport 20-50 tons of bulk grain per hour

In the conveying line, the unloading and cleaning equipment is used: Mobile automobile bulk grain side unloader,Bulk grain unloading belt conveyor,Specific gravity cleaning screen separator.

2. Transport 50-80 tons of bulk grain per hour

In the conveying process, unloading and cleaning the device can be selected: Mobile automobile bulk grain side unloader, Bulk grain unloading belt conveyor, Environmental protection cylinder vibration cleaning screen.

3. Transport 80-100 tons of bulk grain per hour

In the conveying process,unloading and cleaning the device can be selected: Mobile automobile bulk grain side unloader,Bulk grain unloading belt conveyor,Mobile cleaning vibrating screen.

Working process:(In the case that the grain truck has no self-unloading device)

First, the grain is picked up by the Mobile automobile bulk grain side unloader,and fall down to the Bulk grain unloading belt conveyor and then transported to the cleaning equipment by the Moblie packaged and bulk grain belt conveyor , and then the grain is transported by the Moblie packaged and bulk grain belt conveyor to transport to the Steering telescopic loading belt conveyor, and the grain is piled in the target area through it.

Scenario 2: The grain truck has self-unloading function (grain unloading equipment is not required in the conveying line)

1. Transport 20-50 tons of bulk grain per hour

In the conveying line, the unloading and cleaning equipment is used: Bulk grain unloading belt conveyor,Specific gravity cleaning screen separator.

2. Transport 50-80 tons of bulk grain per hour

In the conveying process, unloading and cleaning the device can be selected: Bulk grain unloading belt conveyor, Environmental protection cylinder vibration cleaning screen.

3. Transport 80-100 tons of bulk grain per hour

In the conveying process,unloading and cleaning the device can be selected: Bulk grain unloading belt conveyor,Mobile cleaning vibrating screen.

Working process:(In the case that the grain truck has self-unloading device)

Grain falls from the grain truck to the Bulk grain unloading belt conveyor, and then transported to the cleaning device by the Moblie packaged and bulk grain belt conveyor , then transferring the grain to the Steering telescopic loading belt conveyor. and finally through it to transport the grain to the target area.Contact HuaZhong expert for more details！

→

Mobile packaged and bulk grain belt conveyor

This mobile packaged and bulk grain belt conveyor for sale is a mature grain storage product of china anhui HuaZhong Machinery Supporting Engineering Co., Ltd ,which is the professional grain storage machinery manufacturer。This belt conveyor is actually used for the transportation, loading and unloading, palletizing, hoarding, warehouse storage and other warehouse operations of bulk and packaged grain or other small granular materials. It can be used in series or matched with other storage machines. Equipped with lifting device, can carry out operations at different heights. Product appearance, color and performance can be customized, appearance and performance are subject to actual shipment.

→

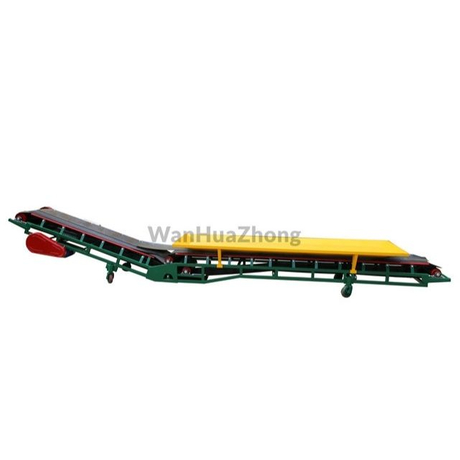

Bulk grain unloading belt conveyor

The bulk grain unloading belt conveyor for sale is mainly used to complete the unloading and warehousing tasks in conjunction with the conveyor. The low chassis and large receiving hopper can meet the needs of the unloading height of self-unloading or van-type bulk grain transport vehicles, which can quickly unload grain and improve work efficiency. It is an ideal unloading and warehousing machinery. Product appearance, color and performance can be customized.

→

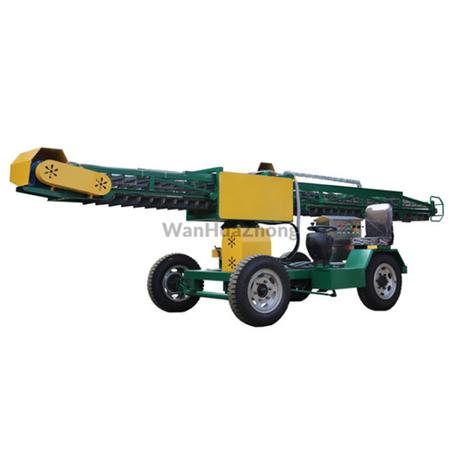

Mobile automobile bulk grain side unloader

The mobile automobile bulk grain side unloader for sale is a new type of bulk material unloading equipment designed and developed by china grain storage equipment manufacturer Huazhong Machinery in order to meet the needs of lateral unloading of different transportation vehicles. The equipment is mainly composed of three parts, a walking chassis, a lifting and rotating column, a scraper unloading and a material section. The machine is flexible and convenient to move, can automatically lift, rotate, and retract, and can achieve grain unloading operations in different orientations and angles; greatly reduce labor intensity, improve grain unloading efficiency, and save economic costs.Product appearance, color and performance can be customized.

→

Air sieve specific gravity grain separator

This air sieve specific gravity grain separator for sale is a new type grain cleaner product of china grain storage equipment manufacturer Huazhong Machinery, This series of products integrates ultra-low speed non-crushing elevator, vertical air screen, cyclone dust removal system, and large-area specific gravity platform, which can remove dust, bran husks, abortive seeds, sprouts, moth-eaten grain, mildew grain, straw, large and small impurities.Product appearance, color and performance can be customized.

→

Mobile cleaning vibrating screen

This mobile cleaning vibrating screen(can also be called mobile cleaning vibrating sieve) for sale is suitable for processing grain, which can reduce the warehouse entry time and reduce labor intensity. The grain enters the vibrating screen from the feed hopper. The vibrating screen is a double-layer screen. The large and small impurities in the grain are separately sorted and cleaned. The primary cleaned grain is then cleaned by the wind separator to remove light impurities and dust.This product is suitable for cleaning operations when the cleaning requirements of grains are high. The cleaning effect is better, the design is advanced and reasonable, and the movement is flexible and convenient. Product appearance, color and performance can be customized, appearance and performance are subject to actual shipment.

→

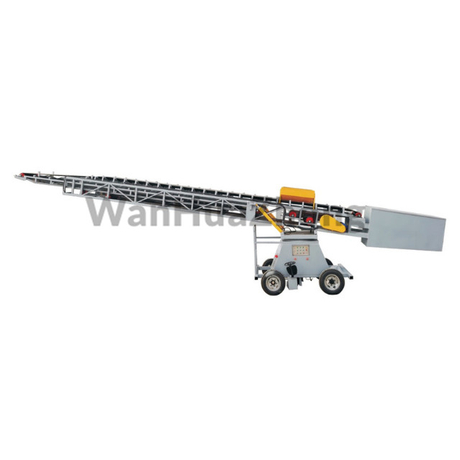

Steering telescopic loading belt conveyor

This steering telescopic loading belt conveyor for sale is a mature grain storage product of grain storage equipment manufacturer HuaZhong Machine Supporting Engineering Co., Ltd ,which is the professional grain storage machinery manufacturer,verified by the market and consumers。 This belt conveyor is suitable for the transportation of bulk grain or other small particles. It can be used in the warehouse or used in the open air. It can be used in series or combined with other storage machinery. It is more suitable for bulk grain loading at the dock.Product appearance, color and performance can be customized.

→

Environmental protection single cleaning vibrating screen

The environmental protection single cleaning vibrating screen provided by china grain storage equipment manufacturer Huazhong Machinery is a new grain cleaning machine used to remove large and small impurities in the grain. When using it, different sieve plates can be replaced according to the size of the grain particles, which can treat different grains such as rice, wheat, corn, Soybeans, sesame seeds, rapeseeds, etc. to achieve the effect of preliminary cleaning. This environmental protection vibrating screen is sturdy and durable, and can be operated in the open air under different climates and environments; under full load, it can continuously, stably and reliably remove impurities in the grain. Product appearance, color and performance can be customized.

→

Environmental protection cylindrical grain cleaner

This environmental protection cylindrical grain cleaner for sale is a new type environmentally friendly grain cleaning machine of china grain storage equipment manufacturer Huazhong Machinery, This machine adds the pulse dust removal and impurity removal system to the original foundation of the cylinder cleaning sieve, eliminating the original cyclone separator. The grain enters the cylindrical sieve from the feeding port, and the grain flows from the lower pipe of the storage hopper into the inner sieve.Product appearance, color and performance can be customized.

Highlight of equipment :

一, Steering telescopic loading belt conveyor

Performance features:

(1) The conveyor has a high conveying height, and there is a large coverage (90 ° left and right), and the degree of automation is high.

(2) The conveyor is raised by a hydraulic device, which has the characteristics of automatic lifting, smooth and convenient operation.

(3) The conveyor turns flexibly, and the operation is light and convenient, and there is a manual rotation and automatic rotation.

(4) The conveyor is equipped with an electric walking device as needed, and has a moderate walking speed, and the walking is flexible.

(5) Can configure the grain throwing machine on the front of the conveyor to further improve the delivery distance and height of the grain.

二, Specific gravity cleaning screen separator

Performance features:

1. Used for processing seeds, product grain, miscellaneous grains, beans, can replace the Specific gravity cleaning screen separator, greatly improve the grid power of the specific gravity separator, reduce its load capacity of the gravity, and improve the output;

2, Can be used for processing wheat, rice, corn, soy, sorghum and other commodities, volume of production up to 20-30 tons per hour, and can remove more than 98% of the seeds, buds, insects, mold particles, black Light impurities such as powder diseases;

3,Process of winnowing, gravity separation, filtering and classification can be once completed, reduced labor cost , saving energy ;

4, Maintenance-free vertical air sieve structure, equipped with a cyclone dust collector, the work process is clean and environmentally friendly, no large amount of dust leakage;

5,The way to add materials can be selected like the hoist, the auger conveyors, and belt conveyor to complete, flexible and convenient;

Equipment parameter
Product name	Model	Amount	Power (KW/unit)	Processing capacity
Bulk grain unloading belt conveyor	HZX	1	5.5	50-120T/H
Moblie packaged and bulk grain belt conveyor	HZD	2	6-14	50-200T/H
Mobile cleaning vibrating screen	HZ2.2*2.4	1	15.2	80-100T/H
Steering telescopic loading belt conveyor	HZSZZ	1	13.7-23.7	50-200T/H
Mobile multi-function grain loading scraper	HZ550，HZ650，HZ800	1	10.25	30-100T/H
Mobile cylinder grain cleaning screen	HZ-2000	1	9	50-80T/H
Mobile telescopic belt conveyor	HZDS	1	9-17	50-200T/H
Environmental protection cylinder vibration cleaning screen	HZCZ	1	24.9	50-80T/H
Specific gravity cleaning screen separator	HZBZ	1	14.69-22.75	20-50T/H
