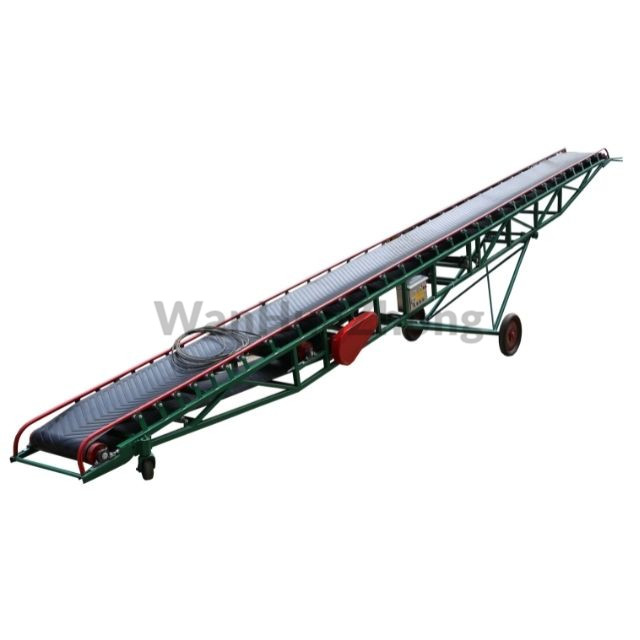

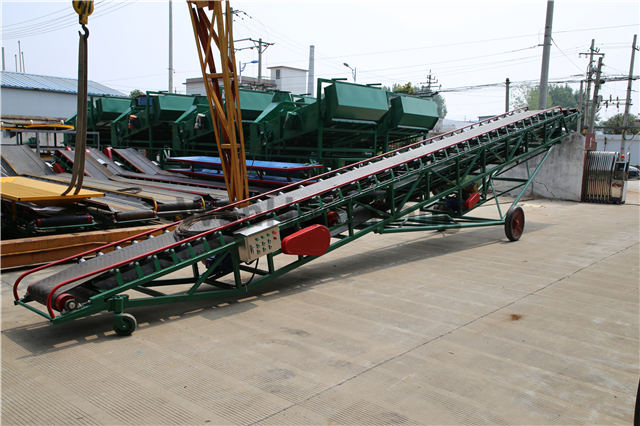

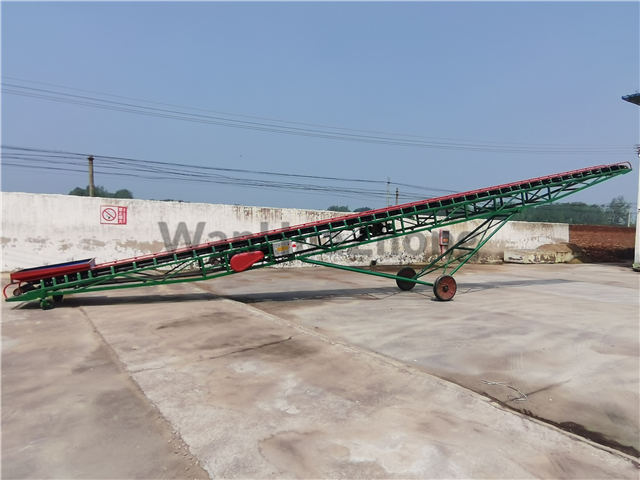

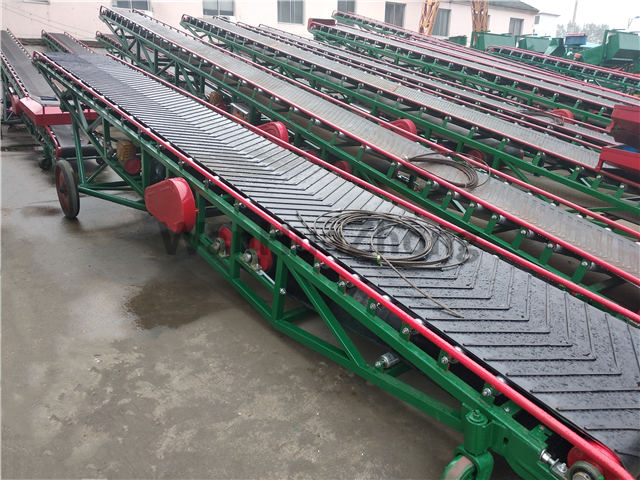

Mobile packaged and bulk grain belt conveyor

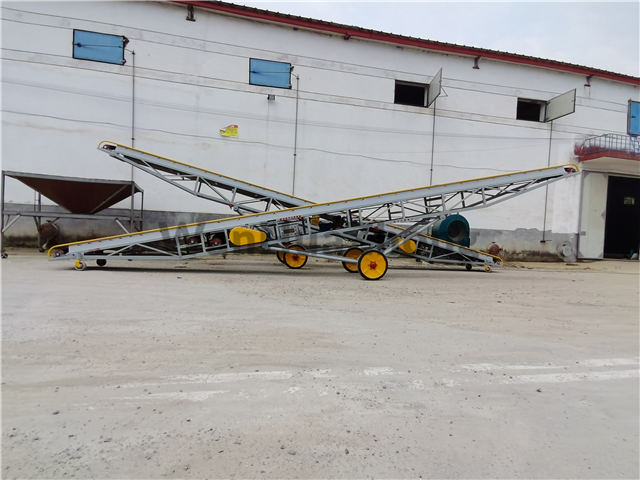

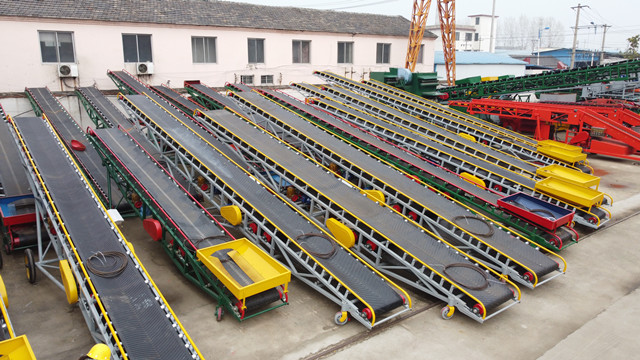

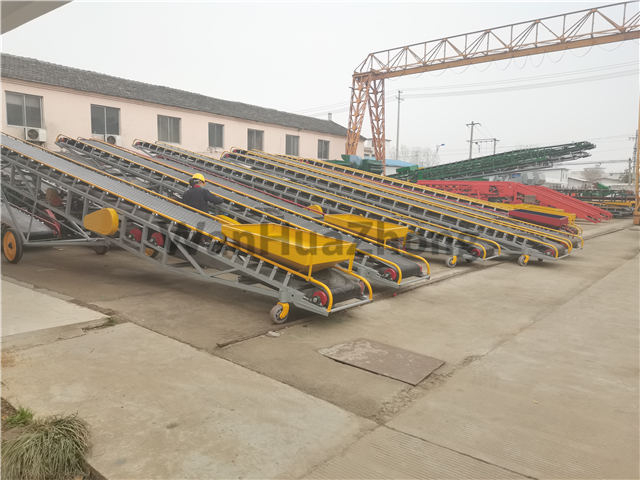

Mobile packaged and bulk grain belt conveyor in factory

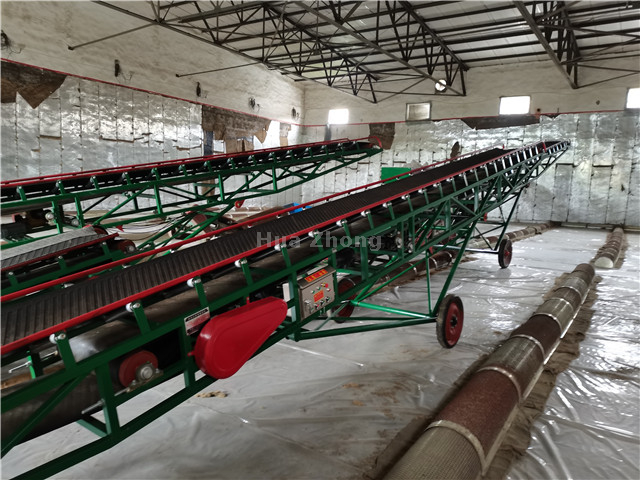

Mobile packaged and bulk grain belt conveyor in grain warehouse

Mobile packaged and bulk grain belt conveyor for sale

Mobile packaged and bulk grain belt conveyor for sale in granary

Introduction of mobile packaged and bulk grain belt conveyor for sale:

This mobile packaged and bulk grain belt conveyor for sale is a mature grain storage product of china anhui HuaZhong Machinery Supporting Engineering Co., Ltd ,which is the  professional grain storage machinery manufacturer。We welcome new and old friends from all walks of life to buy and quote grain storage machinery equipment.

Transporting volume per hour: 50-200 T/H,1200 pack packaged small particles material

Main application of mobile packaged and bulk grain belt conveyor for sale:

This mobile packaged and bulk grain belt conveyor is actually used for the transportation, loading and unloading, palletizing, hoarding, warehouse storage and other warehouse operations of bulk and packaged grain or other small granular materials. It can be used in series or matched with other storage machines. Equipped with lifting device, can carry out operations at different heights.

Product features

（1）The mobile packaged and bulk grain belt conveyor has a worm gear reducer lifting device. The structure is simple and the lifting is safe. It can stop the operation at any height within the conveying height range, and has the characteristics of automatic lifting.

worm gear reducer lifting device

  (2)  Conveyor belts widths can be selected according to the customer's demand for the conveying capacity. Common conveyor belts are 550mm, 650mm, 800mm. It can be customized according to user needs.

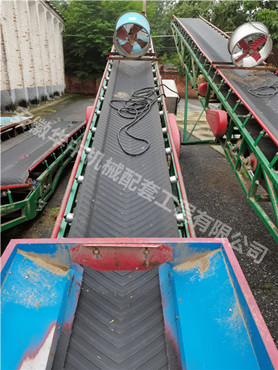

550mm belt conveyor

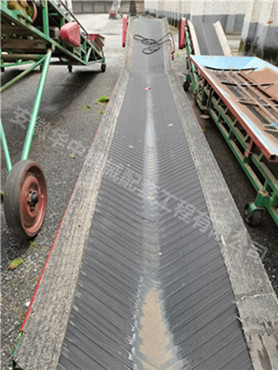

650mm belt conveyor

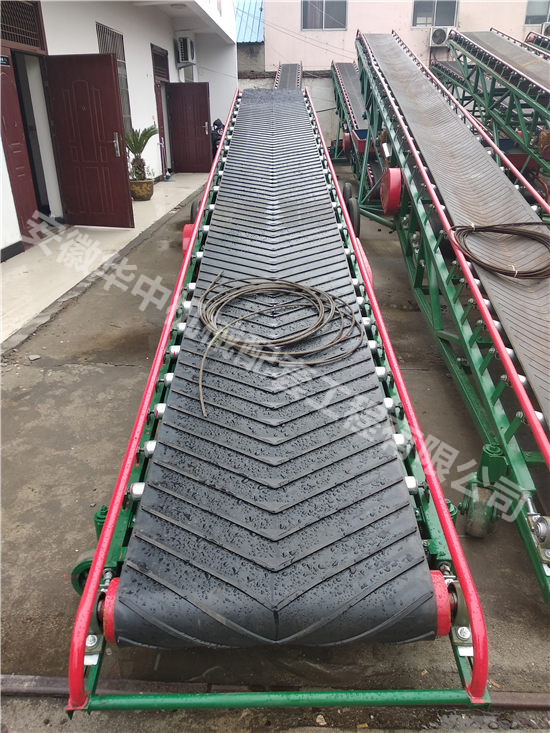

800mm belt conveyor

 (3) The mobile packaged and bulk grain belt conveyor is suitable for the transportation of various grains or other bulk materials such as wheat, corn, rice, soybeans, etc.; through changing the form of the upper roller, it can take into account the different requirements of bulk grain and packaged grain transportation, and improve the utilization rate of the equipment , and realize multiple functions performance. (When ordering equipment, customers need to decide the style of the upper roller according to their own needs for transporting bulk grains or package grains)

Flat Roller Conveyor-Special Conveyor for Conveying Package Materials

（4） Side guides are installed on the two sides above the rack to prevent the package from falling or tearing the package during transportation.

Side guides

（5）The three sides below the feeding hopper of the conveyor equipment are equipped with soft plates, so that the hopper and the conveyor belt are seamlessly connected to prevent the grain from leaking during the conveying process.

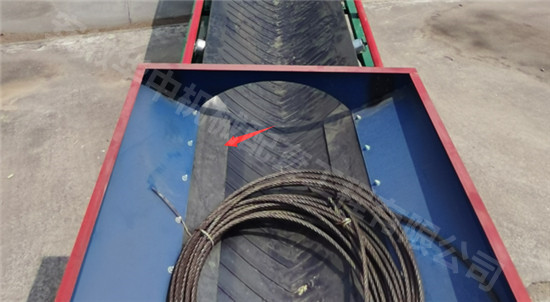

Soft plates

（6）The large and small walking wheels of the mobile packaged and bulk grain belt conveyor are all made of air-free tires, which are durable and wear-resistant, and extend the service life of the tires. The large and small walking wheels are equipped with bearings, and the small walkling wheels use universal wheels, which have the steering function to ensure that the machine can move lightly and flexibly.

walking wheels of the conveyor

（7）The frame of the conveyor adopts welded truss structure, and the steel is selected from high-strength alloy steel, which has ultra-high strength and good rigidity, and its performance and quality are guaranteed.

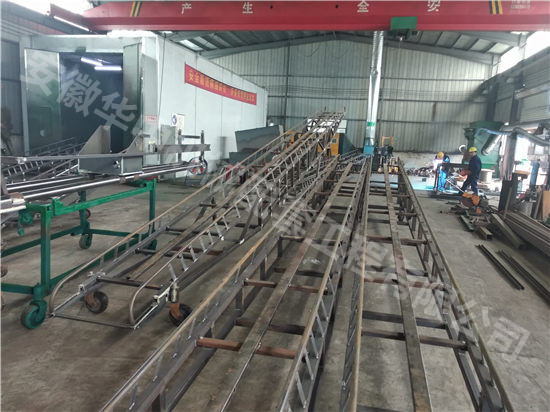

 frame of the belt conveyor

（8）The conveyor equipment uses a combination of CNC machine tools, welding robots and professional welders for welding operations to ensure welding quality.

（9）The conveyor belt generally adopts green environmental protection polyester herringbone endless conveyor belt with 4 layers of fabric. Covering layer thickness: upper 3mm and lower 1.5mm (It can be customized according to customer requirements).

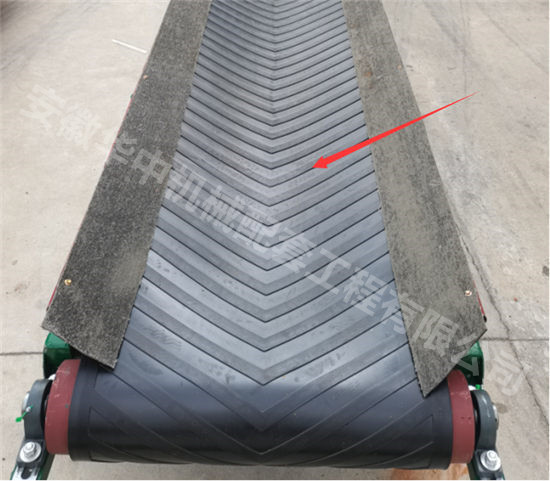

conveyor belt

  (10) The rollers of the mobile packaged and bulk grain belt conveyor adopt high-strength galvanized rollers, with guaranteed quality and long service life.

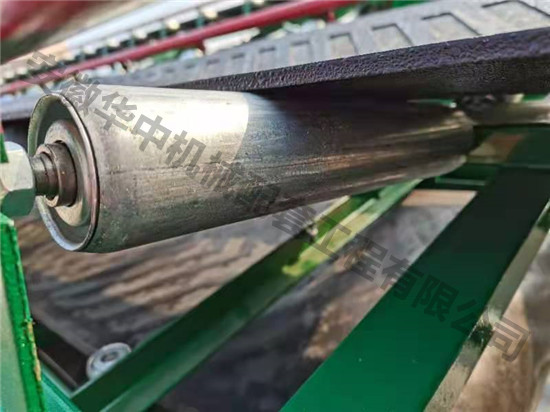

 rollers of the conveyor equipment

  (11) According to customer needs, the accessories used in the mobile belt conveyor can be customized. The roller can choose whether to use rubber-coated roller or electric roller; the motor can use domestic and foreign first-line brands, such as Mengniu motor, Taihu motor, Siemens motor, etc.; the bearing can use Luoyang bearing, Harbin bearing, SKF bearing, etc.; reducer can use Guomao reducer ; electrical appliances can be Delixi Electric, Chint Electric, Siemens Electric, etc.

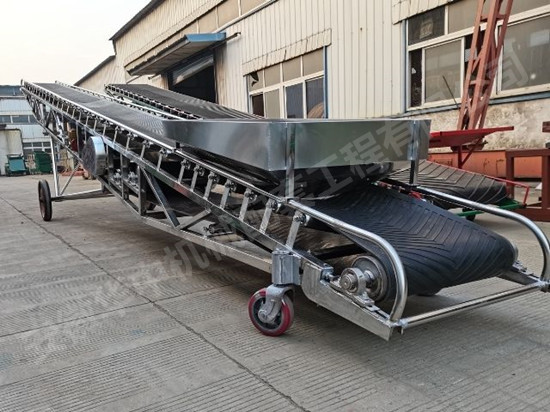

Customized stainless steel  belt conveyor

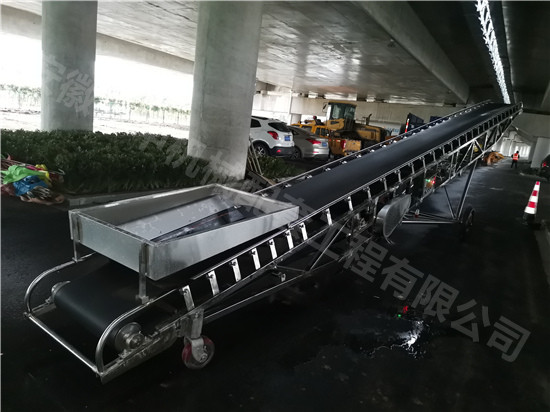

Customized stainless steel belt conveyor in project

Belt conveyor appearance, color and performance can be customized，Customers can contact us to order products that meet your needs。

The mobile packaged and bulk grain belt conveyor is mainly composed of fixed frame, roller, idler, motor, reducer, bridge shaft, walking wheel, universal wheel, fixed bracket, movable bracket and power distribution box.

1. Frame of mobile packaged and bulk grain belt conveyor for sale

The upper and lower parts of the frame of the conveyor equipment are welded by hollow square steel as a whole to become the main body of the conveyor. The hollow square steel pipes on both sides of the lower part of the frame play the role of guide rails. When lifting, the roller on the driven shaft of the front foot lifts and rolls along the guide rail.

2. Transmission part

After starting the motor of the mobile packaged and bulk grain belt conveyor, the motor pulley drives the pulley at one end of the bridge shaft to rotate the bridge shaft; the pulley at the other end of the bridge shaft drives the pulley on the main drive roller shaft to rotate the main drive roller , drive the conveyor belt to run.

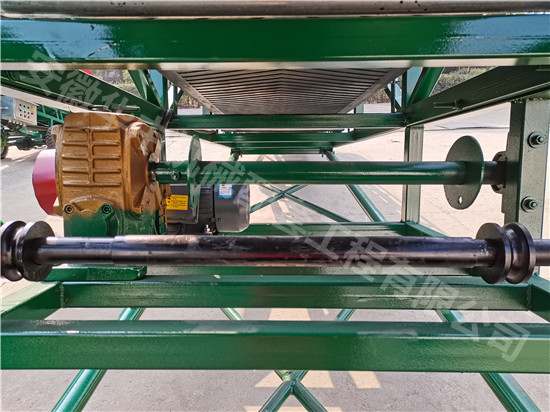

Transmission part of the belt conveyor

3. Roller and pulley

There are a total of four rollers of the mobile packaged and bulk grain belt conveyor. One main drive roller is installed in the middle of the frame; three reversing rollers:one are installed at the middle of the frame, one at the head and one at the tail. The rollers are all made of steel.

Ordinary pulley of conveyor

Coating Pulleys of the mobile packaged and bulk grain belt conveyor

The customer can choose a coating pulley as a main drive roller, increasing the friction between the main drive roller and the conveyor belt, and improve driving capabilities.

There are two kinds of rollers: upper roller and lower roller. Both ends are equipped with bearings, which can rotate flexibly. The upper rollers are mounted on the frame and double rows in a "V" shape. Their function is to withstand the positive pressure and tangential bottom rubbing force of the grain passing through the conveyor belt, and guide the conveyor belt. The lower rollers are installed in the frame and arranged in parallel, and their functions are to support the return conveyor belt and guide the conveyor belt.

Upper roller of mobile packaged and bulk grain belt conveyor

4.Tensioning device

The reversing rollers, head and tail rollers are installed at the bearing seat, equipped with a tensioning device, which is used to tighten the conveyor belt and correct the deviation of the conveyor belt.

5.The walking mechanism

The large walking wheel of the mobile packaged and bulk grain belt conveyor is made of castings, and the outer ring has solid rubber tires. It is connected with the lower ends of the front feet and the rear feet to serve as the support and movement of the machine.

The small walking wheel (universal wheel) of the mobile packaged and bulk grain belt conveyor adopts solid rubber tires, which are fixed on both sides of the rear of the frame, as the support of the machine and change direction when moving.

6. The electrical distribution box

The electrical distribution box of the mobile packaged and bulk grain belt conveyor is equipped with a switch device that controls the operation of the motor, which is used to control the operation, lifting, and expansion of the conveyor.

7. walking wheel

The large walking wheel is made of castings with solid rubber tires on the outer ring. It is connected to the lower end of the front and rear feet as a support and movement of the machine.

Small walking wheels (universal wheels) have solid rubber tires on the outer ring, which are fixed on both sides of the rear of the frame, as the machine supports and changes direction when moving.

8. Steering grain thrower （Can choose to install）

The steering grain thrower is composed of a frame, a runway, a running frame and a running wheel. The rotating body, a rotating motor and a grain throwing motor are installed below the runway. Drive the rotating body through the chain, and drive roller, reversing roller and pressure roller are installed under the grain throwing frame. The power is driven by the motor through the pulley and the transmission V-belt to drive the pulley on the driving roller, so that the endless conveyor belt runs at high speed, and the multi-angle grain throwing operation is carried out.

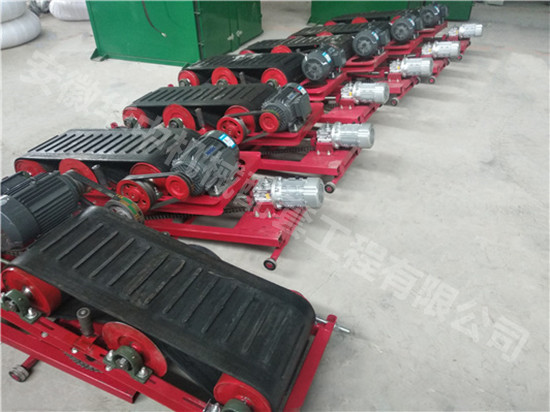

Steering grain thrower

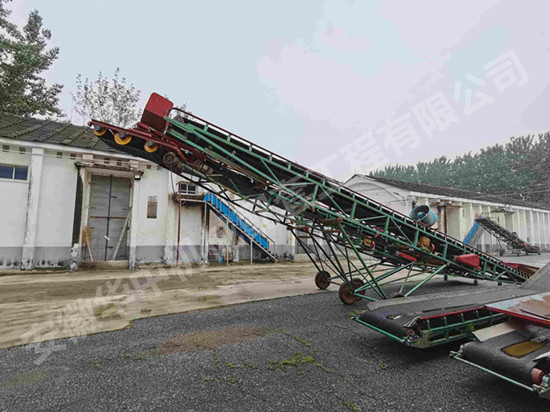

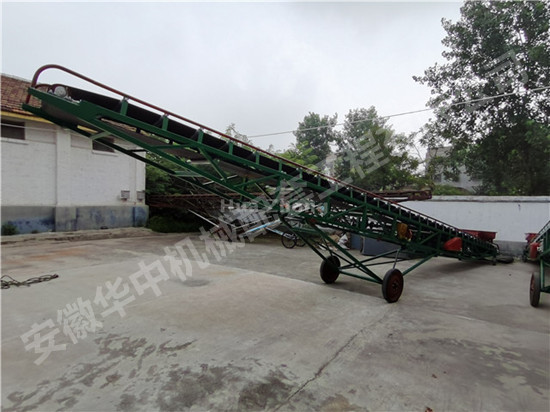

Mobile packaged and bulk grain belt conveyor in local grain depot

1. The surface of the steel components of the mobile packaged and bulk grain belt conveyor is shot blasted, and the steel surface is free of visible grease, dirt, oxide scale, iron, zinc, and paint coatings. Any remaining traces are only points. Slight stains like striated or streaks.

2. The primer of mobile packaged and bulk grain belt conveyor adopts brushing process, and the top coat adopts spraying process.

3. The coating of primer and middle layer of mobile packaged and bulk grain belt conveyor are free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.

4. The primer of mobile packaged and bulk grain belt conveyor adopts iron oxide zinc chromium primer, and the thickness of the dry paint film is greater than 40µm.

5.The top paint of the mobile packaged and bulk grain belt conveyor adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.

1. When using, first raise the mobile packaged and bulk grain belt conveyor to the required height to stabilize the equipment;

2. The conveyor equipment is not allowed to be started under load, and can be fed after 3-5 minutes of normal operation after starting;

3. Before stopping the conveyor equipment, first stop feeding. After the material on the conveyor belt is transported, turn off the motor and cut off the power supply;

4. When the rollers of the mobile packaged and bulk grain belt conveyor are not rotating flexibly, they should be replaced and repaired in time;

5. The materials conveyed by the mobile packaged and bulk grain belt conveyor are not allowed to contain acids, alkalis, oils and various organic solvents;

6. Mobile packaged and bulk grain belt conveyor should be kept clean during use, and regularly checked for abnormalities such as wear, tear, cracks, and bending. If abnormalities are found, they should be replaced or repaired;

7. Mobile packaged and bulk grain belt conveyor regularly (every 6 months) add grease or lubricating oil to the lubricated parts;

8. It is strictly forbidden to stand underneath the conveyor equipment when it is lifting and in working condition;

9. The operation of the Mobile packaged and bulk grain belt conveyor should be checked frequently, and abnormalities should be found, and the fault should be stopped and eliminated;

10.When transporting packaging, just unload the hopper, but the packaging must be placed in the center of the conveyor belt to maintain a balanced operation;

11. When Mobile packaged and bulk grain belt conveyor is not used, the conveyor equipment should be placed in a ventilated and dry place;

12. Mobile packaged and bulk grain belt conveyor should be repaired every quarter and overhaul once a year.
