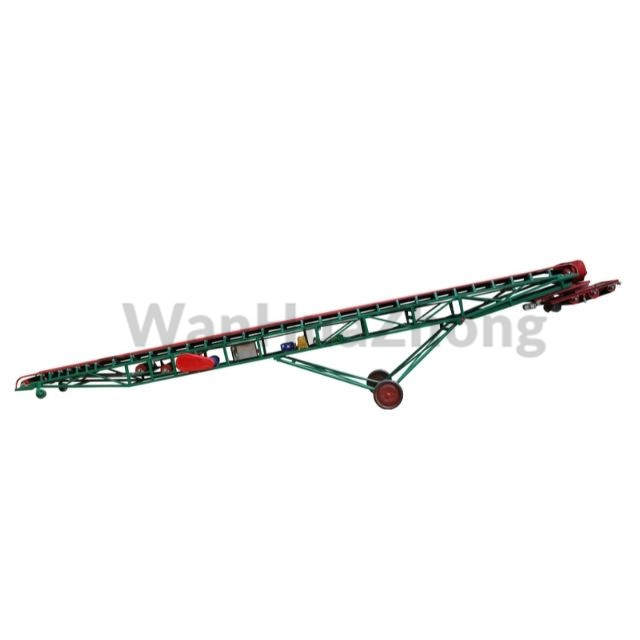

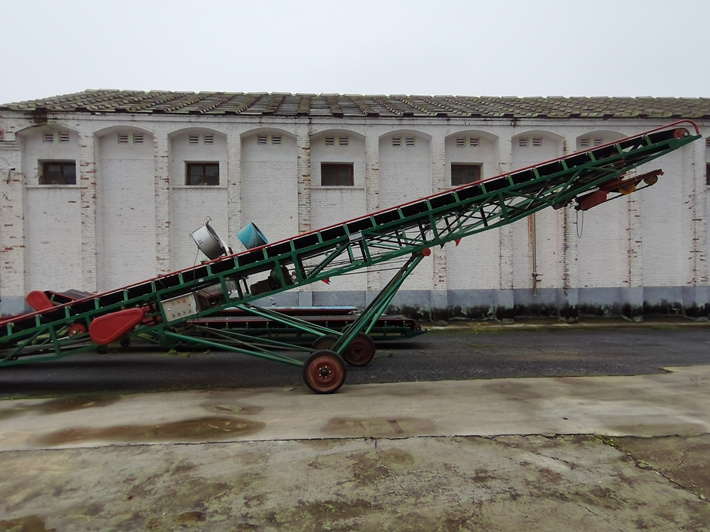

Mobile steering grain throwing belt conveyor

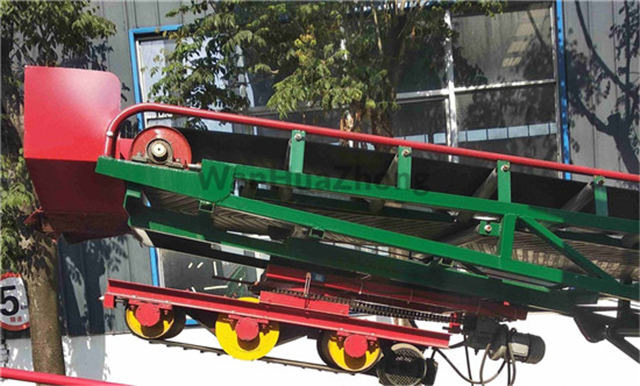

Steering grain throwing machine

Steering grain throwing belt conveyor in grain depot

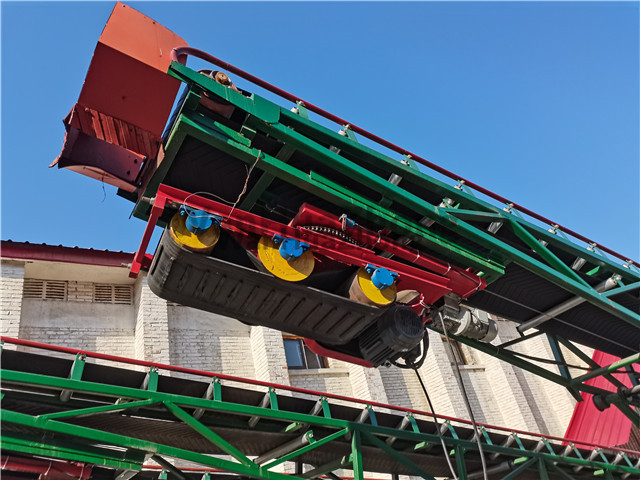

Mobile steering grain throwing belt conveyor for sale

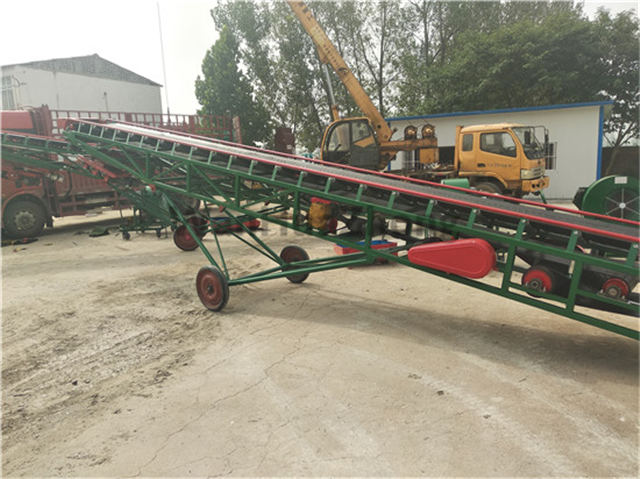

Steering grain throwing belt conveyor in the grain warehouse

Introduction of mobile steering grain throwing belt conveyor:

This mobile steering grain throwing belt conveyor for sale is mature product of china grain storage equipment manufacturer Huazhong Machinery ,the technology is mature and has been verified by the market.

Main application of steering grain throwing belt conveyor:

This product is practically used for the transportation, loading and unloading, palletizing, hoarding, transshipment and other warehouse operations of bulk and packaged grains or other small particle materials. It can be used in storage and open air. It can be used in series or in conjunction with other storage machinery. Equipped with a lifting device, which can carry out operations of different heights.

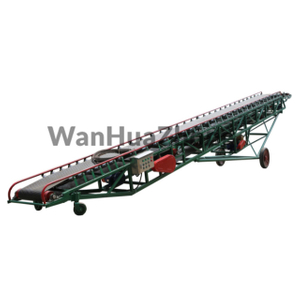

Processing volume of mobile telescopic belt conveyor:

50-200 tons / hour,1200 packs / hour， if the grain throwing function is used, this product can transport 50 tons per hour.

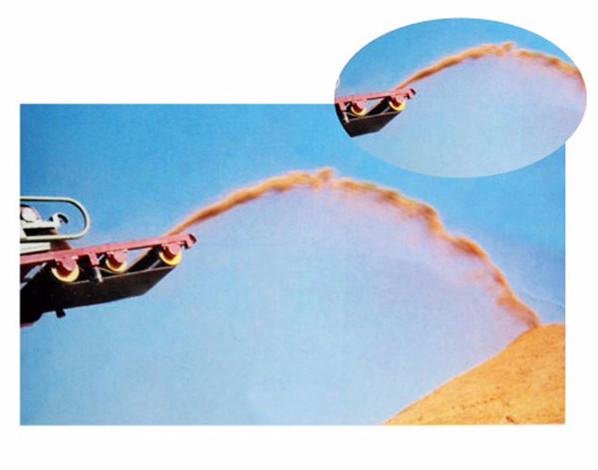

Steering grain throwing machine

Grain throwing machine

Mobile steering grain throwing belt conveyor in use

Mobile telescopic belt conveyor performance:

(1)  Mobile telescopic belt conveyor has a worm gear reducer, the device structure is  safe to lift, can stay at any height of the delivery height, with an automatic elevation; According to the conveyor length, The maximum height is 8 meters and the lowest height is 1.5 meters.

 (2)   The mobile telescopic mobile belt conveyor can make telescopic movement in the front-rear direction through the motor speed reducer mechanism, up to 22 meters, minimum to 9 meters.

(3)   According to the customer's demand for the delivery volume of the mobile telescopic belt conveyor, the conveyor belt of different bandwidth can be selected; And the common conveyor bandwidth is 550 mm, 650 mm, 800mm, and 1000 mm, 1200 mm, and can be customized according to the user's needs.

(4)  The belt conveyor equipment is suitable for transportation of various grain or other bulk materials such as wheat, corn, rice, soybeans; through changing the form of the upper roller, It can take into account the different requirements of bulk grain and packaging grain transporting, improve the utilization rate of equipment, and realize a multi-purpose performance.(The customer needs to determine the style of the upper roller according to the need to transport bulk and packaged grain in ordering equipment.)

(5)  At both sides of the rack of the mobile telescopic belt conveyor, the secondary guide is installed separately.The purpose is to prevent packaged grain from falling during transportation, or packaged grain out of the package.

(6) The three sides below the feeding hopper of the conveyor equipment are equipped with soft plates, so that the hopper and the conveyor belt are seamlessly connected to prevent the grain from leaking during the conveying process.

(7)  The large and small walking wheels of the climbing telescopic mobile belt conveyor are all made of air-free tires, which are durable and wear-resistant, and extend the service life of the tires. The large and small traveling wheels are equipped with bearings, and the small traveling wheels use universal wheels, which have the steering function to ensure that the machine can move lightly and flexibly.

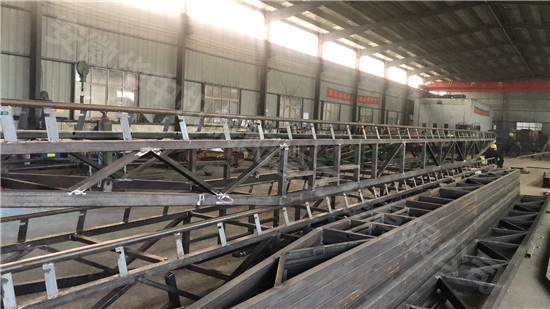

(8)  The frame of the ascending telescopic mobile belt conveyor adopts a welded truss structure, and the steel is selected from high-strength alloy steel, which has ultra-high strength and good rigidity, and its performance and quality are guaranteed.

(9)  The conveyor equipment uses a combination of CNC machine tools, welding robots and professional welders for welding operations to ensure welding quality.

(10)  The conveyor belt of this conveyor equipment generally adopts green environmental protection polyester herringbone endless conveyor belt with 4 layers of fabric. Covering layer thickness: upper 3mm and lower 1.5mm (can be customized according to customer requirements).

(11) The rollers of the conveyor equipment adopt high-strength galvanized rollers, with guaranteed quality and long service life.

(12)  According to customer needs, the accessories used in this climbing telescopic mobile belt conveyor can be customized. The roller can choose whether to use rubber-coated roller or electric roller; the motor can use domestic and foreign first-line brands, such as Mengniu motor, Taihu motor, Siemens motor, etc.; the bearing can use Luoyang bearing, Harbin bearing, SKF bearing, etc.; reducer can use Guomao reducer ; electrical appliances can be Delixi Electric, Chint Electric, Siemens Electric, etc.

This mobile steering grain throwing belt conveyor has the function of throwing grain, the support legs can be adjusted to achieve different heights of transportation, and it can also be equipped with dust removal,grain scraper, grain throwing and other devices (removable).

The conveyor has the function of conveying bulk ou packaged grain,it can also be equipped with an automatic telescopic device to realize the telescopic function and make the material conveying range wider.

This mobile steering grain throwing belt conveyor also has a walking wheel for free movement.

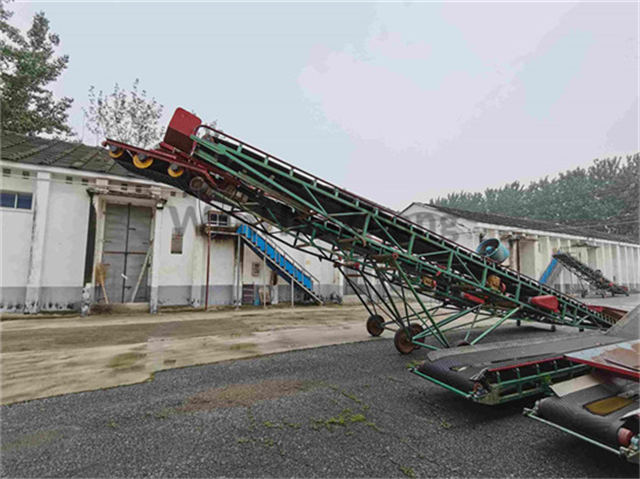

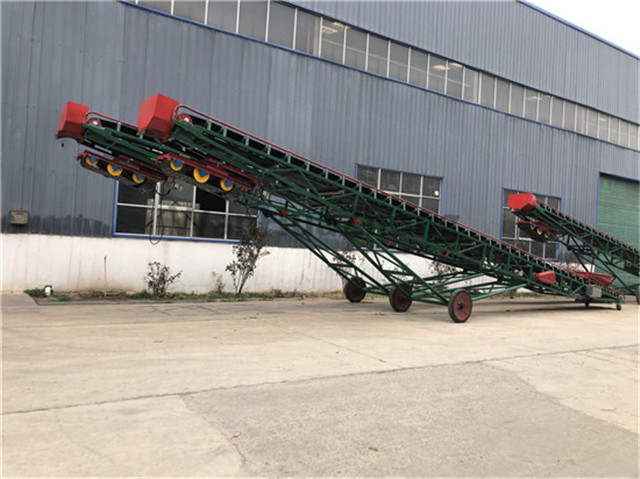

  Mobile steering grain throwing belt conveyor in use

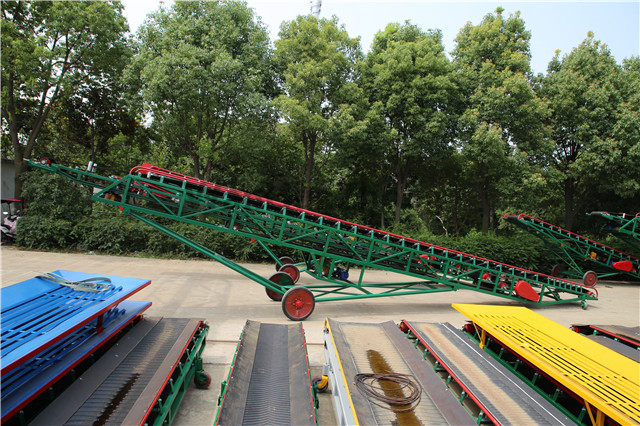

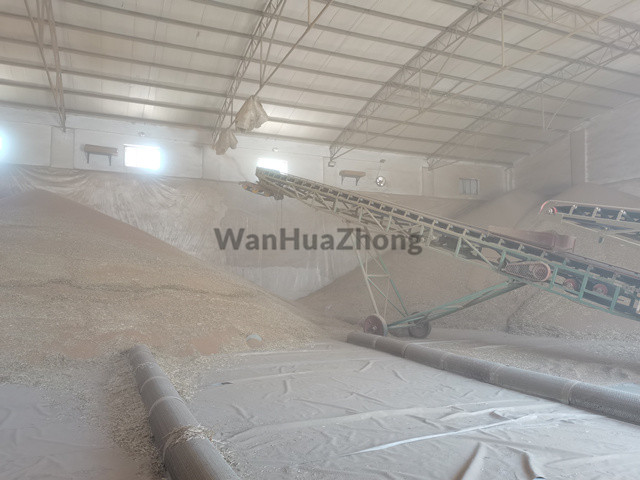

Mobile steering grain throwing belt conveyor working picture

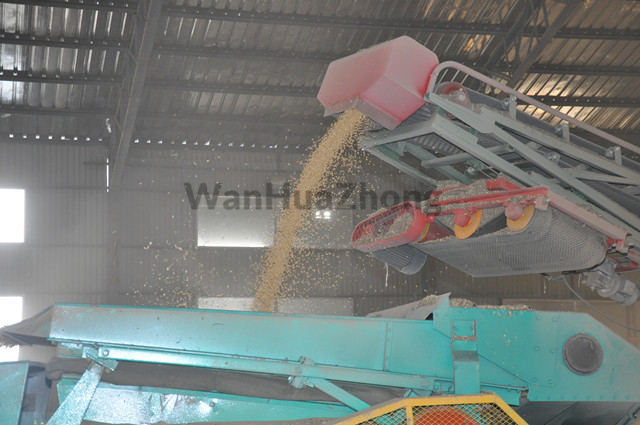

Mobile steering grain throwing belt conveyor working detail

1. The motors are all purchased from well-known manufacturers. The diesel engine can also be configured to operate as a power source away from the electric source.




2. The grain throwing machine has passed the fatigue test and can work continuously, and the stability and service life are greatly improved.




3. The conveyor belt and the grain-throwing belt are self-produced, equipped with domestic first-class production lines, and the rubber is made of rubber and styrene-butadiene rubber.




4. The fabric is made of high-density EP cloth and adopts advanced production technology to make the conveyor belt wear-resistant, heat-resistant, acid-base resistant and oil-resistant. The tensile strength of the conveyor belt is not less than 15Mpa.




5. The elongation of the conveyor belt when breaking is not less than 350%, which greatly improves the service life of the belt.




6. This belt conveyor uses a non-pneumatic rubber walking wheel, wear-resistant, long life.




7. The roller is an important part of the belt conveyor, with many types and large quantities. It accounts for 35% of the total cost of a belt conveyor and produces more than 70% resistance, so the quality of the rollers is particularly important.High-strength galvanized rollers produced by our factory,The radial runout of the roller is 0.7 mm specified by the national standard.The coefficient of rotation resistance is less than 0.02.The axial movement is controlled within 0.5-0.7 mm.The rollers are dust-proof, water-resistant and impact-resistant to ensure high quality and long life of the rollers.




8. The reinforced frame is made of high-strength steel plate welded by professional welders. The high-quality continuous weld seam meets the long-term and large-volume operation of the conveyor.

Structure of the mobile steering grain throwing belt conveyor

This mobile steering grain throwing belt conveyor consists of the following parts:

(1) Frame

     The upper and lower parts of the frame are welded by hollow square steel as a whole, which becomes the main body of the conveyor. The hollow square steel pipes on both sides of the lower part of the frame play the role of guide rails. When lifting, the rollers on the front foot shaft Rolling along the guide rail, side guides are installed on both sides of the upper part.

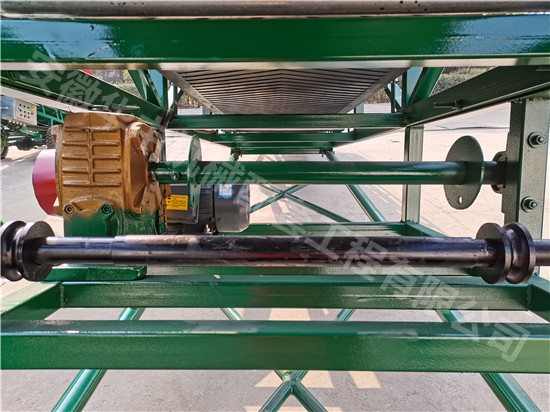

(2) Transmission system

Start the motor, the motor pulley drives the pulley at one end of the bridge shaft to rotate the bridge shaft, and the pulley at the other end of the bridge shaft drives the pulley on the main drive roller shaft to rotate the main drive roller and drive the conveyor belt to run.

(3) Roller and idler

     There are four rollers, one main drive roller and one reversing roller. They are all installed in the middle of the frame, and the other two are installed at the head and tail.

     The rollers are all made of steel.

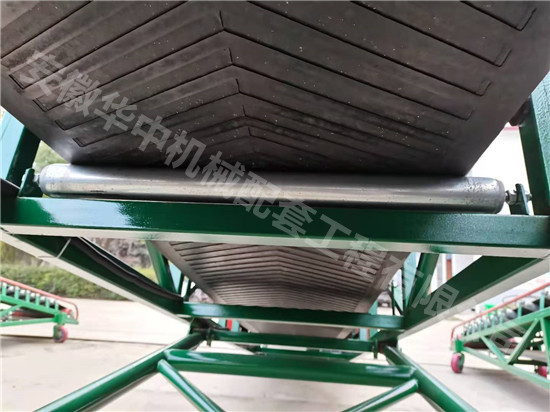

     There are two kinds of rollers: upper roller and lower roller. Both ends are equipped with bearings, which can rotate flexibly. The upper supporting rollers are installed on the frame and double rows in a "V" shape. Their function is to withstand the positive pressure and tangential bottom friction of the grain passing through the conveyor belt, and to guide the conveyor belt. The lower rollers are installed in the frame, arranged in parallel, and their functions are to support and guide the return conveyor belt.

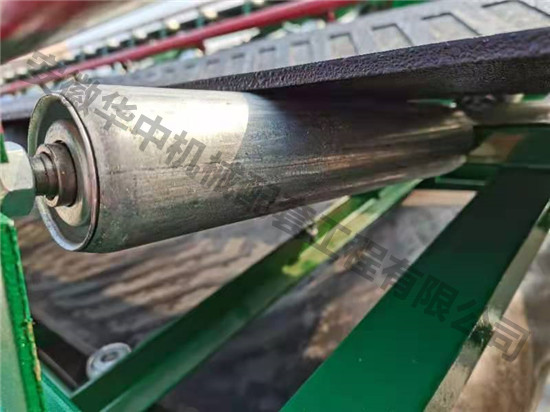

"V" type upper roller

"V"-shaped bottom roller

(4) Tensioning device

The bearing seats of the reversing rollers, head and tail rollers are equipped with tensioning devices, which are used to tighten the conveyor belt and correct the deviation of the conveyor belt.

       When adjusting, loosen the two bolts fixing the bearing seat for adjustment, and then tighten the bearing seat assembly bolts after adjustment.

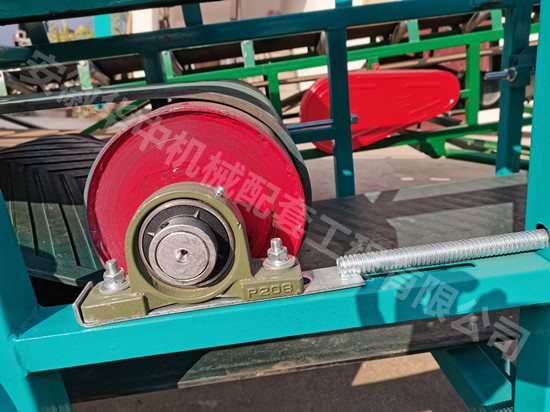

Tensioning device of mobile steering grain throwing belt conveyor

(5) Lifting mechanism

     When the conveyor needs to be raised and lowered, the lifting motor switch has two levels of "up" and "down", the "up" gear is used for lifting, and the "down" gear is used for lowering to complete the lifting action. When the lifting motor starts, it drives the worm gear reducer to rotate,

The lifting action can be started by the wire rope fixed on the output shaft bypassing the retracting action of the lifting passive shaft and the lifting intermediate shaft.

(6) Big and small traveling wheels

      The large traveling wheel is made of castings, and the outer ring has solid rubber tires. It is connected with the lower end of the front and rear supporting feet to serve as the support and movement of the machine.

      The small walking wheel (universal wheel) has solid rubber tires on the outer ring, which are fixed on both sides of the rear of the frame, as a support for the machine and change direction when moving.

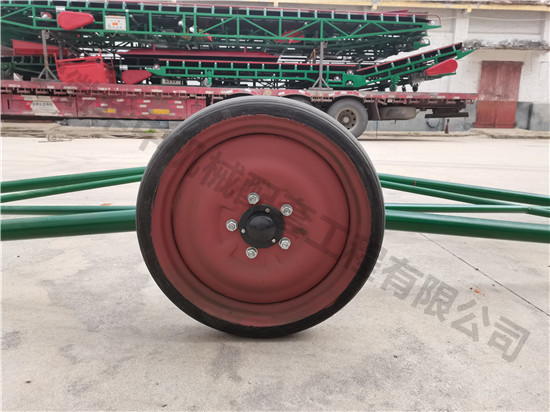

 Big  traveling wheels

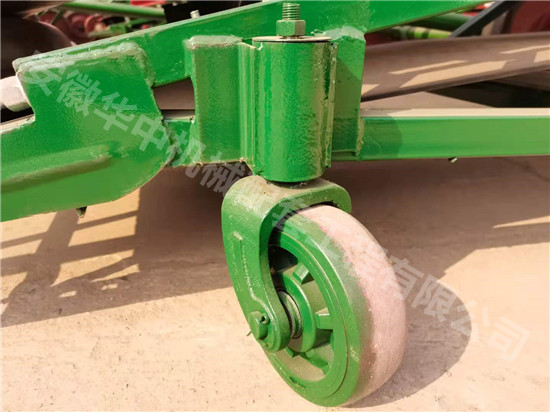

Small traveling wheels

(7) Steering grain throwing machine

       Customers can choose to install a steering grain throwing machine on the conveyor head,the steering grain throwing machine is composed of a frame, a runway, a running frame and a running wheel. The rotating body, a rotating motor and a grain throwing motor are installed below the runway. Drive the rotating body through the chain, and drive roller, reversing roller and pressure roller are installed under the grain throwing frame. The power is driven by the motor through the pulley and the transmission V-belt to drive the pulley on the driving roller, so that the endless conveyor belt runs at high speed, and the multi-angle grain throwing operation is carried out.

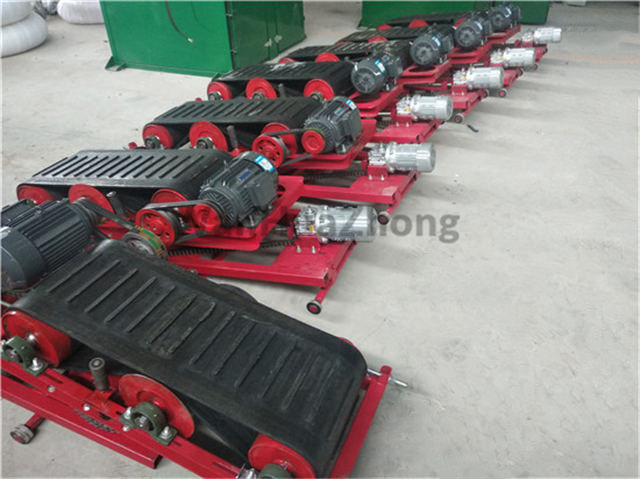

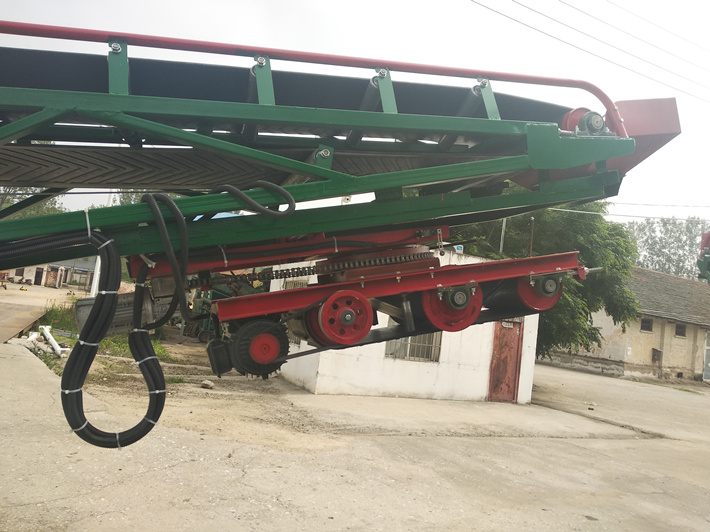

 Steering grain throwing machine

(1) When using, first raise the belt conveyor to the required height and stabilize the equipment;

(2) This mobile steering grain throwing belt conveyor is not allowed to start with load, and it can be fed after 3-5 minutes of normal operation after starting;

(3) Stop feeding materials before stopping, and turn off the electricity after the materials on the conveyor belt are transported,and cut off the power;

(4) When conveying packaged grains, just unload the hopper, but the package must be placed in the center of the conveyor belt to maintain a balanced operation;

(5) It is strictly forbidden to stand underneath the machine when  this mobile steering grain throwing belt conveyor is raised and lowered and in the working state;

(6) The conveyed materials are not allowed to contain acids, alkalis, oils and various organic solvents;

(7) Frequently check the operating conditions, when an abnormality is found, stop the machine and eliminate the abnormal problem;

(8) Replace and repair the roller in time when it is not flexible;

(9) Regularly (6 months) add grease or lubricating oil to the lubricated parts;

(10) Keep the conveyor clean during use, and regularly check for abnormalities such as wear, tear, cracks, and bending. If abnormalities are found, replace or repair;

(11) The mobile steering grain throwing belt conveyor is inspected and repaired once every quarter during use, and overhauled once a year;

(12) Store in a ventilated and dry place when not in use.
