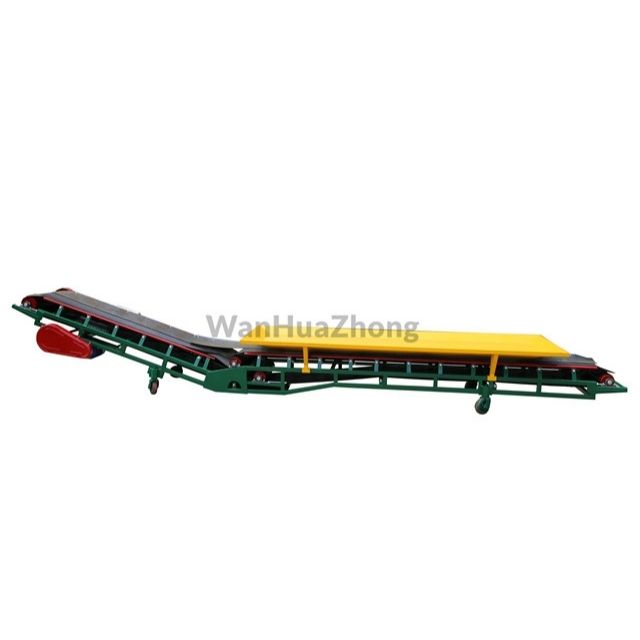

Bulk grain unloading belt conveyor

Bulk grain unloading belt conveyor

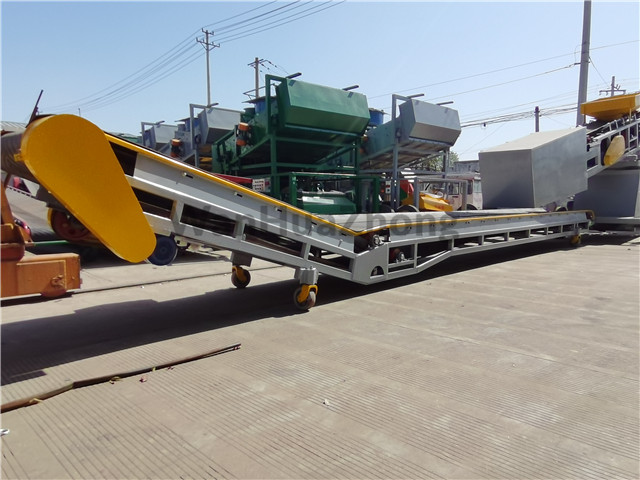

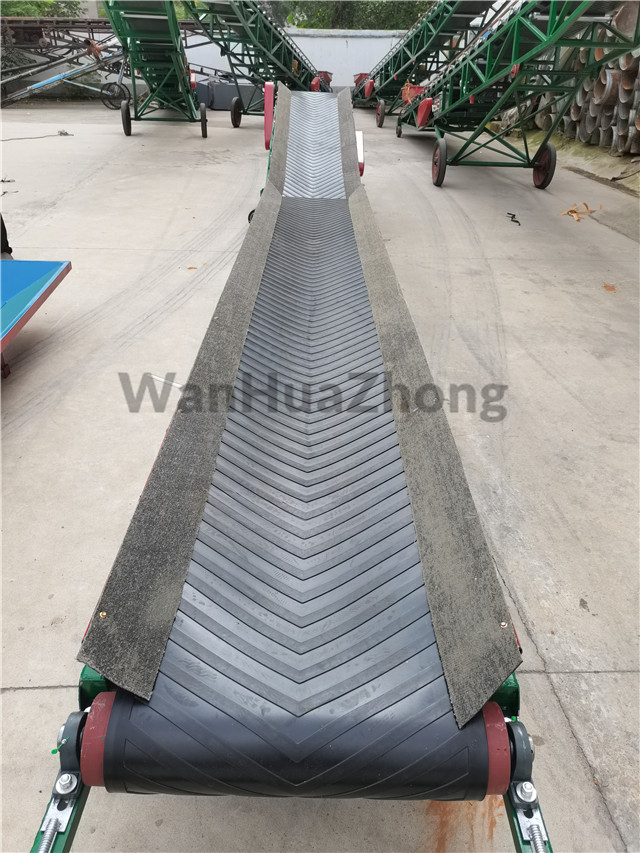

 Bulk grain unloading belt conveyor in the Equipment yard

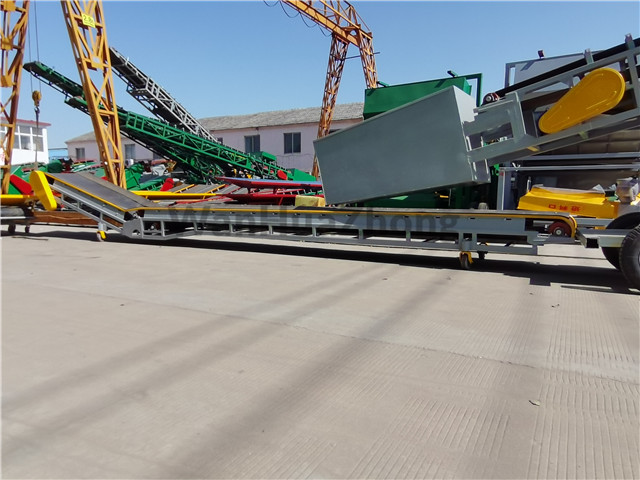

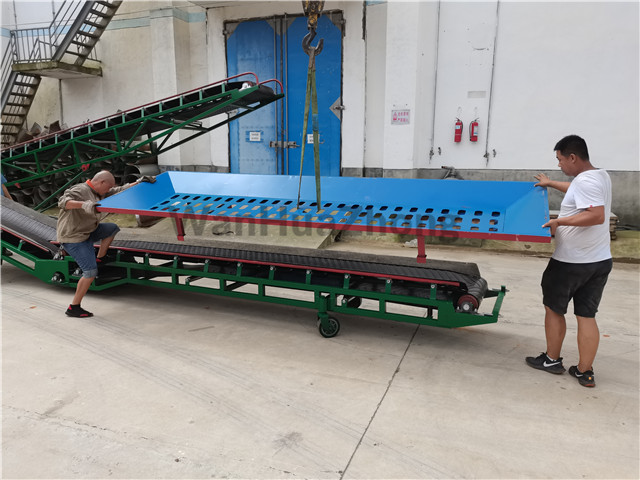

Customer  can choose whether equip the hopper on the unloading conveyor

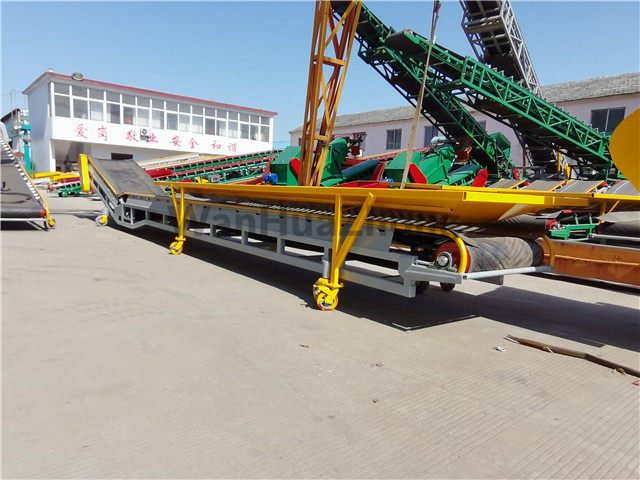

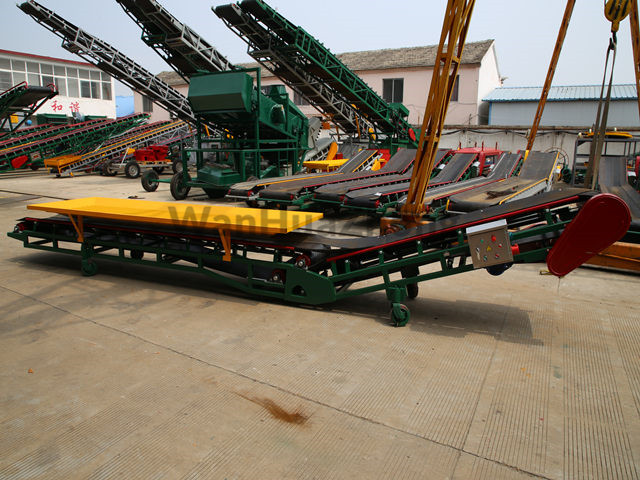

Bulk grain unloading belt conveyor in grain depot

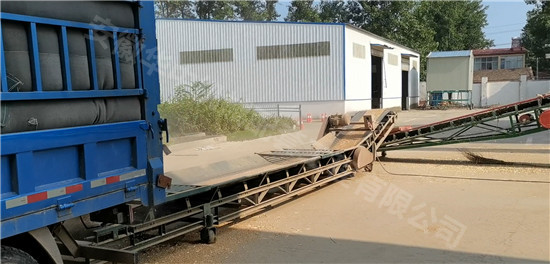

Working image of bulk grain unloading belt conveyor

Introduction of bulk grain unloading belt conveyor for sale:

This bulk grain unloading belt conveyor for sale is mature grain unloading equipment independently developed by  HuaZhong Machinery ,which is the China professional grain storage belt conveyor manufacturer.This type of grain scraper has been sold in China for many years and has been tested by the market and won wide acclaim from customers.

Main application of bulk grain unloading belt conveyor for sale:

The bulk grain unloading belt conveyor for sale is mainly used to complete the grain unloading and warehousing tasks in conjunction with the conveyor. The low chassis and large receiving hopper can meet the needs of the unloading height of self-unloading or van-type bulk grain transport vehicles, which can quickly unload grain and improve work efficiency. It is an ideal grain unloading and warehousing equipment.Product appearance, color and performance can be customized.

Conveying volume per hour of bulk grain unloading belt conveyor for sale:120-200 tons/h

The performance characteristics of the bulk grain unloading belt conveyor:

The bulk grain unloading belt conveyor for sale has a deceleration device, a simple structure, and the entire height is adjustable, which is suitable for unloading grains of different heights of bulk grain transport vehicles. Moreover, it is equipped with walking and universal wheels, so it is very convenient to move. The frame of the bulk grain unloading belt conveyor adopts square tube welding, which has sufficient strength and good rigidity.

1. Grain unloading frame of bulk grain unloading belt conveyor for sale

The upper and lower parts of the frame of the grain unloading equipment are all welded by hollow square steel as a whole, which becomes the main body of the bulk grain unloading belt conveyor.

2、Transmission part

Start the motor, the motor pulley drives the belt pulley at one end of the bridge shaft to rotate the bridge shaft, and the belt pulley at the other end of the bridge shaft drives the pulley on the main drive roller shaft to rotate the main drive roller, which drive the conveyor belt to run.

3、Rollers and idlers

There are four rollers, a main driving roller and a reversing roller, which are all installed in the middle of the frame, and the head and tail of each installation.They are all made of steel.

The idler includes two types of upper idler rollers and lower idler rollers, both ends are equipped with bearings, and the rotation is flexible. The upper idler rollers are mounted on the frame and are arranged in a double "V" shape, which is used to withstand the positive pressure and tangential bottom wiping force of the grain passing through the conveyor belt surface, and guide the conveyor belt. The lower idler rollers are installed inside the frame and are arranged in parallel, which is used to support the return conveyor belt and guide.

4、Tensioning device

The reversing roller, head and tail rollers are installed with bearing seats and equipped with a tensioning device, which is used to tighten the conveyor belt and adjust the deviation of the conveyor belt.

When adjusting, loosen the two bolts that fix the bearing housing for adjustment, and then tighten the bearing assembly bolts.

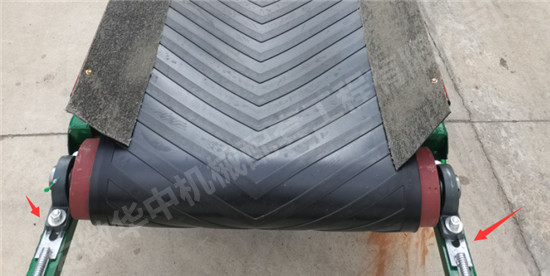

Tensioning device

5、Walking part

The large walking wheel is made of castings with solid rubber tires on the outer ring. It is connected to the lower end of the front and rear feet as a support and movement of the machine.

Small walking wheels (universal wheels) have solid rubber tires on the outer ring, which are fixed on both sides of the rear of the frame, as the machine supports and changes direction when moving.

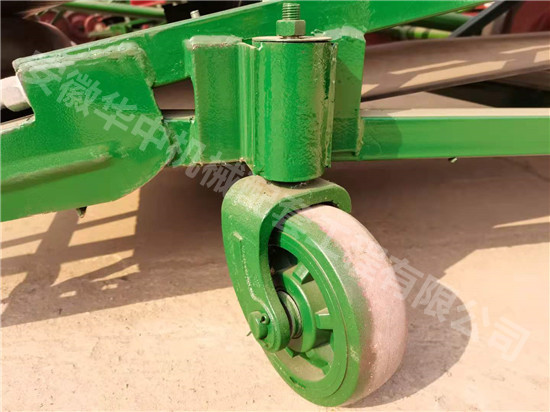

Universal wheels

6、The electrical control box of the bulk grain unloading belt conveyor

The electrical control box of the bulk grain unloading belt conveyor is equipped with a switch device that controls the operation of the motor, which is used to control the operation, lifting, and expansion of the conveyor.

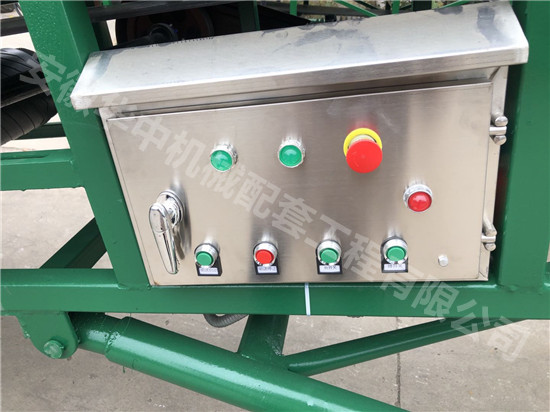

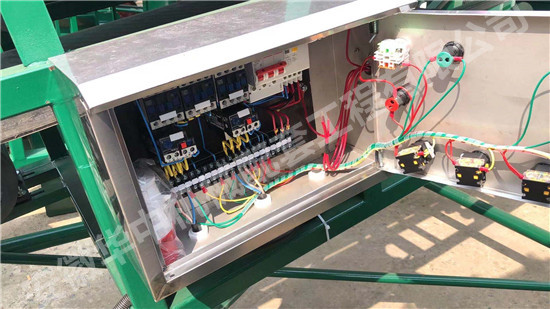

Electrical control box

7、The hopper of the bulk grain unloading belt conveyor

The hopper of the bulk grain unloading belt conveyor is welded by steel plates, which can hold the grain unloaded by the bulk grain truck and transport it out through the conveyor belt to prevent the grain from being scattered randomly.

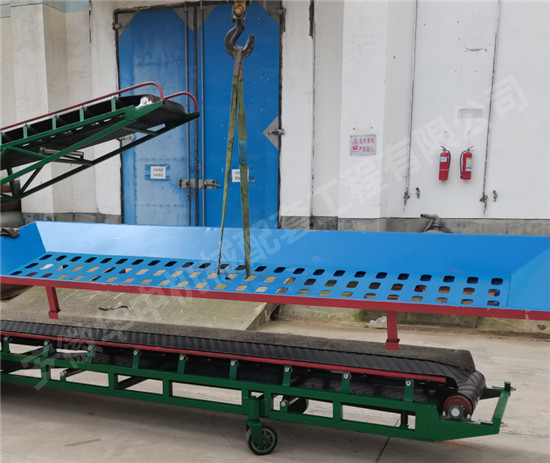

Hopper of the bulk grain unloading belt conveyor

Product features

• This bulk grain unloading belt conveyor for sale produced by HuaZhong Machinery has beautiful appearance and good strength, which can meet the unloading capacity of 120-200t/h. It has the characteristics of safety and reliability, convenient operation and maintenance, stable work, reliable balance, low noise and low power.




• The reversing rollers of the mobile grain unloading machine are made of thick-walled steel pipes, which have undergone strict dynamic balance and flaw detection inspections, and run more smoothly; the moving wheels of the grain unloading bucket adopt 6.0-16 car inflatable wheels and 10-inch universal wheels. The whole machine is easy to move.




• The low chassis and receiving hopper can meet the needs of unloading height of self-unloading or box-type bulk grain transport vehicles.




• The height of the hopper can be adjusted. The design of the receiving hopper discharge connection structure is ingenious, and it is not easy to cause the conveyor belt to spill, run off, and motor overload.




• The lightweight new C-shaped channel plate steel is used as the frame, which has good rigidity and strength, compact and stable structure, and beautiful appearance.




• Using good natural rubber, four-layer EP high-woven non-joint herringbone tape, it is strong and durable, not easy to run off and has a long service life.

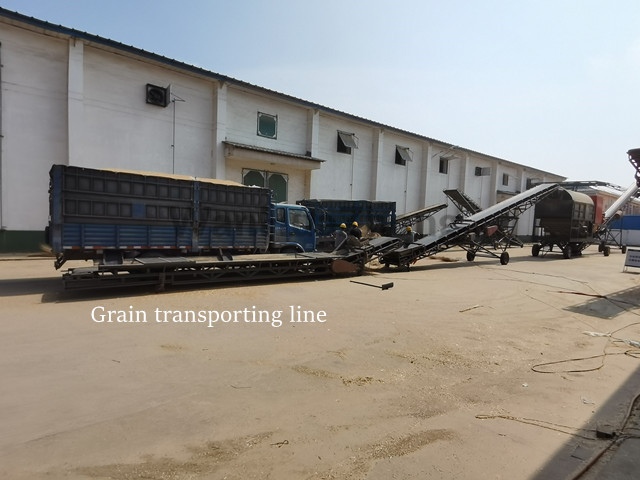

Bulk grain unloading belt conveyor in grain warehouse

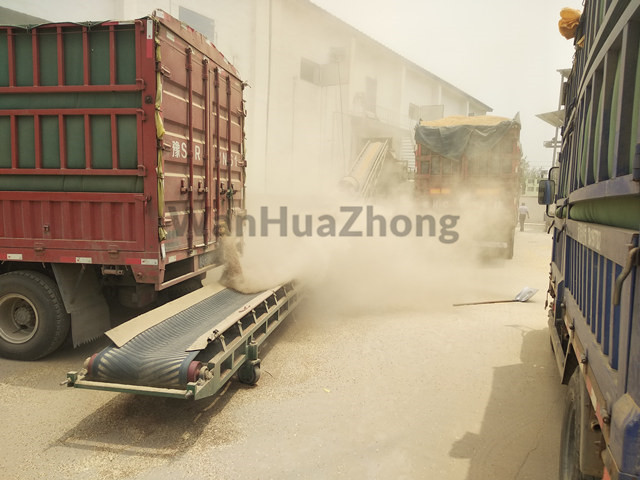

Bulk grain unloading belt conveyor is working

1. When using, first raise the bulk grain unloading belt conveyor to the required height to stabilize the equipment;

2. The grain unloading equipment is not allowed to start with load, and can only be fed after it runs normally for 3-5 minutes after starting;

3. Before stopping the grain unloading belt conveyor, stop feeding. After the material on the conveyor belt is transported, turn off the motor of the belt conveyor and cut off the power supply;

4. When conveying packaging materials, just unload the hopper of the grain unloading mobile belt conveyor, but the packaging materials must be placed in the center of the conveyor belt to keep the conveyor equipment in a balanced and stable operation;

5. It is strictly forbidden to stand under the grain unloading equipment when the bulk grain unloading belt conveyor is lifting and working;

6. The materials conveyed by that grain unloading equipment are not allowed to contain acids, alkalis, oils and various organic solvents;

7. Regularly check the operation, and find that the grain belt conveyor equipment is operating abnormally, immediately stop the operation of the appeal conveyor equipment, and check and eliminate the fault;

8. When the rollers of the mobile grain unloading equipment are not rotating flexibly, they should be repaired and replaced in time;

9. Regularly (every 6 months) add grease or lubricating oil to the lubrication parts of the bulk grain unloading belt conveyor;

10. Keep the bulk grain unloading belt conveyor clean during use, and regularly check whether there are any abnormalities such as wear, tear, cracks, and bending. If it is found to be abnormal, it should be replaced or repaired;

11. The bulk grain unloading belt conveyor should be checked quarterly and overhauled once a year;

12. When the grain unloading mobile belt conveyor is not in use, please place it in a ventilated and dry place.
