Mobile hydraulic telescopic lifting and filling belt conveyor

Introduction of mobile hydraulic telescopic lifting and filling belt conveyor for sale:

     This mobile hydraulic telescopic lifting and filling belt conveyor for sale is a mature  grain storage product of china Anhui HuaZhong Machinery Supporting Engineering Co., Ltd ,which is the professional grain storage machinery manufacturer,This  product  integrates the functions of moving, lifting, conveying, horizontal telescopic and other functions into a new type of bulk grain storage equipment.

Transporting volume of mobile hydraulic telescopic lifting and filling belt conveyor for sale: 50-80 tons/h

Main application of mobile hydraulic telescopic lifting and filling belt conveyor:

     This belt conveyor is  suitable for the bulk grain entering and replenishment operations of the flat warehouse.The use of this equipment can effectively utilize the storage capacity and improve the utilization rate of the grain flat warehouse. At the same time, the equipment is also suitable for the bulk grain entering operation of the scattered silos.

     The conveying part of the mobile hydraulic telescopic lifting and filling belt conveyor is equipped with a telescopic frame, it can be stretched back and forth to meet the requirements of loading and replenishing positions at different distances; the tail part of the conveying part can also be equipped with a grain throwing machine according to customer needs, which can throw grain farther away, and the scope of replenishment and loading is greatly expanded; it has the functions of hydraulic lifting, electric expansion, electric walking and grain throwing. This belt conveyor can not only complete the transportation, loading and unloading, hoarding, replenishment and other operations of bulk grain in the warehouse, but also insert its cantilever from the window of the warehouse into the cabin outside the warehouse to carry out the replenishment and storage of bulk grain.

With grain throwing function type

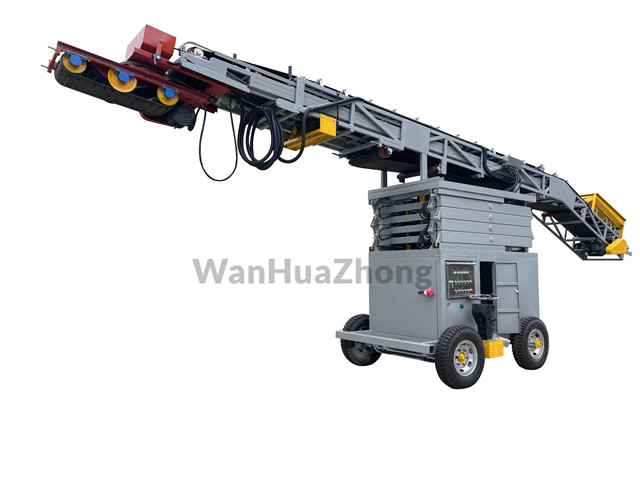

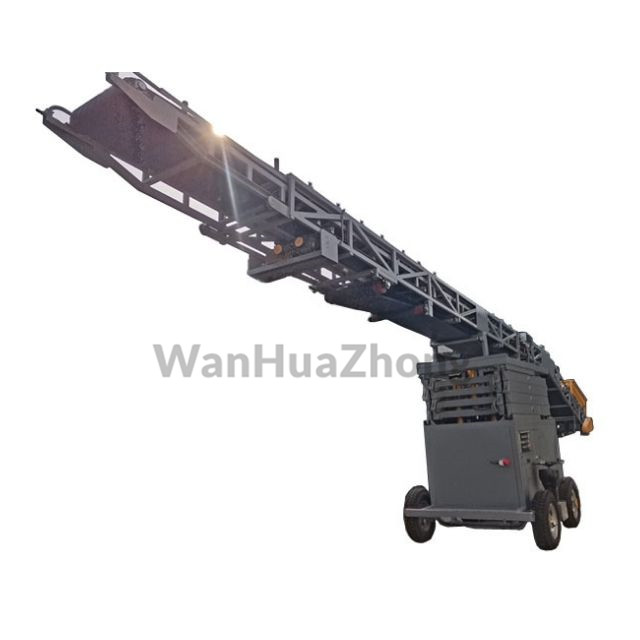

Mobile hydraulic telescopic lifting and filling belt conveyor

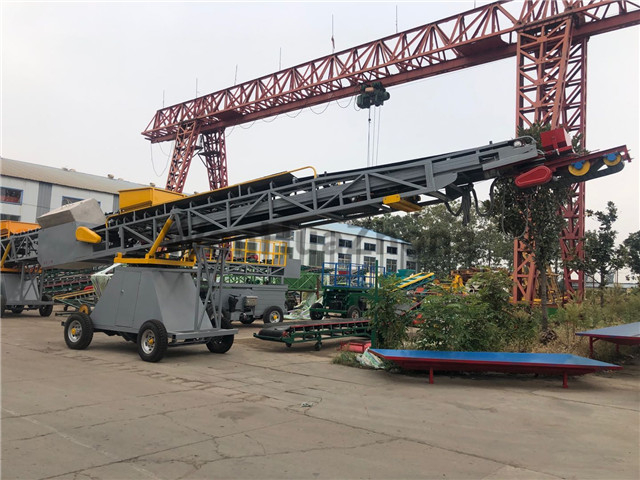

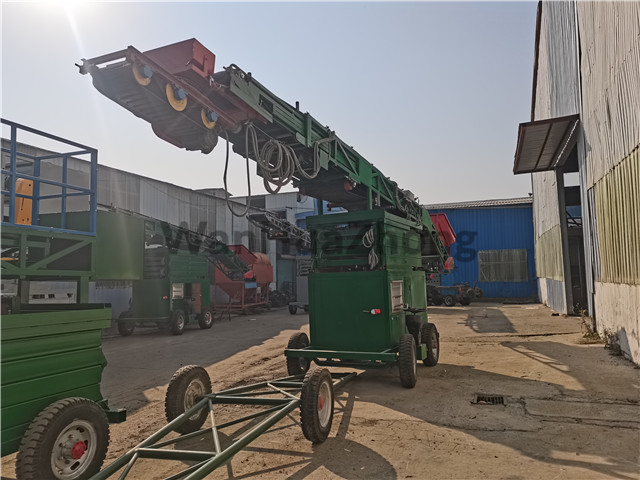

Mobile hydraulic telescopic lifting and filling belt conveyor with grain throwing machine

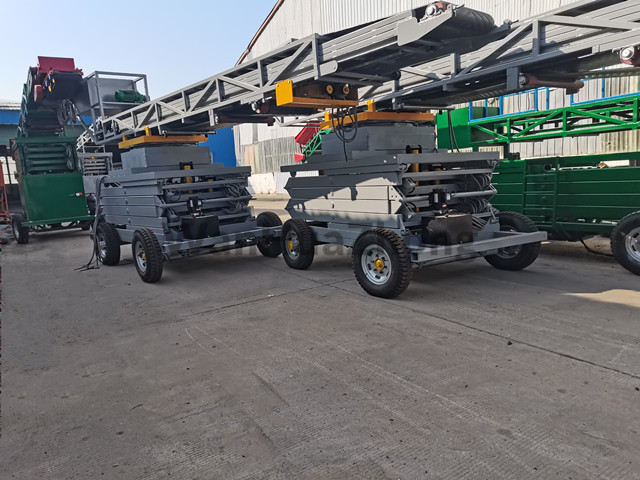

Mobile hydraulic telescopic lifting and filling belt conveyor

Performance and features

(1)  Flexible movement. The lower part of the chassis is equipped with two walking wheels, and the other end is equipped with two universal wheels. The steel hub solid like rubber wheels and ball bearings are used as the moving or steering mechanism of the chassis, which can easily move and rotate the equipment in any direction.

(2)  Large lifting range. The equipment adopts a hydraulic lifting mechanism as the lifting mechanism. The lifting action is stable, reliable and dexterous, and easy to operate. It can be loaded at any height within the adjustment range to meet the requirements of different heights.

(3)  Large horizontal telescopic range. Using electric telescopic mechanism, the telescopic action runs smoothly and reliably, and can work in any position within the telescopic range.

(4)   The grain throwing machine (optional choose) can throw the grain transported by the conveyor to the terminal 6-20 meters away, and is equipped with a steering motor. The steering grain throwing can be arbitrarily positioned within the range of plus or minus 90 degrees.

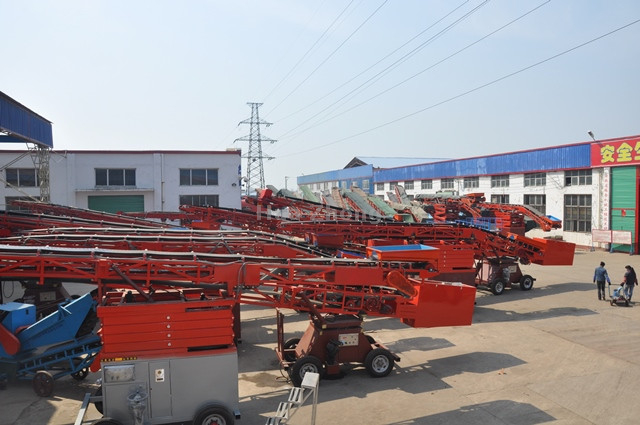

Equipment group of mobile hydraulic lifting and filling belt conveyor

Performance and characteristics of mobile hydraulic telescopic lifting and filling belt conveyor

1) The mobile hydraulic telescopic lifting and filling belt conveyor has a higher conveying height, a larger coverage area (90 degrees left and right), and a high degree of automation.

2) This mobile hydraulic telescopic lifting and filling belt conveyor adopts hydraulic device for lifting and lowering, which has the characteristics of automatic lifting, stable operation and convenient operation.

3) The mobile hydraulic telescopic lifting and filling belt conveyor has flexible left and right steering, light and convenient operation, and can realize manual rotation and automatic rotation. At present, the mainstream in the industry is manual rotation. During operation, manual rotation of the conveyor can be realized by pushing the square bucket at the tail of the loader to adjust the conveying direction of the conveyor.

4) The steering and silo telescopic mobile belt conveyor is equipped with an electric walking device as required, which has the characteristics of moderate walking speed and stable and flexible walking.

This equipment has the following three main components:

① Mobile chassis

② Hydraulic lifting mechanism

③ Steering grain throwing machine

1. Mobile chassis: The chassis is welded by profiled steel, equipped with four steel-hub solid rubber wheels, two walking wheels, two universal wheels, and four spiral supports. The chassis can be moved in any direction on the ground, which is convenient for positioning, maintaining stable work, and adjusting the horizontal position of the whole machine. It is the basis for supporting the entire loader.

2. Hydraulic lifting mechanism: It is composed of hydraulic pump, oil cylinder, oil pipe, control mechanism and motor. The lifting height can be adjusted within the height range of 3.2-7.5 meters, which is convenient for grain storage or restocking operations within the range of different heights.

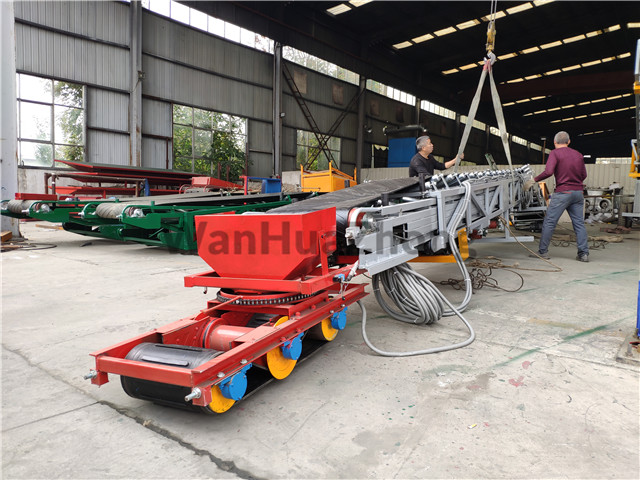

3. Steering grain throwing machine: Steering grain throwing machine consisting of frame, track ,track frame and running wheel 4 parts.

A rotating body, rotating motor, and a rope motor are equipped under the runway; these devices drive the rotating body through the chain.A drive roller and a pressure roller are installed under the glow rack;

These devices are driven by the motor, and the pulley on the drive roller is driven by the pulley and the drive triangle, which allows the annular conveyor belt to operate, and the multi-angle throwing work is performed.

When using the equipment, move the equipment to the required working position, and then raise it to the required height by the hydraulic lifting mechanism, then start the conveying telescopic motor, and stop after the telescopic part is telescoped to the required length. Restart the conveying motor. After the standby device is running normally, the matching conveyor will send the bulk grain into the rear hopper of the loading and conveying part, and unload the grain to a certain position through the telescopic horizontal belt conveyor, thus realizing the loading and replenishment Work requirements.

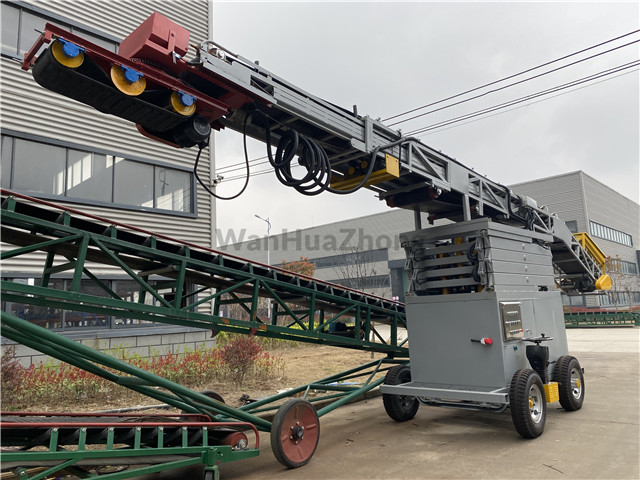

Mobile hydraulic lifting and filling belt conveyor with grain throwing machine

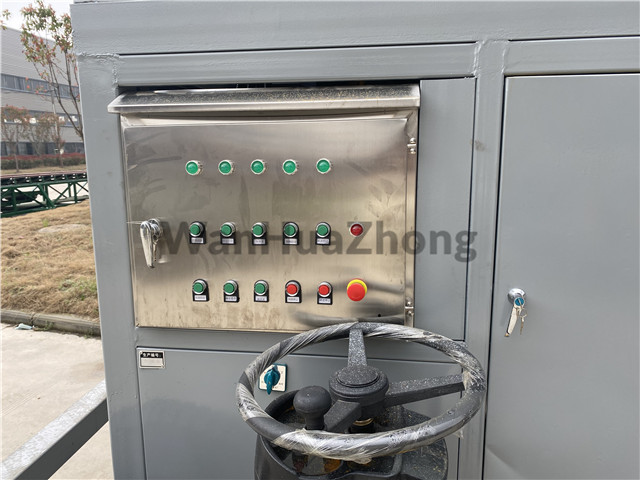

Electrical control box of mobile hydraulic lifting and filling belt conveyor

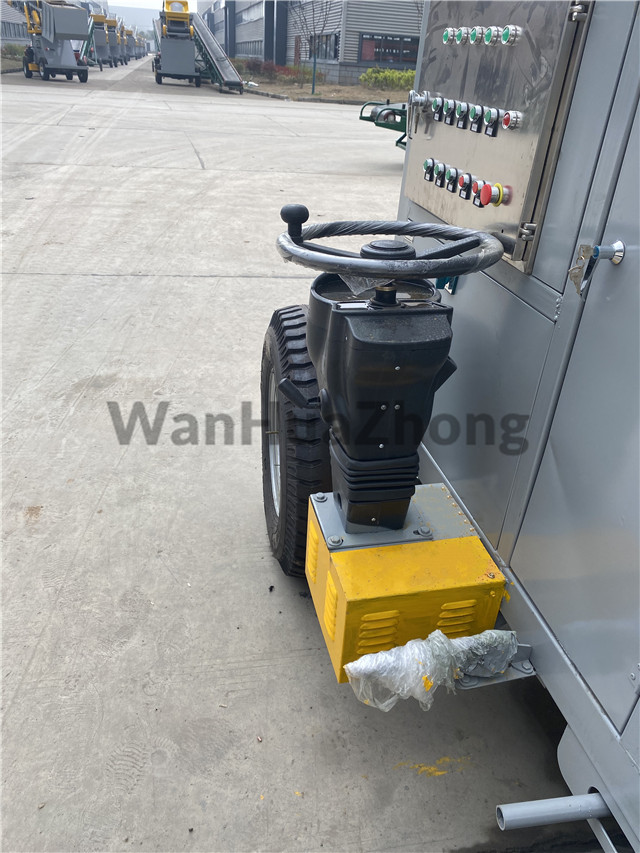

Walking control device of mobile hydraulic lifting and filling belt conveyor

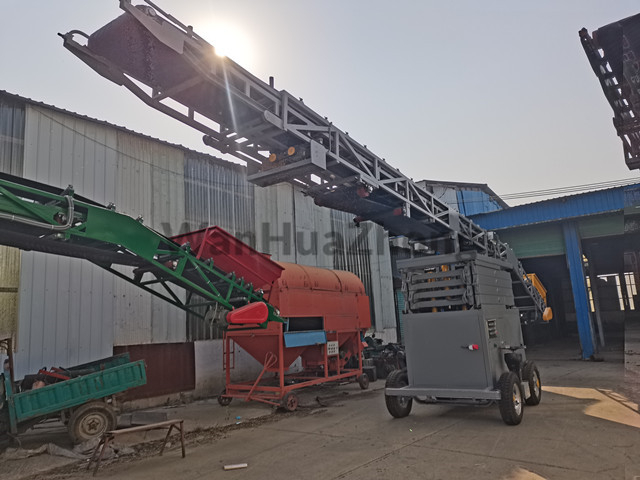

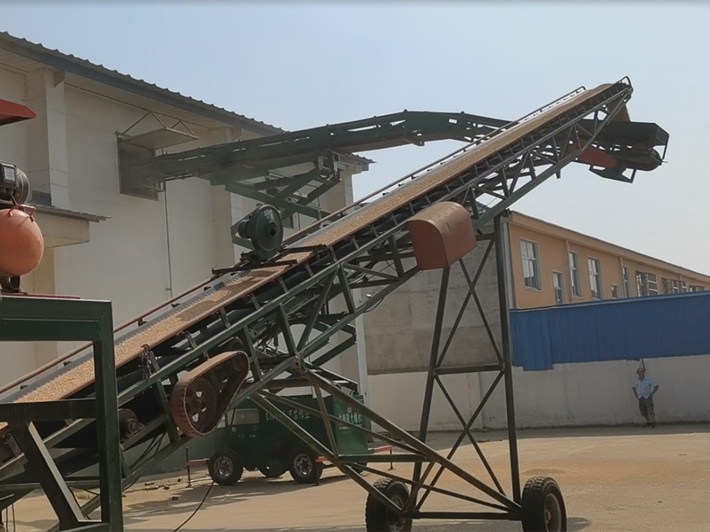

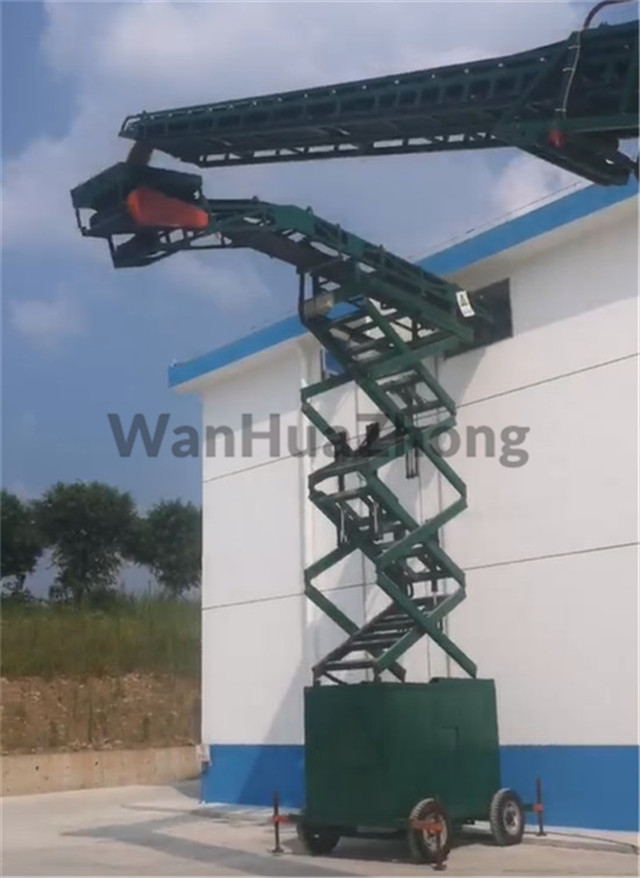

Working picutre of mobile hydraulic telescopic lifting and filling belt conveyor

1. When the grain is transported into the warehouse from the window (or door opening) outside the warehouse, the belt conveyor moves to the working position and then the machine is adjusted to the horizontal position, and the horizontal conveyor end is aligned with the warehouse window (or door opening). Position, turn on the power, start the motor of the hydraulic lifting mechanism, check whether the oil pump is rotating, raise the loader to the window (or doorway) where the grain can be fed and stop, move the machine close to the warehouse, and then start the horizontal telescopic moving motor, The horizontal conveying telescopic part is inserted into the window (or door opening), and the cantilever part of the whole machine continues to be extended into the warehouse to the required position. Pull out the support on the mobile chassis of the warehousing machine, then set up the screw adjustment screw, suspend the four wheels away from the ground level, adjust the warehousing machine to a horizontal state, and then close the screw nut. To increase the stability of the loader.

2. Start the conveying motor and let the conveying part run idly for 10 minutes. At the same time, check all parts, and immediately stop the machine for maintenance if abnormal phenomena are found. After everything is normal, the warehousing operation can be carried out.

3. Move the matching conveyor to the corresponding position so that the grains conveyed by the conveyor can fall into the receiving hopper of the machine, and the receiving point is best placed in the center of the receiving hopper.

4. During operation, first start the horizontal telescopic conveying motor of the conveyor, and after telescoping to the required position, start the matching conveyor motor. After the two machines are running normally, the material can be fed for silo operation. When stopping the operation, first stop the supporting conveyor for feeding, and then stop the motor after the grain in the conveying part of the conveyor is unloaded.

5. During the operation, the feeding should be uniform to avoid excessive load changes or overload operation of the loader.

6. During the operation of the equipment, if the conveyor belt is found to be off-track, it should be stopped for adjustment. The lower part of each roller of the horizontal telescopic conveyor is equipped with an adjusting tension screw for adjustment. The method is to loosen the fixing bolts of the bearing seat under the roller, and the conveyor belt deviates to a certain direction. Tighten the adjustment bolts of that side, adjust and test until it is not deviated, and finally tighten the fixing bolts of the roller bearing seat.

7. When the equipment is working or lifting, it is strictly forbidden to stand under the conveyor.

Safe operation regulations

1，It is forbidden to clean up the head, the tail roller and its nearby food and impurities during operation of mobile hydraulic telescopic lifting and filling belt conveyor.

2 ，If you need to overhaul the mobile hydraulic telescopic lifting and filling belt conveyor, process faults, or do other work, you must stop, lock the control switch of the conveyor, and hang "someone work, strictly prohibits the closing" sign.

3， The operator of the mobile hydraulic telescopic lifting and filling belt conveyor should carefully implement the post responsibility system and the handover system, and may not leave their position without authorization.

4， During operation,It is strictly forbidden to pass the bottom of the conveyor belt, or span from the conveyor belt, when the conveyor belt is slippery, it is strictly to drive with hand.

5， Anyone is strictly prohibited to contact the conveyor belt and the roller by the foot and the body and by the parts of the hand, the foot and the body.

6,   It is strictly forbidden to climb the conveyor equipment, and the equipment and bulky materials are not allowed to use the conveyor to transport.

1. The working place of mobile hydraulic telescopic lifting and filling belt conveyor should choose a flat and solid ground.

2. Check whether the fasteners are tight.

3. Check whether the tightness of the conveyor belt is appropriate before use.

4. If abnormal phenomena are found during work, stop and check immediately, and run after troubleshooting.

5. After 3 hours of normal work, stop the machine and check the tightness of the conveyor belt. If it is too loose, adjust the tightness before working.

6. After the work is completed, retract the telescopic frame and lower the fork frame to the lowest state.

7. Clean all bearings of mobile hydraulic telescopic lifting and filling belt conveyor once every six months and add grease.

8. Clean up the mobile hydraulic telescopic lifting and filling belt conveyor when not in use and place it in a ventilated and dry place.
