HZSZZ;HZSZZP
WanHuaZhong
Main aplication

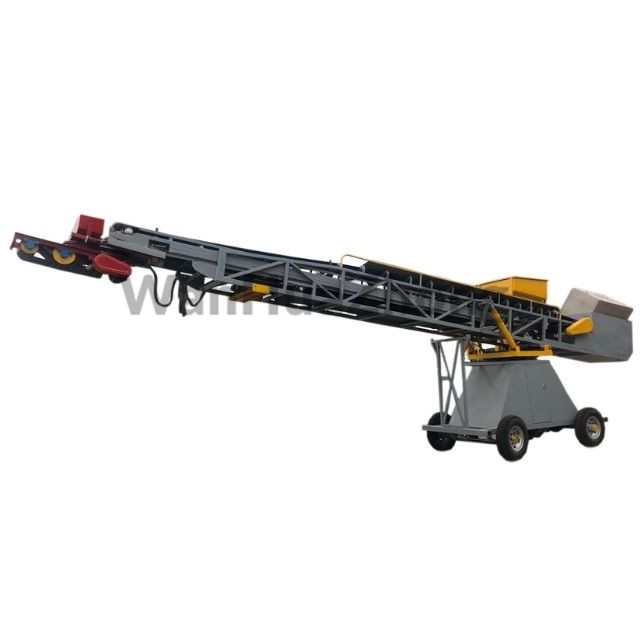

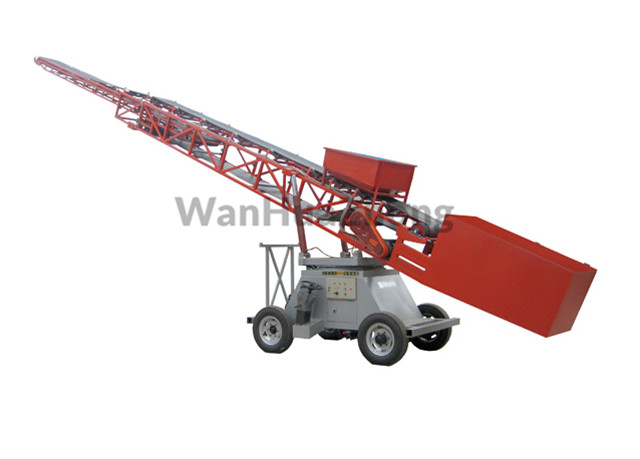

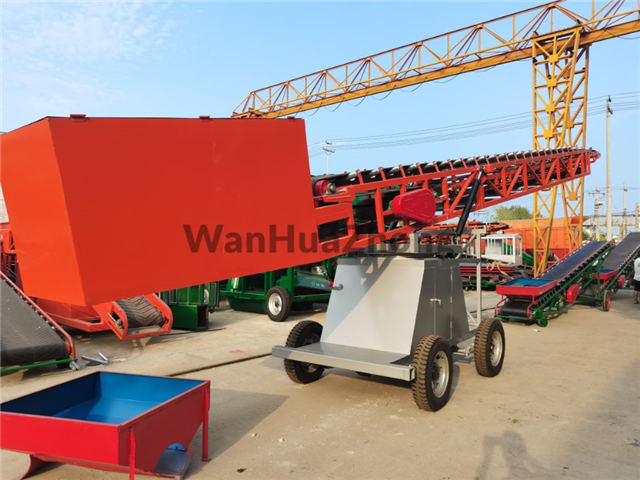

Steering telescopic loading belt conveyor in the factory

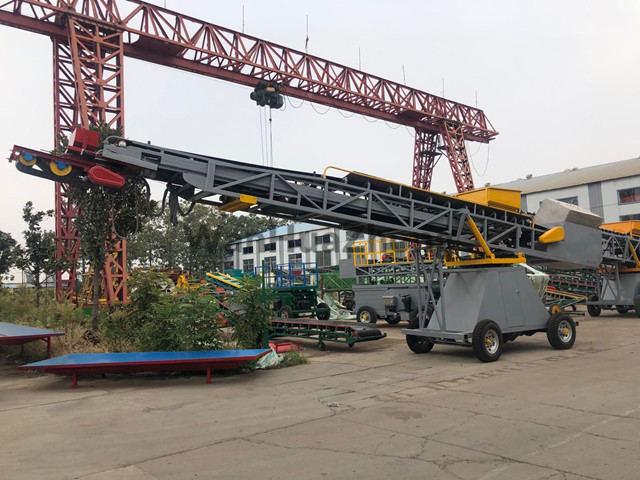

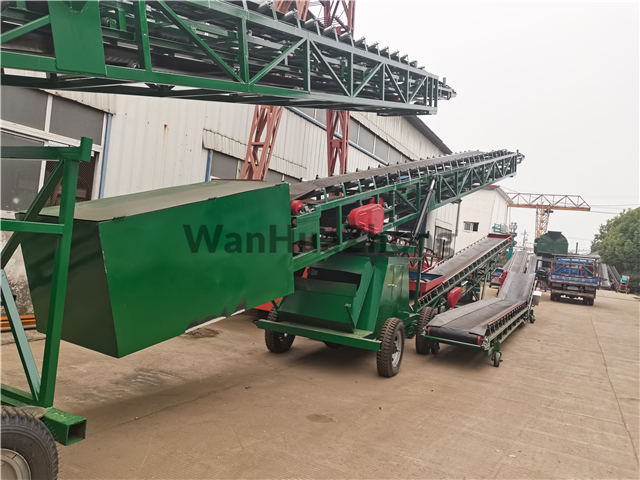

The steering telescopic loading belt conveyor is available in red and green colors

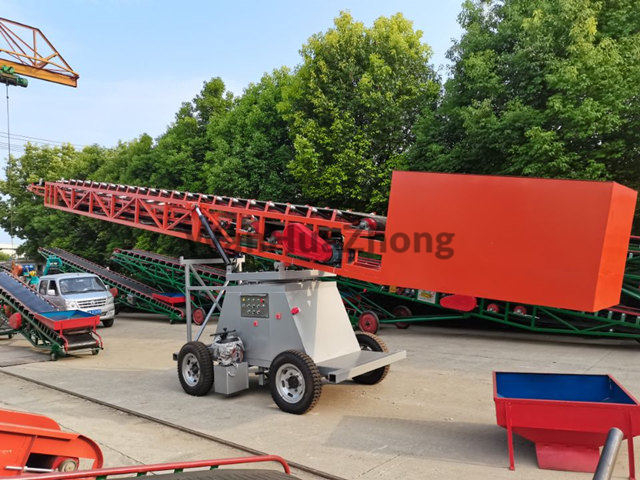

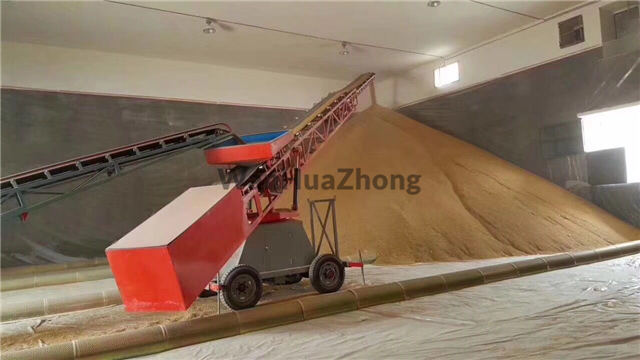

The steering telescopic loading belt conveyor working image

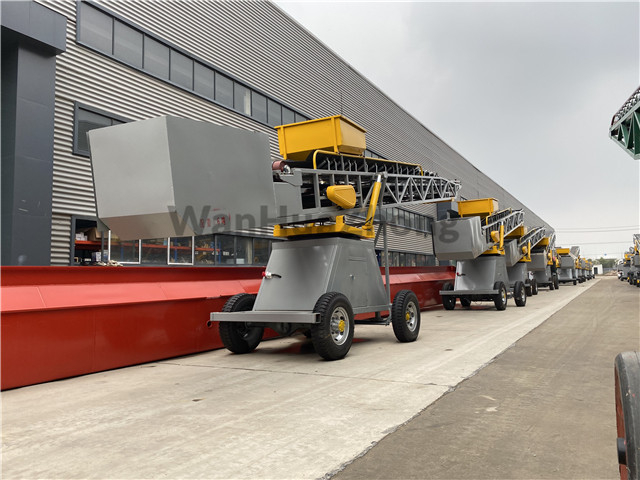

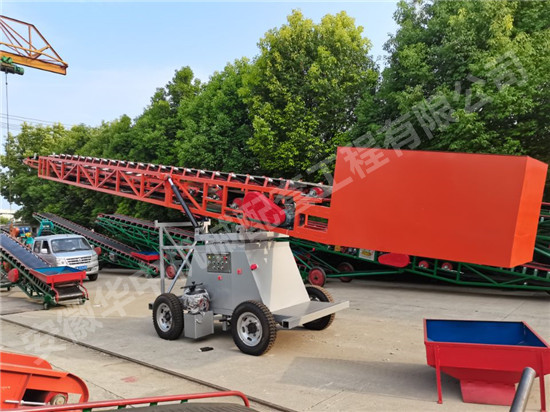

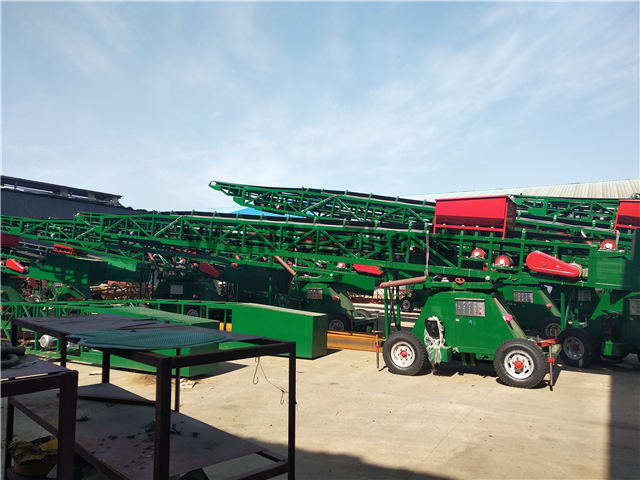

Steering telescopic loading belt conveyor waiting for transportation

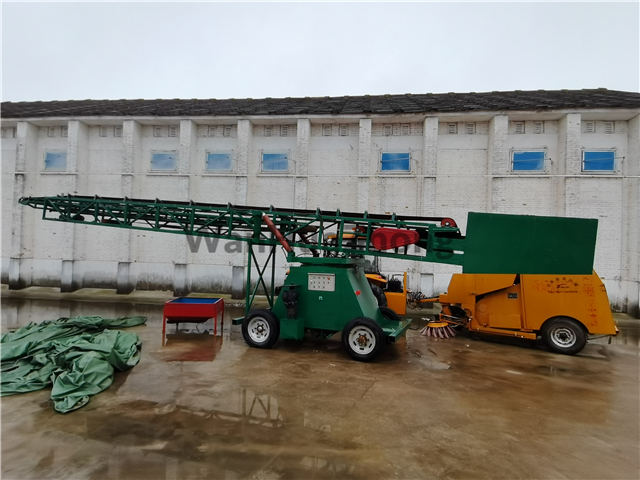

The product in the grain warehouse

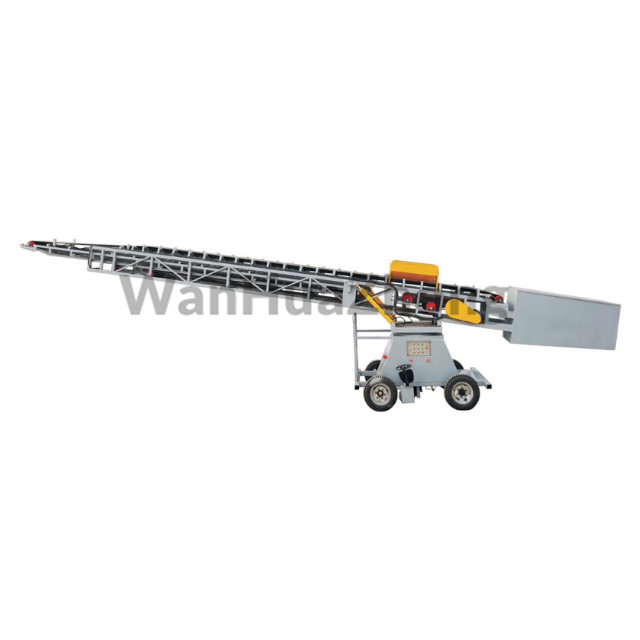

Product introduction of steering telescopic loading belt conveyor for sale
This steering telescopic loading belt conveyor for sale is a mature grain storage product of china anhui Huazhong Machinery Supporting Engineering Co., Ltd ,which is the professional grain storage machinery manufacturer。
It is equipped with a telescopic rack, which can telescopically adjust the transportation distance.
Processing volume of steering telescopic loading belt conveyor per hour: 50-200 hour.
The steering telescopic loading belt conveyor can automatically rotate left and right in the range of 180°, equipped with hydraulic lifting adjustment system, high and low, far and near can be adjusted at large angles; A grain throwing device can also be configured also.
The steering telescopic loading belt conveyor for sale is suitable for the transportation of bulk grain or other small particles. It can be used in the warehouse or used in the open air. It can be used in series or combined with other storage machinery. It is more suitable for bulk grain loading at the dock.
Welcome to contact us to choose the steering telescopic loading belt conveyor products that meet your requirements.Our professional customer service will help you choose the right product model
Main technical and service parameters

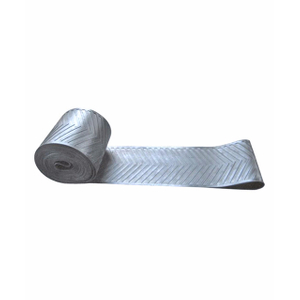

| Product name: | Steering telescopic loading belt conveyor | Model: | HZSZZ |
| Rated output: | Bulk grain 50-200t/h | Length: | 12-26m (customizable) |
| Conveying height: | 5m-9.5m | Total power: | 13.7kW-23.2kW |
| Conveyor belt width: | 550-800mm (customizable) | Conveyor belt speed: | Bulk grain ≤ 2.5m/s (Special adjustments can be made according to customer requirements) |
| Frame width: | 750-1000mm | Conveying inclination: | 11~25°(from the level) |
| Material characteristics: | Strong and wear-resistant | Belt material characteristics: | Heat resistance, cold resistance, abrasion resistance, good flexibility (-40° to + 80°) |
| Warranty service: | Video technical support, online support | After-sales service: | Video technical support, online support |
| Warranty period: | Warranty 1 year | Place of production: | JieShou, China |
| Certification: | ISO45001，ISO14001，ISO9001，CE | Applicable industry: | Grain depot, port terminal, feed factory, fertilizer factory, grain processing factory |
| Applicable objects: | Bulk materials such as corn, rice, soybeans, wheat, etc. |
Structure and performance characteristics
1. Frame: The frame of steering telescopic loading belt conveyor is mainly made of high-frequency welded pipe steel, and there is a square bucket made of steel plate at the end of the frame,and used to assemble heavy blocks.
Frame of steering telescopic loading belt conveyor
2. Drive device: The drive device is a rubber roller driven by a motor, which is arranged behind the hinge point of the frame and can act as a counterweight. It has the characteristics of compact structure, easy maintenance and adjustment.

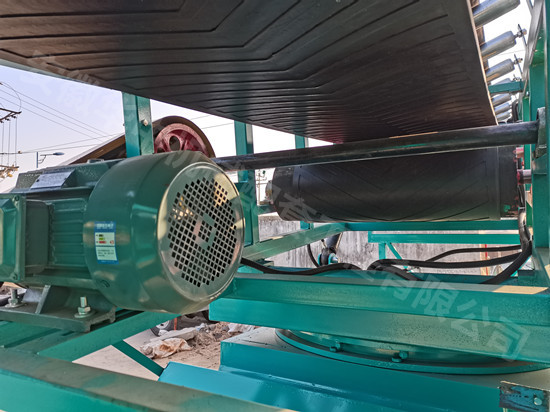

Drive device of steering telescopic loading belt conveyor
3. Reversing roller and idler: The reversing roller is composed of a cylinder made of high-frequency welded pipe section steel and a steel shaft, bearing seat, bearing, side support, etc., which can redirect the tape. The upper roller set is composed of three upper rollers arranged in a trough shape and a side bracket. The trough angle of the roller is 25°, and its function is to bear the positive pressure and friction force transmitted by the grain through the conveyor belt,and play a role in guiding the direction of the conveyor belt;The lower rollers are straight rollers arranged in parallel to support the return conveyor belt; the deviation of the belt in the middle section can be corrected by adjusting the upper and lower rollers.

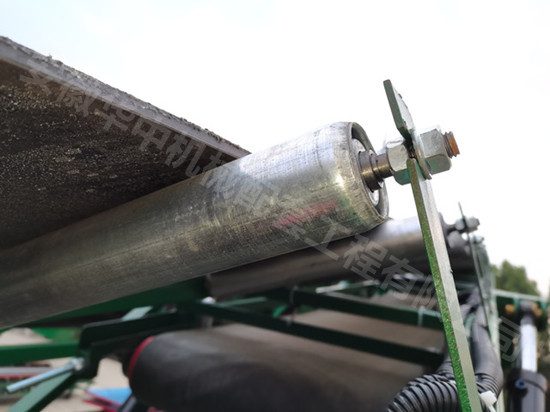

Upper roller

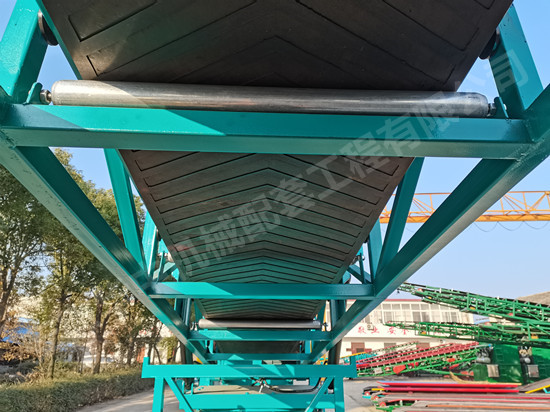

Lower roller

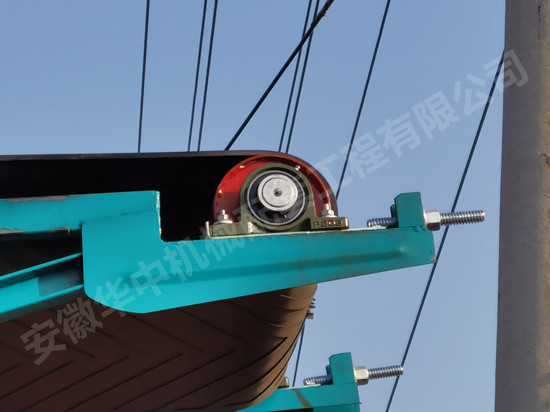

4. Tensioning device: It is mainly composed of screw rod and adjusting nut. It is fixed at the head, middle and tail of the frame, and under the bearing seat of the driving roller (redirecting roller). Use a wrench to rotate the adjusting nut to drive the roller , adjust the belt tightness and correct belt deviation.

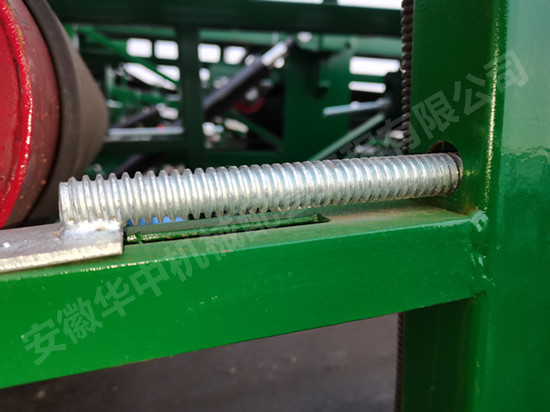

Tensioning device

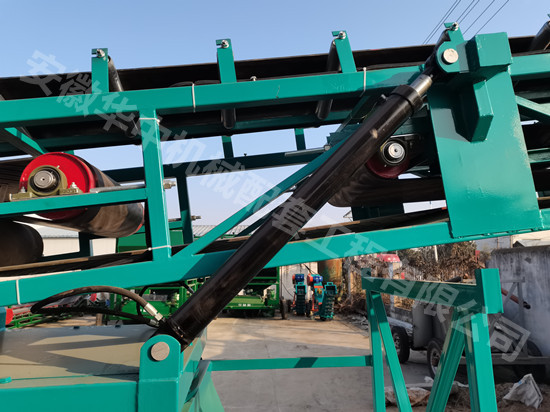

5. Lifting device: mainly composed of motor, oil pump, oil pipe and oil cylinder. When the oil pump is started, the pressure oil enters the cylinder through the oil pipe and pushes the piston to drive the frame up. When the down button is pressed, the piston retracts under the gravity of the frame and the frame returns to the initial position.

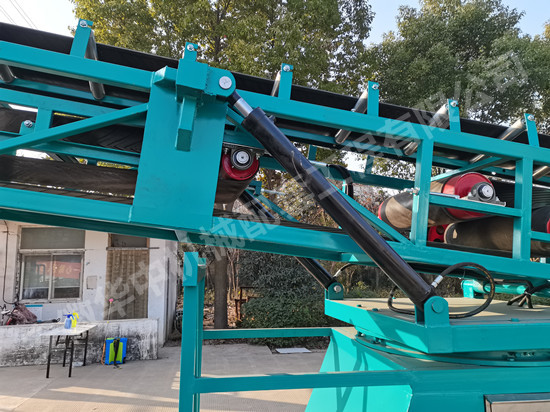

Lifting device of steering telescopic loading belt conveyor
6. Steering mechanism: such as automatic rotation, the steering mechanism consists of a rotating frame, a rotating spindle, a pair of bevel gears, and a reducer. Through the adjustment of the counterweight, the center of gravity of the component falls on the rotating spindle, and the auxiliary roller support is provided, so the rotation is flexible, stable and reliable.

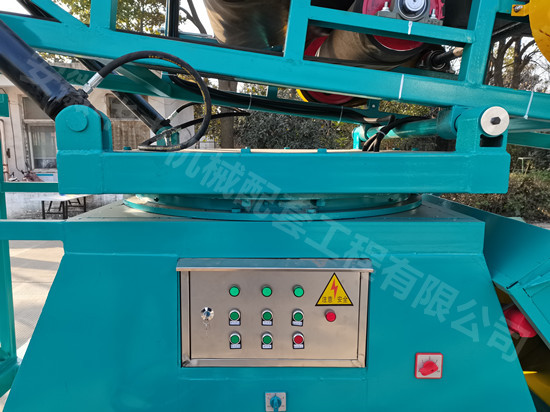

Steering mechanism of steering telescopic loading belt conveyor
7. Walking mechanism: It is composed of walking wheels and underframe. If automatic walking is required, there is an electric drive device. The driving principle is: the cycloidal needle motor drives the walking shaft through the chain to drive the whole machine to walk. The whole machine has flexible steering, and the steering principle is:It is realized by two steering wheels installed in front of the chassis frame.

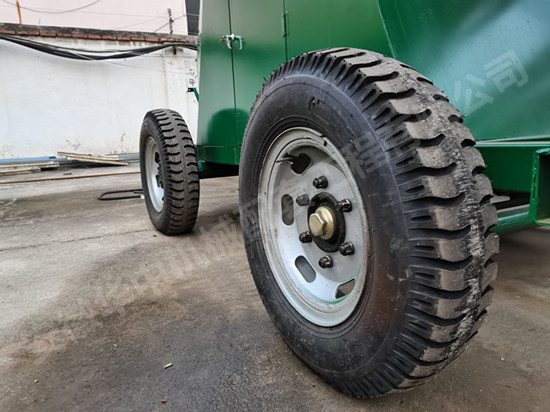

Walking mechanism of steering telescopic loading belt conveyor

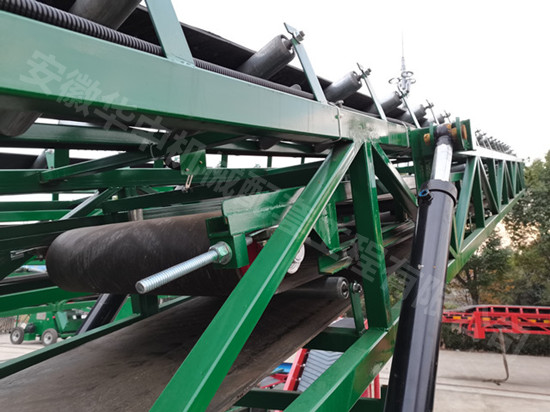

8. Telescopic device:The motor drives the turbine worm reducer to drive the gears and racks for transmission, thereby driving the expansion and contraction of the telescopic frame.
Telescopic device of steering telescopic loading belt conveyor

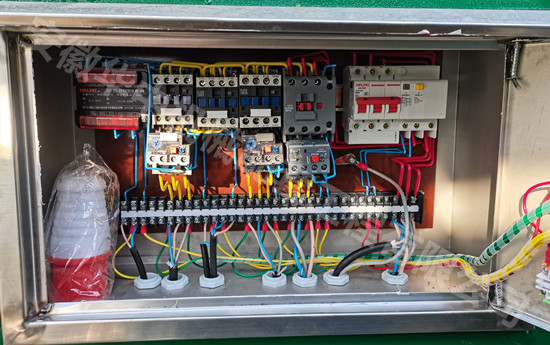

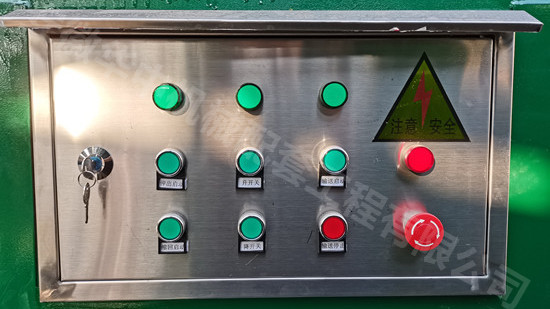

9. Electrical control box：The electrical control box is equipped with a switch device to control the operation of the motor, which is used to control the continuous operation of the conveyor, the forward and backward of the conveyor, and the lifting and lowering of the conveyor.

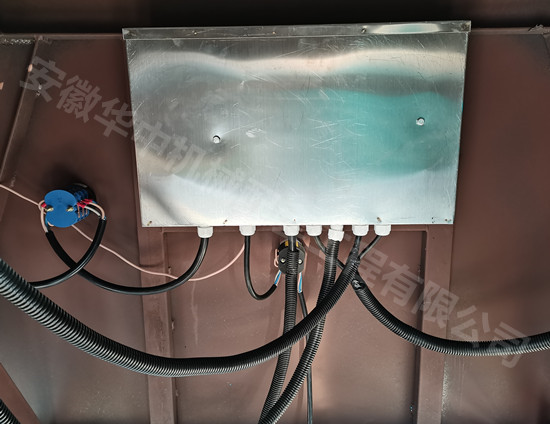

Electrical control box of steering telescopic loading belt conveyor
Performance characteristics:
(1) The conveyor has a higher conveying height, a larger coverage area (turn 90° left and right), and a high degree of automation.

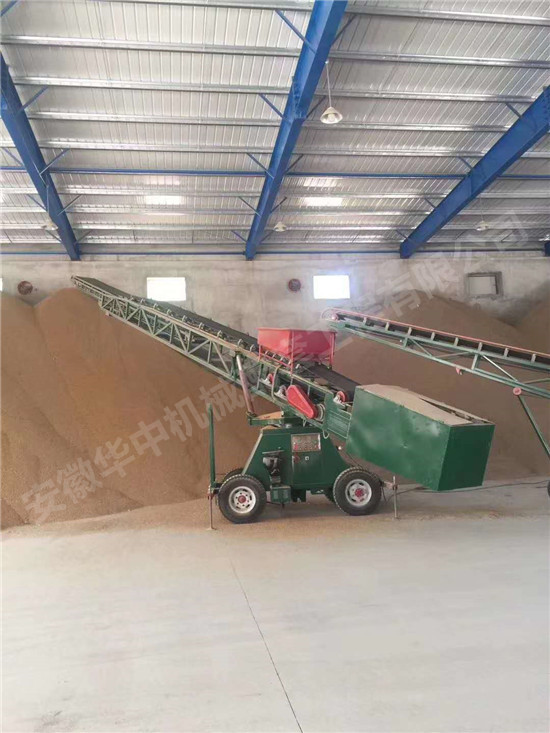

Work image of steering telescopic loading belt conveyor
(2) The conveyor adopts hydraulic device for lifting, which has the characteristics of automatic lifting, stable operation and convenient operation.

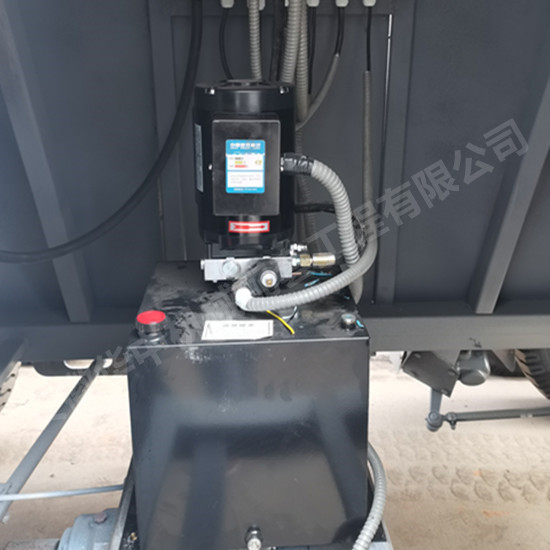

Hydraulic device for lifting
(3) The conveyor has flexible left and right steering, light and convenient operation, and can be controlled manually and automatically.
(4) The conveyor is equipped with an electric walking device as required, which has the characteristics of moderate walking speed, flexible and stable walking.

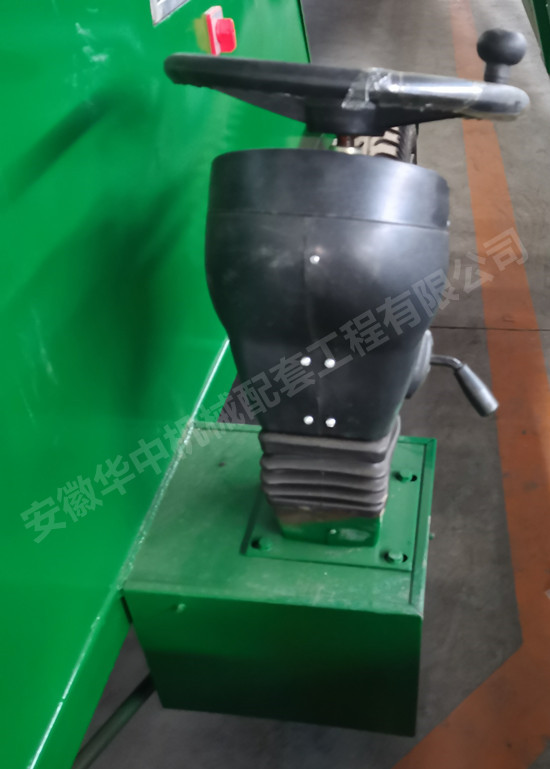

An electric walking device
(5) A grain throwing device can be arranged in front of the conveyor to further increase the distance and height of grain conveying.

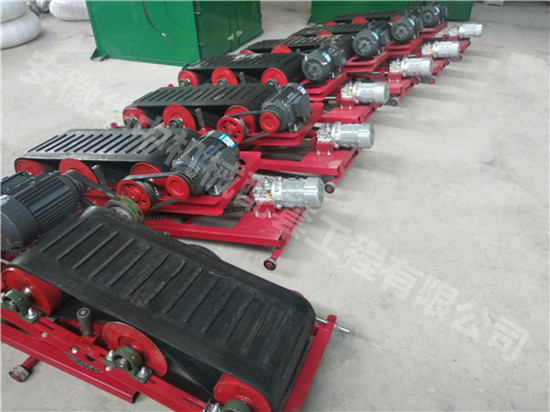

A grain throwing device
Surface treatment and painting of steel components
1,Shot blasting is carried out on the surface of steel components, and the steel surface is free of visible grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines.
2,The primer adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.
3,The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.
4,The primer is brushed and the topcoat is sprayed.
5,The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
Steering telescopic loading belt conveyor group
Steering telescopic loading belt conveyor with grain throwing machine in different color
Matters needing attention

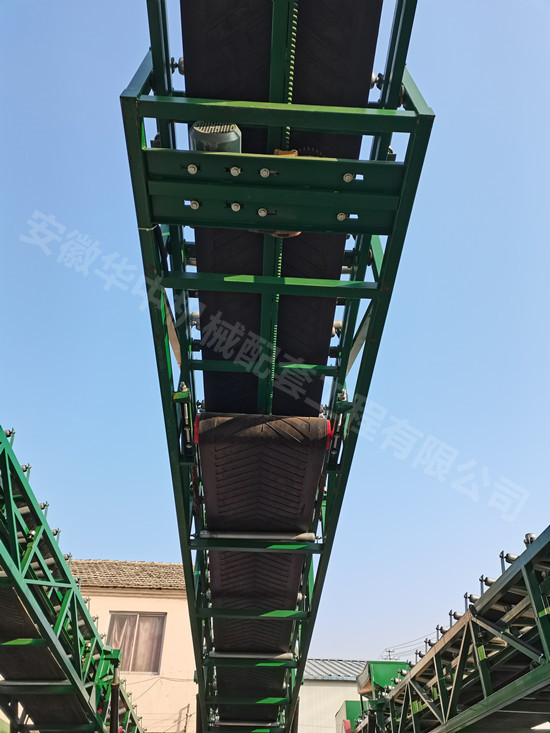

1. During the test run, it is forbidden to stand or pass under the frame.
2. The electric control system should not make any two functions work at the same time, so as not to increase unsafe factors.
3. Run each motor at no-load for 30 minutes, check whether there is any abnormality in each part, and the bearing heating temperature should not exceed 40°C.
4. Check whether the lifting device and steering device are flexible in action and whether they run smoothly.
5. Raise the four feet to test whether the front and back walking and steering of the belt conveyor are reliable.
6. The conveyor belt should not be too tight to avoid shortening the service life.
Use and maintenance

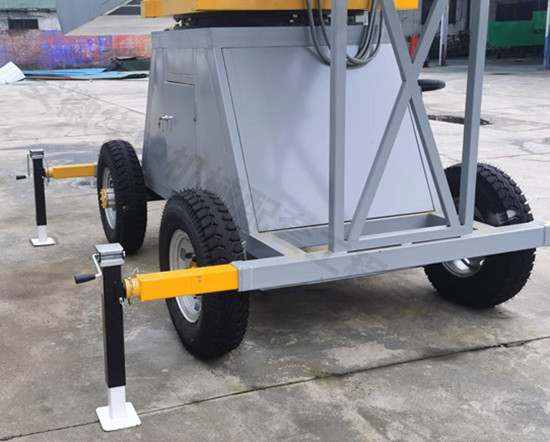

1,The four auxiliary feet must be dropped before the machine is moved to the working place, and the screw of the feet must be adjusted so that the base is placed horizontally.
2. When using this machine, it is strictly prohibited to stand or pass under the cantilever.
3. When using this machine, it is not allowed to start with load. Feeding can only take three minutes after starting; stop feeding before stopping, and shut down after the remaining material is delivered.
4. During the lifting action, the belt conveyor must stop running.
5. In order to ensure the service life of the machine, the rotating bearings and reducers must be regularly oiled. Keep it clean during use, and regularly check the drum, roller, and bearing for abnormalities; whether the lifting cylinder has oil leakage; whether the steel structure is broken.
