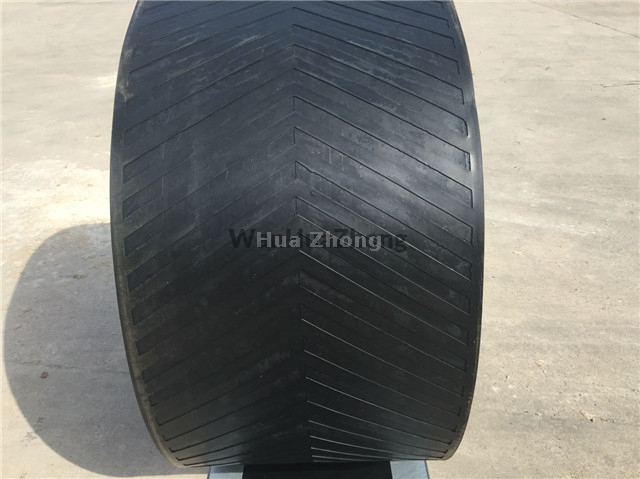

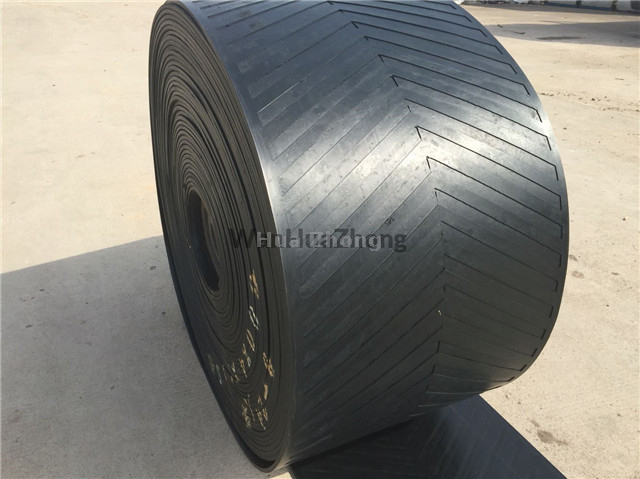

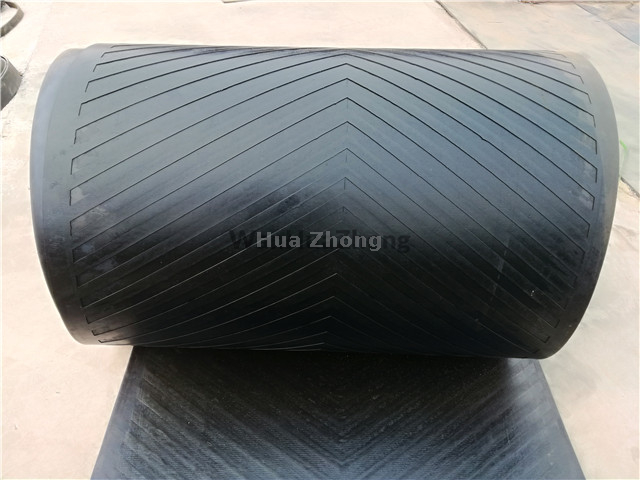

The conveyor belt

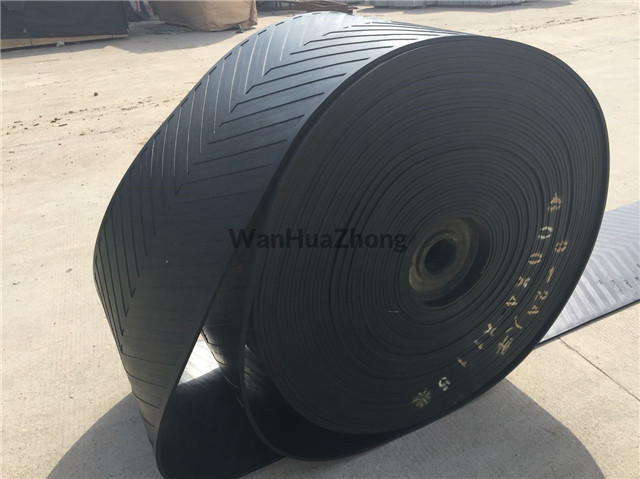

Conveyor belt used by huazhong machinery

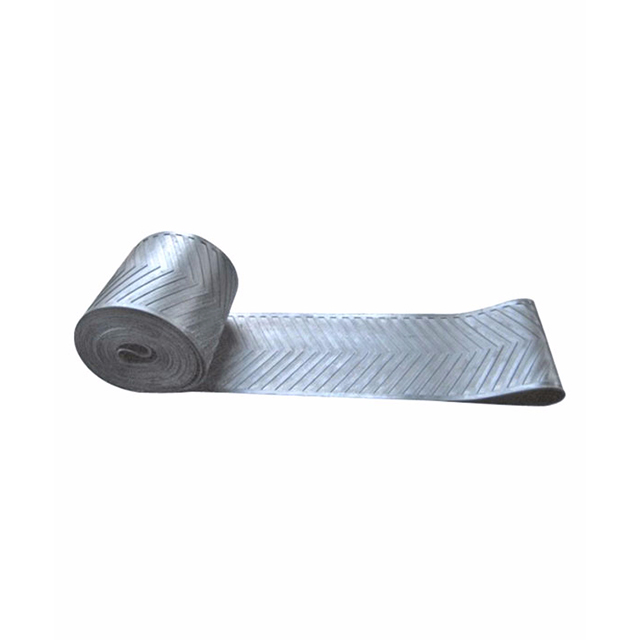

Side view of conveyor belt

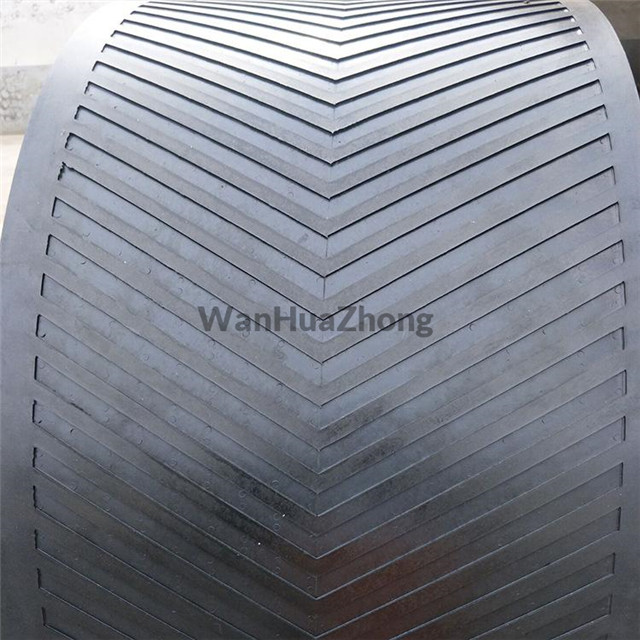

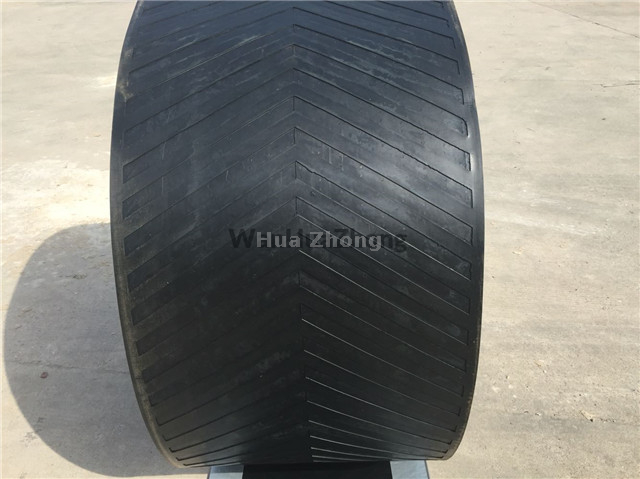

Front view of conveyor belt

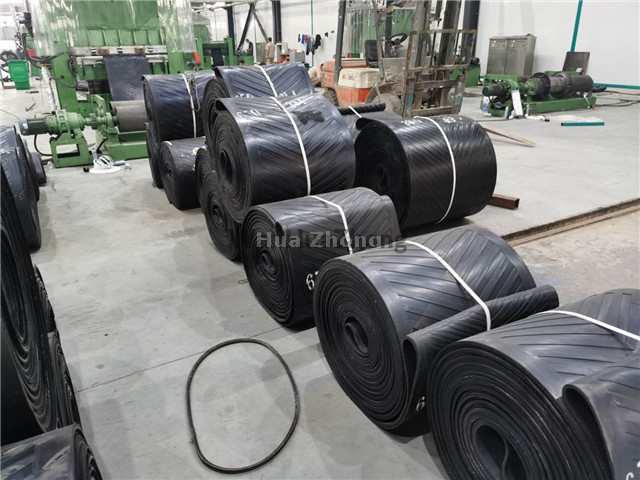

Conveyor belt in the workshop

Introduction of conveyor belt of HuaZhong Machinery

The conveyor belt for sale of HuaZhong Machinery Conveyor belt is is widely used in agriculture, industrial and mining enterprises and transportation industry to transport various solid block and powder materials or articles.It's the basic accessory of grain storage equipment under Huazhong Machinery. The canvas in the conveyor belt material is made of high-density EP cloth.

The rubber is made of natural first-class rubber (Yunnan, China) and first-class styrene butadiene, processed by professional vulcanization equipment. The width of the conveyor belt ranges from 300 to 1600mm, which can be widely used in various types of conveyors, large grain machinery, large loaders, and large industrial conveying equipment.

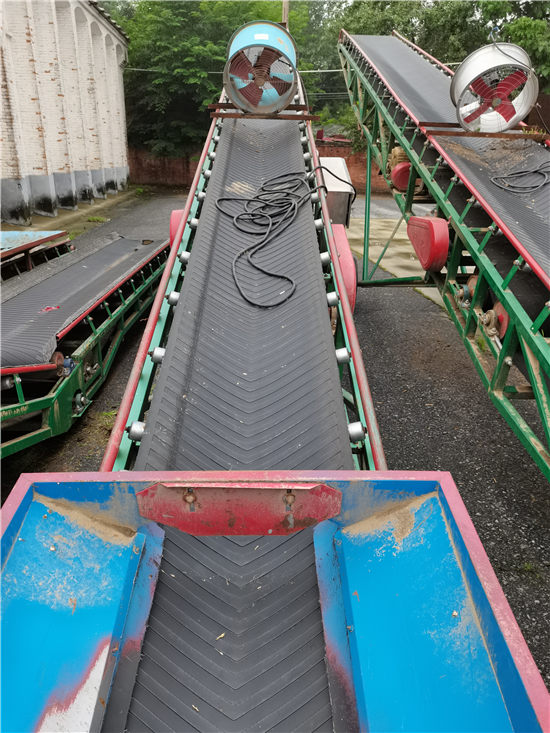

550 mm width conveyor belt

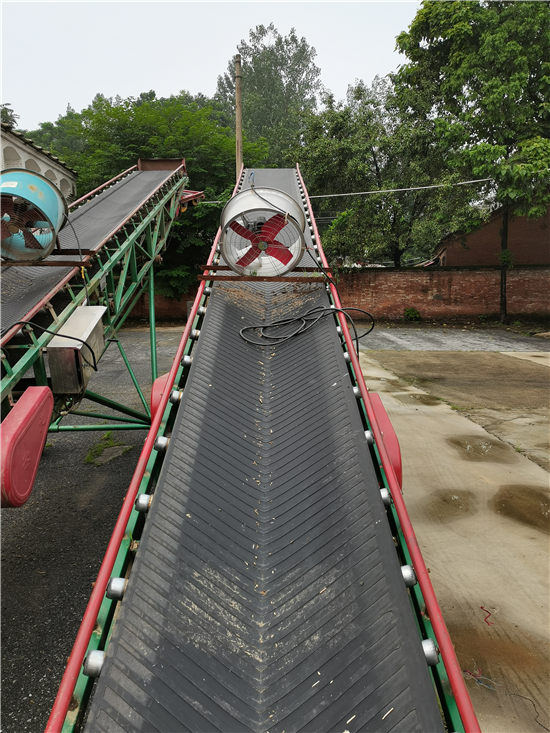

650 mm width conveyor belt

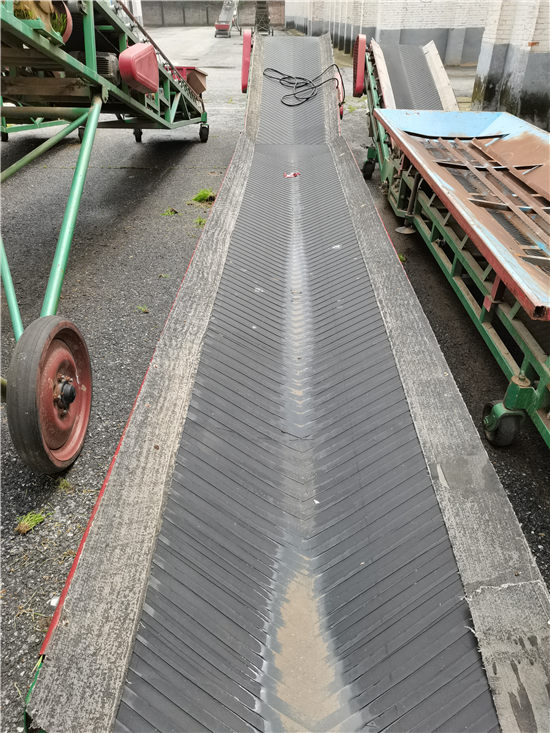

800 mm width conveyor belt

According to different materials and environments, ordinary conveyor belts are divided into ordinary type, wear-resistant type, heat-resistant type, non-flammable type, anti-burning type, acid and alkali resistant type, and oil resistant type.

The width of the conveyor belt is generally: 500mm, 650mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm, etc.

Product structure: This product uses multi-layer hanged cotton canvas as the skeleton, and the surface covers the rubber material with good performance. And be made by process of vulcanization.

Commonly used pattern conveyor belt varieties: Herringbone conveyor belt,Cylindrical pattern conveyor belt

Pitting pattern conveyor belt, etc.

Strength standard: ordinary conveyor belt implements China GB7984-2001 standard Nylon (NN), polyester (EP) conveyor belt: cover layer: tensile strength is not less than 15Mpa.

The elongation at break is not less than 350%, and the wear amount is ≤200²mm.

Interlayer bonding strength, the average value of the longitudinal sample is not less than 4.5N/mm, The gap between the cover rubber and the cloth layer is not less than 3.2N/mm, the rate of elongation at full thickness is not less than 10%, the rate of elongation of full thickness longitudinal reference force is not more than 2%.

The conveyor belt used in the product of HuaZhong Machinery adopts the green environmental protection polyester herringbone pattern endless conveyor belt with 3 layers of fabric. The fourth layer is the coating layer, the thickness: upper 3mm and lower 1.5mm (food-grade conveyor belt or flame-retardant conveyor belt can be customized according to customer requirements).
