Product introduction
Introduction of mobile double wing belt conveyor for sale:
This mobile double wing belt conveyor for sale is a new type of double wing belt conveyor of china anhui HuaZhong machinery supporting engineering Co., Ltd ,which is the professional grain storage belt conveyor manufacturer.
Transporting volume per hour of mobile double wing belt conveyor for sale: Packaged material 1200 pack
Main aplication of mobile double wing belt conveyor for sale:
It is mainly used for the transshipment of packaged grains, such as the transshipment between cars and cars, cars and trains, the loading and unloading of cars and ships, and cars and trains.
Characteristic of mobile double wing belt conveyor for sale:
The mobile double wing belt conveyor for sale is a new type of conveyor designed for loading and unloading packaging for trucks (trains, cars, etc.). The machine consists of two hydraulically liftable conveyors on both sides of the intermediate support table, forming a double-wing type, which can be adjusted freely within a certain angle range to facilitate the transportation of different angles. Conveyor maximum inclination ≤ 22 ° (from the horizontal direction).
The mobile double wing belt conveyor for sale is equipped with a walking device and steering wheel steering function, which can move freely; It can also be equipped with a dust collector, a grinder (removable), conveyor conveying bulk grain or grain package function, and can also be equipped with automatic telescopic device to achieve telescopic function to make the material transportation range wider.
The company also has equipment with dual-wing left-right steering function, which needs to be specified by the user when purchasing.

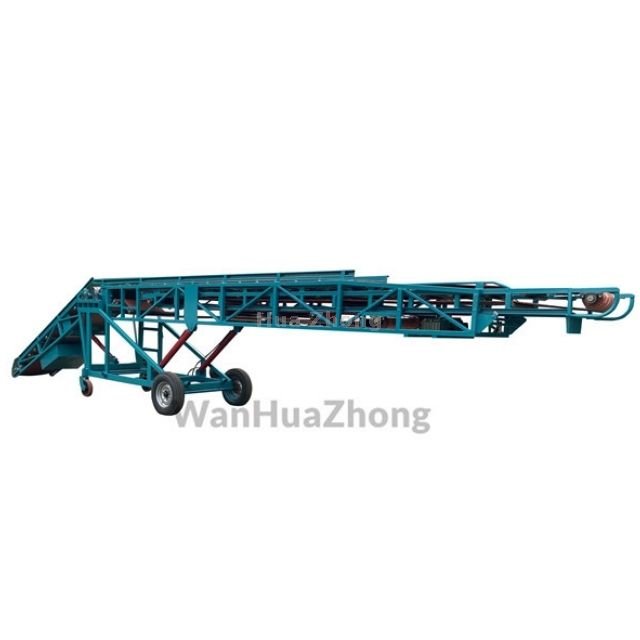

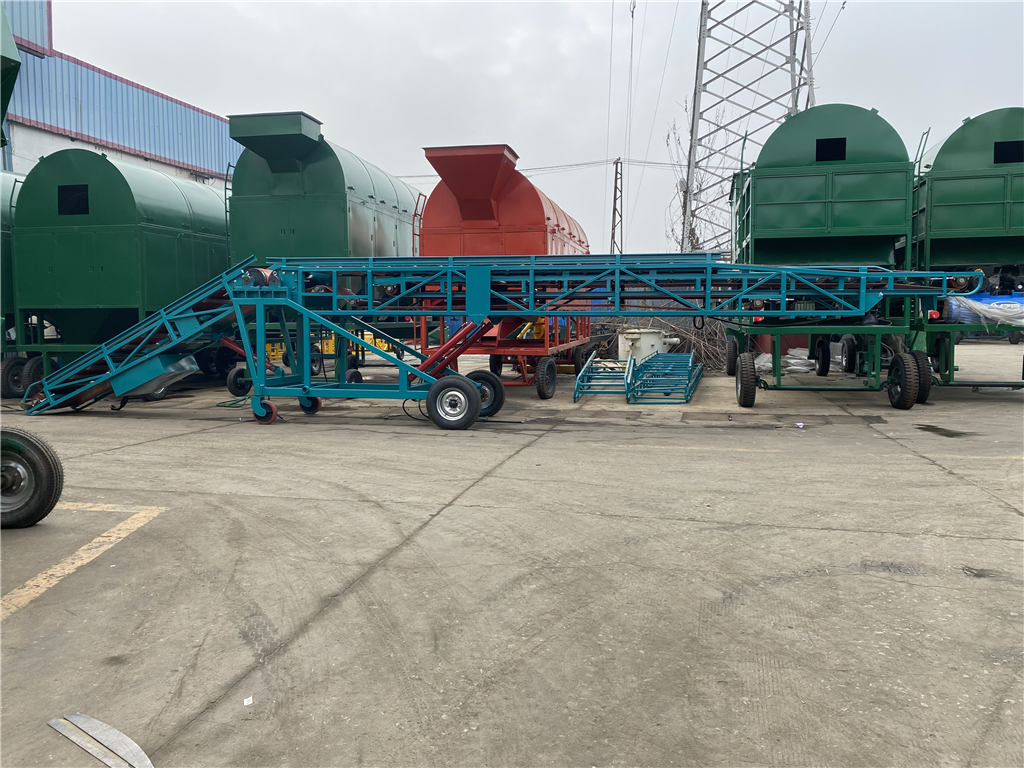

Mobile double wing belt conveyor

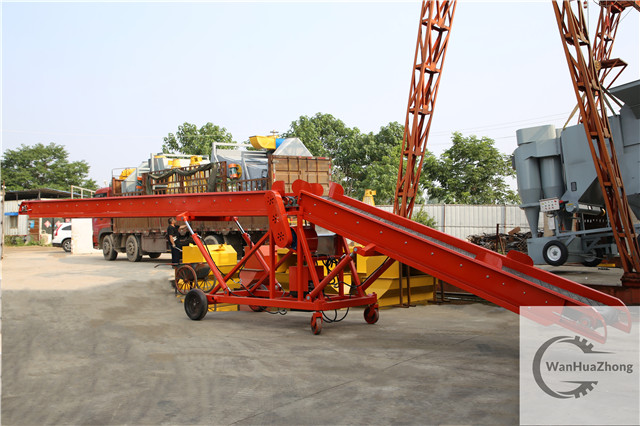

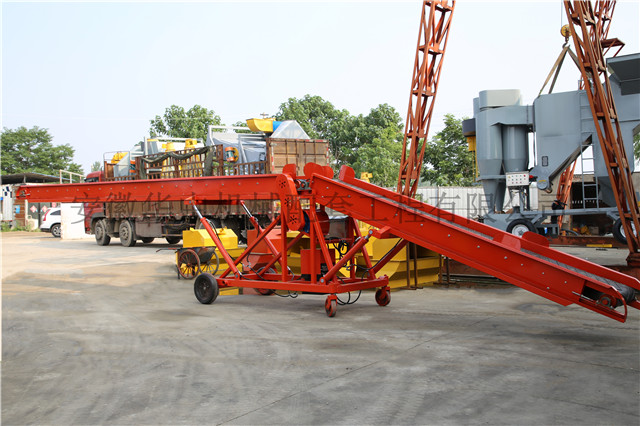

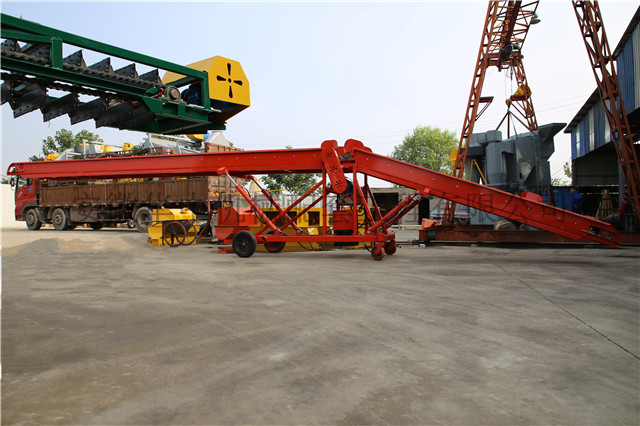

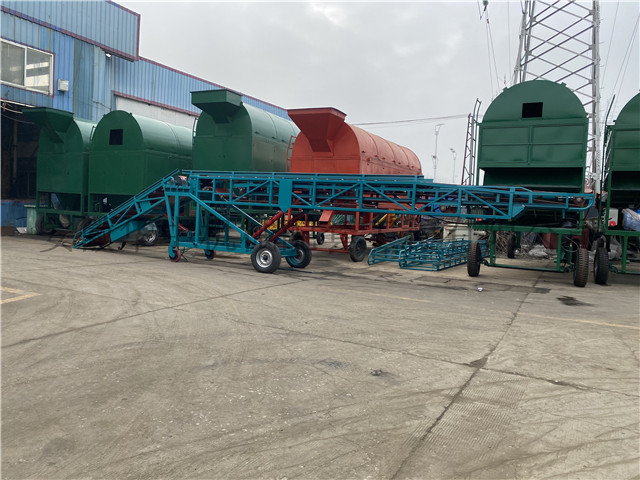

Mobile double-wing belt conveyor
Main technical and service parameters
| Product name: | Mobile double wing belt conveyor | Model: | HZSJ |
| Convey capacity: | Packaged grain1200 packs / h | Length: | 4-8m for landing section, 6-10m for installation height (customizable) |
| Scope of application: | Corn, rice, soy, wheat and other bulk grain and others small particle material | Total power: | 8.5kW |
| Width of belt: | 550mm-800mm (can be customized) | Belt speed: | Package grain ≤ 1.5m / s (can be adjusted according to customer requirements) |
| Frame width: | 850mm-1100mm | Overall size: | Can be customized according to customer's actual needs |
| Conveying inclination: | ≤22° | Belt material characteristics: | Heat resistance, cold resistance, wear resistance, stretchable (-40 ° to + 80 °) |
| Warranty service: | Video technical support, online support | After-sales service: | Video technical support, online support |
| Material characteristics: | Sturdy, wear-resistant | Place of production: | Anhui, China |
| Certification: | ISO45001, ISO14001, ISO9001, CE | Warranty period: | 1 year |
| Applicable industry: | Grain depots, farms, ports, feed mills, fertilizer plants, grain processing plants, chemical plants, small mines | Suitable: |
Structure and composition
The mobile double wing belt conveyor is composed of a chassis and a double-wing conveyor,the two sides under the chassis frame are respectively equipped with walking wheels and universal wheels,the electric control box and hydraulic system are mounted on the chassis frame.
The conveying part of the mobile double wing belt conveyor consists of two independent conveyors. The conveying terminal conveyor is connected to the chassis frame through electric rollers and hydraulic cylinders, and the conveying start conveyor is also connected through electric rollers and hydraulic cylinders. On the chassis frame, the two driving rollers are flush, which is convenient for conveying materials. The conveyor is composed of a head roller, a carrying roller, a return roller, a conveyor belt, a conveying frame, and a driving roller.
Working process of mobile double wing belt conveyor
1. Adjust the required height by adjusting the lifting cylinder.
2. Start the electric roller and turn on the operation mode. All electrical components are controlled by the operation cabinet.
Working principle of mobile double wing belt conveyor
When unloading or loading is needed, move the mobile double wing belt conveyor to the required working position.According to the height of unloading or stacking, the hydraulic system is used to adjust the conveyor on one side to a suitable height, and the conveyor on the other end is adjusted to the height of palletizing, loading or shipping and then stops. In this way, start the drive motor to make the conveyor run, and normal operation can be achieved.

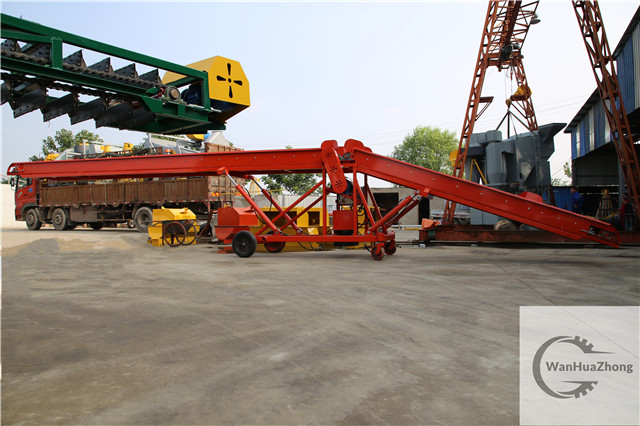

Customized mobile double wing belt conveyor

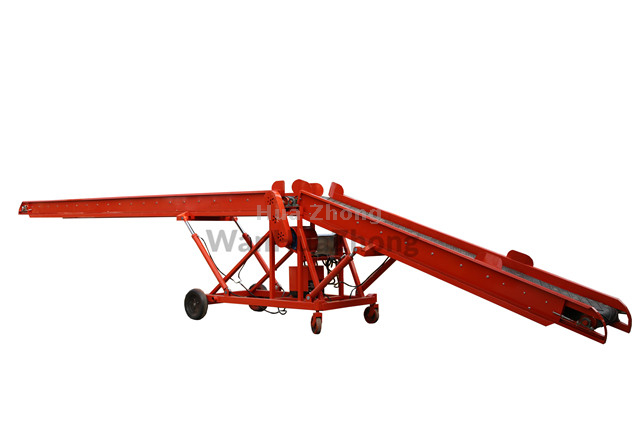

Customized mobile double wing belt conveyor
Working principle
When unloading or loading, move the mobile double wing belt conveyor to the required working position. According to the height of unloading or stacking, use hydraulic system to adjust the conveyor part on one side to the appropriate height, and adjust the conveyor at the other end to the height of palletizing, loading or shipping, and then stop. In this way, the drive motor is started to make the conveyor run, and normal operation can be performed.
During the work, the inclination of the conveyor can be adjusted in time to meet the height variation requirements of the unloading and palletizing trucks.
Electrical control box and electrical components
1，The electrical control box of the mobile double wing belt conveyor is a device that can accommodate electrical components such as the motor start switch.On the box panel, there are buttons, indicator lights and power switch operation handles necessary to control the start and stop of the conveyor and other operations.The electrical control box adopts a double-layer steel door sealed structure, which can effectively waterproof and dustproof. The external cable of the control box adopts a special waterproof and dustproof power supply quick connector. It is equipped with anti-overload and anti-phase protection devices for easy maintenance. Reduce electrical maintenance work.
2，The box body of the mobile double wing belt conveyor is welded with stainless steel plates, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the explosion-proof grade reaches DIP A21.
3，There is enough space in the electrical control box of the mobile double wing belt conveyor for loading, unloading and maintenance of electrical components. The electrical control box has good stability when working under vibration and impact load conditions.
4, The box of the double-wing loading and unloading mobile telescopic belt conveyor is equipped with a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.
5, All electrical protection grades of the double-wing loading and unloading mobile telescopic belt conveyor are T4, IP54, and the insulation grade is F.
6, All electrical components supporting the electrical control box of the mobile double wing belt conveyor are made of domestic first-line brands such as Delixi products, and all wiring phase sequences are consistent.
7, The air circuit breaker of the mobile double wing belt conveyor meets the operating requirements of AC3 load nature, and the load nature of the contactor is not less than AC3. The thermal relay can withstand the vibration of the contactor of the equipment and the conveyor equipment during normal operation.
Repair and maintenance
1、Check whether the fasteners in all parts of mobile double wing belt conveyor are tight before use.
2、When it is working, wait until the belt conveyor is running properly before starting work.
3、All parts of the hydraulic system must be kept clean.
4、Change the bearing lubricant after working for 1000 hour.
5、When the mobile double wing belt conveyor is not in use, clean it and put it in a ventilated and dry place.
6、When the conveyor is not used for a long time, the oil cylinder should be placed in the retracted position.
