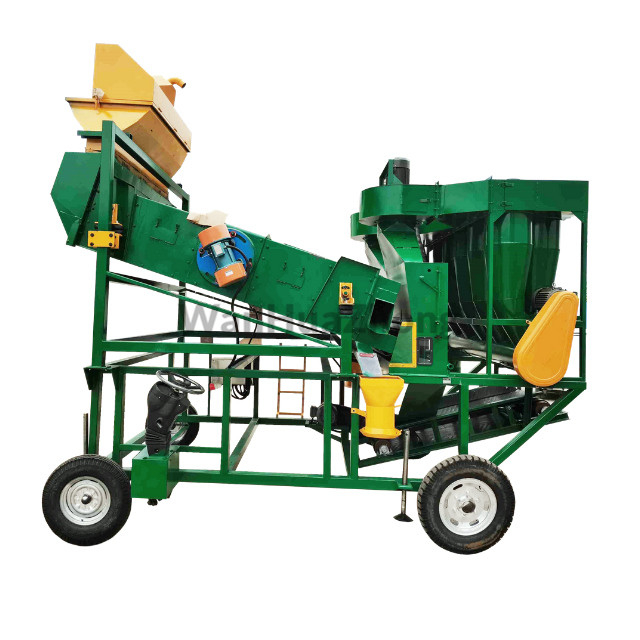

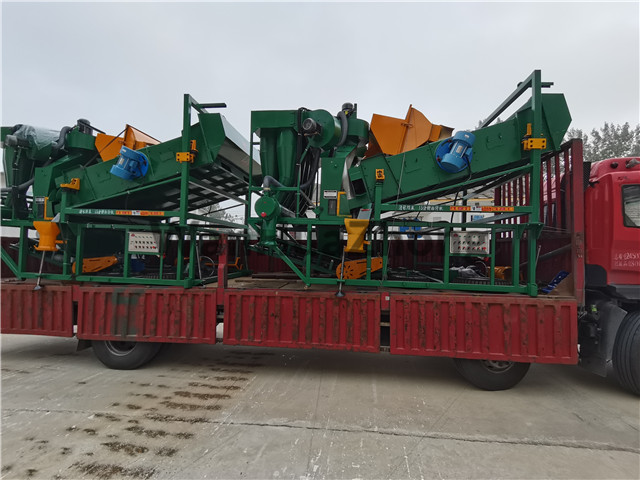

Mobile cleaning vibrating screen

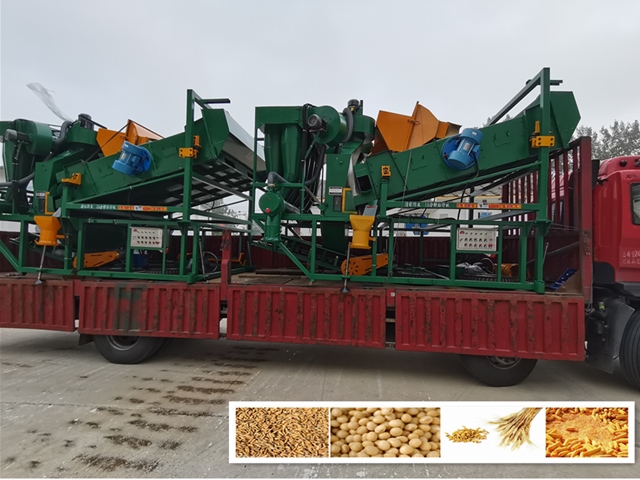

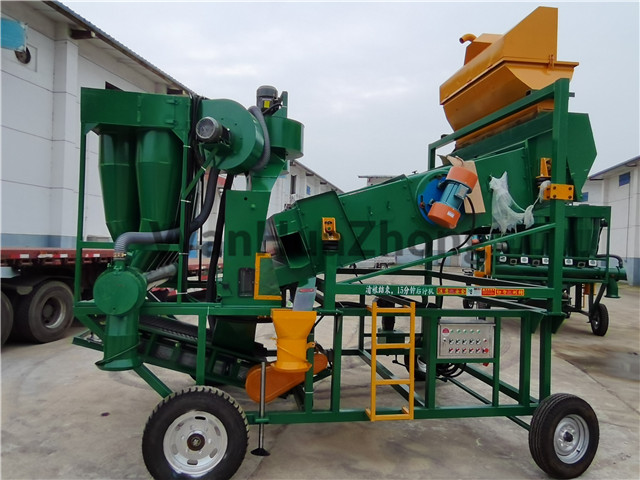

Mobile cleaning vibrating screen in local of grain warehouse

Mobile cleaning vibrating screen in local of grain warehouse

Product introduction of mobile cleaning vibrating screen (can also be called mobile cleaning vibrating sieve):

This mobile cleaning vibrating screen (can also be called vibrating sieve) for sale  is mature grain cleaning equipment of  china anhui HuaZhong machinery supporting engineering Co., Ltd ,which is the professional grain vibrating screen manufacturer.This type of grain scraper has been sold in China for many years and has been tested by the market and won wide acclaim from customers.

Main application of mobile cleaning vibrating screen (can also be called mobile cleaning vibrating sieve):

The mobile cleaning vibrating screen (can also be called vibrating sieve) is a mature grain cleaning equipment in the HuaZhong mechanical vibrating screen equipment series. The vibrating screen equipment is a mobile commonly used grain cleaning machine, and it is an ideal equipment for grain cleaning for grain purchase, storage and grain and oil processing enterprises.When using a mobile cleaning vibrating screen, the corresponding mesh can be changed according to the size of the grain particles. The vibrating screen equipment can clean grains of different sizes, such as soybeans, sesame, wheat, rice, corn, rapeseed, etc.

Product capacity mobile cleaning vibrating screen per hour : 80-100t/h

Product advantages of mobile cleaning vibrating screen：

1. Combine the vibrating screen and circulating wind selector, the cleaning effect is obvious.

2, The steering wheel electric walking device is equipped with standard car wear-resistant tires to make the whole machine move flexibly and convenient.

3, Mobile cleaning vibrating screen can be cleaned, selection, and grading of corn, soy, wheat, etc. according to the size of material particles.

4, The screen of mobile cleaning vibrating screen have passed high frequency vibration wave intensity test to ensure high quality.

5, The electrical control box is designed as double-layer steel door sealing structure, with anti-overload, anti-point protection device, using domestic well-known or joint ventured brand electrical components, external cable adopts dedicated waterproof and dustproof power supply quick-end plug-in, easy to maintain,reduce electrical maintenance work.

6. All of the reinforced racks use high-strength steel sheets, which are welded by professional welders, and have high quality continuous welds.

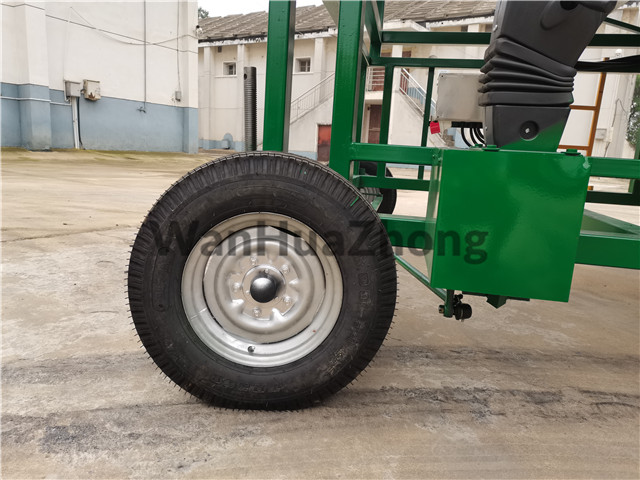

Walking wheel of mobile cleaning vibrating screen in grain warehouse

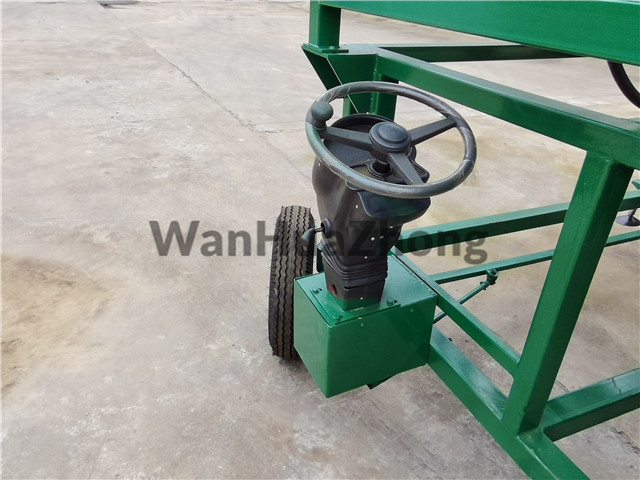

Walking device of mobile cleaning vibrating screen

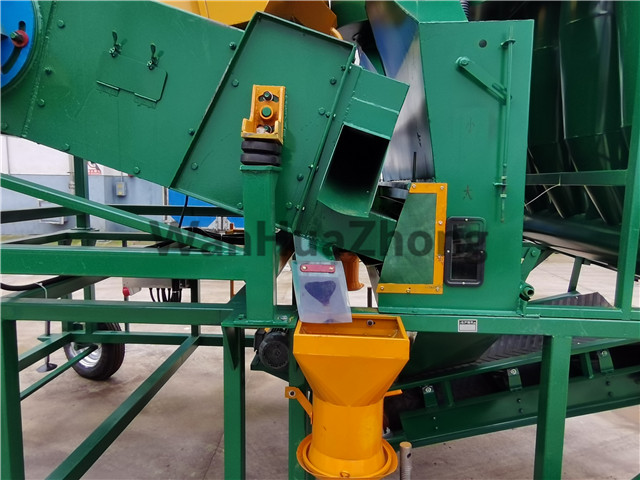

Outlet of large impurity of mobile cleaning vibrating screen

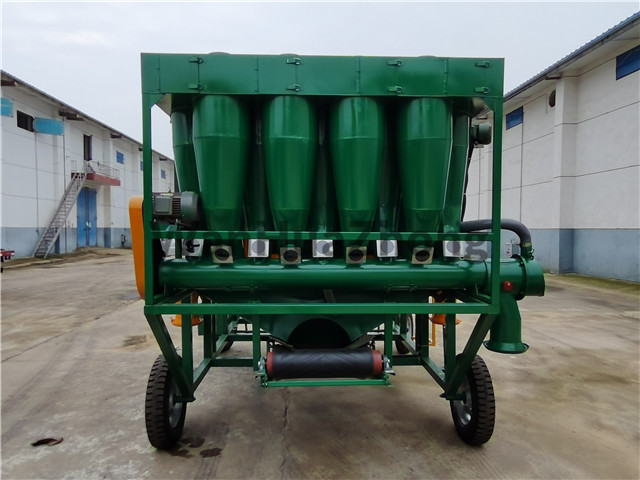

The mobile cleaning vibrating screen  (can also be called mobile cleaning vibrating sieve) is mainly composed of four parts: the winnowing part (removal of impurity winnowing device), the screening part (vibrating screen box), the frame and the walking part (convenient mobile frame) and the transmission part (Outfeed conveyor).

1. The winnowing part of the mobile cleaning vibrating screen: It consists of an exhaust fan and a fan. The exhaust fan is installed above the hopper of the vibrating screen. When the material enters the hopper, a part of the floating debris and dust is drawn away by the exhaust machine and the fan installed in parallel with the material, when the grain in the hopper falls into the upper sieve, the fan blows out the residual floating debris and dust in the grain.

2. The screening part of the mobile cleaning vibrating screen: consists of the main body of the screen frame, the upper and lower meshes, the outlets for large and small impurities, and the outlet for clean materials. The main function is to separate large and small impurities from clean materials.

3. The frame and walking part of the mobile cleaning vibrating screen: The frame is welded with angle steel, which bears all parts of the whole machine, and the lower part is equipped with walking wheels and steering wheels at the front and rear, making it flexible and convenient to move.

4. The transmission part of the mobile cleaning vibrating screen: the main motor drives the bridge shaft, and the bridge shaft drives the vibrating shaft to make each part rotate as required to complete the screening work.

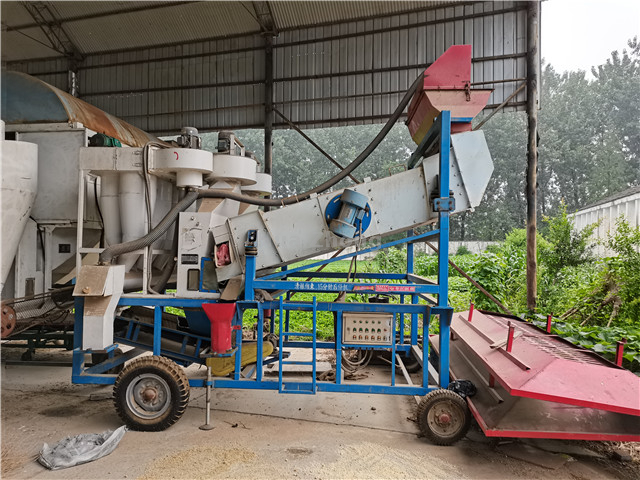

Old type of mobile cleaning vibrating screen in grain warehouse

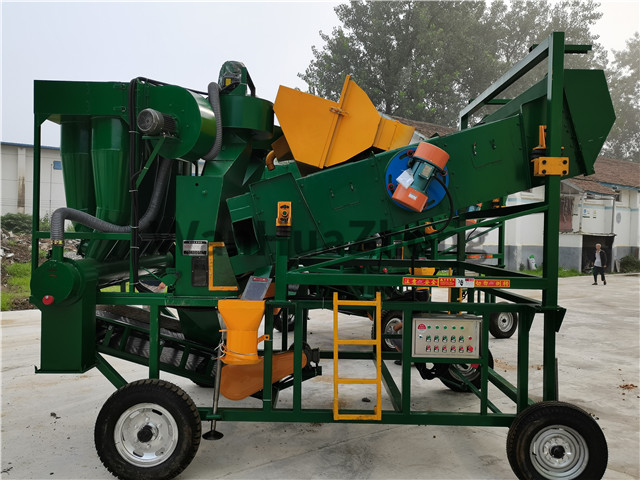

New composite clear grain vibrating screen arrived in the grain library

Working principle of mobile cleaning vibrating screen

The grain enters the vibrating screen from the hopper of the mobile cleaning vibrating screen. After passing through the upper screen surface of the vibrating screen, the large impurities are left on the screen surface and flow out from the large impurities outlet at the back end. Then the grain falls into the lower sieve surface. At this time, the small impurities, immature particles, and broken particles that are finer than the lower sieve directly fall onto the sliding plate at the bottom of the sieve and flow out from the outlet of the rear end.

The clean grains left on the lower screen surface directly flow out from the material outlet at the rear end. The screened and cleaned grain enters the inlet of the winnowing device. After the winnowing, the light impurities and dust in the material are separated and removed by the discharging auger of the cyclone group.

The clean grain falls on the belt of the conveyor equipped in the equipment, and is sent out of the vibrating screen equipment through the conveyor. After the primary cleaning, the material is cleaned by the circulating fan to clean the light impurities and dust in the material, and the entire screening work is completed.

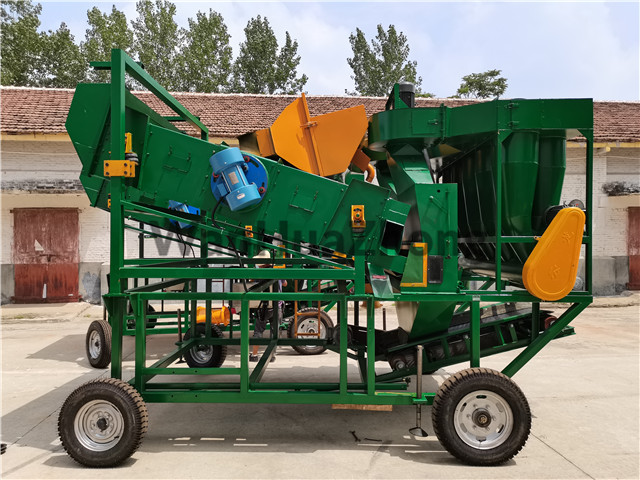

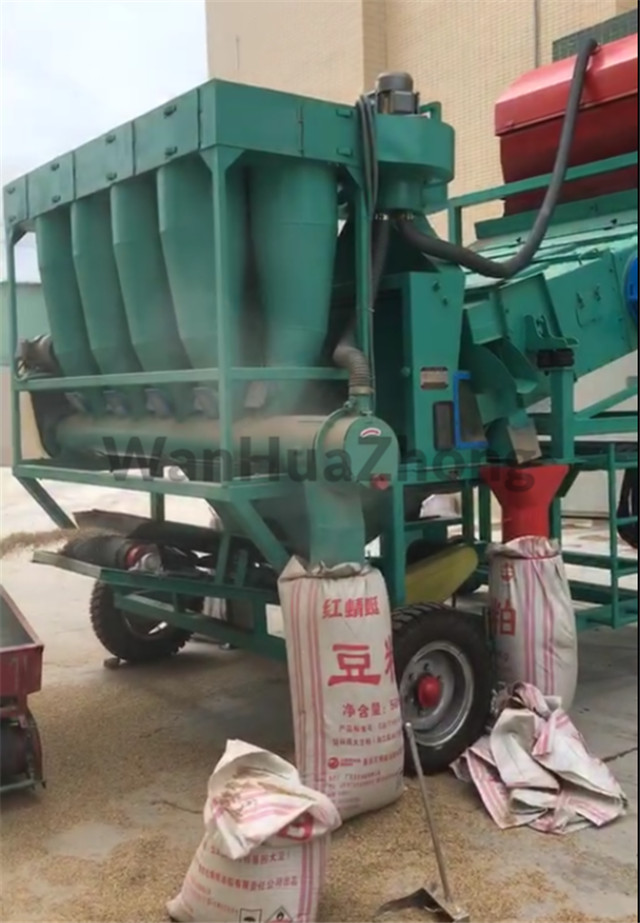

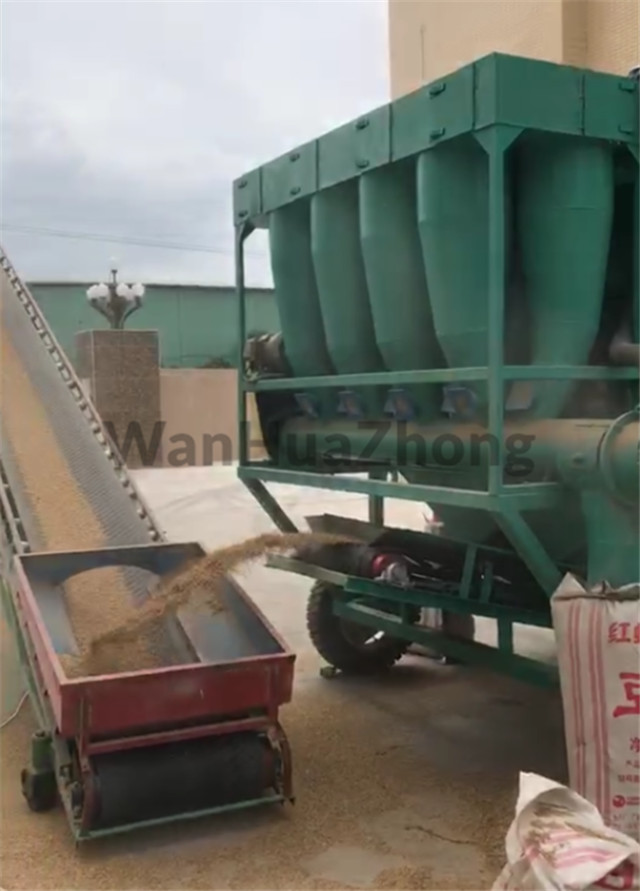

Mobile cleaning vibrating screen working picture

Mobile cleaning vibrating screen in local of grain warehouse

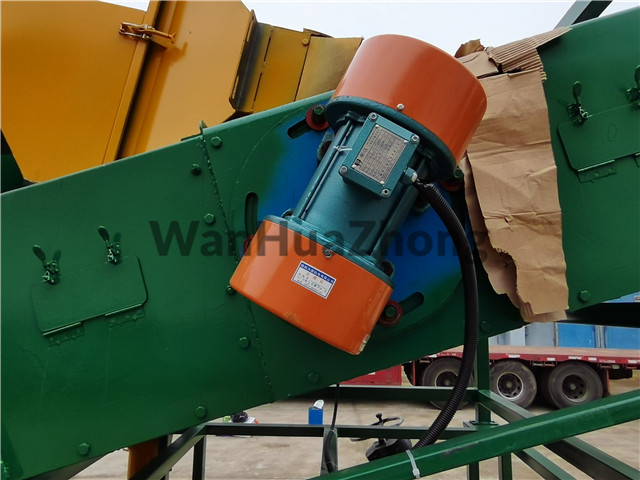

Motor of mobile cleaning vibrating screen

1. Preparation of mobile cleaning vibrating screen and circulating air separator before use

1.1 Before use, check the rotation direction of the vibration motor of the mobile cleaning vibrating screen, and the two vibration motors must rotate in the opposite direction at the same time. Both motors have interlocking devices and must be started or closed at the same time.

1.2 Check whether all fixed handles and bolts are tightened. The locking handle should be in the locking position.

1.3 Check whether the rubber spring of the mobile cleaning vibrating screen has the phenomenon of skewness, detachment or deformation is large. If the above situation is found, the rubber spring should be adjusted or replaced in time.

1.4 Protective cover should be installed on each transmission part of the air separator.The fan steering should be correct.

2. Test run of  mobile cleaning vibrating screen(vibrating sieve)

After the preparation is completed, the inspection is confirmed, and the 380V power running device can be turned on.

2.1 After this grain cleaning equipment is running 3 to 5 minutes, it can begin to accept the feed.

2.2 The wind selector is achieved by adjusting the width of the suction rope to ensure that the required light impurities are taken away.

2.3 After the work is completed, all motors should stop, and then start the anti-stretch vibration pump press the "internal screen cleaning" button, and hold down without leaving, last for 5 minutes, interval for 2 minutes. It is also possible to perform "internal screen cleaning" in the downtime.

2.4 Please use it strictly in accordance with the operational procedures of this device.

Operation procedures for mobile cleaning vibrating screen (vibrating sieve)

1. Support the stabilization rod of the mobile cleaning vibrating screen and adjust the frame body of the device to be horizontally.

2. When adding a material in a mobile cleaning vibrating screen, please pay the intermediate position of the hopper to ensure that the material is not out of equipment.

3. Check whether the shield of the transmission member of the mobile cleaning vibrating screen is firm.

4. Check if the electrical box of the mobile cleaning vibrating screen is obviously abnormal.

5. Make sure the power supply is three-phase 380V, start the transmisson motor - auger moter - fan motor - vibrating motor, and check whether the steering is correct.

6. The equipment should be in the case of a no-load for 10 minutes, and there is no abnormality.

7. It is strictly forbidden to overload the grain cleaning equipment, and the feeding should be terminated. After the material is discharged, it can be stopped.

8. Turn off the fan motor - auger motor - transmission motor, and then close the vibrating motor after 15 minutes.

9. After the grain cleaning process is completed, all motor is stopped, press the "internal screen cleaning" button and  hold down without leaving, last for 5 minutes, interval for 2 minutes. It is also possible to perform "internal screen cleaning" in the downtime.

Surface treatment and painting of steel components

The surface of the steel component is shot-blasted, and the surface of the steel is free of visible grease, dirt, oxide scale, iron-zinc, and paint coatings. Any traces that can be left are only slight stains like dots or lines.

The iron oxide zinc chromium primer is used as the  underpainting;and the thickness of the dry paint film is greater than 40µm.

The topcoat adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.

The  underpainting; is brushed and the topcoat is sprayed.

The coating of the  underpainting; and the intermediate paint is free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is even, bright and complete.

Each shift should clean the large impurities on the screen surface of the mobile cleaning vibrating screen once.

This grain cleaning equipment is strictly forbidden to operate the mobile cleaning vibrating screen.

It is strictly prohibited to start the mobile cleaning vibrating screen with load.

It is strictly prohibited to overhaul the mobile cleaning vibrating screen in the process of operation.
