Main application of environmental protection vibrating screen (also can be called vibrating sieve) for sale:
The environmental protection vibrating screen (also can be called vibrating sieve) is the latest environmentally friendly grain cleaning machine among the mechanical vibrating screen equipment in Huazhong Machinery. It is mainly used for cleaning operations when the requirements for cleaning up grains such as imperfect wheat particles, scab, and wheat deficiencies are high. It is also used for the cleaning and screening of granular materials in industries such as grain purchase, storage, flour, feed, and grain and oil processing. Good cleaning effect, flexible and convenient to move! An internal circulation mechanism is added to the vibrating screen equipment, which achieves the effect of environmental protection and energy saving without increasing external power.Product appearance, color and performance can be customized.
Hourly processing capacity of environmental protection vibrating screen for sale (also can be called vibrating sieve): 40-60 tons/hour.
Working principle of environmental protection vibrating screen for sale (also can be called vibrating sieve):
The environmental protection vibrating screen combines mesh belt screen, vibrating screen, winnowing, pulse dust removal, conveying, and walking into one. After the grain enters the mesh belt sieve, it will be removed from the box. After preliminary cleaning of the large grains, it will flow into the vibrating screen box. After using two layers of screens to vibrate and clean the remaining large and small impurities.
Finally, the negative pressure formed by the environmental protection dust removal system is used to remove dust and small impurities. The cleared grain enters the grain delivery conveyor through the discharging port. The grain delivery conveyor can be rotated in two directions as required, which improves flexibility. The environmentally friendly pulse compound type grain cleaning vibrating screen solves the problem of single vibration blocking the screen surface. The cleaning process has been added to improve the efficiency and effect of impurity removal. The application of the pulse dust collector makes the working environment of the vibrating screen meet the requirements of environmental protection.

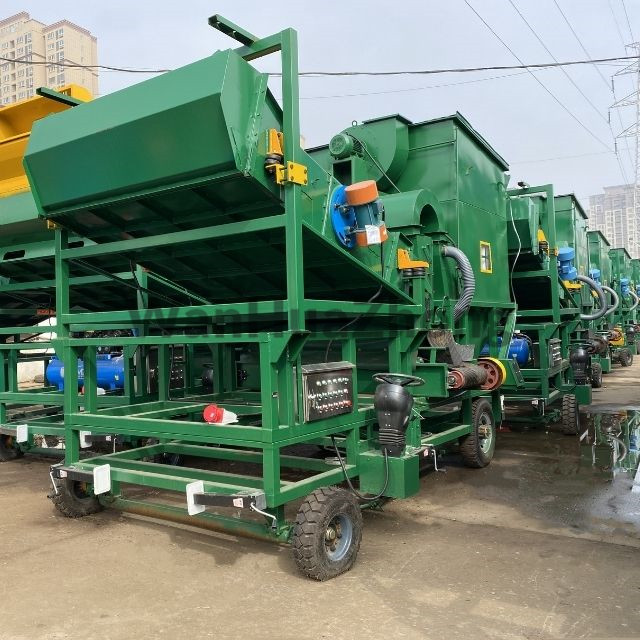

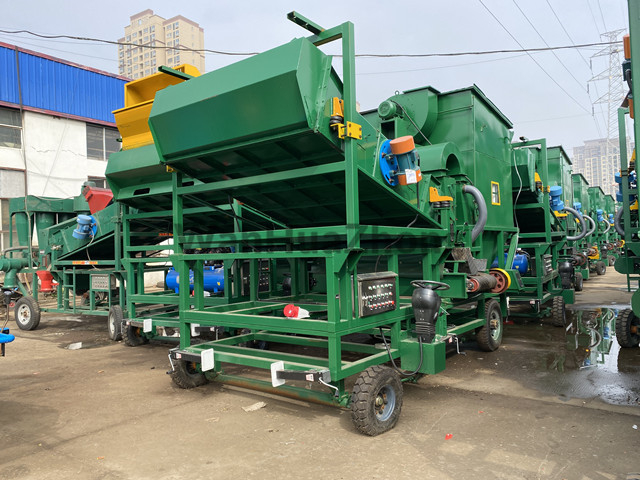

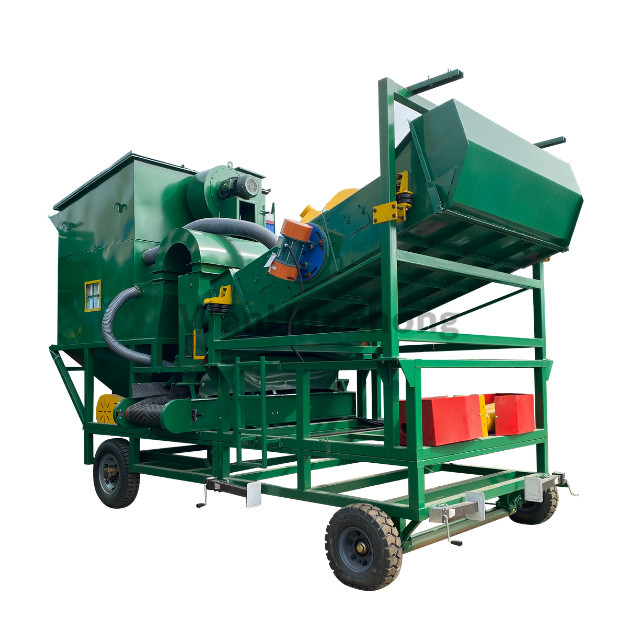

Environmental protection vibrating screen

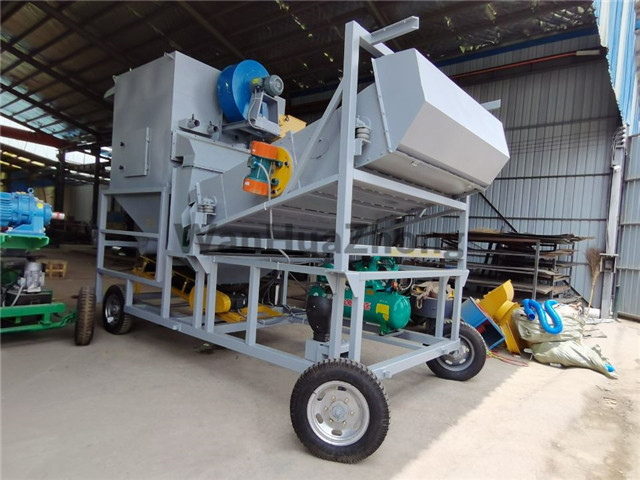

Environmental protection vibrating screen in grain warehouse

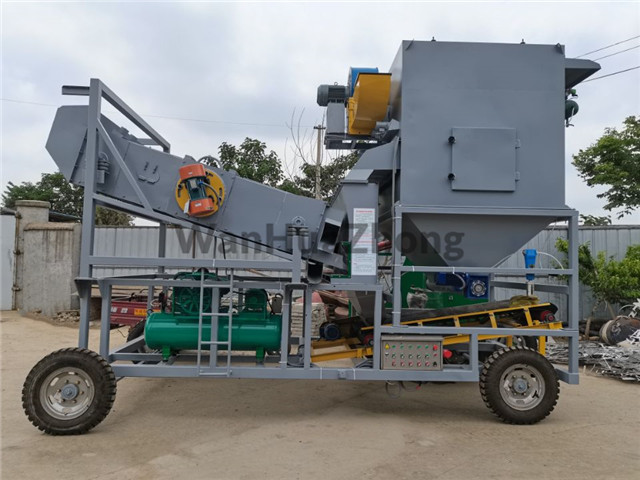

Customized baking finish type environmental protection vibrating screen
Customized baking finish type environmental protection vibrating screen in project
Main technical and service parameters
| Product Name: | Environmental protection vibrating screen | Brand Name: | WanHuaZhong |
| Model: | HZC2.0*2.4 | Place of Origin: | Anhui, China |
| Rated output: | 40-60 t/h | Vibration direction angle: | 0-45° adjustable |
| Applicable Industries： | Grain storage, port terminal, feed factory, fertilizer factory, grain processing factory | Applicable objects: | corn, rice, soybean, wheat and other bulk materials |
| Nearby Ports: | Shanghai, Tianjin, Qingdao,Dalian | Certification: | ISO45001,ISO14001,ISO9001 |
| Material Characteristics: | Sturdy and wear-resistant | Place of Origin: | Anhui, China |
| Structure: | Steel frame structure | Power: | Screen motor 2.2kW; vibration motor 2×0.75kW; conveying motor 4kW; fan 2×3kW, 1.5kW; air compressor 7.5kW; auger motor 2.2kW; walking motor 2.2kW |
| Vibration frequency: | ≤15.8Hz | Voltage: | 380V |
| Conveyor Belt Speed: | Belt speed is 3.5m/s(Special adjustments can be made according to customer requirements) | Amplitude: | 4.5mm ~ 5.5mm |
| Vibration direction angle: | 0°-45° adjustable | Screen Hole Size: | Large miscellaneous screen surface: Φ18~Φ22mm; Small miscellaneous sieve surface: used for corn Φ3mm, used for rice 1.8×1.8mm/Φ2.2mm, used for wheat Φ2.0-Φ2.2mm; |
| Inclination of Screen Surface | 0°-17° | Dust Removal Method: | Pulse dust removal |
| Initial cleaning efficiency: | large miscellaneous ≥40%； small miscellaneous ≥90% ；grain content in leftovers<1.5% | Screen size (length×width): | 2000mm×2400mm |
| Conveyor belt speed: | ≤2.5m/s | Warranty: | 1 Year |
| After Warranty Service： | Video technical support, Online support | After-sales Service : | Video technical support, Online support |
Structure

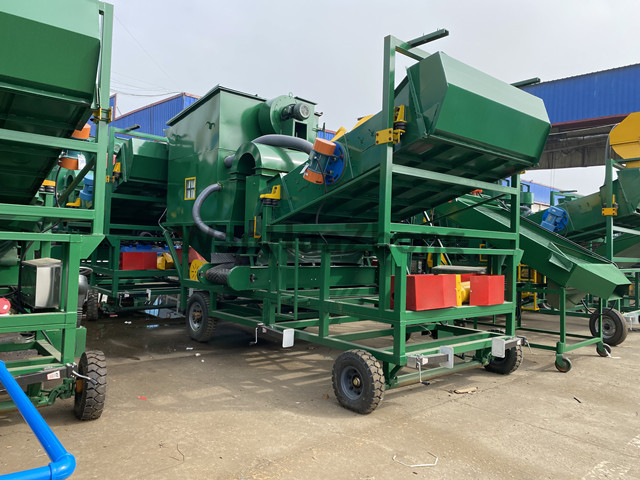

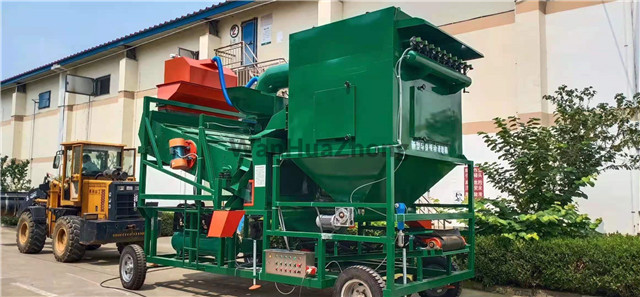

Environmental protection vibrating screen in grain processing plant

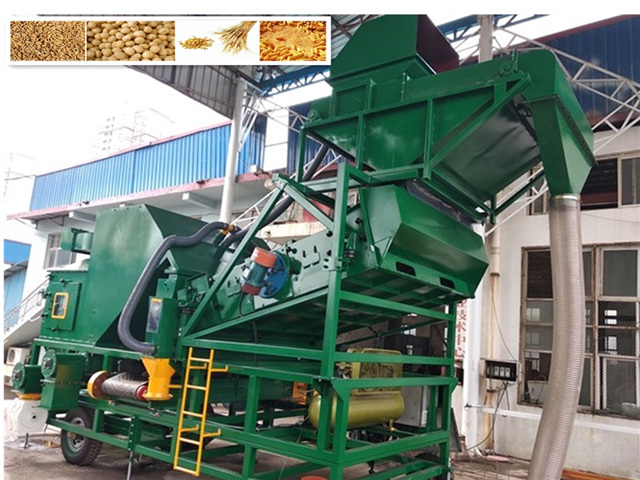

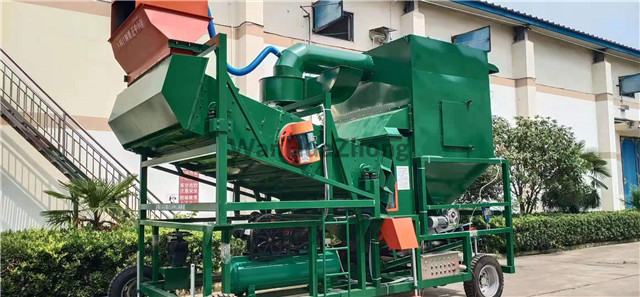

Environmental protection vibrating screen in grain processing plant(1)
The structure of the environmental protection vibrating screen (also can be called vibrating sieve): integrates the functions of mesh belt screen, vibrating screen, winnowing, pulse dust removal, conveying, and walking.
The vibrating box and screen of the environmental protection vibrating screen: the upper screen of the environmental protection vibrating screen filters out large impurities, and the lower screen filters out fine impurities, and the materials flow out of the vibrating box along the lower screen surface and vibrate Vibration motors are installed on both sides of the box to facilitate the movement of materials in the screen.
The discharge box of the environmental protection vibrating screen: the discharge box flows the material out of the wind box in a cascade shape.
The pulse dust removal device of the environmental protection vibrating screen: the pulse dust collector uses filter bags to filter, and the pulse reverse air blows to clean the dust. It has a strong ability to remove dust and high dust removal efficiency.The concentration of discharged dust is low, the air leakage rate is small, the energy consumption is low, the floor space is small, and the operation is reliable and stable.
The frame of the environmental protection vibrating screen: the frame of the environmental protection vibrating screen is welded by a square tube. The screen body structure is reasonable, lightweight, and has sufficient rigidity and strength. The machine body is equipped with a grain collecting bucket and Dust collecting bucket, no dead corners, easy to clean.
Walking device of environmental protection vibrating screen: 4 pneumatic car tires with specifications of 6.50-16mm are installed under the environmental protection vibrating screen. Among them, there are 2 running wheels and the other 2 steering wheels, which are convenient for moving the equipment.
Electrical control box and electrical components

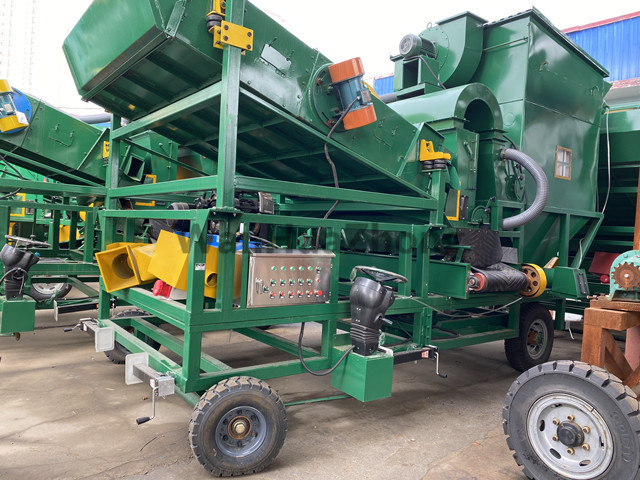

Environmental protection vibrating screen for sale
Environmental protection vibrating screen on sale
1. The electrical control box of the environmental protection vibrating screen is a grain cleaning machine that can accommodate electrical components such as motor start. The box panel is equipped with start and stop buttons And other necessary buttons, indicator lights and power switch operating handle. The electrical control box is sealed with double-layer steel doors, which can be dust-proof and waterproof. The external cable adopts special waterproof and dust-proof power supply quick connectors, and is installed with protection devices against overload and phase loss, which is convenient for maintenance and reduces electrical maintenance work.
2. The electrical control box of the vibrating screen equipment is welded with stainless steel plates, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the distribution box is explosion-proof, the explosion-proof grade can reach DIP A21.
3. There is enough space in the electrical control box of the environmental protection vibrating screen to facilitate the loading and unloading of electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.
4. The box body of the environmental protection vibrating screen has a lock, and the sealing performance of the cable entry device on the box body meets the GB12476.1-2013 standard.
5. All electrical protection grades of the environmentally friendly pulse compound type grain cleaning vibrating screen are T4, IP54, and the insulation grade is F.
6. All electrical components supporting the electrical control box of the vibrating screen equipment adopt China first-line brands such as Delixi products, and all wiring phase sequences are consistent.
7. The air circuit breaker of the vibrating screen equipment meets the operating requirements of AC3 load nature, and the load nature of the contactor is not less than AC3. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.
Surface treatment and painting of steel components
Grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines.
The primer of this grain cleaning machine adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.
The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.
The primer this grain cleaning machine is brushed and the topcoat is sprayed.
The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
Operation and maintenance

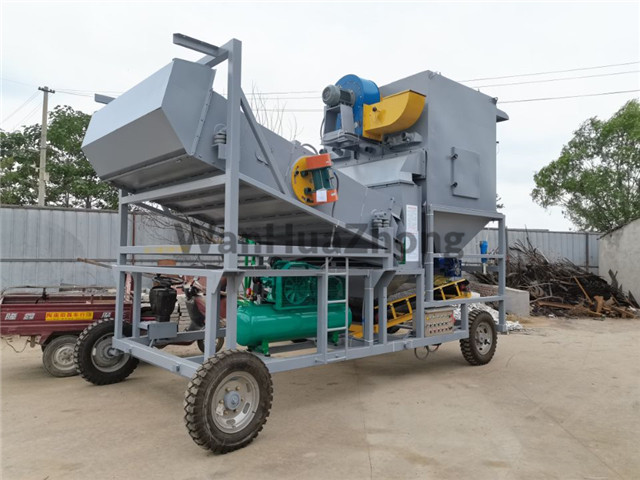

Customized baking type Environmental protection vibrating screen
Customized baking type Environmental protection vibrating screen
Operation steps of environmental protection vibrating screen(also can be called vibrating sieve):
1. Support the stable screw rod of the environmental protection vibrating screen and adjust it to make the frame horizontal.
2. When feeding the environmental protection vibrating screen, please aim at the middle of the hopper to feed the material.
3. Check whether the protective cover of the transmission part of the vibrating screen equipment is firm.
4. Check whether there is any obvious abnormality in the electrical box of the vibrating screen equipment.
5. After ensuring that the power supply is three-phase 380V, start the conveying motor of the vibrating screen equipment-auger motor-fan motor-vibration motor, and check whether the steering is correct.
6. The vibrating screen equipment should runs for 10 minutes without any load, and can only be put into operation after there is no abnormality.
7. Turn off the fan—auger motor—conveying motor of the vibrating screen equipment in turn, and turn off the vibrating motor after 15 minutes.
Repair and maintenance
1. After the environmental protection vibrating screen is turned on, the operation of the machine should be checked, and the material can be fed only if there is no abnormality. If abnormality is found, it will be shut down for maintenance.
2. After a period of time, check whether the temperature of the motor and the bearing are within the specified range.
3. The bearing part of the environmental protection vibrating screen is cleaned and refueled every six months.
4. When the vibrating screen equipment is out of service, completely remove impurities and dirt, conduct a comprehensive inspection and maintenance, perform anti-rust treatment, and seal it for use.
