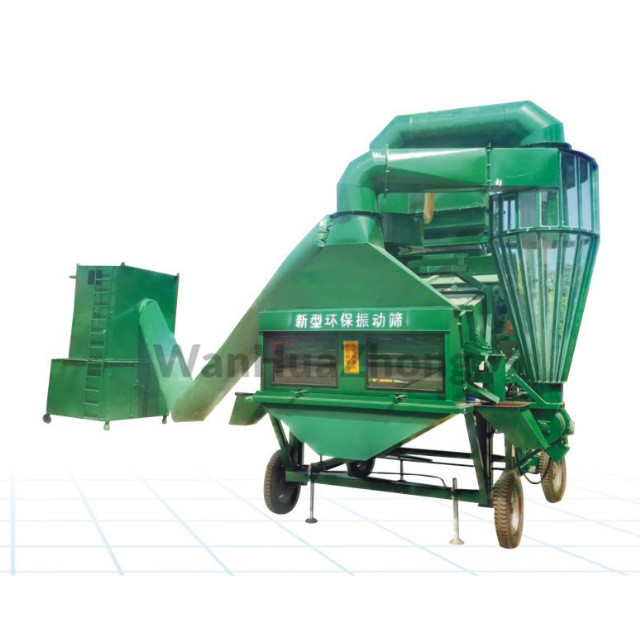

HZCB2.0*2.4
WanHuaZhong
Production description
Introduction of Environmental protection single cleaning vibrating screen :
Environmental protection single cleaning vibrating screen is a new grain cleaning equipment product of Huazhong Machinery Clear Clear Services. The vibrating screening equipment has passed the actual production test and has begun to enter the market with its powerful performance. The equipment is a low price, better performance in environmentally friendly grain cleaner products.
Main application of Environmental protection single cleaning vibrating screen:
The environmental protection single cleaning vibrating screen is used to clean and remove various impurities in grain granules. Different sieve plates can be replaced according to the size of the grain particles, and different foods such as rice, wheat, corn, soy, sesame, rapeseed can be treated. The environmentally-friendly vibration screen is rugged, which can be used in different climates and environments; in the full load, it can be continuously, stable and reliably remove impurities in the cereals. (Product appearance color and various accessories can be customized).
Production capacity of Environmental protection single cleaning vibrating screen per hour: 40-60 tons / hour.
Working principle of Environmental protection single cleaning vibrating screen:
The Environmental protection single cleaning vibrating screen upgrades the vibrating screen's impurity removal method. After the grain enters the vibrating box from the feed inlet, the large and small impurities in the grain are discharged through the double-layer vibrating screen to remove impurities.
Then the light impurities and dust are sucked into the glass spiral brake by the fan, and then the dust and light impurities are discharged from the small dust outlet through the blower outlet at the lower part of the cyclone.It can also be used with a pulse dust collector to remove dust. The device is connected and used to meet environmental protection requirements. This machine has compact design, reasonable structure, good impurity removal and dust removal effect, low energy consumption, light movement and convenient impurity collection.

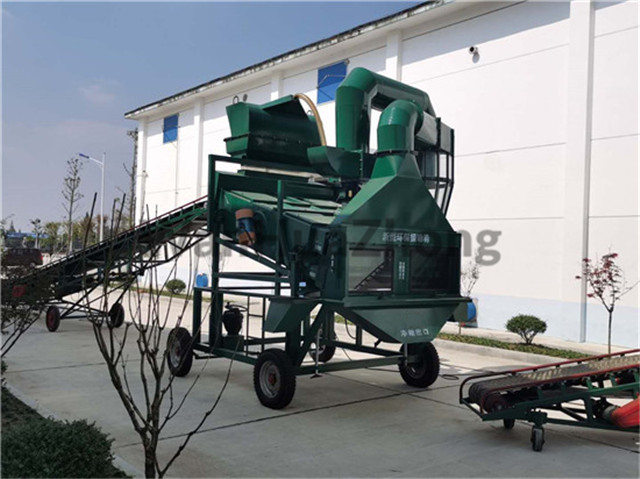

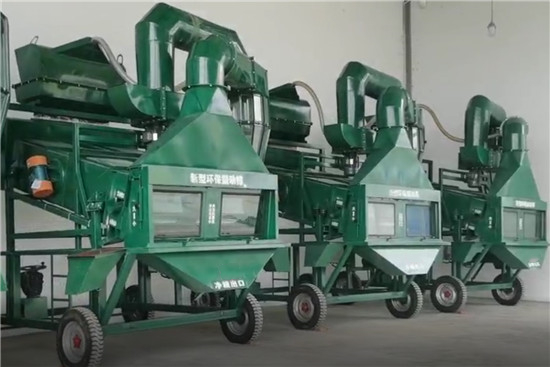

Environmental protection single cleaning vibrating screen in customer's warehouse

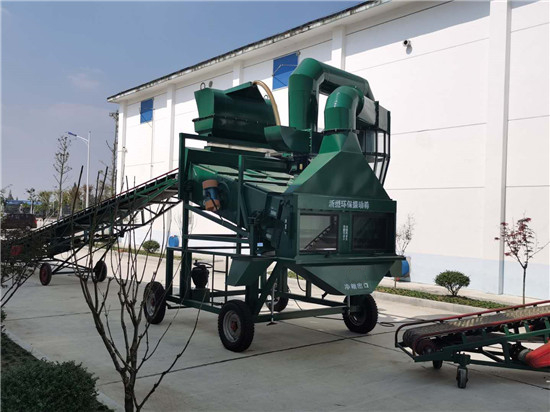

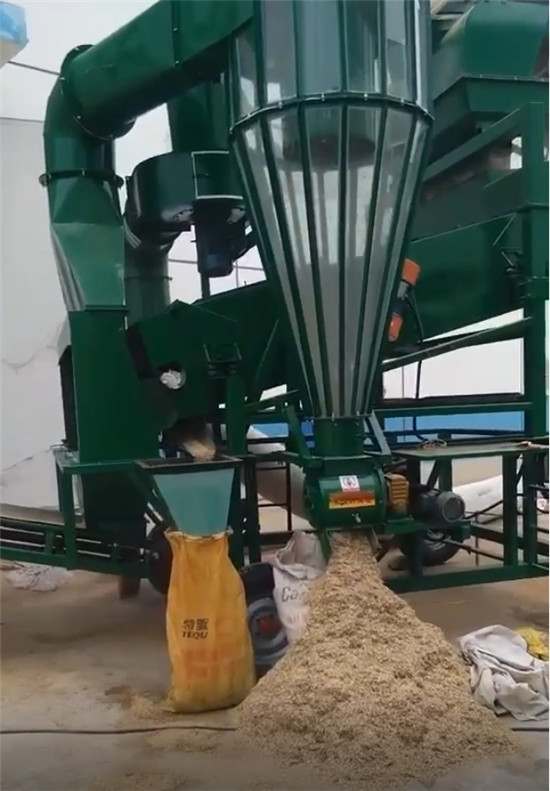

Environmental protection single cleaning vibrating screen working picture

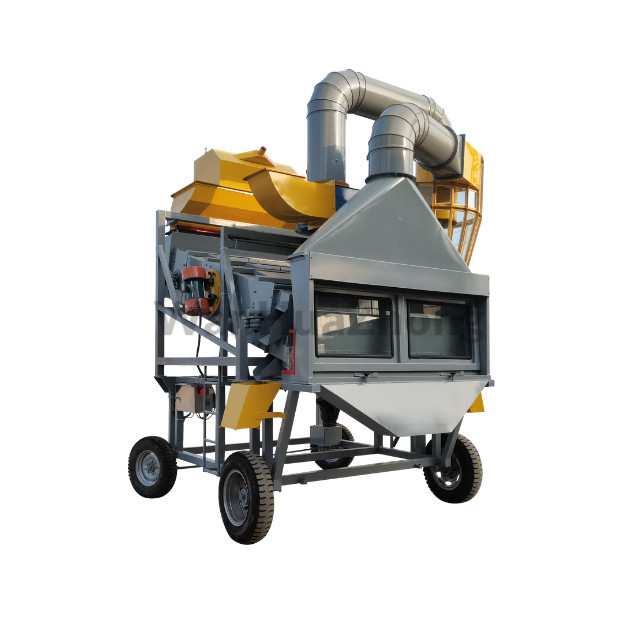

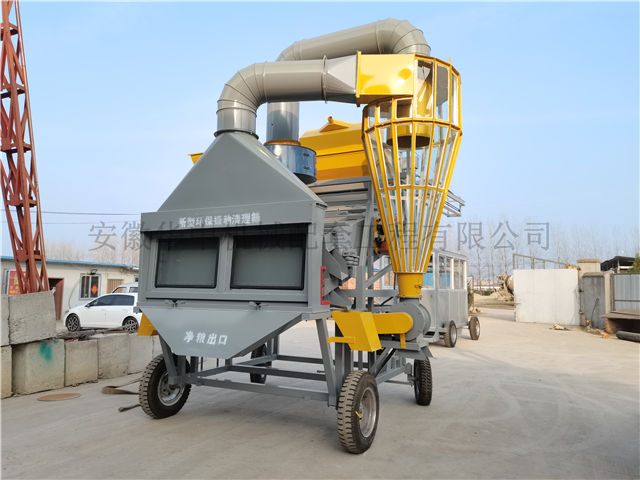

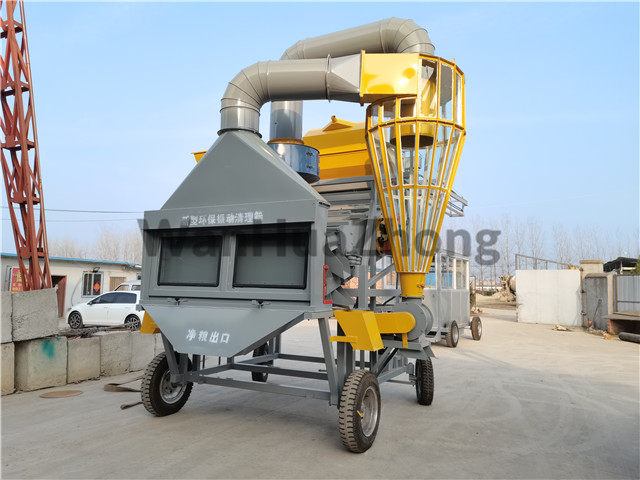

Enamel paint type environmental protection single cleaning vibrating screen

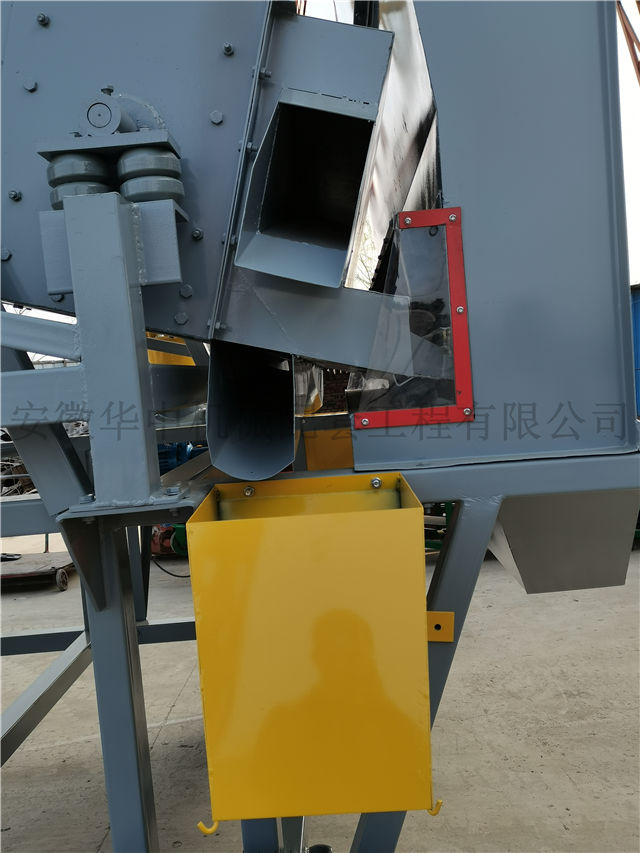

Impurity outlet

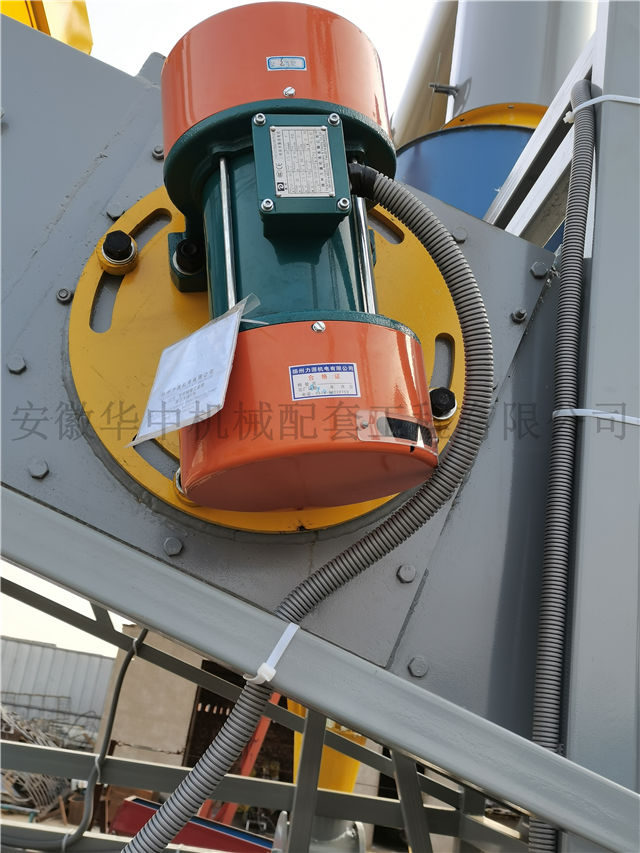

Vibrating motor

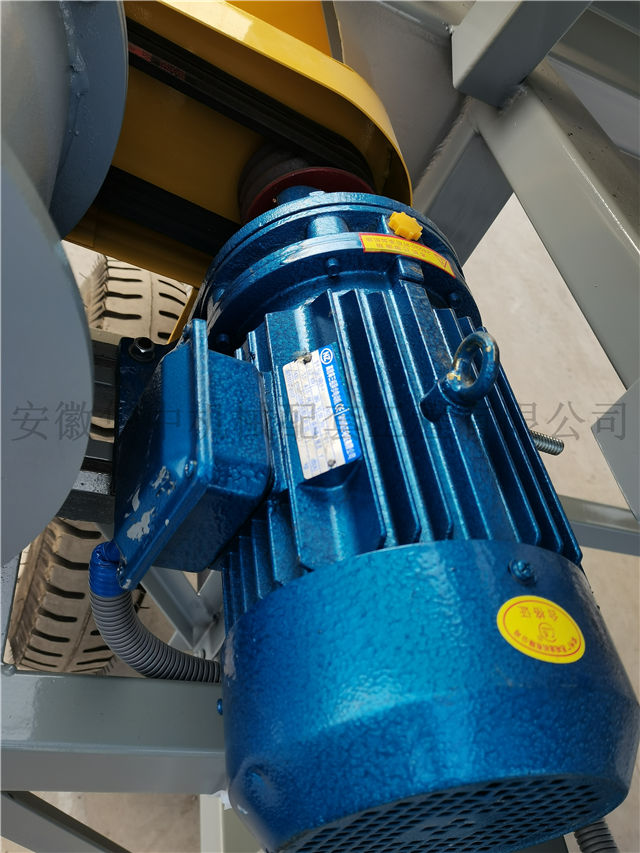

Drive motor

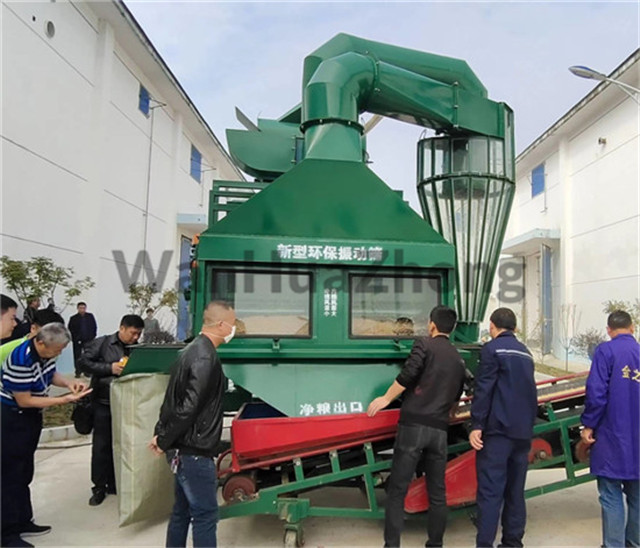

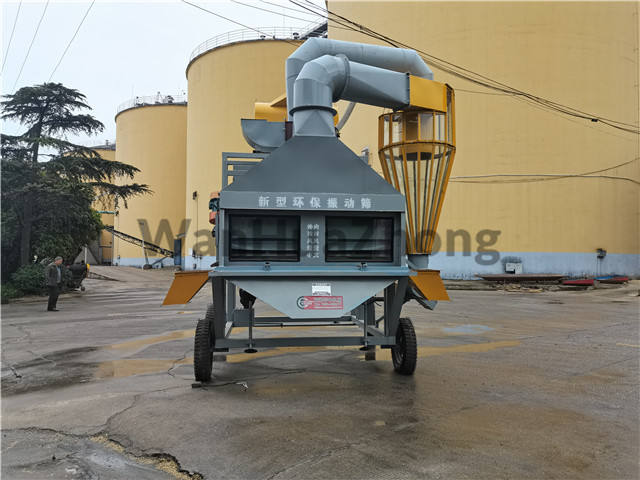

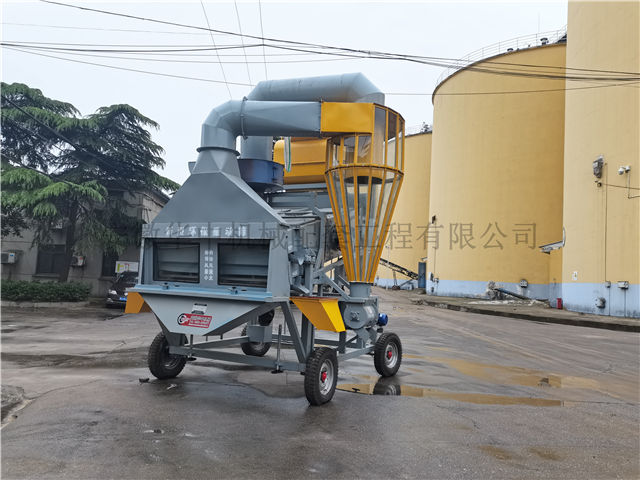

Enamel paint type environmental protection single cleaning vibrating screen in the grain depot
Product Parameter
| Applicable Industries： | Grain storage, port terminal, feed factory, fertilizer factory, grain processing factory | Product Name: | Environmental protection single cleaning vibrating screen |
| Nearby Ports: | Shanghai, Dalian, Tianjin, Qingdao | Material: | Steel/Iron |
| Material Characteristics: | Sturdy and wear-resistant | Model: | HZCB2.0*2.4 (size can be customized) |
| Structure: | Steel frame structure | Place of Origin: | Anhui, China |
| Brand Name: | WanHuaZhong | Voltage: | 380V |
| Dust Removal Method: | Cyclone | Screen Size (length * width ) : | 2000*2400（mm） |
| Certification: | ISO45001,ISO14001,ISO9001 | Warranty: | 1 Year |
| After-sales Service : | Video technical support, Online support | After Warranty Service： | Video technical support, Online support |
| Rated output: | 40-60t/h | Power: | Vibration motor 2×0.75KW, fan power 11kw,off wind motor 1.5kw |
| Vibration Frequency: | ≤15.8 Hz | Vibration direction angle: | 0°-45° adjustable |
| Amplitude: | 4.5mm ~ 5.5mm | Inclination of Screen Surface | 0°-17° |
| Screen Hole Size: | Large impurity screen surface: Φ18~Φ22mm;Small impurities screen surface: Φ 3 mm(Used for corn) Φ 1.8×1.8mm/Φ2.2mm( Used for rice) Φ2.0-Φ2.2mm (Used for wheat)(size can be customized) | Technical indicators: | Primary Cleaning Efficiency:Large impurities ≥40% Small impurities ≥90%;Grain in leftovers＜1.5% |
| Applicable objects: | Bulk materials such as corn, rice, soybeans, wheat, etc. |
Structural performance
The vibrating box and screen mesh of the Environmental protection single cleaning vibrating screen:
The upper screen mesh filters out large impurities, and the lower screen mesh filters out fine impurities. The materials flow out of the vibrating box along the lower screen mesh surface. Both sides of the vibrating box are equipped with vibration motors to facilitate the movement of materials in the screen body.

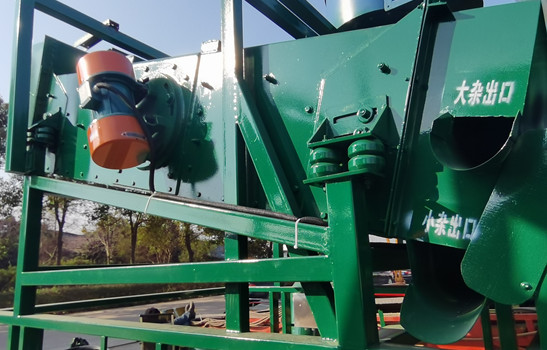

Vibrating box
The discharge box of the Environmental protection single cleaning vibrating screen: the discharge box flows the material out of the wind box in a cascade shape.

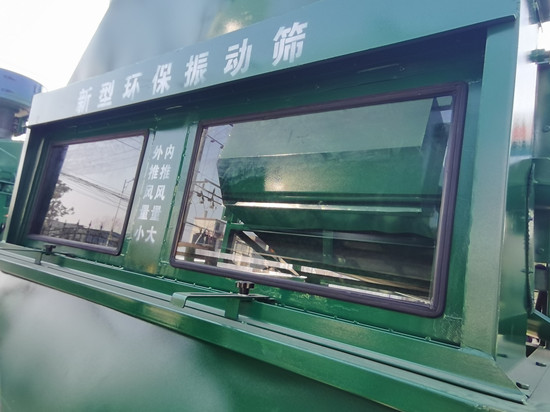

Discharge box
The wind box and fan of the Environmental protection single cleaning vibrating screen: The wind box has three adjustable devices for adjusting the wind speed of the processed materials to ensure the appropriate wind speed to ensure the cleaning effect of the wind separation. The wind of the wind box comes from the negative pressure suction of the fan.

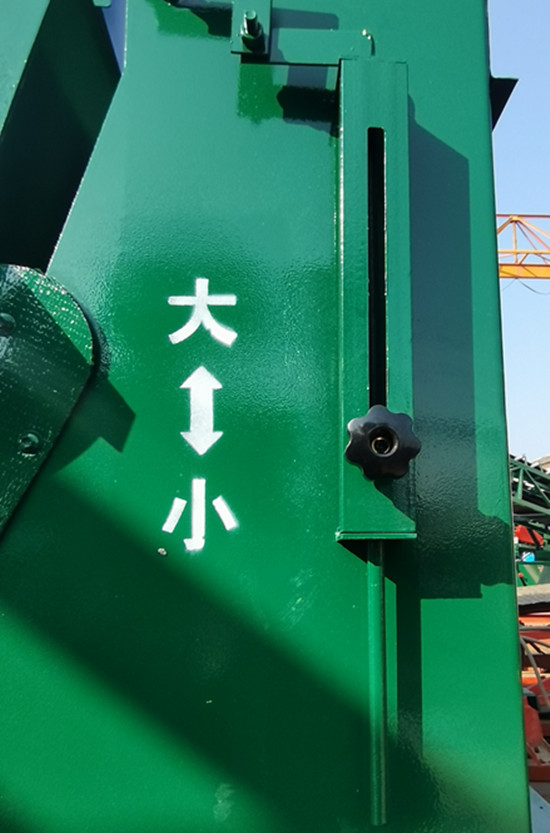

Adjustment device of wind volume(words can be translated to the language used by customer

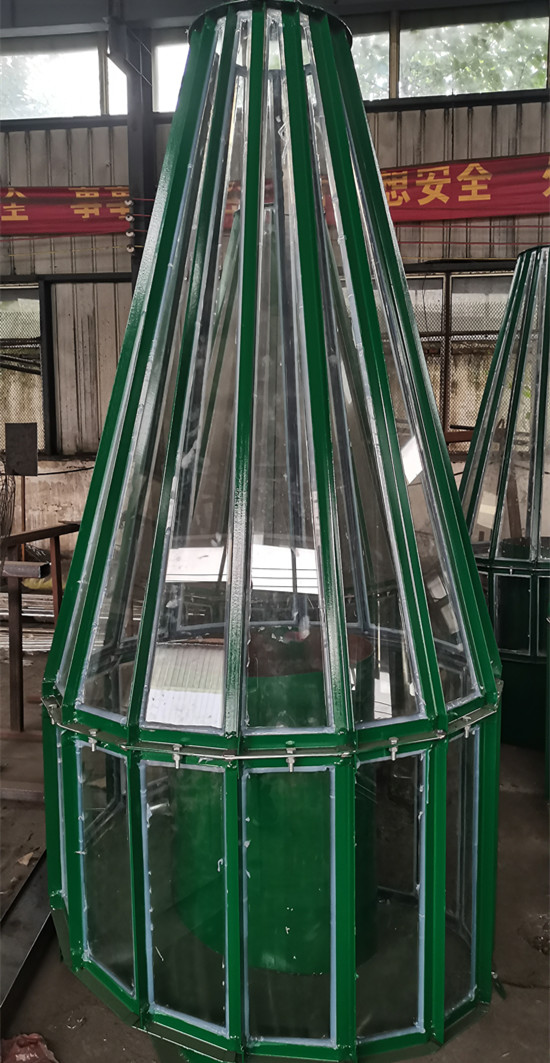

Glass spiral brake device of Environmental protection single cleaning vibrating screen: This vibrating screen adopts cyclone removal system, the equipment has strong dust removal ability, the dust removal process is clearly visible, the dust removal efficiency is high, the dust emission concentration is low, the air leakage rate is small, and the unit energy consumption is low, the equipment occupies less area and the operation is stable and reliable.
Glass spiral brake device

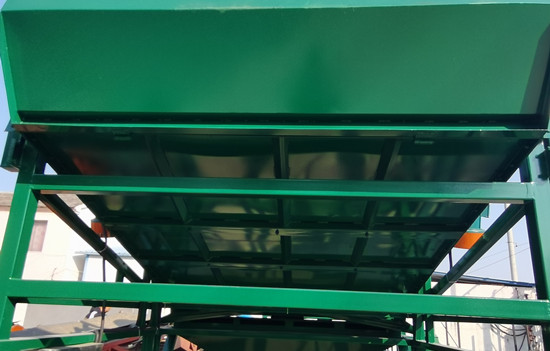

Frame of Environmental protection single cleaning vibrating screen: The frame of this grain cleaner is welded with square pipes. The screen body structure is reasonable, lightweight, and has sufficient rigidity and strength. The machine body is equipped with grain collection and dust collection buckets,without dead corners and is easy to clean.
Frame of environmental protection single cleaning vibrating screen

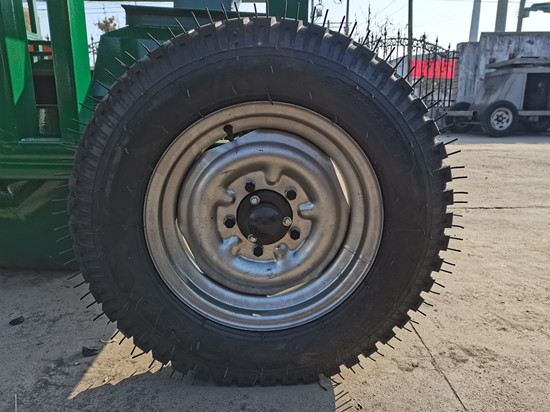

Walking device of Environmental protection single cleaning vibrating screen : 4 pneumatic car tires with specifications of 6.50-16mm are installed under the vibrating screen, of which there are 2 walking wheels and the other 2 steering wheels to facilitate the movement of the equipment.
Walking device of environmental protection single cleaning vibrating screen

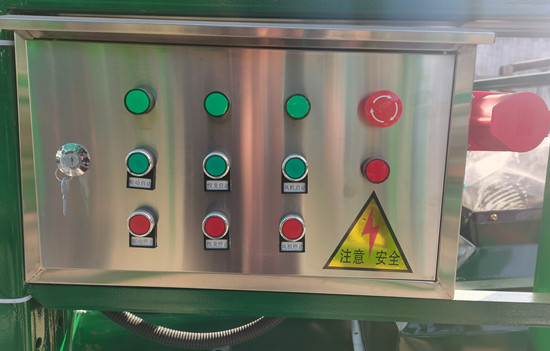

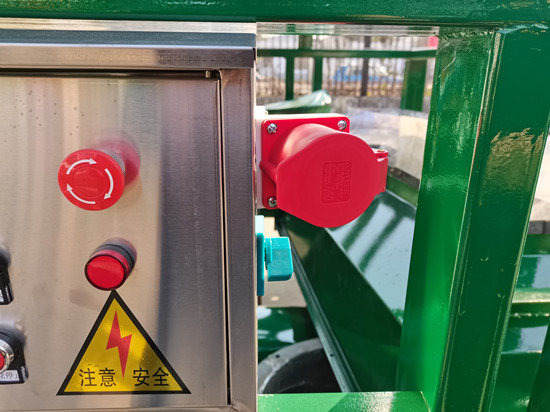

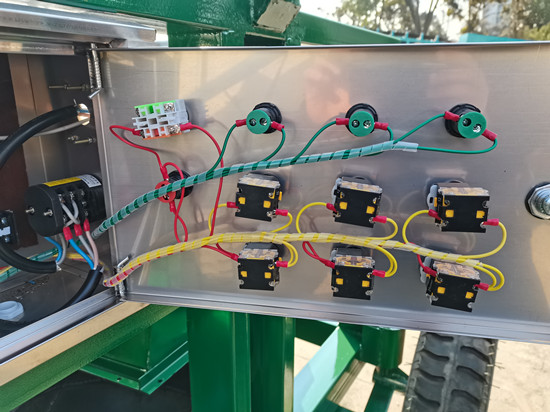

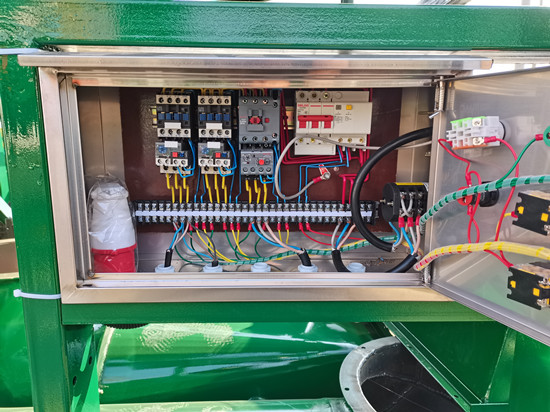

Electrical control box and electrical components
1. The electrical control box of this Environmental protection single cleaning vibrating screen is a device that can accommodate electrical components such as the motor start button. The motor is started at full pressure. The box panel is equipped with start and stop buttons and other necessary buttons, indicator lights and power switch operating handles. The electrical control box is designed as a double-layer steel door sealed structure, which can prevent dust and water, and is equipped with anti-overload and anti-phase protection devices. The external cable adopts a special waterproof and dustproof power supply quick connector, which is convenient for maintenance and reduces electrical maintenance work.(Electrical control box can be customized)
2. All electrical protection grades are T4, IP54, and insulation grades are F grade.
3. The box body is welded with stainless steel plate, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the grade reaches DIP A21.
4. The air circuit breaker meets the operating requirements of the load nature in the AC3 standard, and the load nature of the contactor is not less than the AC3 standard. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.
5. All electrical components of the electrical control box adopt Delixi products, and the phase sequence of all wiring is consistent.
6. There is enough space in the electrical control box for loading, unloading and repairing electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.
7. The box has a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.
Surface treatment and painting of steel components:
Shot blasting is carried out on the surface of steel components, and the steel surface is free of visible grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines.
The primer of environmental protection single cleaning vibrating screen adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.
The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.
The primer is brushed and the topcoat is sprayed.
The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
The equipment can also be painted with a baking process, and it can also be customized according to the actual needs of the customer and the local climate.
Operation steps of Environmental protection single cleaning vibrating screen
1. Support the stable screw rod of the Environmental protection single cleaning vibrating screen and adjust it to make the frame horizontal.
2. When feeding the Environmental protection single cleaning vibrating screen, please aim at the middle of the hopper to feed the material.
3. Check whether the protective cover of the transmission part of the grain cleaner equipment is firm.
4. Check whether there is any obvious abnormality in the electrical box of the grain cleaner equipment.
5. After ensuring that the power supply is three-phase 380V, start the fan motor-vibration motor of the grain cleaner equipment, and check whether the steering is correct.
6. The vibrating screen equipment should runs for 10 minutes without any load, and can only be put into operation after there is no abnormality.
7. When stopping, first turn off the fan motor of this grain cleaner equipment, and then turn off the vibrating motor after 15 minutes.
Repair and maintenance
1. After the environmental protection vibrating screen is turned on, the operation of the machine should be checked, and the material can be fed only if there is no abnormality. If abnormality is found, it will be shut down for maintenance.
2. After a period of time, check whether the temperature of the motor and the bearing are within the specified range.
3. The bearing part of the environmental protection vibrating screen is cleaned and refueled every six months.
4. When the vibrating screen equipment is out of service, completely remove impurities and dirt, conduct a comprehensive inspection and maintenance, perform anti-rust treatment, and seal it for use.
