Mobile cylinder screen grain cleaner

Introduction of mobile cylinder screen grain cleaner for sale:

This mobile cylinder screen grain cleaner for sale is a mature grain cleaning product of china anhui Huazhong machinery Supporting Engineering Co., Ltd ,the technology is mature and has been verified by the market.We welcome new and old friends from all walks of life to buy and quote grain storage machinery equipment .

Main application of mobile cylinder screen grain cleaner for sale:

This grain cleaning machine equipment is used to remove large impurities and small impurities in grain,according to the size of grain particles, different sieve plates can be used to clear different grains such as rice, wheat, corn, soybean, sesame, rapeseed, etc., to achieve the initial cleaning effect, and can be driven by motor vehicles or manpower to the place where the work needs to be done.

Features of mobile cylinder grain cleaner:

The mobile cylinder screen grain cleaner for sale is durable and can be operated in the open air under different weather conditions. Under full load condition, it can remove impurity in grain stably, continuously and reliably. Compared with the vibrating screen, the cylinder grain cleaner has greater processing capacity, and the efficiency of grain straw removal is higher than that of the vibrating screen.

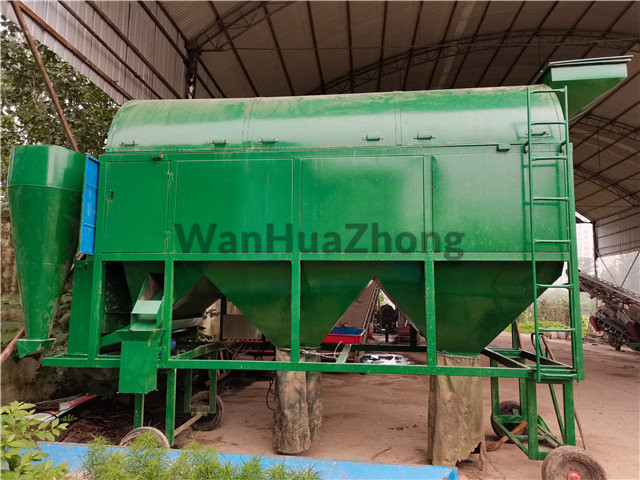

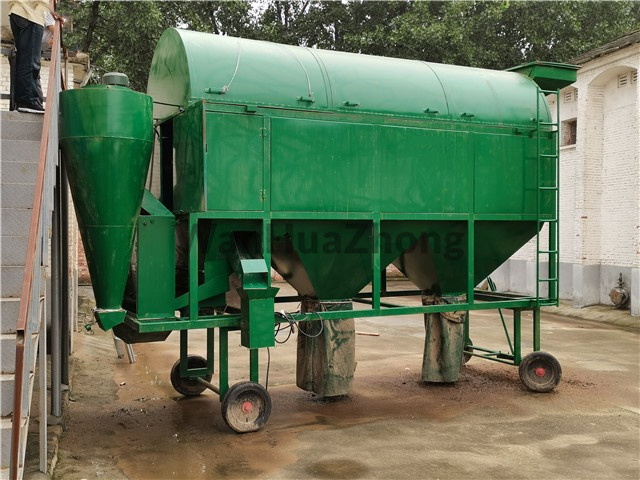

Mobile cylinder screen grain cleaner in project

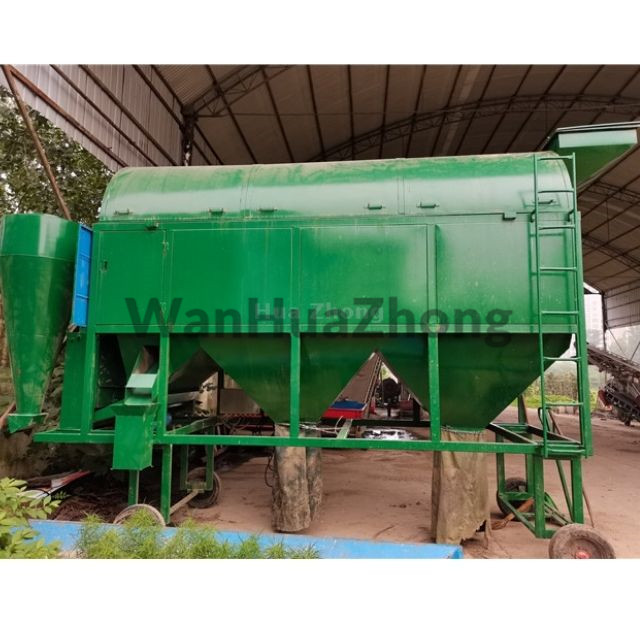

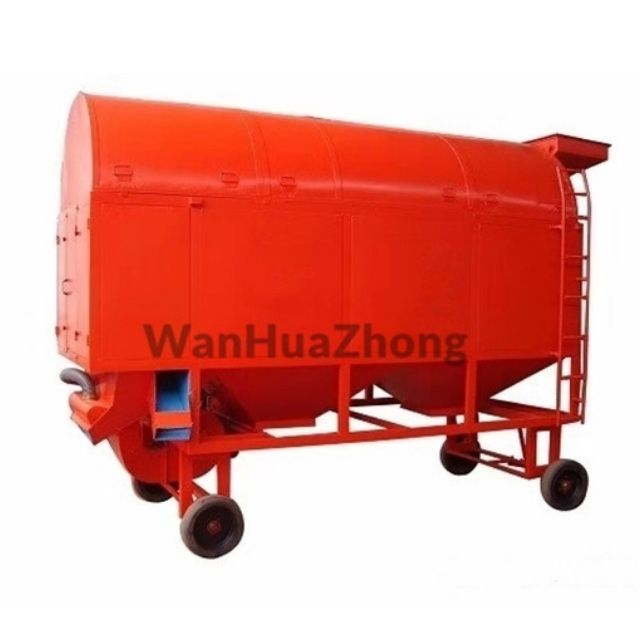

Mobile cylinder grain cleaning screen with different color

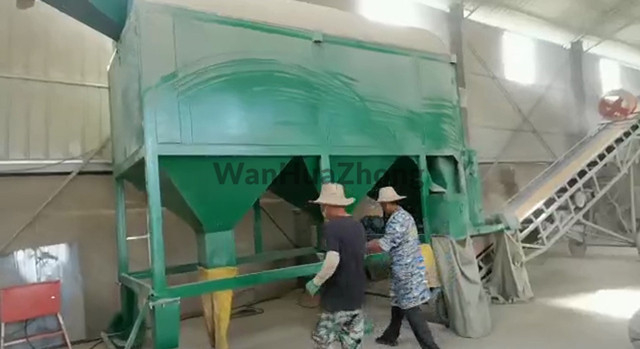

Mobile cylinder screen grain cleaner working picture

The Mobile cylinder screen grain cleaner for sale is provided by our company can process corn, wheat, rice and other materials, can work continuously for more than 24 hours, and can meet the cleaning requirements when the output is reached.

1，Structure: mobile cylinder screen grain cleaner consists of racks, walking devices, screen cartridges, feed mechanisms, drive devices, chassis, fan, wind selection members, and cyclone.

2，Rack: The rack of the mobile cylinder screen grain cleaner is welded by sheet and groove steel and other materials, the cylindrical structure is reasonable, lightweight, and is sufficient stiffness and strength.There are no dead end for accumulation of grain and dust, its easy to clean.

3，Walking device: the mobile cylinder screen grain cleaner  has 4 walking wheels installed under it, and the tires are solid tires with a diameter of Φ500.

4，It is equipped with walking steering mechanism, which is convenient for moving in the warehouse or moving by power traction. At the same time, it is equipped with supporting rod seat to ensure full landing and stable operation during operation.

5，Screen drum: according to the different screening materials, the inner and outer sieve drums of the mobile cylinder screen grain cleaner can choose the cold-rolled steel plate punching or woven screen mesh. The inner and outer sieve drums rotate on the same axis at the same angular speed.

6，The inner sieve cylinder of the mobile cylinder screen grain cleaner is to remove the large impurities in the grain. The inner wall of the screen surface is welded with a number of inner spiral surfaces to eliminate the large impurities in the grain.

7，The outer screen cylinder of the mobile cylinder screen grain cleaner is to clean up small impurities. The outer screen cylinder is provided with a brush cleaning device to ensure that the screen hole is not blocked.

8，Feeding mechanism: the mobile cylinder grain cleaner is equipped with a storage box of sufficient capacity to buffer the fluctuation of the conveying equipment. A slide pipe is arranged below the storage hopper to make the grain uniformly enter the inner sieve cylinder.

9，Driving device: the driving device of the sieve cylinder of the mobile cylinder screen grain cleaner is composed of a motor and a reducer, and the reducer adopts a cycloid reducer. The reducer is sealed to ensure no oil leakage. The driving device is equipped with a safe protective cover.

10，Shell: the shell of the mobile cylinder screen grain cleaner is made of steel plate welding, with sufficient stiffness and strength, and has good sealing performance; The chassis is provided with three outlets of large miscellaneous, small miscellaneous and grain. The location of the grain outlet can facilitate the sending of the grain to the mobile belt conveyor. The large miscellaneous and small miscellaneous outlet is provided with an impurity box for easy removal of the storage, and the chassis is also provided with an inspection hole.

11，Fan, wind selection member and cyclone: mobile cylinder screen grain cleaner uses a straight-mounted heart fan, and the absorption is performed by the wind selection member, and the separation of impurities and airflow is completed after pass through the cyclone.

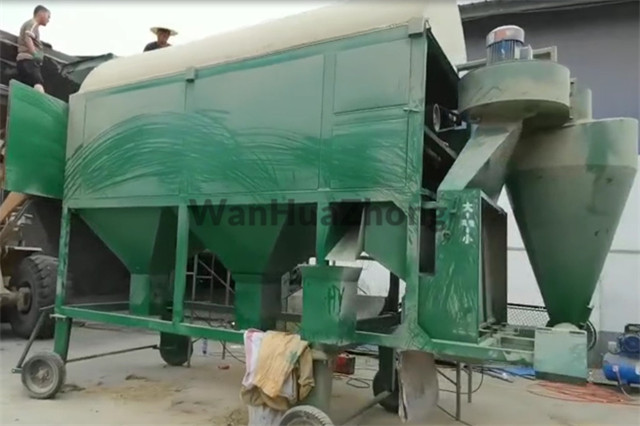

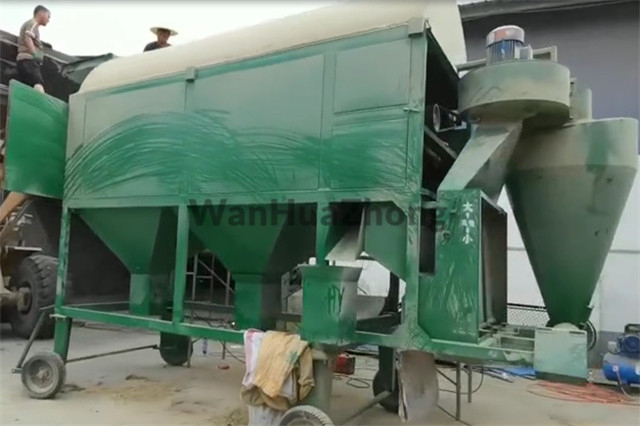

Mobile cylinder screen grain cleaner in use

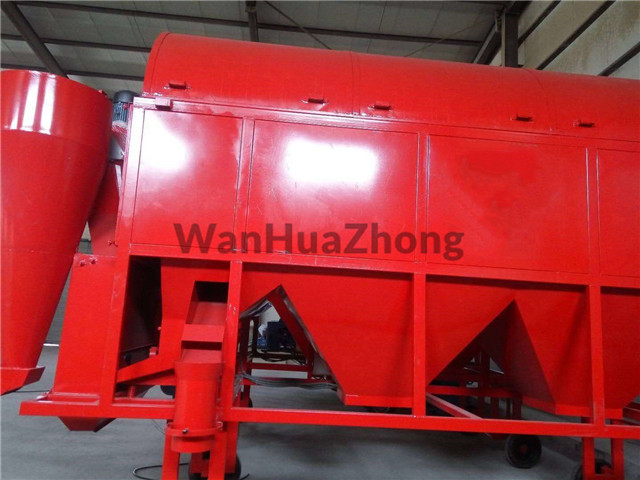

Mobile cylinder screen grain cleaner in factory

(1) The electrical control box  of this grain cleaning machine is a device that can accommodate electrical components such as the motor start button. The motor is started at full pressure. The box panel is equipped with start and stop buttons and other necessary buttons, indicator lights and power switch operating handles. The electrical control box is designed as a double-layer steel door sealed structure, which can prevent dust and water, and is equipped with anti-overload and anti-phase protection devices. The external cable adopts a special waterproof and dustproof power supply quick connector, which is convenient for maintenance and reduces electrical maintenance work.

(2)All electrical protection grades are T4, IP54, and insulation grades are F grade.

(3)The box body is welded with stainless steel plate, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the grade reaches DIP A21.

(4)The air circuit breaker meets the operating requirements of the load nature in the AC3 standard, and the load nature of the contactor is not less than the AC3 standard. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.

(5)All electrical components of the electrical control box adopt Delixi products, and the phase sequence of all wiring is consistent.

(6)There is enough space in the electrical control box for loading, unloading and repairing electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.

(7) The box has a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.

Surface treatment and painting of steel components:

• Shot blasting is carried out on the surface of steel components, and the steel surface is free of visible grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines

• The primer adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.




• The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.




• The primer is brushed and the topcoat is sprayed.




• The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.

(1). Prepare before starting

1. Before starting the mobile cylinder screen grain cleaner, check whether there are grain particles and impurities stored in the sieve cylinder. If there are, it should be removed in time.

2. Before starting this grain cleaning machine, check the connection parts, pull the belt of the transmission mechanism by hand, the grain cleaning machine shall not have foreign bodies that affect the process effect and safety, shall not have loose and card, touch, rub and other abnormal sound, the screen body is flexible, and shall not have axial displacement.

3.There shall be no foreign matter inside the grain cleaner that will affect the process effect and safety.

There shall be no loosening and touching, rubbing and other abnormal sound, the screen body is flexible, there shall be no axial displacement.

4. Start the grain cleaning machine for no-load operation, then the turning of the sieve barrel should be consistent with the direction of the sign.

(2). Operation steps of the mobile cylinder screen grain cleaner

1. Start the equipment: start the fan used by the grain cleaner first, and it is required to start it empty in the stable state of the sieve barrel, and feed can be fed after normal operation, and the flow should gradually increase to normal load from small to large. Avoid excessive feed flow, so as not to impact the screen cylinder.

2. Check the cleaning effect of the grain cleaner regularly (the raw material contained in the scraps shall not exceed 2%, and the grain shall not be contained in the large miscellaneous materials);

When it is found that the content of waste materials and raw materials in large miscellaneous exceeds the standard, it is necessary to find out the reason for exceeding the standard and deal with it in time.

3. Shut down the equipment: before stopping the grain cleaning machine, stop feeding the equipment first, and wait for the sieve cylinder to continue to run for 1 ~ 2 minutes. After the material in the machine is exhausted, the machine can be stopped.

(3). Mobile cylinder screen grain cleaner operating precautions

1. This grain cleaning machine must be started in the air-loaded state, Overload operation is strictly prohibited..

2. During the operation, you should pay attention to observe the operation of the mobile cylinder screen grain cleaner. If it is found to be abnormal, it should be closed immediately.

3. During the operation, in case of power failure or other reasons suddenly stopped, before restarting, you should first open the observation door of this grain cleaning machine, check and exclude the storage of materials in the screen, turn off the observation doors of the equipment.

4. When the screen cylinder, the liner, and cleaning brush, due to its own wear, it should be replaced immediately when it is not working properly.

Regularly touch the housing of the reducer, check whether the oil temperature is normal (in normal working conditions, the oil temperature must not exceed 70 ° C), and observe whether the oil level is normal, if there is any other failure of the device, it should be stop and check now, replace the wear parts of the speed reducer.
