Product description

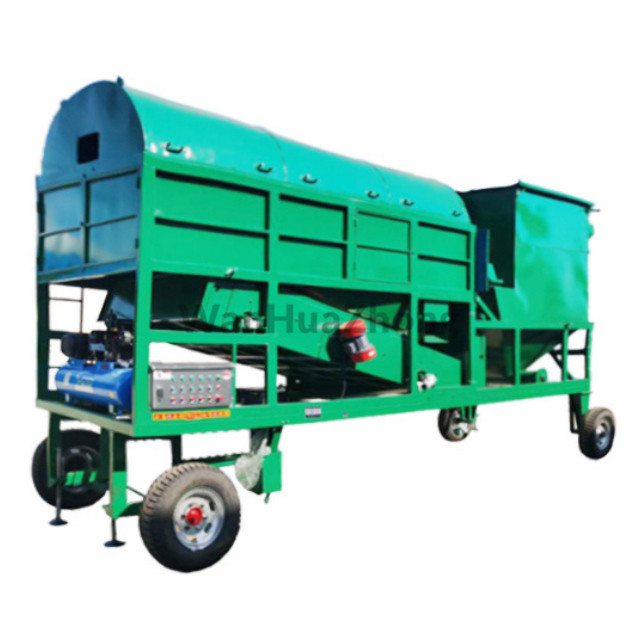

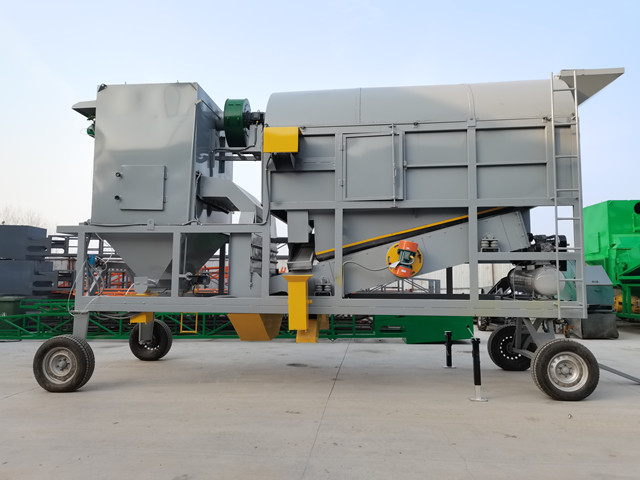

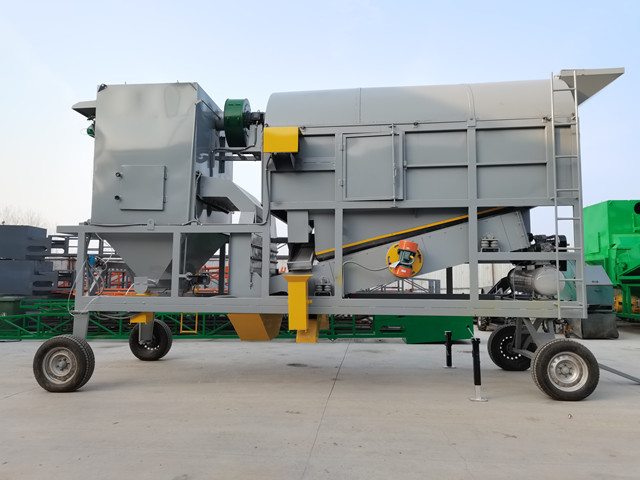

Introduction of Environmental Protection Cylindrical Grain Cleaner for sale:
This environmental protection cylindrical grain cleaner for sale is a new type environmentally friendly grain cleaning machine of china grain storage equipment manufacturer Huazhong Machinery, this product for sale is a commonly used grain cleaning machine,It can prevent grain mold and insects. It is an ideal grain cleaning machine when the grain department purchases and transfers grain. It is also an essential equipment for grain cleaning for grain and oil processing enterprises. When in use, you can change the corresponding mesh according to the size of the grains, and then you can clean different grains, such as rice, wheat, corn, soybean, sesame, rapeseed, etc.
Main application of Environmental Protection Cylindrical Grain Cleaner for sale:
The main application of the environmental protection cylindrical grain cleaner: used to remove impurities in various grains such as wheat, rice, corn, soybeans and so on. The vibrating screen is sturdy and durable, and can be used in the open air in different climates and environments. The processing capacity is large, the impurity removal effect is good, it is easy to debug and maintain, and it can continuously, stably and reliably remove impurities in various grains.
Hourly processing capacity of environmental protection cylindrical grain cleaner: 50-80 tons/hour.

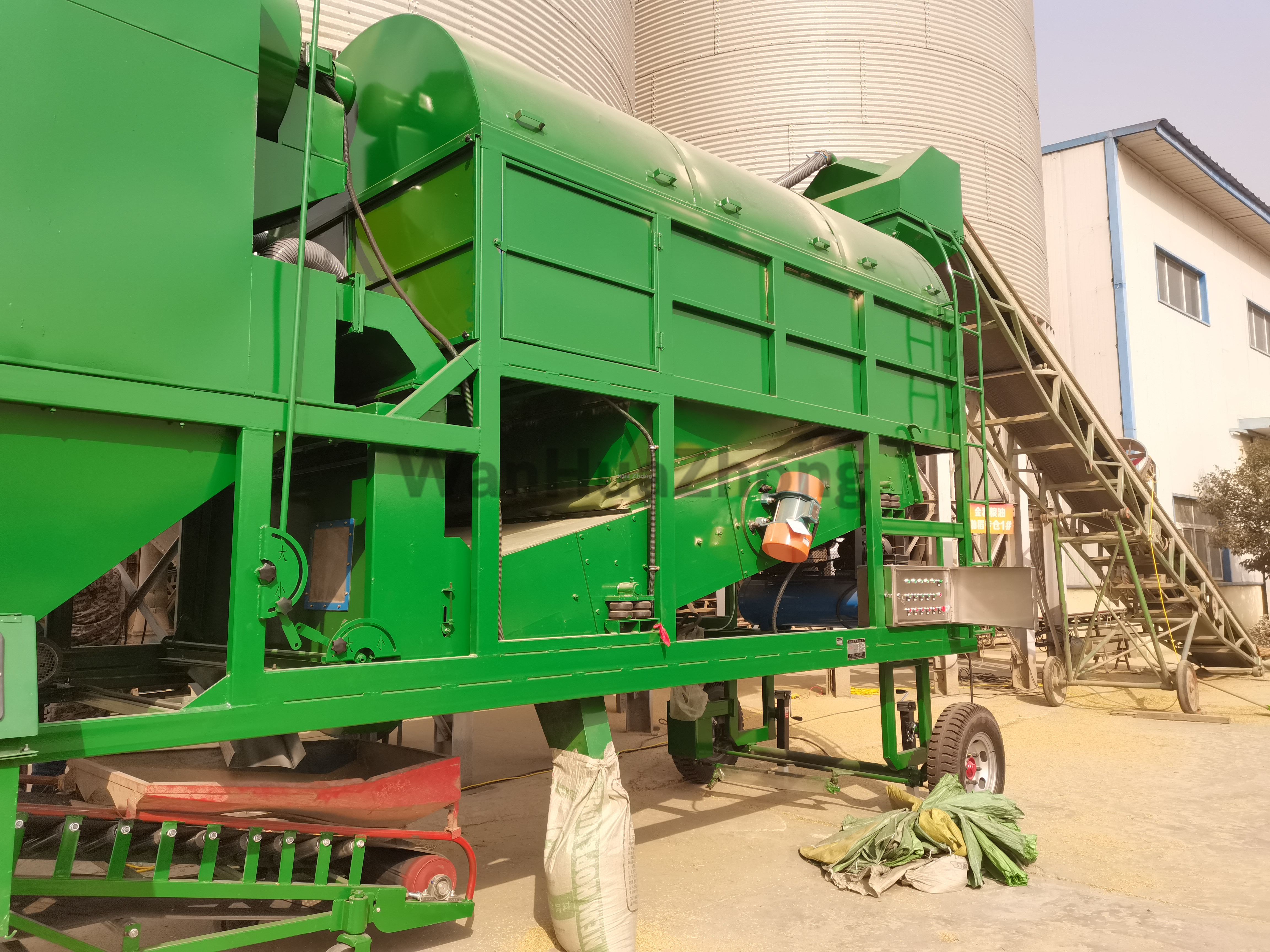

Environmental protection cylindrical grain cleaner in grain depot

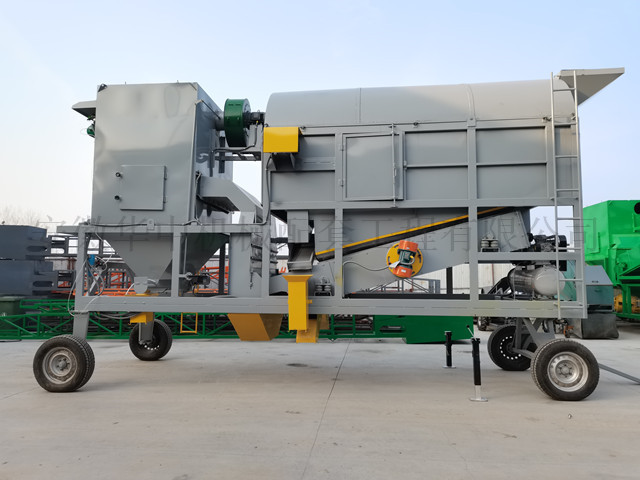

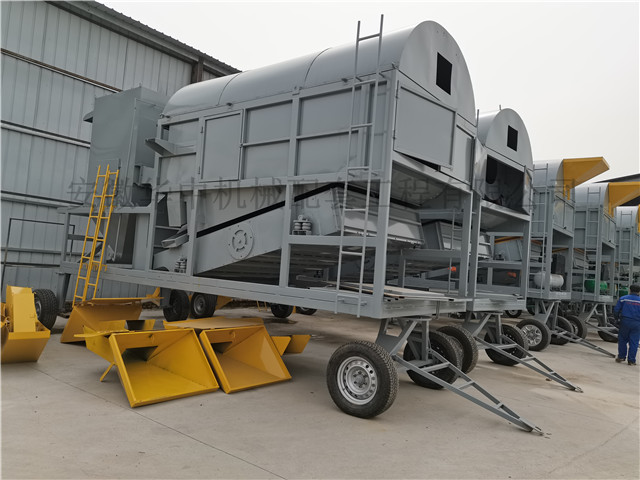

Customized paint environmental protection cylindrical grain cleaner
Customized paint environmental protection cylindrical grain cleaner

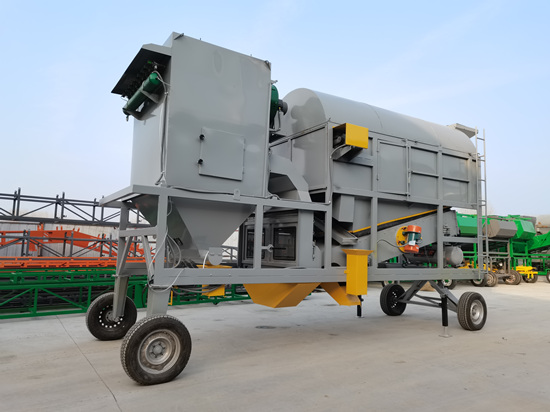

Side view of customized paint environmental protection cylindrical grain cleaner
The characteristics of the environmental protection cylindrical grain cleaner:
The grain cleaning machine adopts a combined cleaning method of a cylindrical cleaning screen and a vibrating screen, adopts a pulse dust collector to remove dust.
That grain cleaning machine adopts a combined cleaning method of a cylindrical cleaning screen and a vibrating screen, adopts a pulse dust collector to remove dust, and integrates a cylindrical screen to clean large impurities without clogging and a fine selection of vibrating screens.
Then the grain enters the large box at the bottom of the vibrating screen, and the vibrating screen further removes large and fine impurities. Finally, the grain undergoes negative pressure winnowing to remove light impurities and dust, and the clean grain is discharged from the discharge port.
The chaff and dust inside the grain are sucked into the pulse dust removal box through the air duct at the end of the screen tube. The pulse dust removal box is equipped with a filter bag. After a period of time, the dust is adsorbed on the surface of the filter bag and condensed into a powder cake. Blow to make the condensed dust block on the surface of the filter bag fall into the bottom of the dust storage box. Greatly improve the cleaning effect of grain and achieve the purpose of dust control. The cleaning sequence of the grain cleaning machine is scientific and reasonable, the structure is compact, the cleaning effect is good, and the impurities are easy to collect.
Parameter
| Product Name: | Environmental protection cylindrical grain cleaner | Model: | HZCZ |
| Nearby Ports: | Shanghai, Tianjin, Qingdao,Dalian, | Sieve drum speed:: | 16r / min |
| Material Characteristics: | Sturdy and wear-resistant | Sieve plate:: | Single-layer sieve plate, the sieve tube is made of steel plate punching or steel wire mesh rolling |
| Structure: | Steel frame structure | Place of Origin: | Anhui, China |
| Brand Name: | WanHuaZhong | Rated output: | 50-80t/h |
| Certification: | ISO45001,ISO14001,ISO9001 | Warranty: | 1 Year |
| Voltage: | 380V | After-sales Service : | Video technical support, Online support |
| Cleaning Effect: | Large impurities>80%, small impurities>95%, impurity remove rate>99% | Power: | Pulse dust removal 7.5kW; air compressor 7.5kW; screen drum motor 5.5kW; vibration motor 2×1.1kW; trash removal motor 2.2kW |
| Applicable Industries： | Grain depot, port dock, feed plant, fertilizer plant, food processing plant | After Warranty Service： | Video technical support, Online support |
| Dust removal method: | Pulse dust removal | Screen Hole Size: | Cylindrical screen mesh hole size: large miscellaneous screen surface Φ8mm-Φ15mm, can be made according to user requirements. |
| Vibrating screen hole size: 1.8mm×20mm, which can be made according to user requirements. | |||
| Dimensions (length×width×height): | 7200mm×2400mm×4350mm | Applicable objects: | Corn, rice, soybean, wheat and other bulk materials |
Working principle
The grain is sent to the storage hopper of the environmental protection cylindrical grain cleaner through the conveyor, and the grain flows into the cylindrical screen from the sliding pipe at the lower mouth of the storage hopper, and under the rotation of the screen cylinder,large impurity flows to the rear end of the cylindrical screen and flows out from the large impurity outlet.
The grain flows into the vibrating sieve plate through the sieve cylinder holes, and the small impurities flow out from the sieve holes and enter the small impurities outlet. The chaff and dust inside the grain are sucked into the pulse dust removal box through the air duct at the end of the screen tube, and the clean grain flows out from the clean grain outlet.
Environmental protection cylindrical grain cleaner working in the rice plant

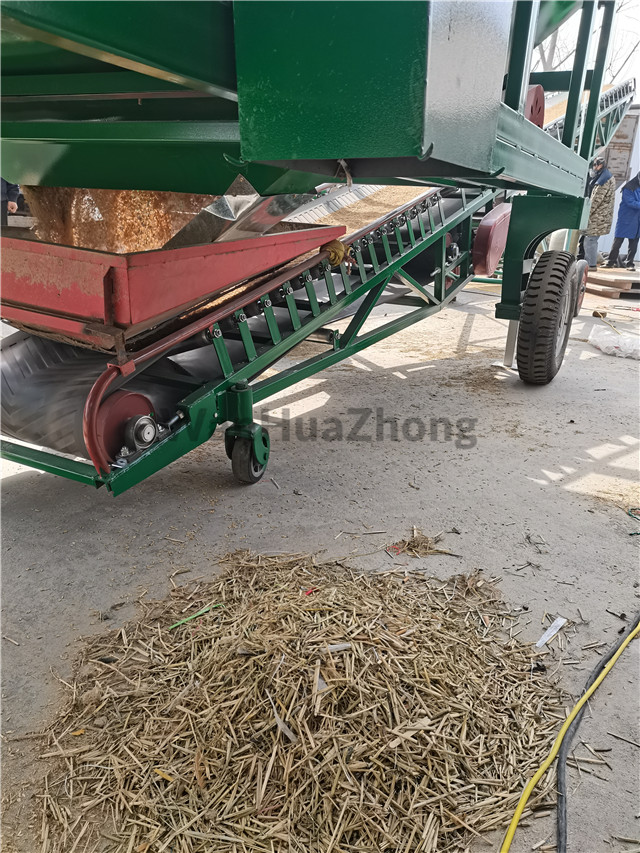

Large miscellaneous exports

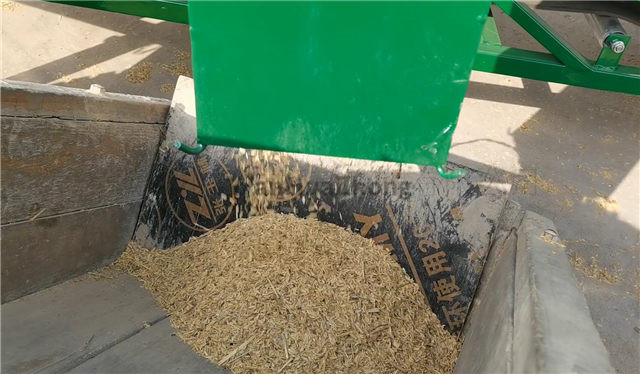

Small miscellaneous exports

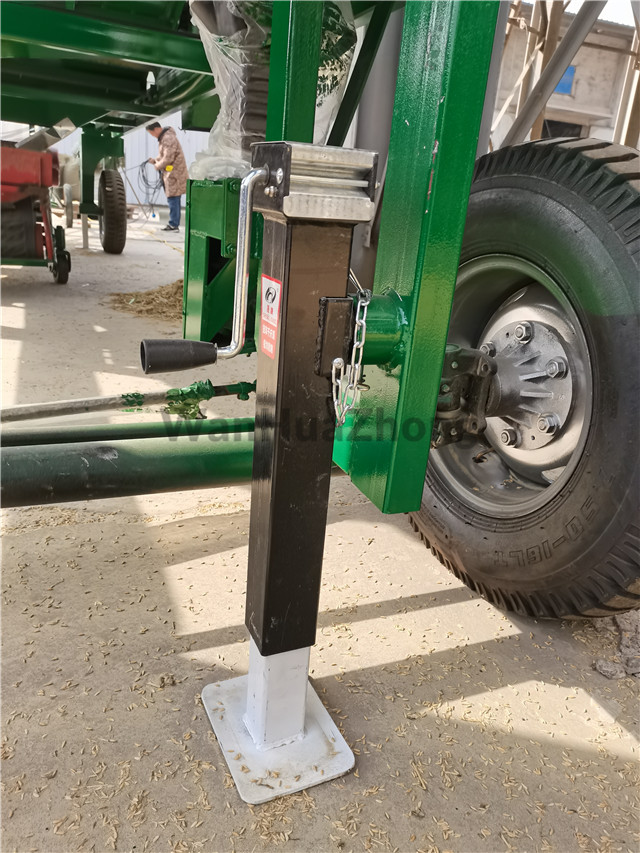

Supporting feet of Environmental protection cylindrical grain cleaner

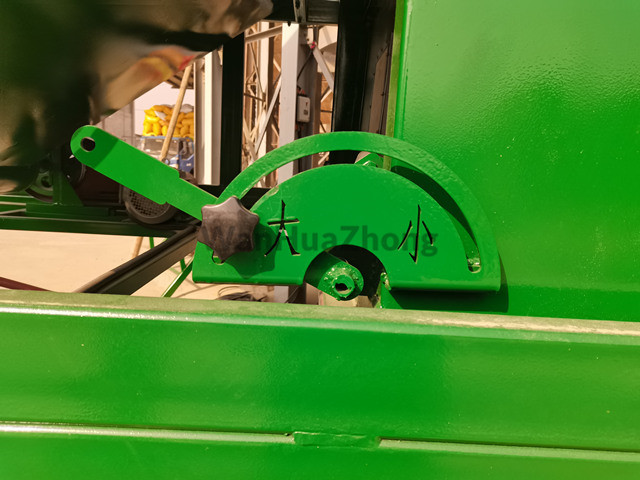

Wind regulator

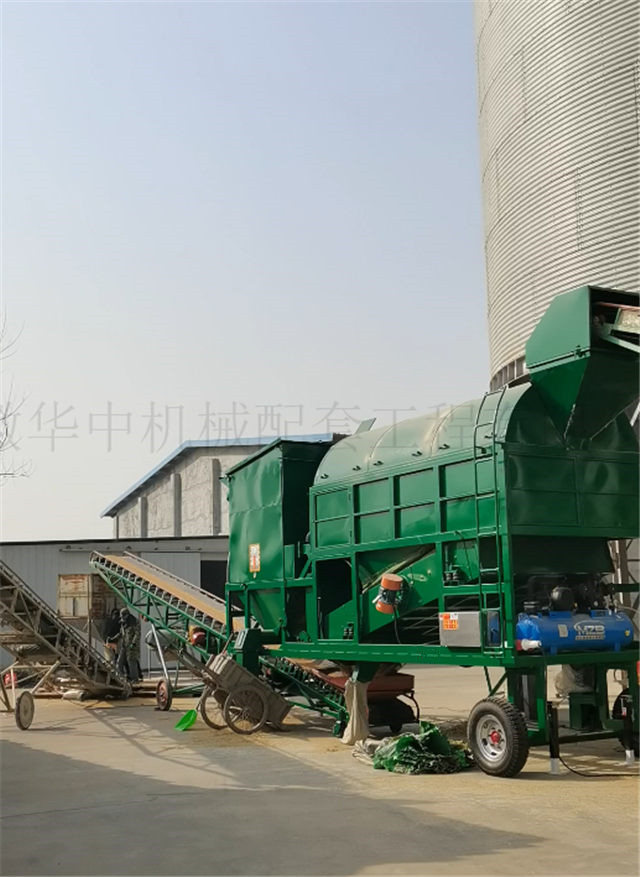

Environmental protection cylindrical grain cleaner working image

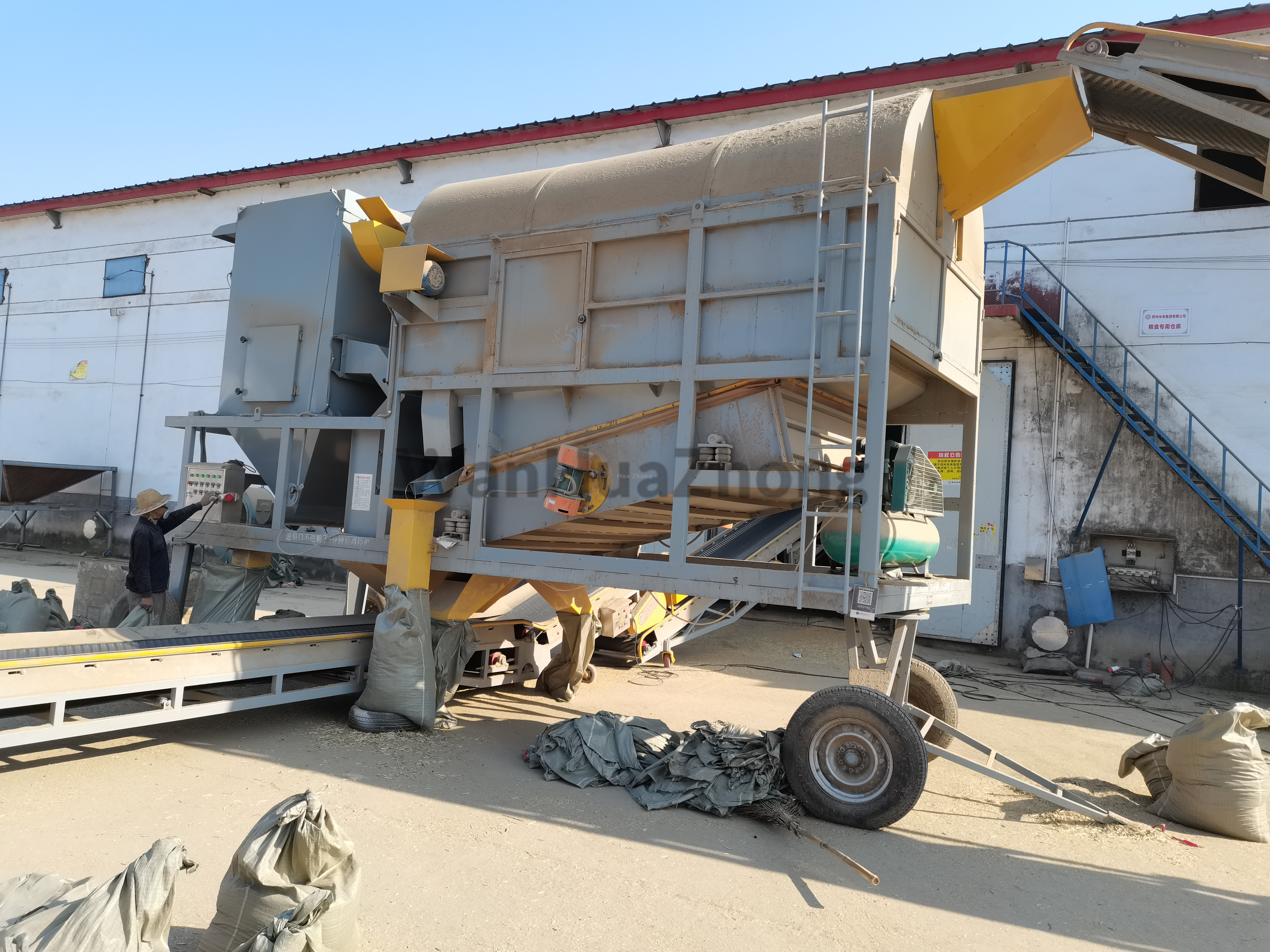

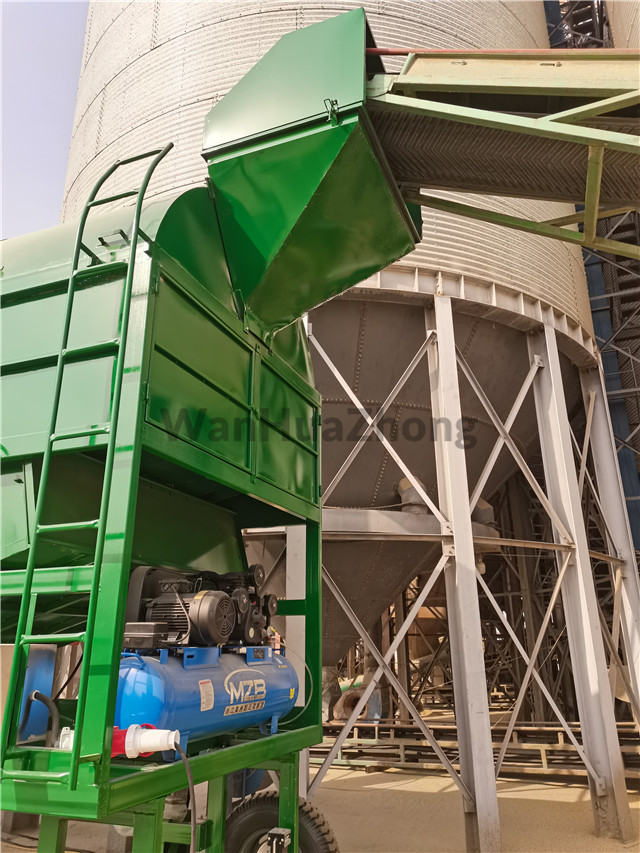

Environmental protection cylindrical grain cleaner in rice plant
The use method and precautions of environmental protection cylindrical grain cleaner
1. Start without load. Turn on the screen cylinder drive motor first, check whether the rotation direction of the screen cylinder is correct, and then start the fan after normal operation.
2. After the environmental protection cylindrical grain cleaner runs normally and stably, start feeding. The feeding must be even. Open the back door to see if all the materials in the screen barrel enter the vibrating screen box before the end of the screen barrel.
3. The output can be changed by changing the sieve diameter of the sieve tube of the grain cleaner.
4. The correct process of stopping: normal work→stop feeding→material out→turn off the fan→turn off the drive motor.

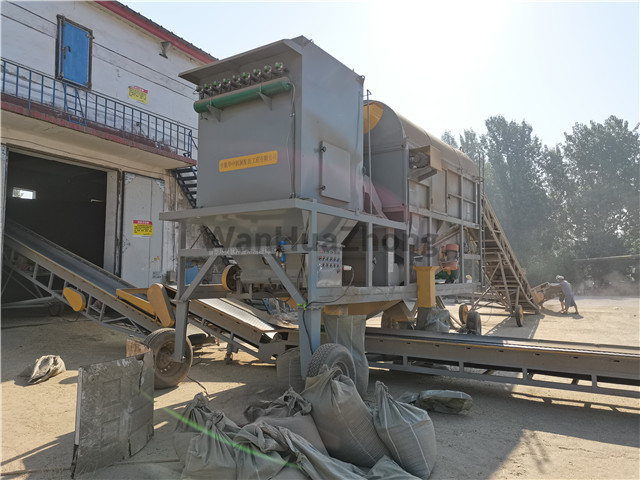

Customized type environmental protection cylindrical grain cleaner in grian depot
Electrical control box and electrical components
1. The electrical control box of this environmental protection cylindrical grain cleaner is a device that can accommodate electrical components such as the motor start button. The motor is started at full pressure. The box panel is equipped with start and stop buttons and other necessary buttons, indicator lights and power switch operating handles. The electrical control box is designed as a double-layer steel door sealed structure, which can prevent dust and water, and is equipped with anti-overload and anti-phase protection devices. The external cable adopts a special waterproof and dustproof power supply quick connector, which is convenient for maintenance and reduces electrical maintenance work.
2. All electrical protection grades are T4, IP54, and insulation grades are F grade.
3. The box body is welded with stainless steel plate, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the grade reaches DIP A21.
4. The air circuit breaker meets the operating requirements of the load nature in the AC3 standard, and the load nature of the contactor is not less than the AC3 standard. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.
5. All electrical components of the electrical control box adopt Delixi products, and the phase sequence of all wiring is consistent.
6. There is enough space in the electrical control box for loading, unloading and repairing electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.
7. The box has a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.

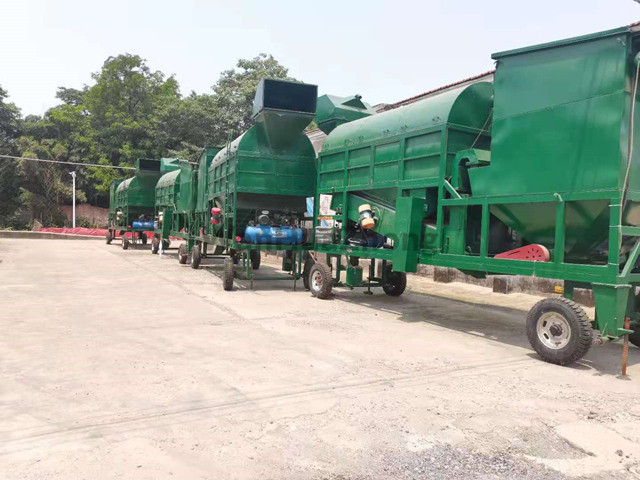

Environmental protection cylindrical grain cleaner in national grian depot
Surface treatment and painting of steel components:
Shot blasting is carried out on the surface of steel components, and the steel surface is free of visible grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines
The primer adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.
The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.
The primer is brushed and the topcoat is sprayed.
The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
Repair and maintenance
1. After starting this grain cleaning machine, check the operation , and feed the material if there is no abnormality. If any abnormality is found, it should be shut down for maintenance.
2. After working for a period of time, check whether the temperature of the motor and bearing is within the specified range.
3. The bearing part of the environmental protection cylindrical grain cleaner is cleaned and refueled every six months.
4. When the grain cleaner is out of service, the dirt and impurities on the equipment should be completely removed, and the equipment should be thoroughly inspected and repaired, and rust-proof treatment should be carried out, and it should be sealed for use.
