Product Description
Introduction of Metering automatic filling machine :
This metering automatic filling machine for sale is the main product of Huazhong Machinery’s grain metering equipment. This machine integrates automatic measurement, automatic filling and automatic seam. It is a new type of automatic measurement and filling machine of China. This machine is simple to operate and has a high degree of automation. It only needs one person to clamp the bag to complete the entire packaging process.
Application of metering automatic filling machine:
The metering automatic filling machine for sale has the function of automatic fault diagnosis, which can maintain a high degree of reliability. It can be used to fill bulk materials such as grain, feed, and chemical pellets. It is widely used in national grain depots, grain stations and grain and oil processing, feed, chemical and other industries.
Packing volume per hour for metering automatic filling machine : 750 packs

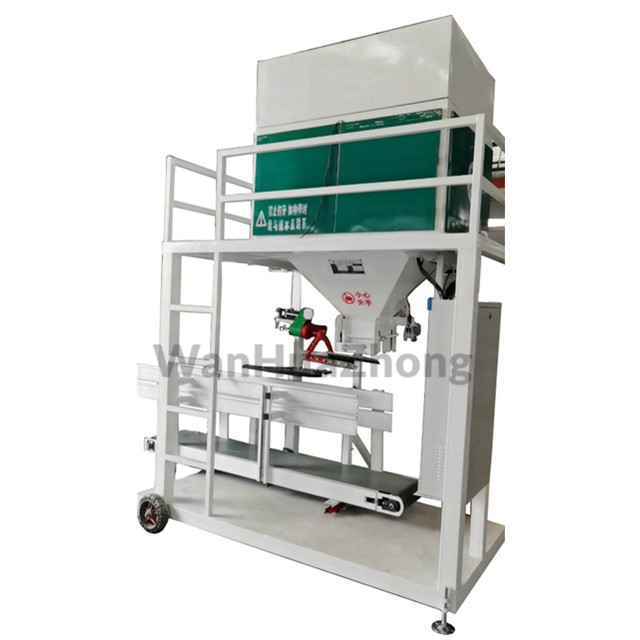

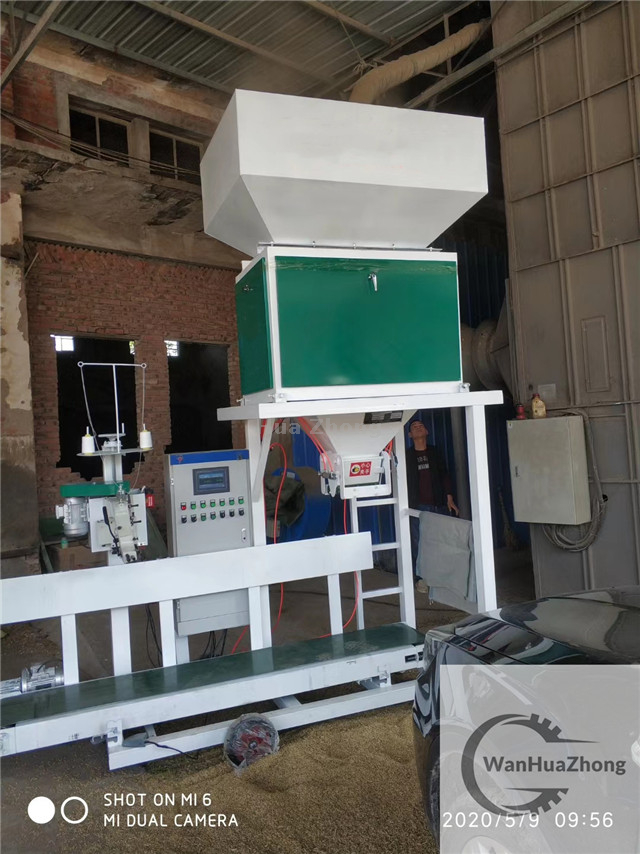

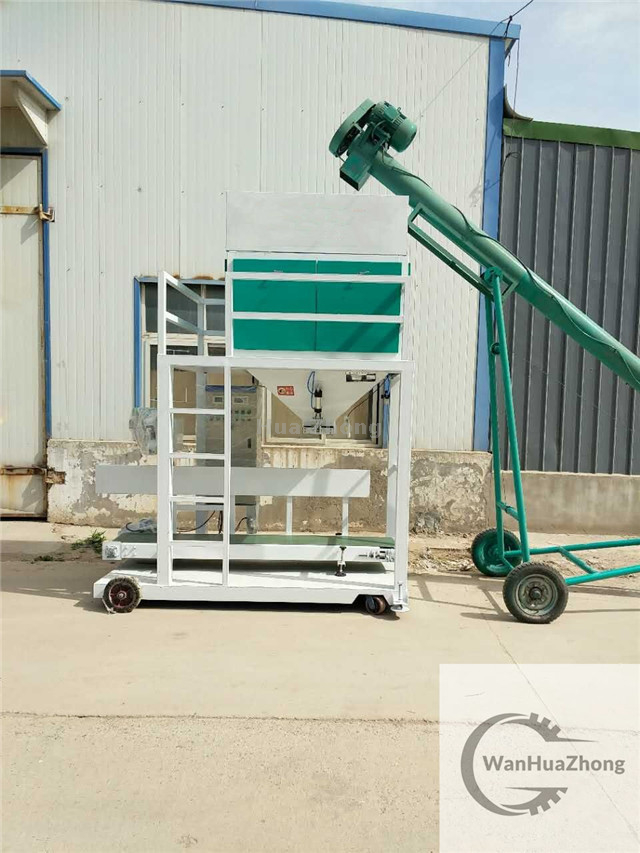

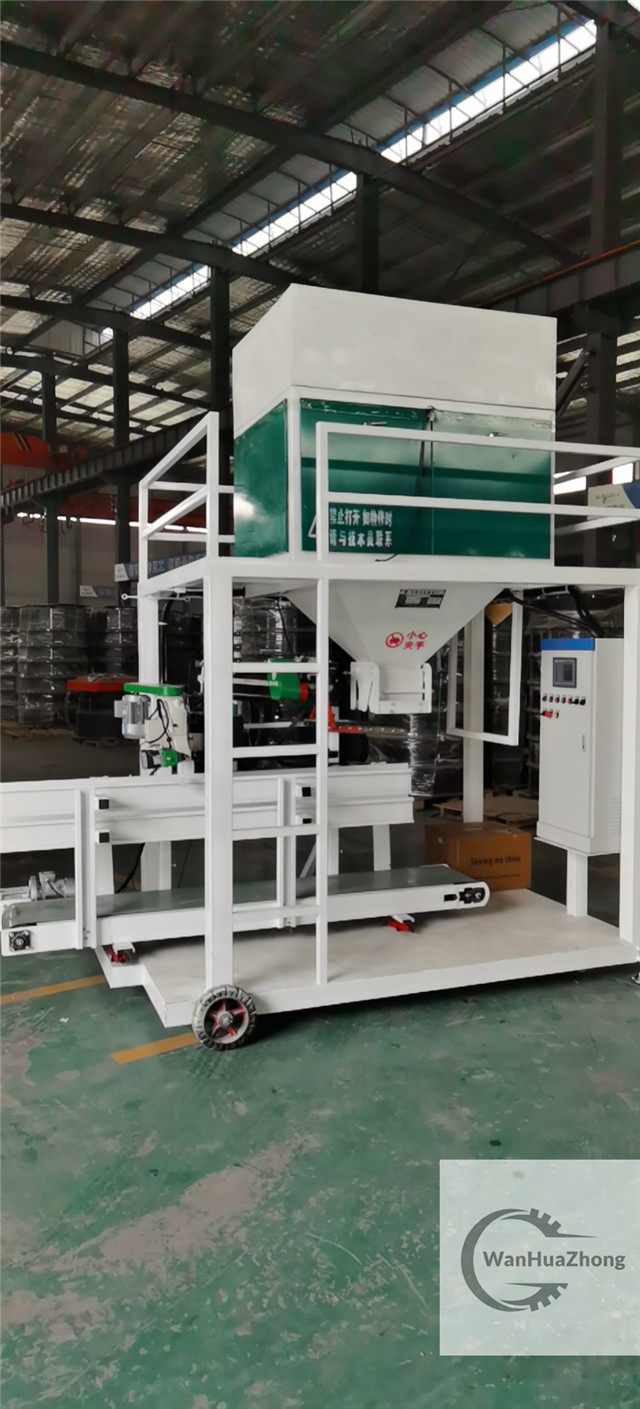

Metering automatic filling machine

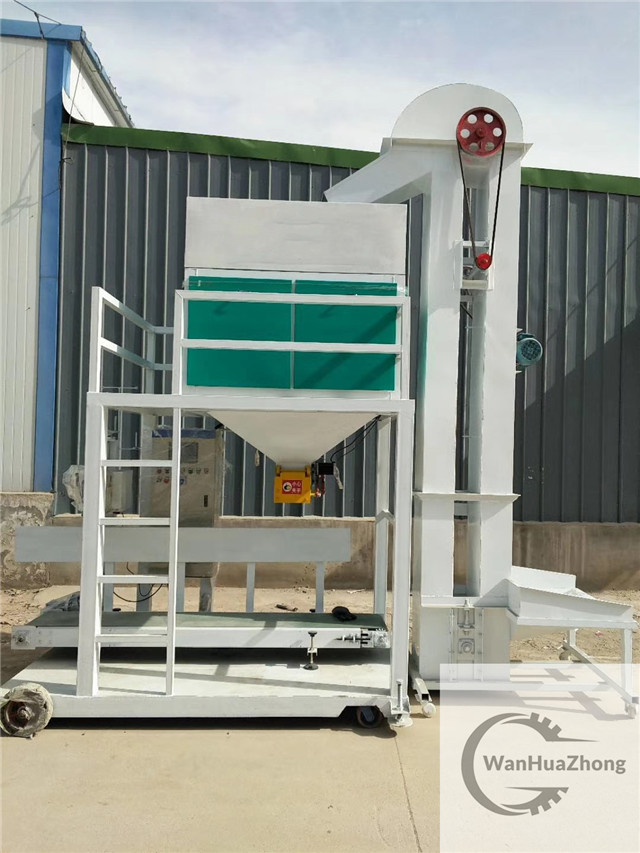

Metering automatic filling machine with elevator

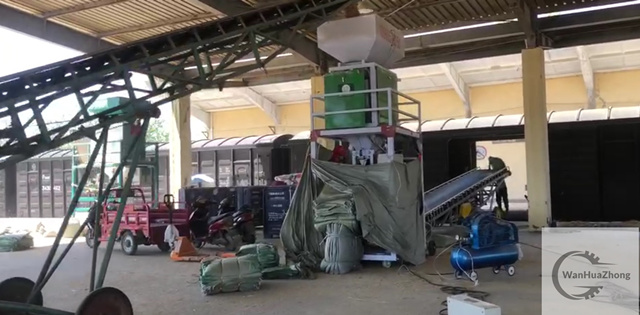

Case of metering filling machine
Product features
1，The metering automatic filling machine for sale adopts a computer to automatically control metering, filling, conveying and sealing, and the whole process is highly automated;
2，The metering automatic filling machine adopts high precision The sensor adopts high-speed sampling processing, automatic compensation, automatic zero stabilization and other technologies, with accurate measurement, stable and reliable performance.
3，This filling and packing equipment has three kinds of fast feeding structures, and has the function of automatic feeding compensation, which can track the flow changes of materials in time to ensure the accuracy and reliability of measurement.
4, This filling and packing equipment has the functions of automatic statistics of packaging quantity and total weight and multiple data communication interfaces, which is beneficial to production management. Customers can choose to equip an inflatable system to realize fresh-keeping packaging of the packaging. It can also be used together with a vacuum machine to achieve vacuum packaging of packaging.
Metering automatic filling machine in the project
Product parameter
| Product name: | Metering automatic filling machine | Model: | HZJ-A;HZJ-B |
| Packing quantity: | 750 bags/h | Single package weight: | 30-75kg |
| Weighing accuracy: | 0.2‰ | Matching power: | Electric power 6kW |
| There is a material level controller to control the height of the material position in the storage hopper to improve the measurement accuracy | Adapted environment temperature range: | -40℃~+40℃ | |
| Material characteristics: | Strong and wear-resistant | Environmental humidity: | ≤90%RH |
| Warranty service: | Video technical support, online support | After-sales service: | Video technical support, online support |
| Warranty period: | 1 year | Certification: | ISO45001，ISO14001，ISO9001 |
| Applicable industries: | Grain depots, port terminals, feed plants, fertilizer plants, grain processing plants | Applicable objects: | Corn, rice, soybean, wheat and other bulk materials |
| Place of production: | Anhui, China | ||
Surface treatment and painting of steel components
1. The surface of the steel components of the metering automatic filling machine is shot blasted, and the steel surface is free of visible grease, dirt, oxide scale, iron, zinc, and paint coatings. Any remaining traces are only points. Slight stains like striated or streaks.
2. The primer of metering automatic filling machine adopts brushing process, and the top coat adopts spraying process.
3. The coating of primer and middle layer of metering automatic filling machine are free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
4. The primer of metering automatic filling machine adopts iron oxide zinc chromium primer, and the thickness of the dry paint film is greater than 40µm.
5.The top paint of this metering and filling machine adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.
