Introduction of mobile loading conveyor :  The mobile loading conveyor is a new product in the belt conveyor equipment of HuaZhong Machinery. The telescopic length is mainly 6 meters, 8 meters, 10 meters, 12 meters and other specifications, and the conveyor belt width is 550mm, 650mm, 800mm  3 specifications. Customers can customize various specifications of loading conveyors according to actual needs.

Main application of mobile loading conveyor: The mobile loading conveyor can not only transport bulk materials continuously, but also transport packages weighing 10-60 kg. It is especially good at loading and unloading materials for containers and vans. It can also be used for bulk materials and packaging materials. Transfer between cars and cars, transfer between cars and trains, loading and unloading between cars and ships, loading and unloading between cars and trains, etc. At present, the customers of loading conveyors are mainly grain depots, grain processing plants, seed factories, feed factories, logistics transfer stations, railway stations, docks and other units.

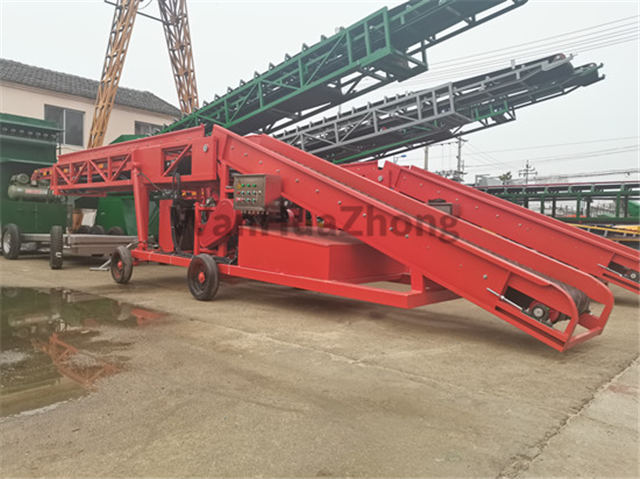

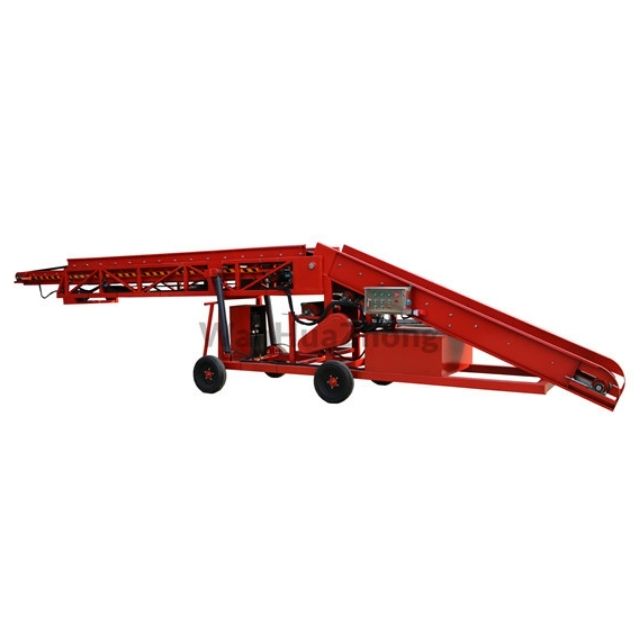

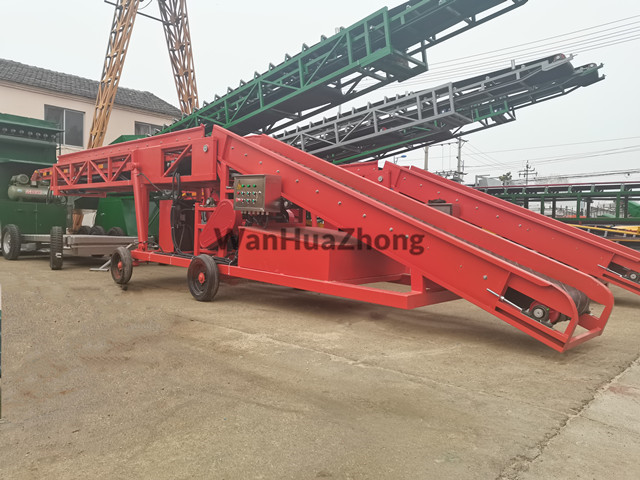

Mobile loading conveyors

Hourly conveying capacity of mobile loading conveyor:  bulk grain 50-80 tons. packaged grain (10-60kg) 1200 packages.

Characteristics of the loading conveyor: The loading conveyor is composed of a chassis and two-end conveyors. The bottom of the chassis is equipped with rubber air pumps. The electric control box and hydraulic system are installed on the chassis. The loading conveyor is composed of an integrated two-end conveyor. It belongs to a mobile loading telescopic belt conveyor that can transport bulk or packaged grains, as well as other small particle materials.

1. The mobile loading conveyor can be moved, can be lifted and lowered (adjustable inclination), and can be replaced by a diesel engine for use in places where there is no electricity supply, and can be used for various occasions.

2, The conveying angle of the mobile loading conveyor is generally greater than 0° and less than 30°. In case of special materials or special environments,The conveying angle of the conveyor can be increased by changing the style of the conveyor belt.

(Such as adding baffles or guide bars on the conveyor belt)

3. Flexible telescopic mode of the mobile loading conveyor: at the same time, it supports forward telescopic control to increase the conveying distance of the conveyor and expand the scope of adaptation.

4. The mobile loading conveyor has a large capacity and can continuously transport materials during work. At the same time, according to the requirements of different conveying processes, it can be used as a single machine, or multiple units can be combined into a horizontal, inclined or angled transportation line to complete the transportation of materials. At present, the loading conveyor is widely used in grain transportation, grain processing, feed, seed, chemical industry, trade logistics and other industries, and the market demand is large.

5. The mobile loading conveyor has a wide range of use: it supports the transportation of various packaging, bulk materials and other materials, and is used in domestic grain depots, grain processing plants, seed factories, feed factories, logistics transfer stations, railway stations, docks and other units More.

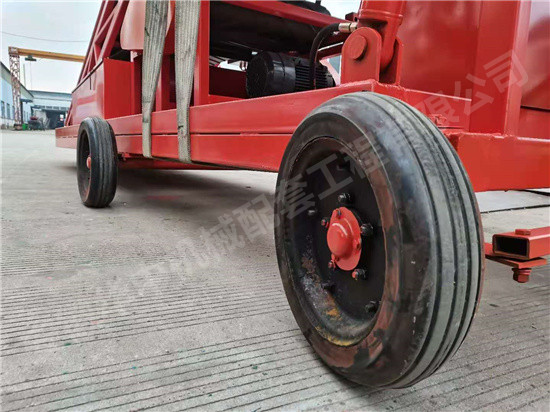

Tire of mobile loading conveyors (customizable)

Advantages of mobile loading conveyor:

1. The front end of the mobile loading conveyor is a power roller telescopic frame, bulk grain or package materials and carton goods can be automatically conveyed, saving time and effort.

2. The height of the horizontal feeding end at the tail of the mobile loading conveyor can be adjusted in a small amount to facilitate people of different heights to place goods or cooperate with other feeding and feeding equipment.

3. The height of the ramp section of the mobile loading conveyor can be automatically adjusted to match the height of the cargo on the truck, which greatly reduces the labor intensity of personnel.

4. During the lifting and lowering process of the mobile loading conveyor, the front end is always kept horizontal, which is convenient for personnel to take the goods and save time and effort.

5. It is especially suitable for vehicles with deep compartments such as container trucks and vans. This is the specialty of mobile loading conveyor.

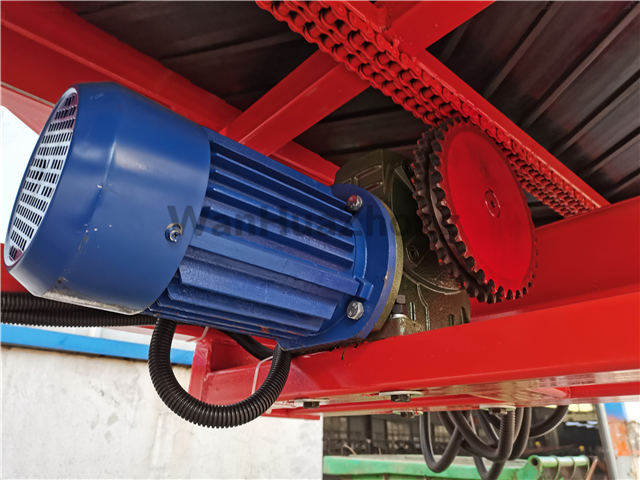

Drive motor of mobile loading conveyor

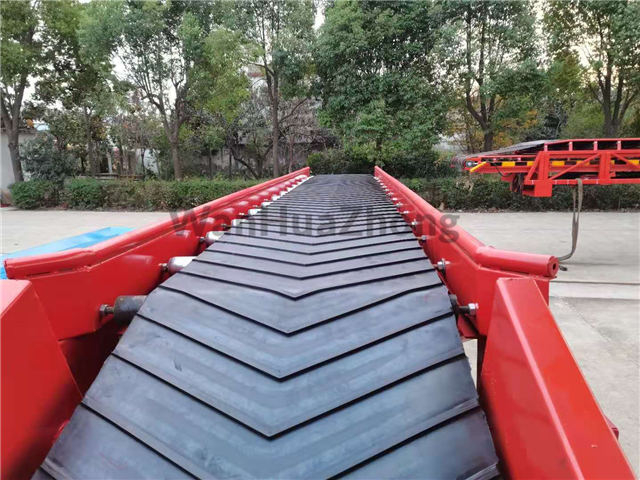

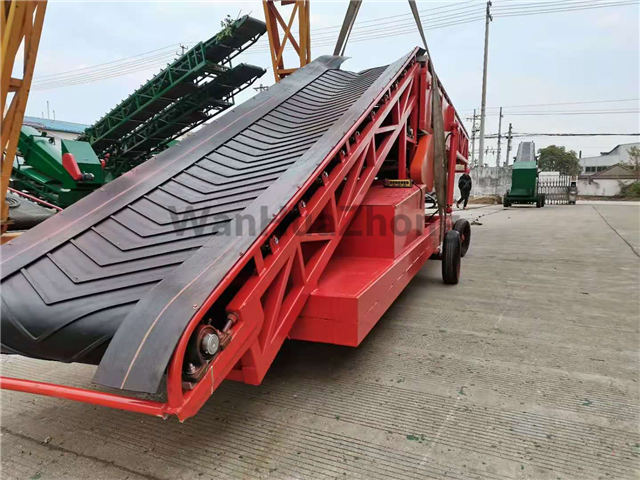

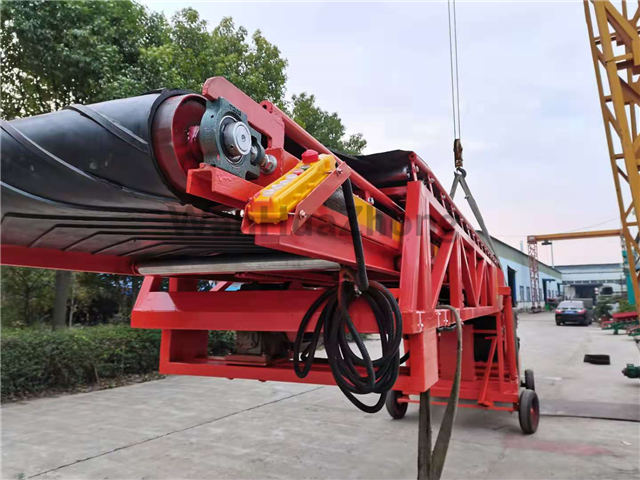

Conveyor belt of mobile loading conveyor

Features of mobile loading conveyor:

1. The loading conveyor is especially suitable for the loading and unloading operations of bagged goods weighing about 10-60 kg.

2. Only 2 people can move the loading conveyor to different operating locations.

3. The loading conveyor can be pushed into the carriage, and can go deep into the carriage about 10 meters for operation.

4. During the operation of this loading conveyor, the operation can be completed by dragging the goods manually, forwarding loading and reverse loading, the actual loading and unloading efficiency can reach about 20 pieces of goods per minute.

5. The operating position of the conveyor can be adjusted in multiple directions according to the operating requirements, and the original mechanical arm hydraulic device is used to adjust the height of the conveyor, which solves the problem of difficult palletizing of heavy goods.

When unloading or loading is needed, move the mobile loading conveyor to the required working position. According to the height of unloading or stacking, the hydraulic system is used to adjust the conveyor on one side to a suitable height, and the conveyor on the other end is adjusted to the height of palletizing, loading or shipping, and then stop. In this way, start the drive motor to make the conveyor run, and normal operation can be achieved.During work, the inclination angle of the mobile loading conveyor can be adjusted according to the height changes of the work of unloading the palletizing to meet the demand.

During work, the inclination angle of the mobile loading conveyor can be adjusted according to the height changes of the work of unloading the palletizing to meet the demand.

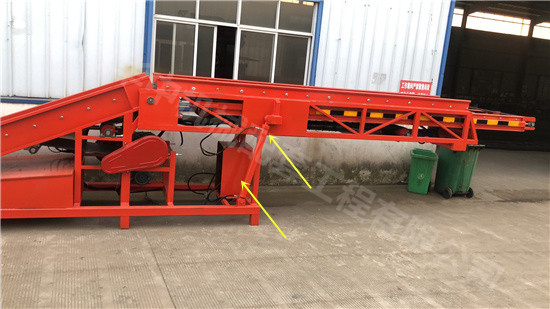

Telescopic frame of mobile loading conveyor

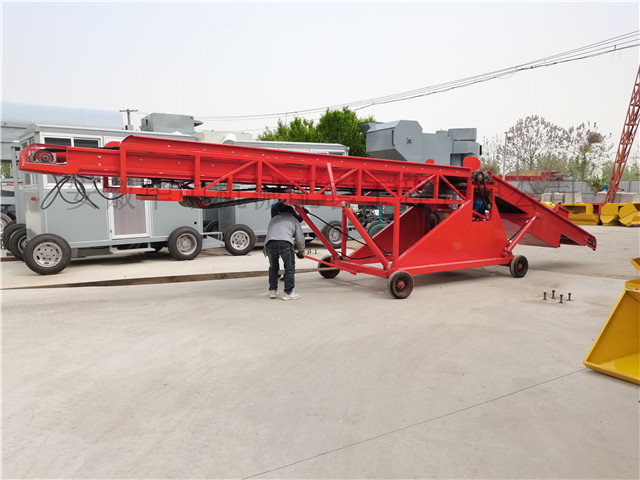

Customized mobile loading conveyor debugging

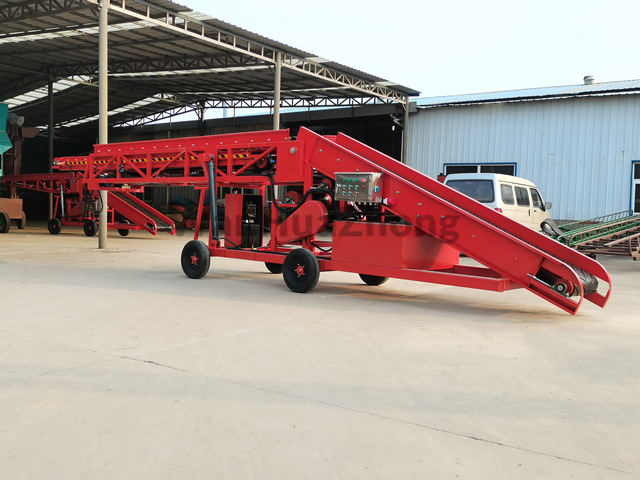

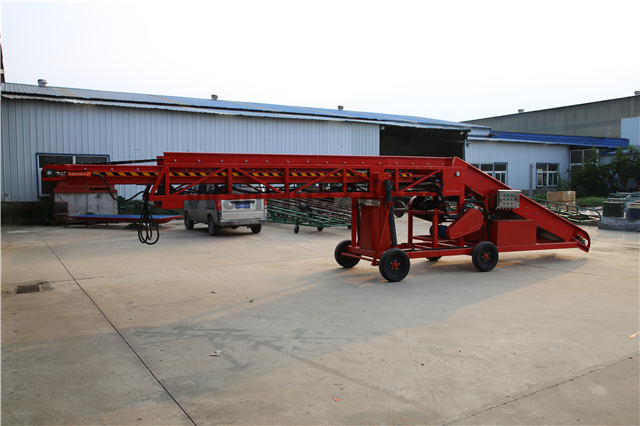

Mobile loading conveyor in grain warehouse

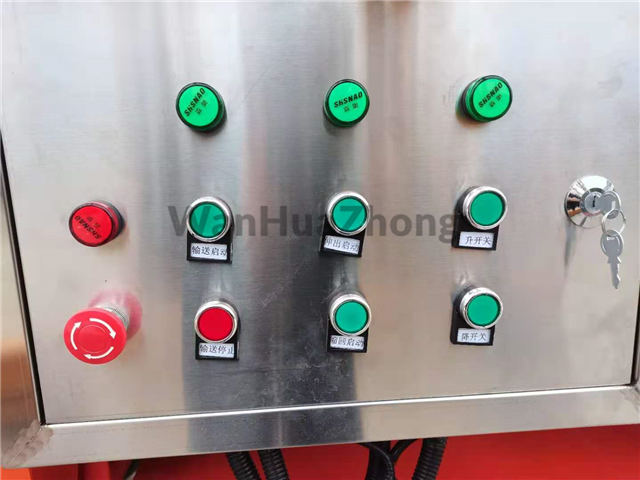

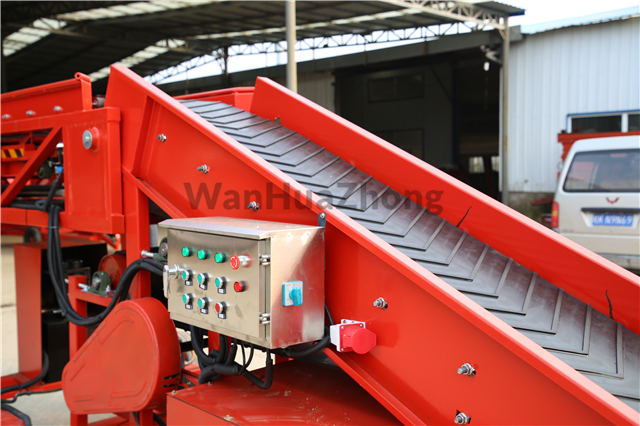

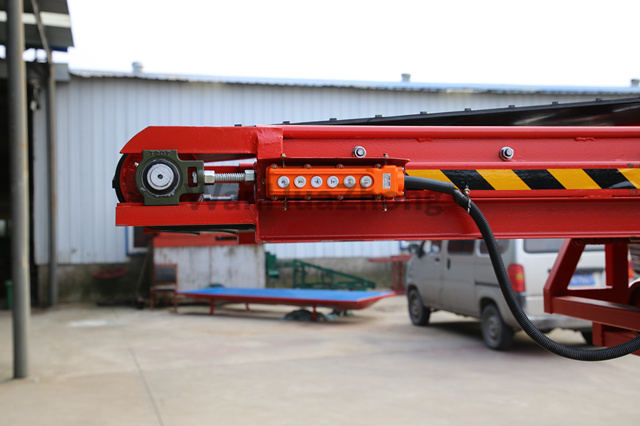

1. The electrical control box of this mobile loading conveyor is a device that can accommodate electrical components such as the motor start button. The motor is started at full pressure. The box panel is equipped with start and stop buttons and other necessary buttons, indicator lights and power switch operating handles. The electrical control box is designed as a double-layer steel door sealed structure, which can prevent dust and water, and is equipped with anti-overload and anti-phase protection devices. The external cable adopts a special waterproof and dustproof power supply quick connector, which is convenient for maintenance and reduces electrical maintenance work.(Electrical control box can be customized)

2.  All electrical protection grades are T4, IP54, and insulation grades are F grade.

3. The box body is welded with stainless steel plate, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the grade reaches DIP A21.

4.  The air circuit breaker meets the operating requirements of the load nature in the AC3 standard, and the load nature of the contactor is not less than the AC3 standard. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.

5. All electrical components of the electrical control box adopt Delixi products, and the phase sequence of all wiring is consistent.

6.  There is enough space in the electrical control box for loading, unloading and repairing electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.

7. The box has a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.

Surface treatment and painting of steel components

1. The surface of the steel components of the mobile loading conveyor is shot blasted, and the steel surface is free of visible grease, dirt, oxide scale, iron, zinc, and paint coatings. Any remaining traces are only points. Slight stains like striated or streaks.

2. The primer of mobile loading conveyor adopts brushing process, and the top coat adopts spraying process.

3. The coating of primer and middle layer of mobile loading conveyor are free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.

4. The primer of mobile loading conveyor adopts iron oxide zinc chromium primer, and the thickness of the dry paint film is greater than 40µm.

5.The top paint of the mobile loading conveyor adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.

1. Before using the mobile loading conveyor, check whether the fasteners of each part are tight.

2. When working, wait and then start to work normally until the mobile loading conveyor runs normally.

3. The parts of the loading conveyor hydraulic system must be kept clean.

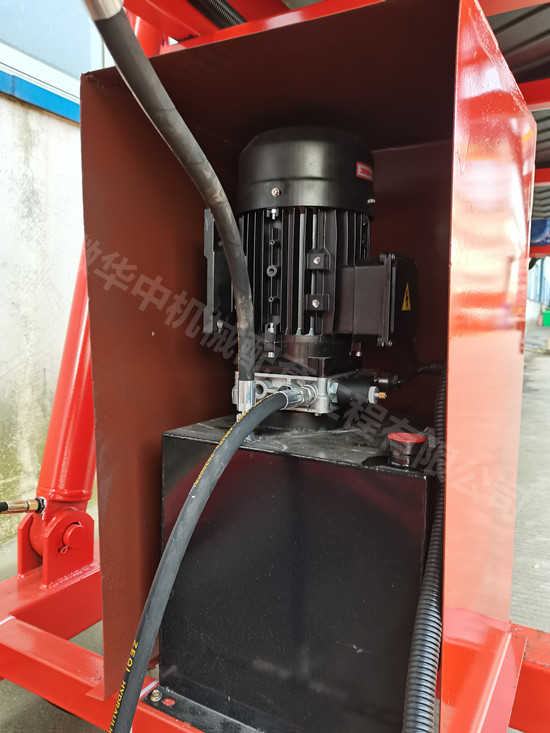

Hydraulic device on the loading conveyor

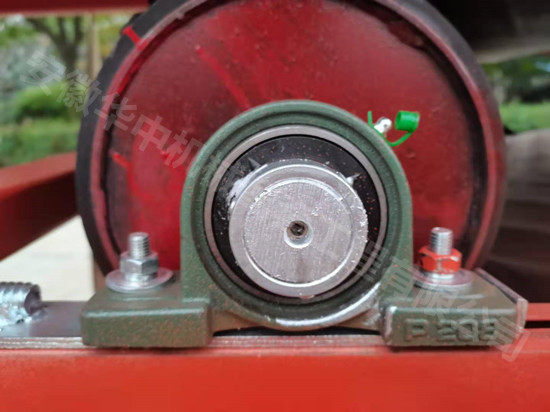

4. To replace each bearing lubricant after the loading conveyor works for 1000 hours .

5. When the telescopic loading conveyor device is not used, clean and placed in a ventilated dry place.

6. When the telescopic loading conveyor device is not used for a long time, the cylinder should be placed in the retracted position.
