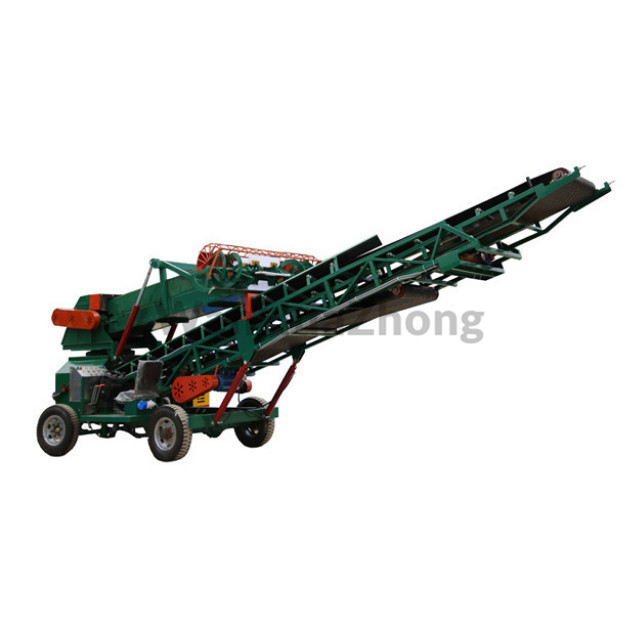

Multi-function steering grain unloader

Multi-function steering grain unloader

Introduction of multi-function steering grain unloader:

The multi-function steering grain unloader for sale is a mature product in the grain handing equipment series of  Huazhong Machinery ,which is the professional grain storage equipment manufacturer of China,it integrates bulk grain picking out, turning over, and loading.It can be used with other grain machinery. It constitutes a mechanical assembly line operation. In the China domestic market, this equipment is currently a relatively advanced mainstream product in the field of grain picking and unloading machinery, with mature technology and reliable quality.

Main application of multi-function steering grain unloader:

The multi-function steering grain unloader for sale can be used in the daily work of national grain storage depots, local large and small grain stations , and grain and oil and feed processing enterprises. It can pick up and deliver bulk grain within a range of 180 degrees. It can be used with conveyors for bulk grain transportation, stacking, loading, unloading, turning over and other operations. It has good performance and high output. It can be picked up and loaded by one machine. , Is an ideal automatic grain picking equipment.

Hourly processing capacity of the multi-function steering grain unloader: 100-200 tons/hour.

The multi-function steering grain unloader for sale is composed of a scraper grain picking mechanism, a rotary discharging system, a dust removal system, a conveying mechanism, a lifting mechanism, a loading and conveying structure, an electric walking device and an electric control system. The dust removal system of this equipment increases the safety of clean production of staff and reduces the labor intensity of operators and grain warehouse workers.

1. The multi-function steering grain unloader has an automobile axle chassis, electric walking ability, the power is strong and the performance is stable.

2. The automatic return pipe of the multi-function steering grain unloader expands the conveying range and reduces the number of movement of the equipment that works with it.

3. The multi-function steering grain unloader is equipped with inflatable car tires, which can move quickly over long distances.

4. The overall protection level reaches IP54, which meets the requirements of dust-proof and explosion-proof operation in the grain equipment warehouse.

5. The welding process in the production of equipment adopts the process of combining CNC machine tools with welding robots and professional welders to ensure the quality of welding.

6. The grain picking scraper of the multi-function steering grain unloader is equipped with a wear-resistant structure, which prolongs the service life of the equipment.

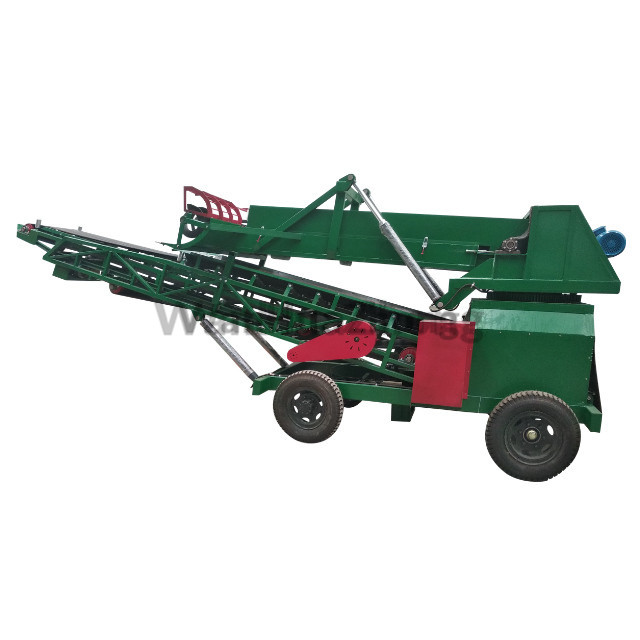

Multi-function steering grain unloader

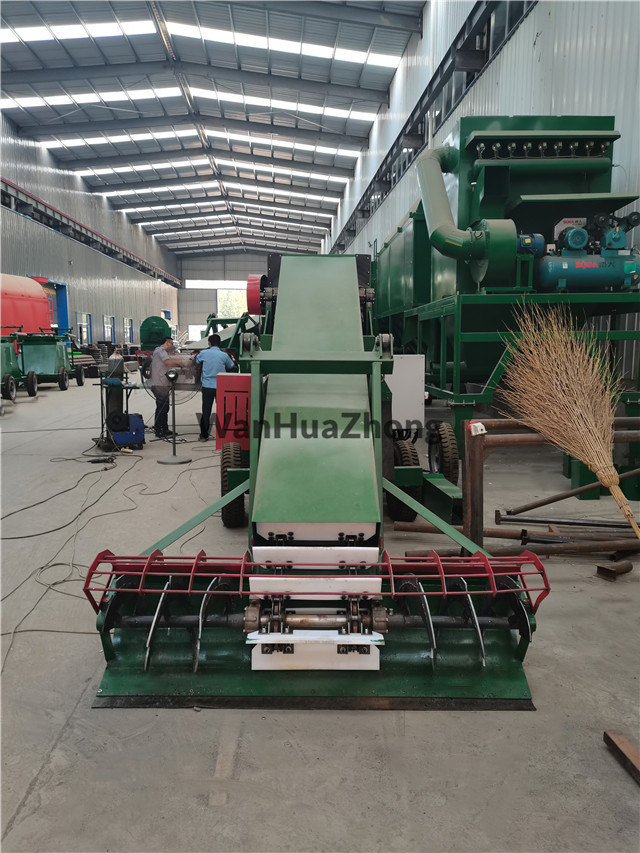

Front view of Multi-function steering grain unloader

Commissioning and installation

1. Before turning on the multi-function steering grain unloader, check whether all the fasteners are fastened.

2. Turn on the switch of the grating and conveying motor to see if the direction of rotation is correct.

3. Start the motor of the grain picking and conveying part, and check the tightness of the conveying and grain picking belt and whether it runs off. If you find the above phenomenon, you can adjust the adjustment wire drawing at both ends separately until the belt does not run off and the tightness is appropriate.

4. Check whether the rear end of the grain picking part of the multi-function steering grain unloader is lowered to the lowest position.

5. After everything is normal, this grain handing equipmentcan be turned on to work.

1. The electrical control box of multi-function steering grain unloader is a device that can accommodate electrical components such as the motor start button. The motor is started at full pressure. The box panel is equipped with start and stop buttons and other necessary buttons, indicator lights and power switch operating handles. The electrical control box is designed as a double-layer steel door sealed structure, which can prevent dust and water, and is equipped with anti-overload and anti-phase protection devices. The external cable adopts a special waterproof and dustproof power supply quick connector, which is convenient for maintenance and reduces electrical maintenance work.(Electrical control box can be customized)

2.  All electrical protection grades are T4, IP54, and insulation grades are F grade.

3. The box body is welded with stainless steel plate, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the grade reaches DIP A21.

4.  The air circuit breaker meets the operating requirements of the load nature in the AC3 standard, and the load nature of the contactor is not less than the AC3 standard. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.

5.  All electrical components of the electrical control box adopt Delixi products, and the phase sequence of all wiring is consistent.

6.  There is enough space in the electrical control box for loading, unloading and repairing electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.

7. The box of this grain handing equipment has a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.

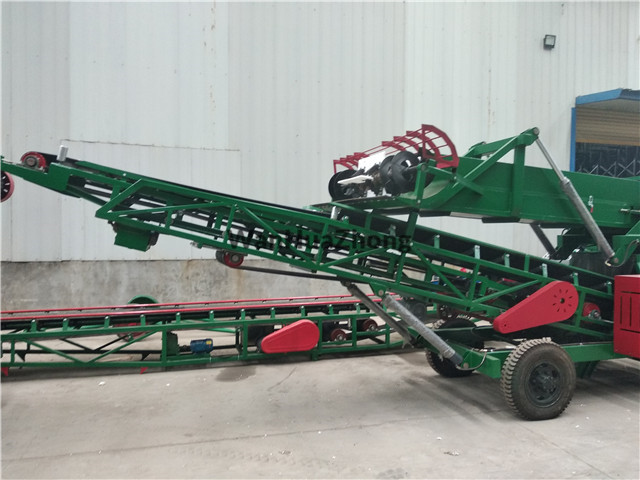

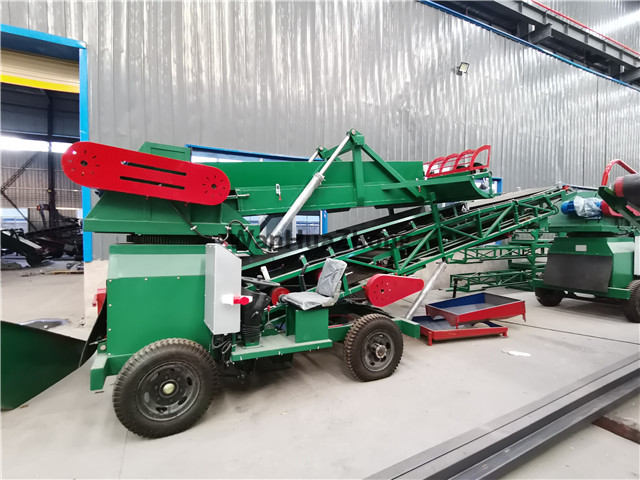

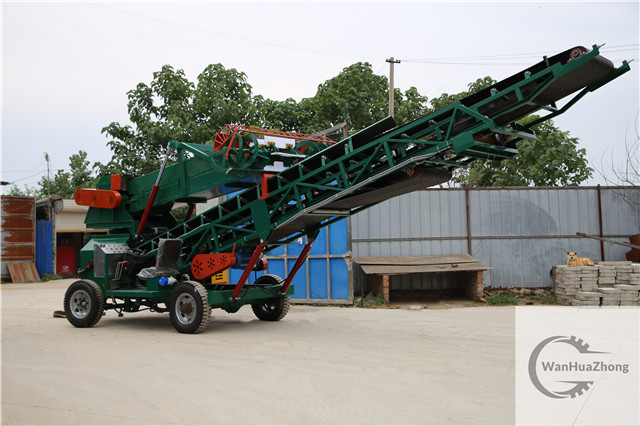

Customized Multi-function steering grain unloader

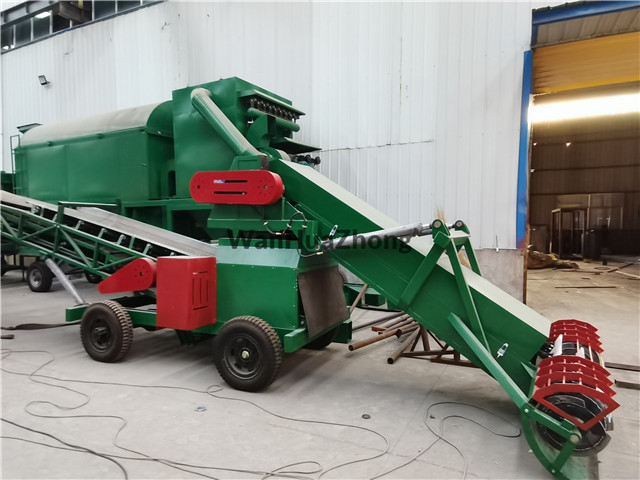

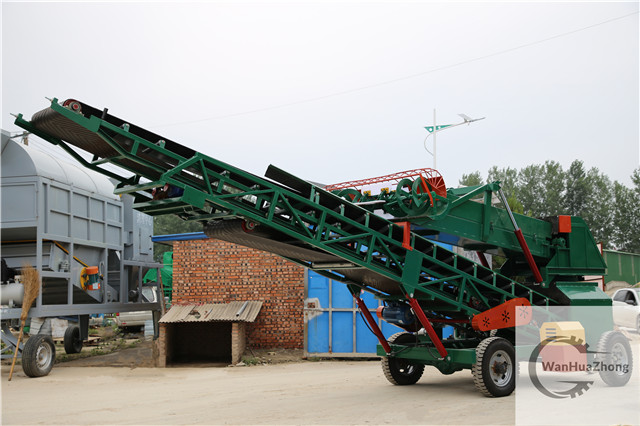

Customized Multi-function steering grain unloader in the granary

Surface treatment and painting of steel components

1. The surface of the steel components of the multi-function steering grain unloader is shot blasted, and the steel surface is free of visible grease, dirt, oxide scale, iron, zinc, and paint coatings. Any remaining traces are only points. Slight stains like striated or streaks.

2. The primer of multi-function steering grain unloader adopts brushing process, and the top coat adopts spraying process.

3. The coating of primer and middle layer of multi-function steering grain unloader are free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.

4. The primer of multi-function steering grain unloader adopts iron oxide zinc chromium primer, and the thickness of the dry paint film is greater than 40µm.

5. The top paint of this grain handing equipment adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.

1. Before using the multi-function steering grain unloader, check whether the fasteners of each part are tight.

2. When working, wait and then start to work normally until the multi-function steering grain unloader runs normally

3. The parts of the steering grain unloader hydraulic system must be kept clean.

4. To replace each bearing lubricant after the multi-function steering grain unloader works for 1000 hours .

5. When this grain handing equipment is not used, clean and placed in a ventilated dry place.

6. When the grain handing equipment  is not used for a long time, the cylinder should be placed in the retracted position.
