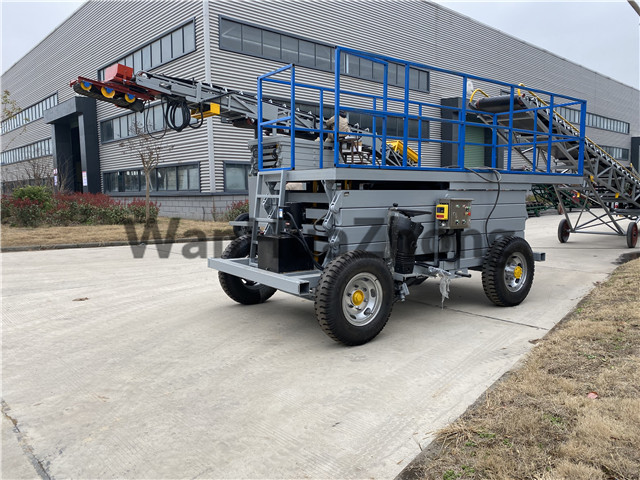

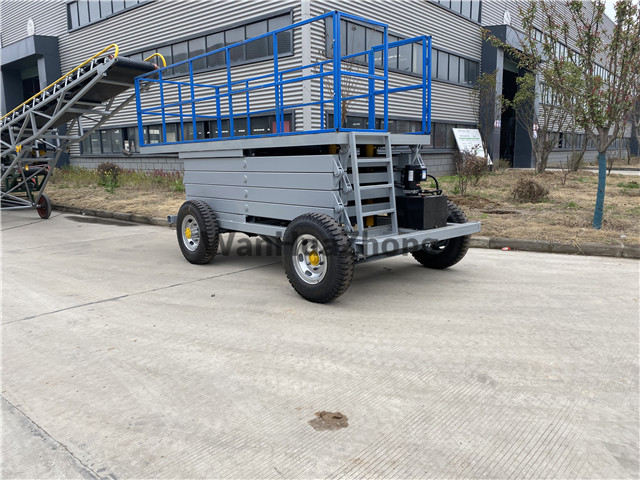

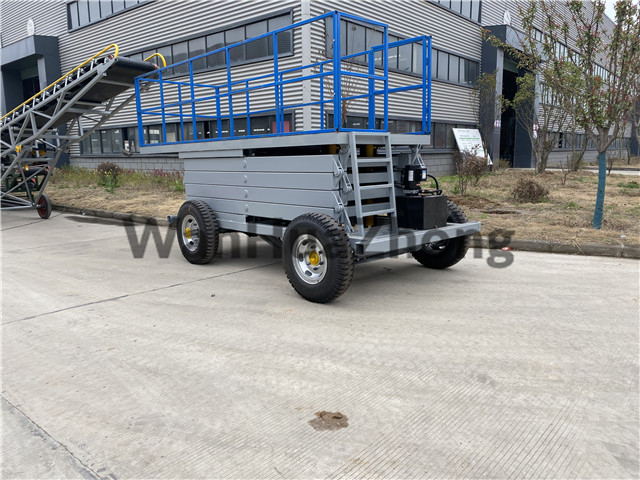

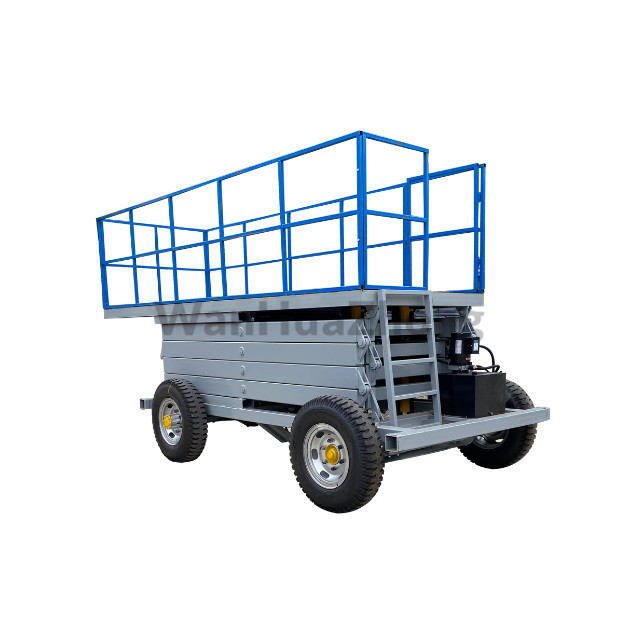

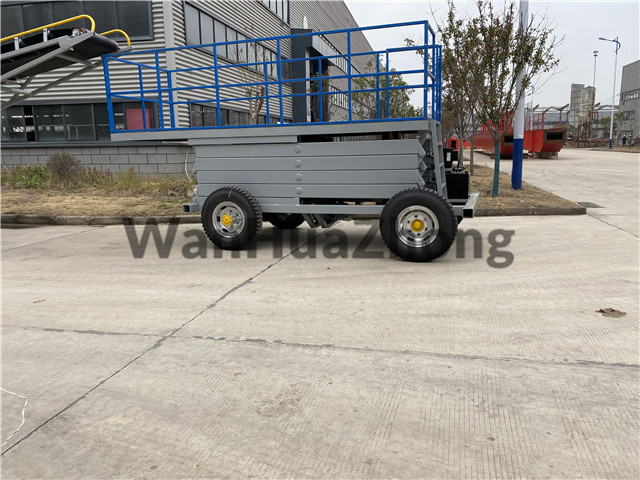

Telescopic mobile scissor lift table

Side view of telescopic mobile lift table for sale

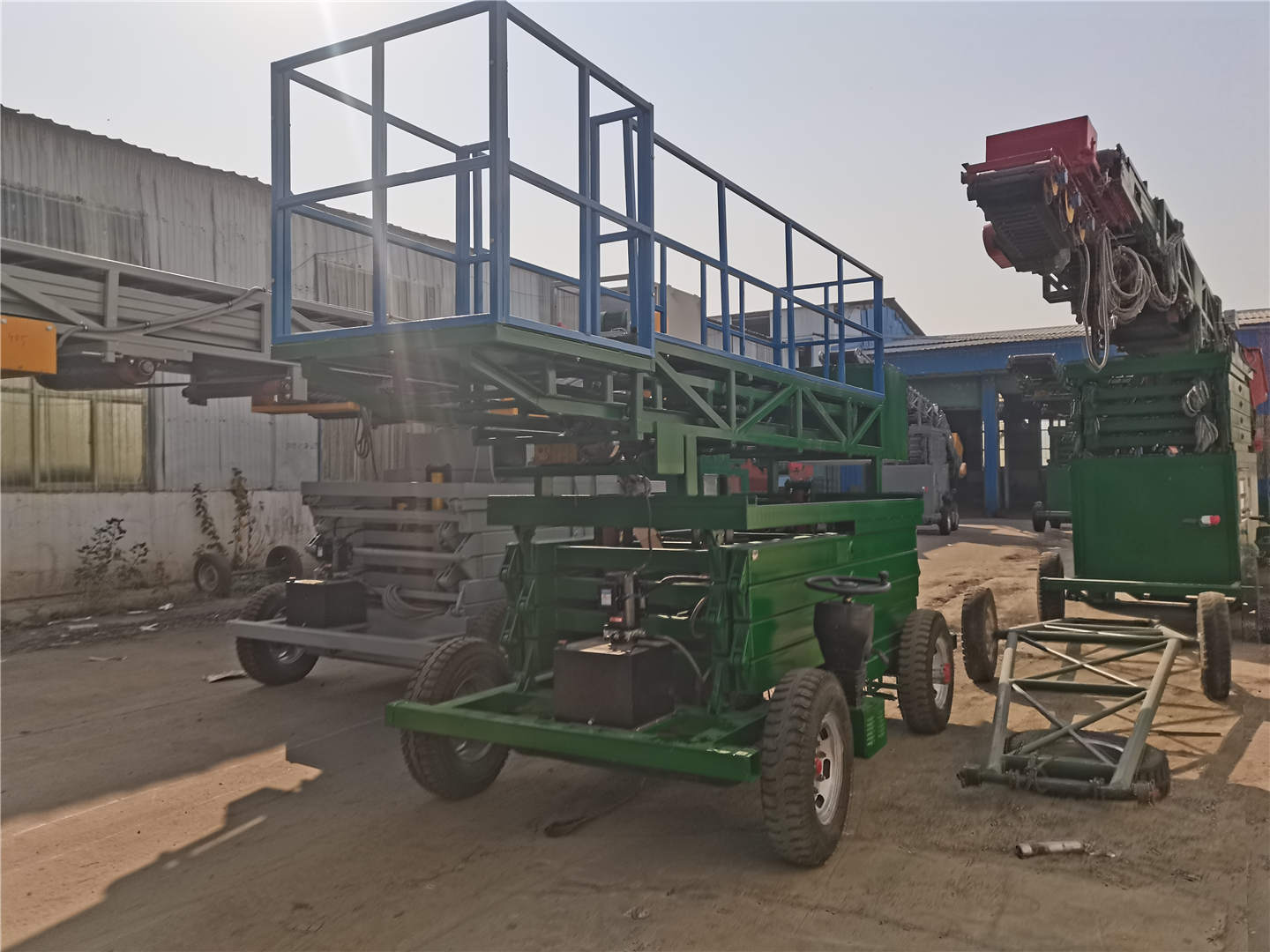

Side view of telescopic mobile scissor lift table

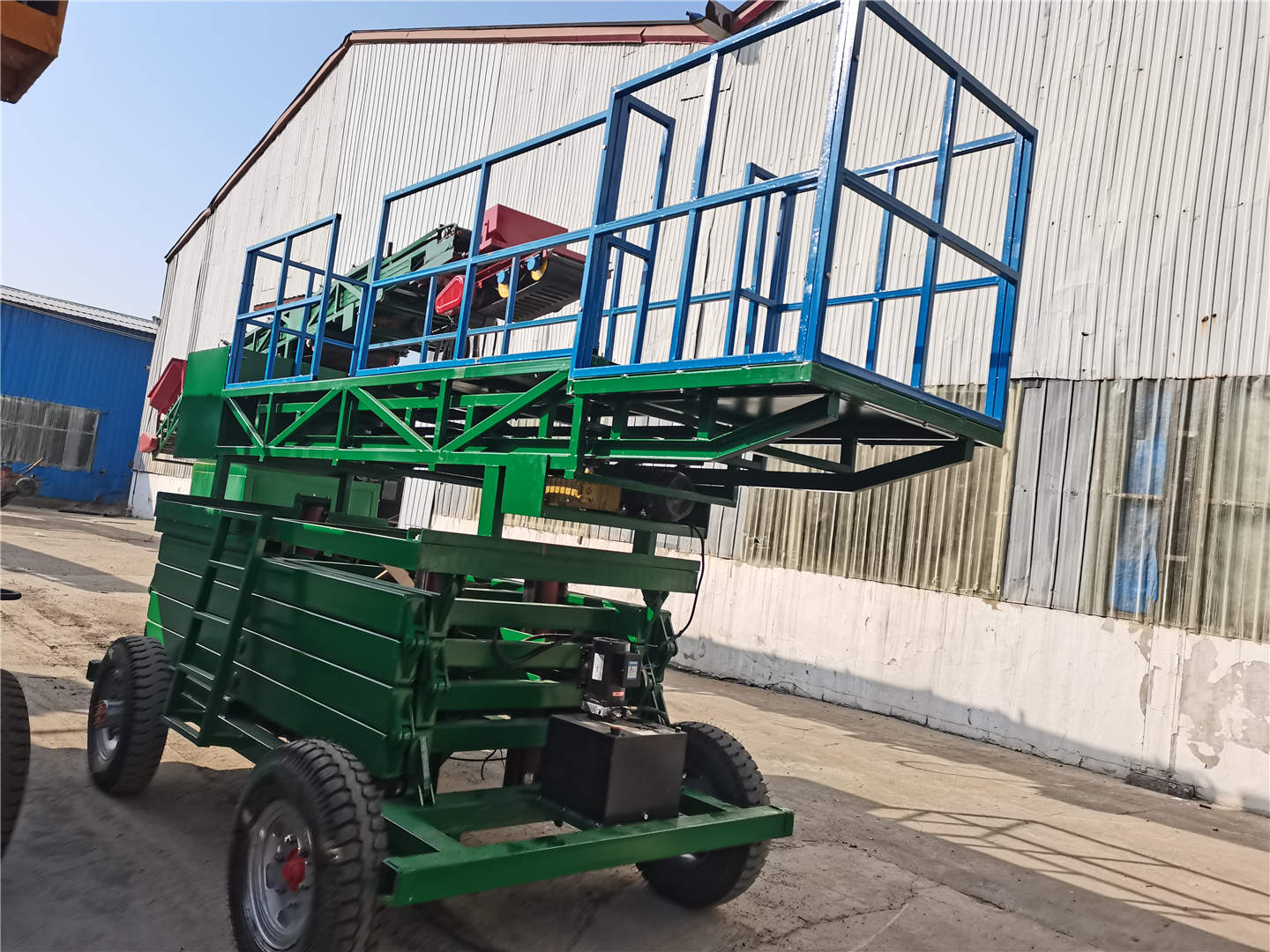

Telescopic mobile scissor lift table in factory

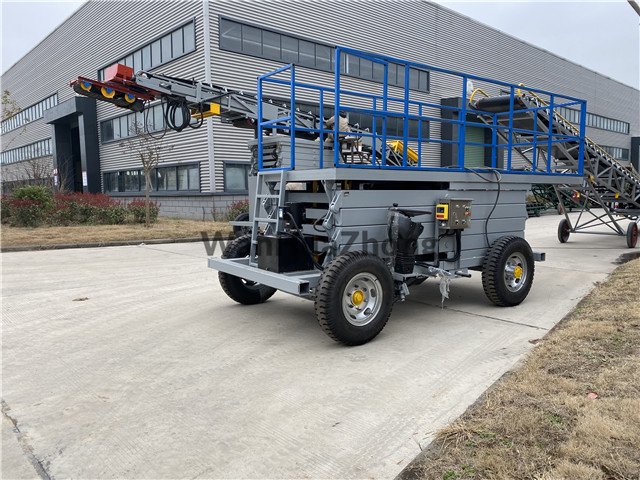

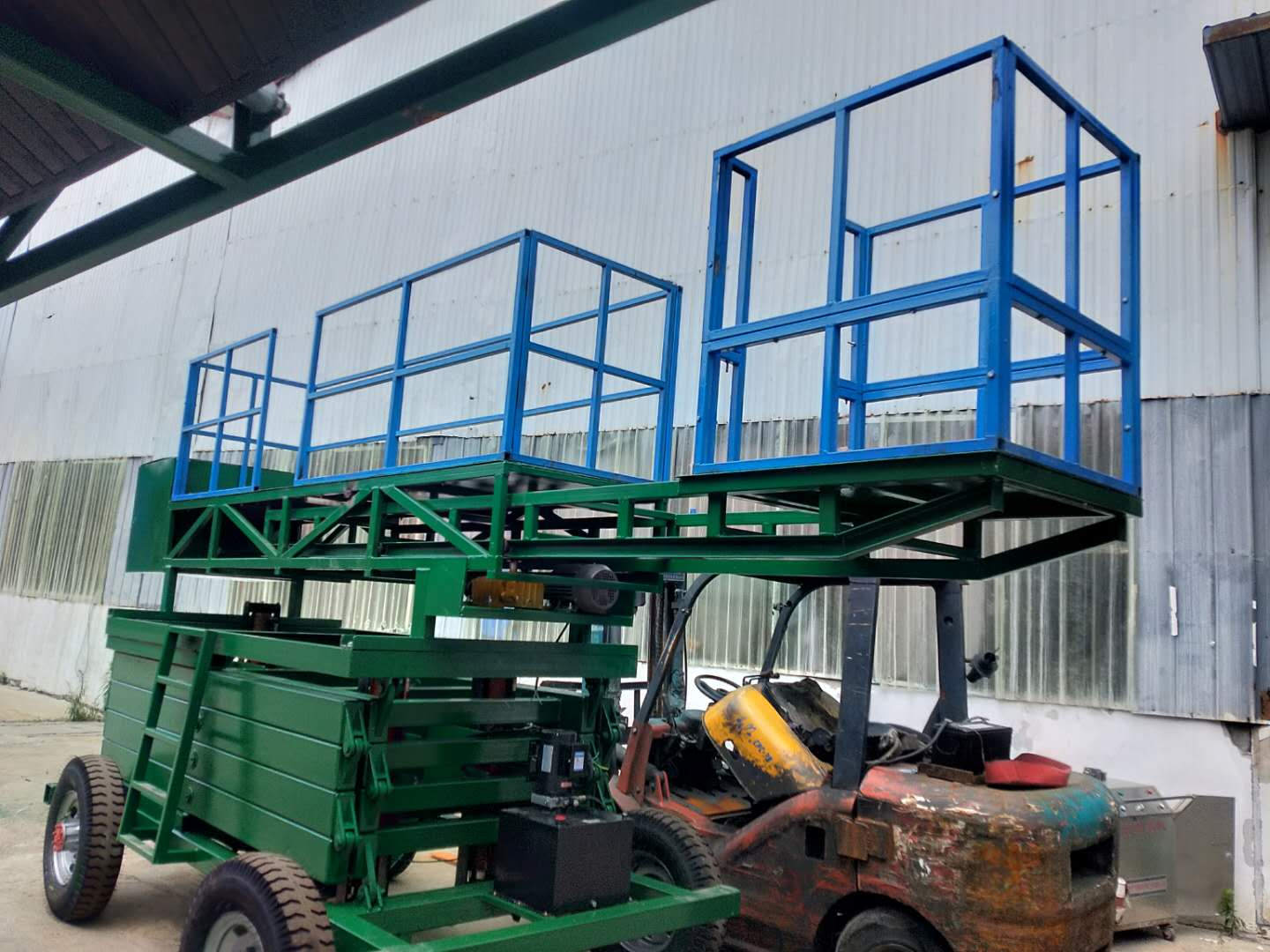

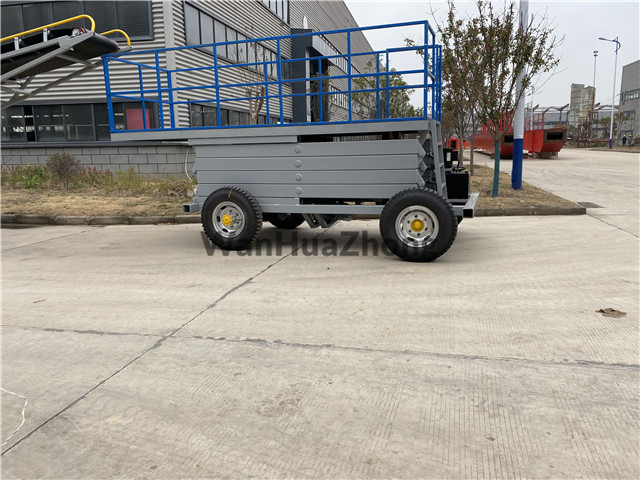

 Telescopic mobile scissor lift table with different type of table surface

 Telescopic mobile scissor lift table with different type of table surface

 Telescopic mobile scissor lift table with different type of table surface

The telescopic mobile lift table for sale is a mature product in the equipment series of HuaZhong mechanical lifting table . It has been on the market for many years. It has mature technology and reliable quality. It is suitable for mobile high-altitude operations such as high-altitude equipment installation and maintenance in various industries (such as street lamp maintenance, Warehouse window installation, etc.). Its scissor type mechanical structure makes the lift platform have high stability after being raised.

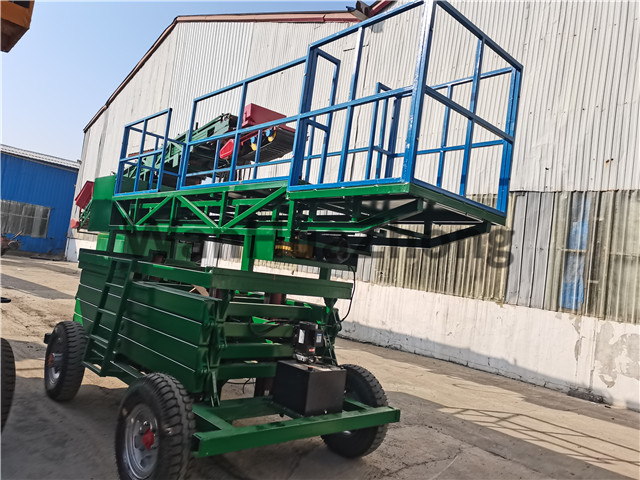

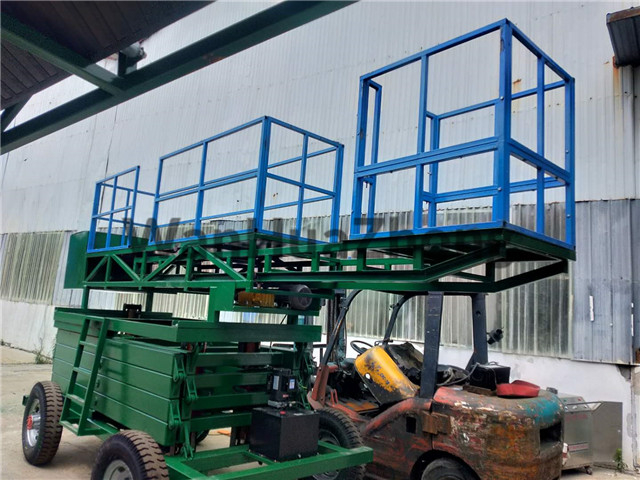

The bearing platform can be extended left and right,It is more convenient during use. The telescopic mobile lift table for sale  can use three-phase AC power as its power, and it can also be equipped with a manual hydraulic device, which can perform lift work as usual in places where power is cut or without electricity.

1. The telescopic mobile lift table is light in weight, has good maneuverability, and is suitable for single-person operation;

2. The telescopic mobile lift table has a special guide wheel device between the masts, which can be raised and lowered smoothly;

3. The mechanical structure of the  telescopic mobile lift table is compact, and the equipment occupies a small area during transportation. It can enter the elevator car of the general elevator and can smoothly pass through the door hole and narrow passage;

4. The telescopic mobile lift table has a double-protected outrigger structure, working safety is more guaranteed, and it can be lifted close to the working surface;

1. The lifting scissor of  telescopic mobile lift table can be adjusted in height and has a lifting function. It can be lifted by a cylinder or motor to adapt to different height operations.

2. This lifting platform equipment has a reliable anti-overturning design, and the four supporting feet on the chassis can stabilize the equipment. Customers can choose to equip with steering wheel automatic walking device and grain throwing device.

3. This lifting platform equipment adopts industrial pneumatic tires, all four wheels can be rotated, and a support rod seat is provided to ensure a complete landing and stable operation during operation.

4. The electric control box of the  telescopic mobile lift table adopts a double-layer steel door seal structure design, and is equipped with anti-overload and anti-phase protection devices. Using domestic famous or joint venture brand electrical components, the external cable of the electric control box adopts a special waterproof and dustproof power supply to quickly connect the plug, which is convenient for maintenance and reduces electrical maintenance work.

5. The reinforcing frame of the  telescopic mobile lift table is made of high-strength steel plate and welded by welders, with high-quality continuous welds.

6. The welding of the telescopic mobile lift table adopts a combination of CNC machine tools, welding robots and professional welders to ensure welding quality.

7. This  lifting platform equipment is equipped with a leakage protection device; the lifting mechanism is made of high-strength manganese steel rectangular pipe. There is a safety device to prevent overloading of the lifting platform, and an emergency lowering device to prevent power outages. Suitable for high-altitude maintenance, installation and other high-altitude operations.

1. The electrical control box of this  telescopic mobile lift table for sale is a device that can accommodate electrical components such as the motor start button. The motor is started at full pressure. The box panel is equipped with start and stop buttons and other necessary buttons, indicator lights and power switch operating handles. The electrical control box is designed as a double-layer steel door sealed structure, which can prevent dust and water, and is equipped with anti-overload and anti-phase protection devices. The external cable adopts a special waterproof and dustproof power supply quick connector, which is convenient for maintenance and reduces electrical maintenance work.(Electrical control box can be customized)

2.  All electrical protection grades are T4, IP54, and insulation grades are F grade.

3. The box body of this  telescopic mobile lift table is welded with stainless steel plate, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the grade reaches DIP A21.

4.  The air circuit breaker meets the operating requirements of the load nature in the AC3 standard, and the load nature of the contactor is not less than the AC3 standard. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.

5. All electrical components of the electrical control box adopt Delixi products, and the phase sequence of all wiring is consistent.

6.  There is enough space in the electrical control box for loading, unloading and repairing electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.

7. The box of this telescopic mobile lift table has a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.

Surface treatment and painting of steel components

Shot blasting is carried out on the surface of steel components, and the steel surface is free of visible grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines.

The primer of this telescopic mobile lift table adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.

The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.

The primer of the telescopic mobile lift table is brushed and the topcoat is sprayed.

The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.

The  telescopic mobile lift table can also be painted with a baking process, and it can also be customized according to the actual needs of the customer and the local climate.
