Production description

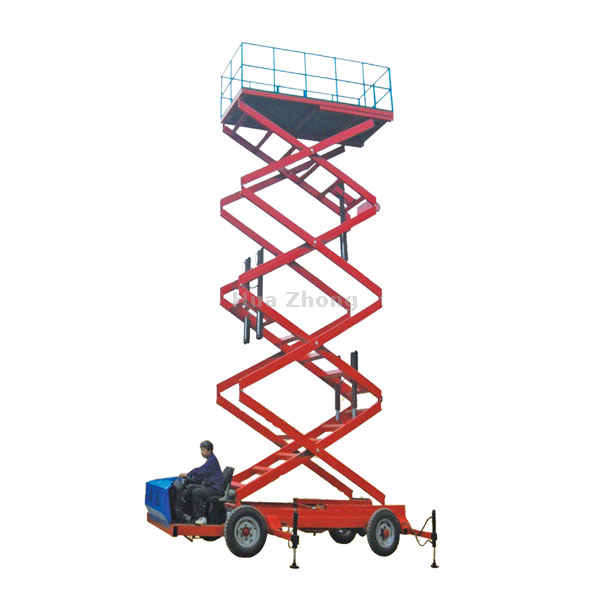

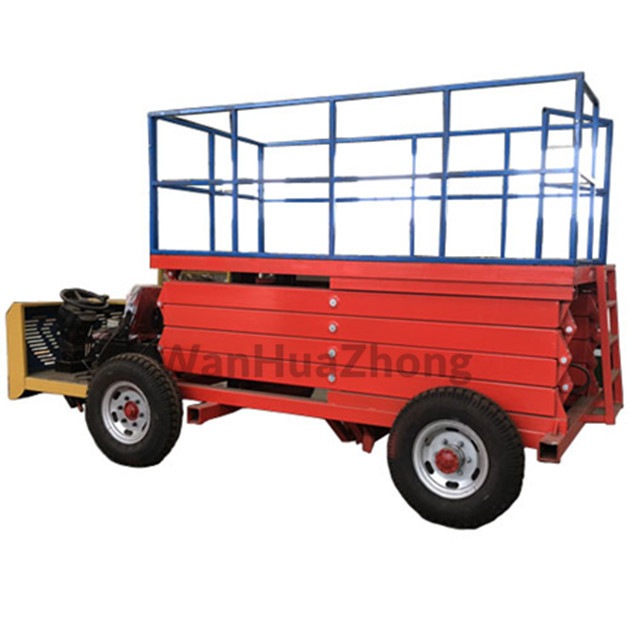

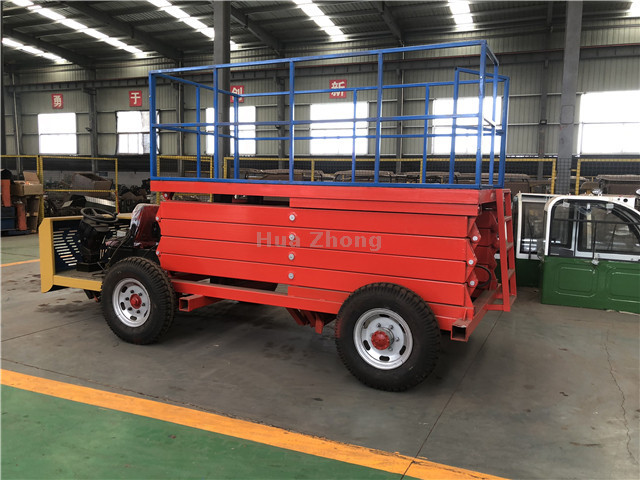

Product introduction of vehicle-mounted scissor lift table
The vehicle-mounted scissor lift table is a mature product in the equipment series of Huazhong Machinery’s hydraulic lifting platform. It is a new type of aerial work equipment that integrates the advantages of the automobile and the scissor-type lifting platform. The vehicle-mounted scissor lift platform takes minivan (car) or battery car as the carrier, which is flexible and quick to move, simple to operate, and has a wide range of operations. The lifting platform equipment adopts a scissor type lifting structure, which is made of high-quality rectangular manganese steel pipe, with high overall strength, large load capacity and good lifting stability.
Vehicle-mounted aerial work platforms have natural advantages over self-propelled aerial work platforms-convenient and flexible, and are more common in China. The commonly used equipment for roadside street lights is the vehicle-mounted scissor platform, which provides operators with work Surface and console.
On the basis of flexible movement, increase the flexibility of the operator's operation.
Main application of vehicle-mounted scissor lift table
This vehicle-mounted scissor lift table for sale is a matura type product of china grain storage equipment manufacturer Huazhong Machinery, which has been tested by market and received wide acclaim from customers.
The vehicle-mounted scissor lift table uses the power of the automobile engine to drive the elevator. If the car itself is not equipped with a power take-off interface. The lifting power of the elevator can also be equipped with an external power supply or battery power combination or a diesel engine, generator and other power equipment according to customer requirements. If the equipment is not convenient to install any power system, then the customer can also install a manual lifting device. The lifting platform equipment is widely used in warehouse maintenance, urban construction, municipal administration, outdoor advertising and other industries due to its advantages of flexible and rapid movement, easy operation , and wide range of operations due to its use of automobile drive.
Product parameter
| Product Name: | Vehicle-mounted hydraulic scissor lift table | Model: | HZCZS |
| Work ambient temperature: | -40°~+45° | Total power: | 0.75kW-4kW |
| Rated load: | 300kg-480kg | Lifting table size： | 1800mm×1000mm-2800mm×1500mm |
| Lifting height range: | 1400mm-9000mm | Rising time: | 30s-120s |
| Material characteristics: | Rugged, wear resistant | Machine weight: | 400kg-2500kg |
| Warranty Service: | Video Technical Support, Online Support | After-sales service: | Video Technical Support, Online Support |
| Warranty period: | 1 year warranty | Certification: | ISO45001，ISO14001，ISO9001 |
| Origin: | JieShou, China |
Production Function
1. The vehicle-mounted scissor lift table is light in weight, good in maneuverability, and is suitable for single-person operation;
2. The lift table has a special guide wheel device between the masts, which can lift smoothly and freely;
3. The lift table has a compact structure and a small size in the transportation state. It can enter the car of a general elevator and can smoothly pass through door openings and narrow passages;
4. The lift table has a double-protected outrigger structure, which is safer to work and can be lifted close to the working surface;
Production features of vehicle-mounted scissor lift table
1. The scissor structure of the vehicle-mounted scissor lift table is mainly made of steel rectangular pipe. Its scissor mechanical structure enables the lifting platform to have higher stability, a large working platform and a higher load-bearing capacity. Make the high-altitude working range larger and suitable for multiple people to work at the same time. The lifting power of the platform is manual or electric, and it is controlled by electric hand or remote control. It can still be used in the event of a power failure. The vehicle-mounted scissor hydraulic lifting platform has the characteristics of flexible movement, stable lifting, convenient operation and large load capacity. Lifting power is divided into 220V or 380V power supply (battery or diesel engine can also be used as lifting power). It adopts Italian and domestic hydraulic pumping station. The countertop is equipped with non-slip insulating plastic gusset, which is easy to replace and the overall appearance is generous.
2. The height of the scissor fork of the vehicle-mounted scissor lift table can be adjusted and has a lifting function. The lifting movement is driven by the oil cylinder or the motor to adapt to the operation of different heights.
3. The vehicle-mounted scissor lift table has a reliable anti-overturning design, and the four supporting legs of the chassis can stabilize the equipment. Users can choose to equip with steering wheel automatic walking device and grain throwing device.
4. The lift table equipment uses inflatable industrial tires; all four wheels can be rotated, and a support rod seat is provided to ensure complete landing and stable operation during use.
5. The electrical control box of the vehicle-mounted scissor lift table adopts a double-layer steel door seal structure design, and is equipped with anti-overload and anti-phase protection devices. It uses domestic well-known or joint venture brand electrical components. The external cable uses a special waterproof and dustproof power supply quick connector, which is easy to maintain. Reduce electrical maintenance work.
6. The reinforced frame of the vehicle-mounted scissor lift table is made of high-strength steel plate and welded by professional welders, with high-quality continuous welds.
7. The welding of the vehicle-mounted scissor lift table combines CNC machine tools, welding robots and professional welders to ensure welding quality.
8. The welding of the vehicle-mounted scissor lift table is equipped with a leakage protection device; the lifting mechanism is made of high-strength manganese steel rectangular pipe. There is a safety device to prevent overloading of the elevator workbench, and an emergency lowering device to prevent power outages. It is suitable for high-altitude maintenance, installation and other high-altitude operations.
Surface treatment and painting of steel components
Shot blasting is carried out on the surface of steel components, and the steel surface is free of visible grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines.
The primer of of this vehicle-mounted scissor lift table adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.
The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.
The primer of the vehicle-mounted scissor lift table is brushed and the topcoat is sprayed.
The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
The vehicle-mounted scissor lift table can also be painted with a baking process, and it can also be customized according to the actual needs of the customer and the local climate.
