HZPTS
WanHuaZhong
Main aplication
The mobile hydraulic scissor lift table for sale is a mature product in the series of Huazhong Machinery scissor lift equipment series. Selling domestic for many years,technology is mature, and the product quality has deep customer trust.
Applicable to high-altitude equipment installation, maintenance, etc., such as the warehouse window installation, street lamp repair, etc.).
The scissor mechanical structure of the mobile hydraulic scissor lift table for sale has higher stability after the scissor lift table is raised. The lifting table vehicle uses three-phase AC power supply as its power, and can also be configured with manual hydraulic devices, which can be lifted and lower in power outages or no electric fields.
Welcome to contact us to choose the scissor lift table for sale that meet your requirements.Our Customer service will also help you better understand our products online and answer your questions.

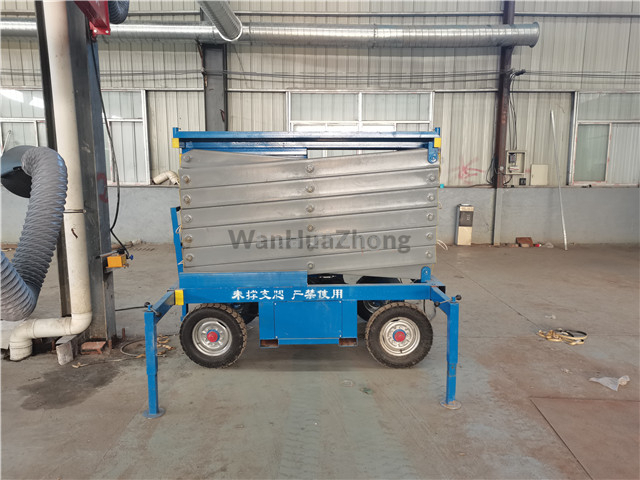

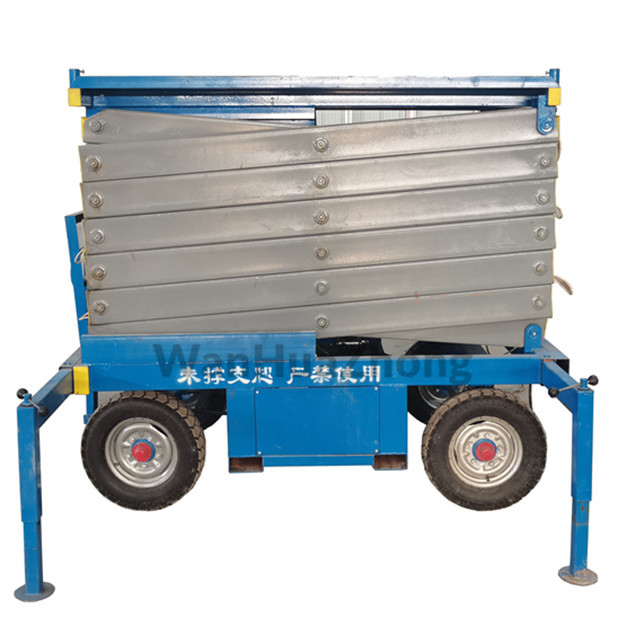

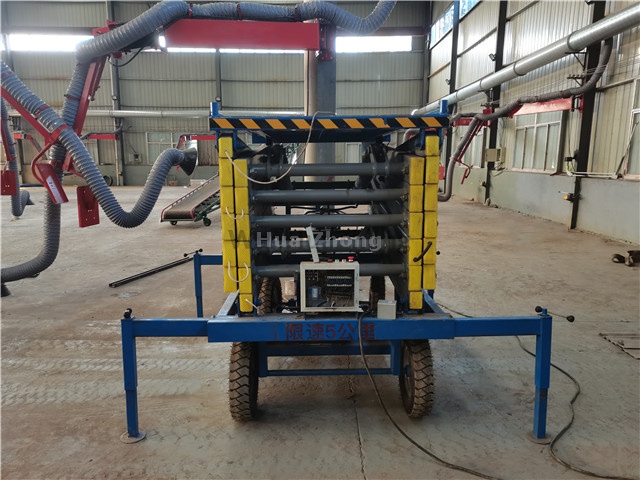

Mobile hydraulic scissor lift table

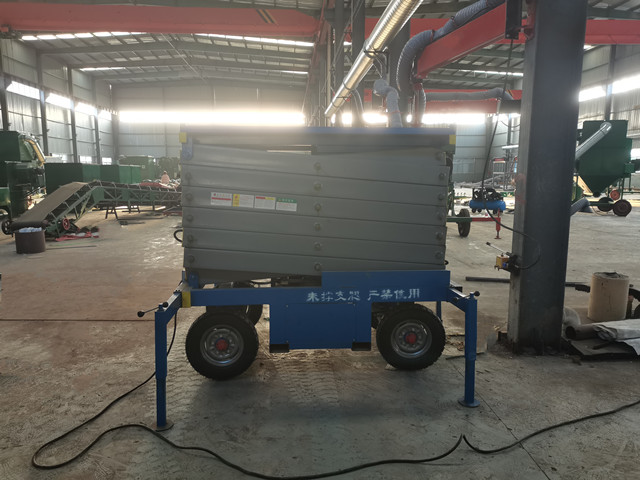

Mobile hydraulic scissor lift table in the factory

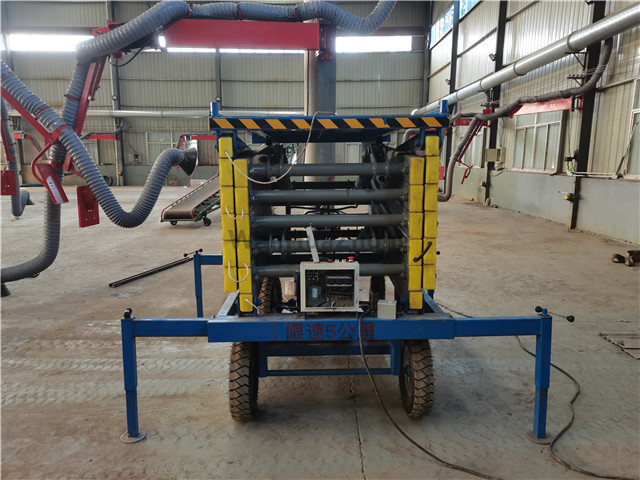

Mobile hydraulic scissor lift table for sale in factory
Product parameter
| Product Name: | Mobile hydraulic scissor lift table | Model: | HZPTS |
| Work ambient temperature: | -40°~+45° | Total power: | 0.75kW-4kW |
| Rated load: | 300kg-480kg | Lifting table size： | 1800mm×1000mm-2800mm×1500mm |
| Lifting height range: | 1400mm-9000mm | Rising time: | 30s-120s |
| Material characteristics: | Rugged, wear resistant | Machine weight: | 400kg-2500kg |
| Warranty Service: | Video Technical Support, Online Support | After-sales service: | Video Technical Support, Online Support |
| Warranty period: | 1 year warranty | Certification: | ISO45001，ISO14001，ISO9001 |
| Applicable industry: | Grain storage, port terminal, feed factory, fertilizer plant, grain processing plant | Applicable object: | Corn, rice, soy, wheat and other bulk |
| Origin: | Anhui, China |
Function introduction
1. Moving the scissors-type hydraulic lifting platform itself is light, with good maneuverability, which is ideal for single operation;
2. The mobile hydraulic scissor lift table for sale has a special mastal guide wheel device,freely moved up and down smoothly;
3. The structure of the scissor lift table is compact.During transportation, small area occupied.Can enter the general elevator,It is also possible to pass a small channel and door hole.
4. The leg structure of the scissor lift table can provide the safety of the operationg platform, when working, the human and the machine is safer, and peopele can working close to the working surface with the up and down movement operation of the scissor lift table;
Electrical control box and electrical components
1. The electrical control box of this mobile hydraulic scissor lift table for sale is a device that can accommodate electrical components such as the motor start button. The motor is started at full pressure. The box panel is equipped with start and stop buttons and other necessary buttons, indicator lights and power switch operating handles. The electrical control box is designed as a double-layer steel door sealed structure, which can prevent dust and water, and is equipped with anti-overload and anti-phase protection devices. The external cable adopts a special waterproof and dustproof power supply quick connector, which is convenient for maintenance and reduces electrical maintenance work.(Electrical control box can be customized)
2. All electrical protection grades are T4, IP54, and insulation grades are F grade.
3. The box body of this mobile hydraulic scissor lift table is welded with stainless steel plate, the thickness of the steel plate is 0.8mm, and the outer shell has internal and external grounding bolts. If the power distribution box adopts explosion-proof type, the grade reaches DIP A21.
4. The air circuit breaker meets the operating requirements of the load nature in the AC3 standard, and the load nature of the contactor is not less than the AC3 standard. The thermal relay can withstand the vibration of the contactor and equipment during normal operation.
5. All electrical components of the electrical control box adopt Delixi products, and the phase sequence of all wiring is consistent.
6. There is enough space in the electrical control box for loading, unloading and repairing electrical components. The entire electrical control box has good stability when working under vibration and impact load conditions.
7. The box has a lock, and the sealing performance of the cable entry device on the box meets the GB12476.1-2013 standard.
Surface treatment and painting of steel components
Shot blasting is carried out on the surface of steel components, and the steel surface is free of visible grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines.
The primer of this mobile hydraulic scissor lift table adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.
The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.
The primer of the mobile hydraulic scissor lift table is brushed and the topcoat is sprayed.
The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
The mobile hydraulic scissor lift table can also be painted with a baking process, and it can also be customized according to the actual needs of the customer and the local climate.
