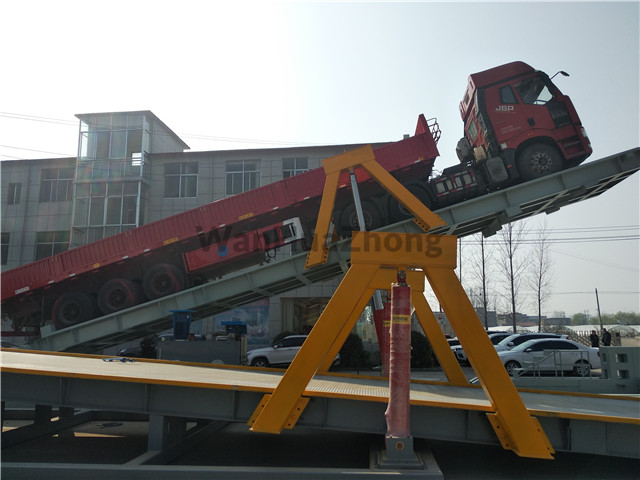

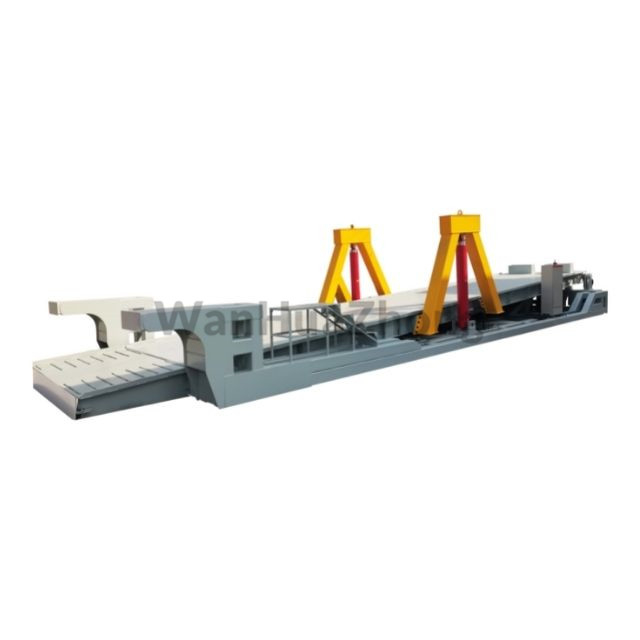

Mobile hydraulic truck unloader

Mobile hydraulic truck unloader

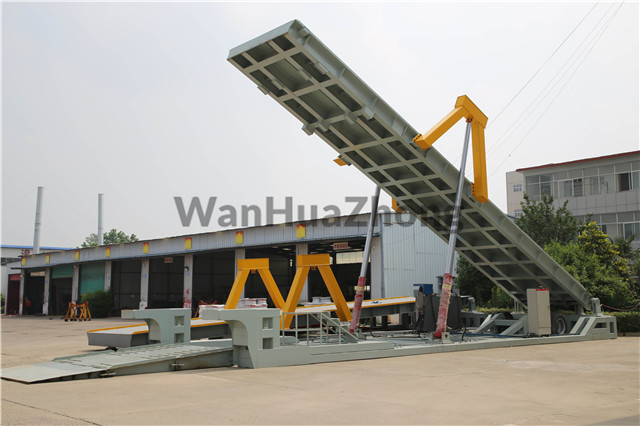

Mobile hydraulic truck loader for sale

The production application of the mobile hydraulic truck unloader for sale:

The mobile hydraulic truck unloader for sale is a kind of unloading device that can automatically unload bulk materials by turning the semi-trailer truck back over. Bulk grain transport vehicles without self-unloading capacity can quickly and automatically unload. Due to the large load-bearing platform and strong lifting capacity of the hydraulic unloader, it can meet the unloading requirements of all bulk particulate material vehicles. It is widely used for auto unloading of bulk materials such as grain, feed, potatoes, wood chips, coal, ore, cement clinker, etc. The truck unloader equipment has the characteristics of high production efficiency, saving the cost of manual unloading, and environmental protection.

Unloading time of mobile hydraulic truck unloader: less than 8 minutes.

Features of the mobile hydraulic truck unloader:

After using the mobile hydraulic truck unloader, only one person needs to remotely operate it, which greatly reduces labor intensity and saves labor costs. The unloading speed is fast, the tonnage is large, and the unloading efficiency is greatly improved. The mobile hydraulic truck unloader is equipped with a hopper with flow control, which makes the unloading efficiency more significant. The hydraulic dump truck unloader is environmentally friendly, energy-saving, and the unloading area is concentrated, which is convenient for supporting dust removal equipment and meets environmental protection requirements.

The mobile mobile hydraulic truck unloader only needs to be towed to the target work area by a 3t forklift or a small tractor for work.

More solutions please visit the hydraulic truck unloader truck tippler solutions  for material truck unloading

Customers can choose and order according to their actual needs. Welcome to inquire or contact  Huazhong Machinery through the online contact method on the website or call 86-15755812626.

1. The plate turning platform and wheel stopper of the mobile hydraulic truck unloader for sale adopts three-dimensional CAD design, and the platform adopts finite element analysis. The strength and rigidity of the design are high, and there will be no deformation during the lifting process, which ensures the safety that the equipment can be used under long-term high load; the main beam of the unloader is made of H-shaped steel, which has the characteristics of high strength and large cross-section; the panel of the unloading platform is made of pattern steel; the surface of the equipment is treated with integral sandblasting, and the paint is sprayed with high-performance anti-corrosion paint. Strong, anti-corrosion and anti-rust effect is good.

2. Within a certain range, the unloading angle of the mobile hydraulic truck unloader can be arbitrarily set and adjusted; the unloader is equipped with multiple sets of wheel stoppers, which can unload any type of car, such as four front and eight rear, semi-trailer, high Bars, etc.; the hydraulic system is above the ground for easy installation and maintenance.

3. Dust-proof guide material assembly are installed on both sides of the rear of the unloading platform of the mobile hydraulic truck unloader and the rear of the platform, which can prevent materials and dust from falling into the foundation pit and guide materials into the receiving pit.

4. The lifting hydraulic cylinder of the mobile hydraulic truck unloader adopts a double-sided support design, which is convenient for installation and maintenance. At the same time, the hydraulic unloader equipment adopts proportional synchronous control technology to ensure that the two hydraulic cylinders can operate synchronously under high-precision conditions, thereby ensuring that the unloading platform remains level and the car is not easy to tilt; adopts load-sensitive technology and constant pressure variable technology to reduce hydraulic systems The heat generation reduces energy consumption and system noise, and effectively improves the working environment.

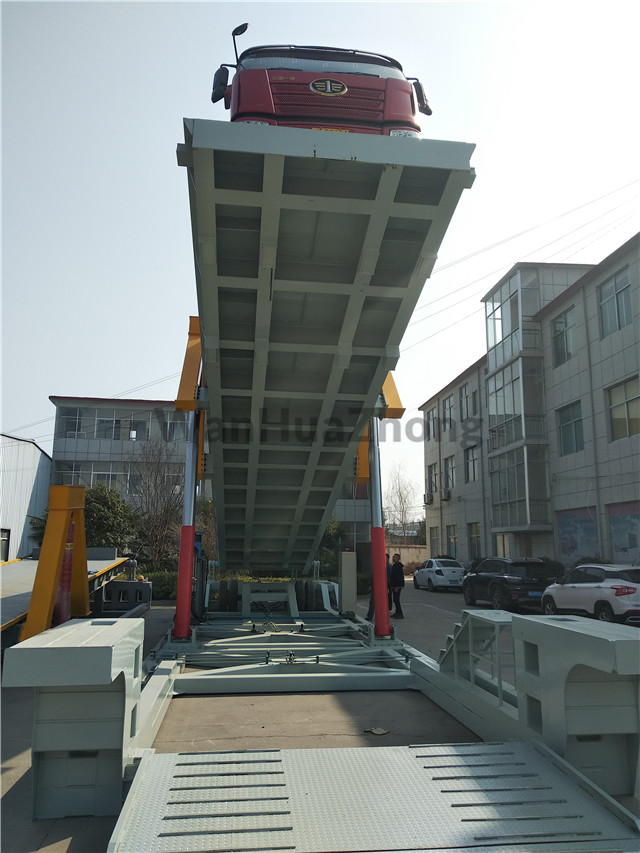

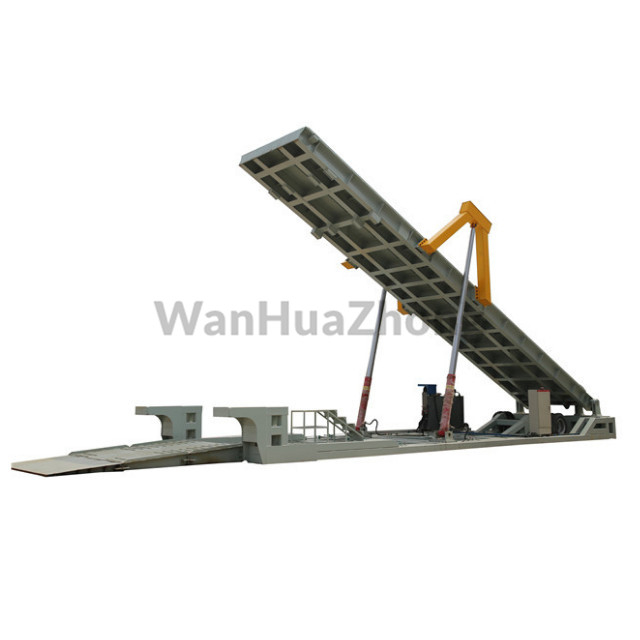

Front view of Mobile hydraulic truck unloader

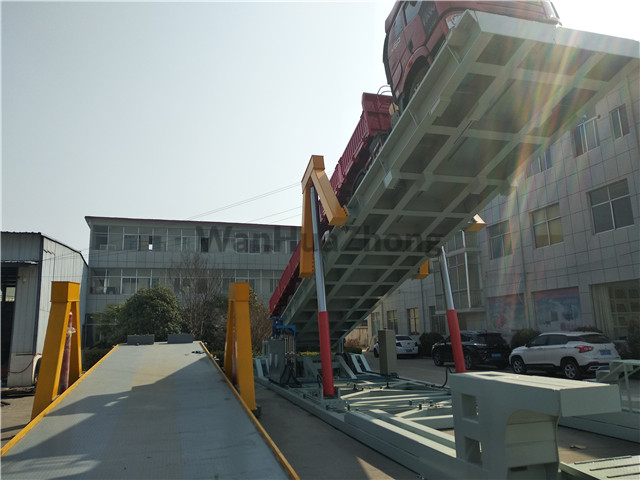

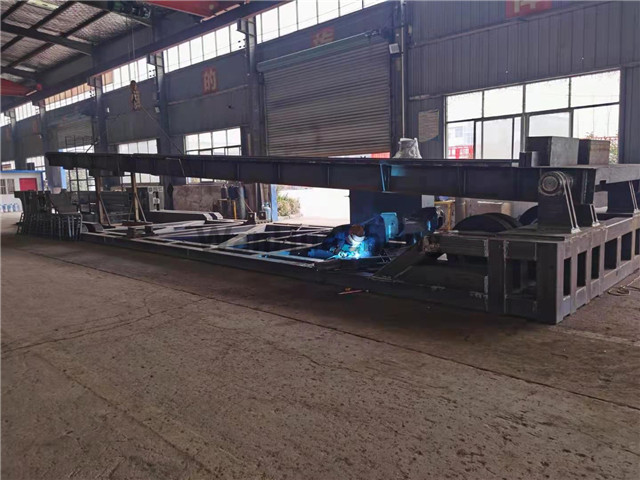

Product production workshop

5. The hydraulic control system of the mobile hydraulic truck unloader is designed by domestic professional hydraulic technicians, and an automatic heating function is added, so that the unloader can be used normally in the severe winter in the north; the mobile hydraulic truck unloader adopts large-volume oil return separate structure of the oil tank and reduces the number of hydraulic oil cycles and ensures the long-term stable and reliable operation of the hydraulic system;

6. The entire mobile hydraulic truck unloader has reasonable layout and reliable performance. In the design and manufacturing equipment, a large number of advanced hydraulic control technologies of China and abroad are used to make this equipment suitable for use in harsh environments such as high and low temperatures and heavy dust;

7. The electrical system of the mobile hydraulic truck unloader adopts domestic and foreign well-known brand components.

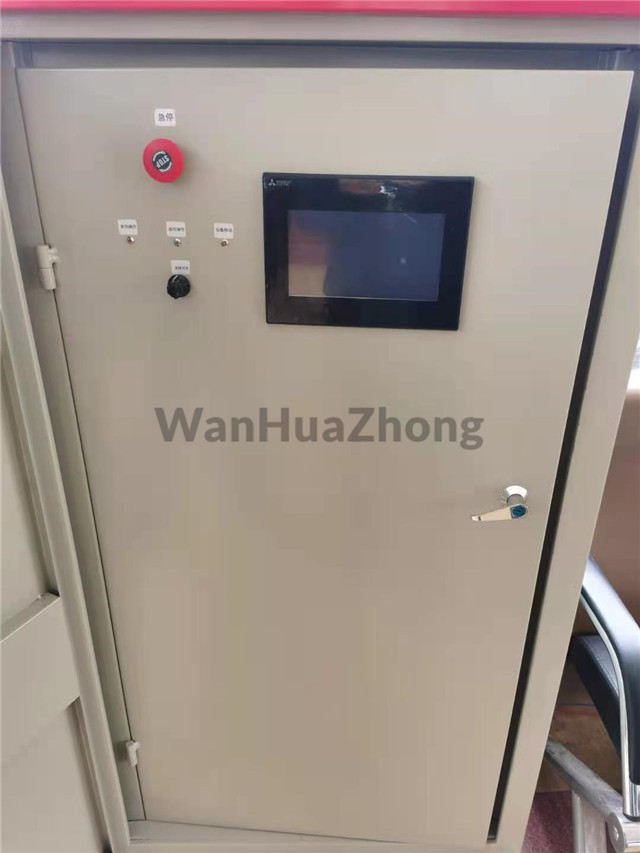

Electrical control box

The unloading function of the mobile hydraulic truck unloader

Move the unloading platform of the mobile hydraulic truck unloader for sale to a level ground, and ensure that the load-bearing frame of the mobile hydraulic truck unloader is fully grounded, and then hook the hopper and both ends of the mobile hydraulic truck unloader to the two ends of the unloading platform. The platform positioning is now complete.

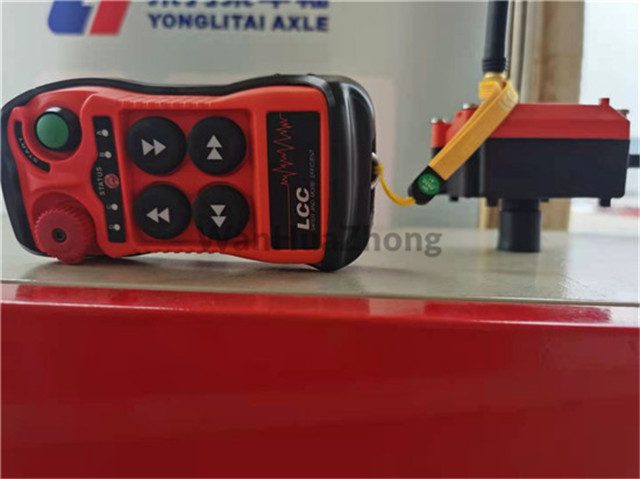

When the vehicle drives on the unloading platform of the mobile hydraulic truck unloader, the lifting gear wheel device is activated until the position sensor is activated, and the vehicle starts to reverse so that the rear wheel abuts against the wheel gear device, that is, the door can be opened for unloading. When the vehicle door is fully opened and the automatic flow of grain ends, the flap can be activated to slowly lift the vehicle until the grain is completely unloaded and the operating platform is lowered. This whole process is completed by the operation of the remote control.

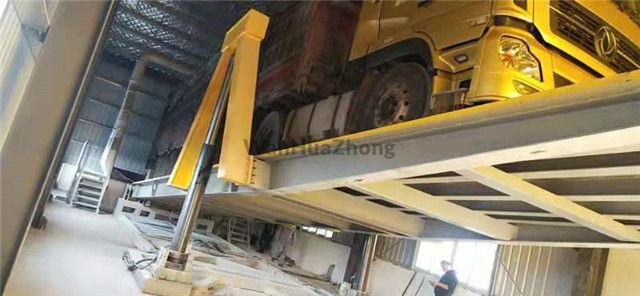

Unloading process

The walking function of the mobile hydraulic truck unloader

When it is necessary to move the unloading platform, firstly disengage the approach bridges at both ends of the mobile hydraulic truck unloader, and then raise the load-bearing wheels so that the platform is off the ground and is completely supported by the driving wheels and steering wheels. Operate the remote control to move forward or left and right to move the mobile hydraulic truck unloader to the ideal position. This whole process is completed by operating the remote control.

The functional characteristics of mobile hydraulic truck unloader

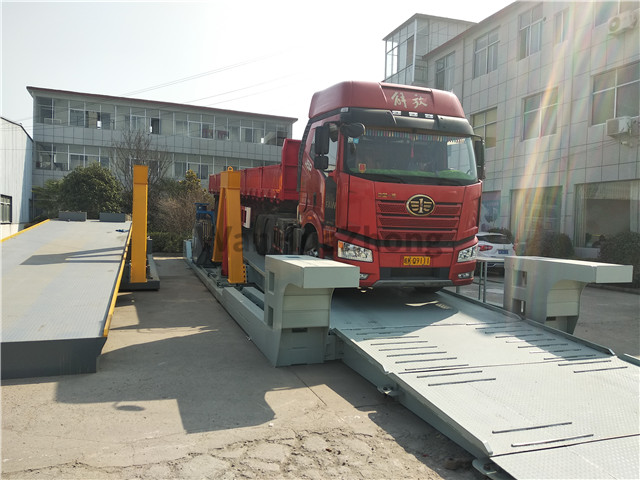

1. Avoid reversing: both ends of the mobile hydraulic truck unloader are designed with approach bridges for vehicles to climb and descend to ensure that the vehicle can go through the hopper and enter the platform in a normal forward manner. After the unloading is completed,the vehicle leaves from the other end. This design method not only avoids the difficulty of reversing the vehicle, but also allows heavy-duty vehicles to queue up and unload in turn.

2. Traveling system: the mobile hydraulic truck unloader has its own traveling and steering functions. It adopts the form of an aircraft landing gear. When the platform is carrying, the traveling wheels are retracted, and when the platform is moving without load, the traveling wheels carry the platform.

3. Safety guarantee: the mobile hydraulic truck unloader is equipped with imported two-axis angle control sensors to accurately control the angle of the plate and the lateral angle error to ensure the safe operation of the plate. The reasonable design of the hydraulic system pressure sensor, explosion-proof valve, hydraulic lock and speed control valve ensure the smooth and safe operation of the platform.

1. The mobile mobile hydraulic truck unloader for sale needs to use a 3t forklift or a small tractor to pull the mobile hydraulic truck unloader to a suitable location;

2. The operator operates the remote controller to retract the front and rear wheels of the mobile hydraulic truck unloader to make the overall frame land steadily;

3. The staff of the user unit install the mobile grain receiving hopper, grain conveying belt, grain cleaning equipment, etc. in place and turn on the power;

4. Remove the steering device and traction device of the mobile hydraulic truck unloader, and install the approach bridge;

5.The driver drives the grain-carrying vehicle, backwards onto the platform of the mobile hydraulic truck unloader, raises the wheel, lifts the flipper to a horizontal position, reverses the car in place, turns off the vehicle, pulls down the handbrake, gets off the car and opens the compartment back door;

6.Lift the wheel stopper, lift the platform to the horizontal position, park the car to the designated position, turn off the engine, pull the handbrake, get off and open the rear door;

7.After the mobile hydraulic truck unloader finishes unloading the grain, use the remote control to lower the platform of the hydraulic flipper unloader, and the car drives down the platform.

Note: The capacity of the grain conveying belt and the capacity of the grain cleaning equipment directly affect the unloading speed of the mobile hydraulic truck unloader.

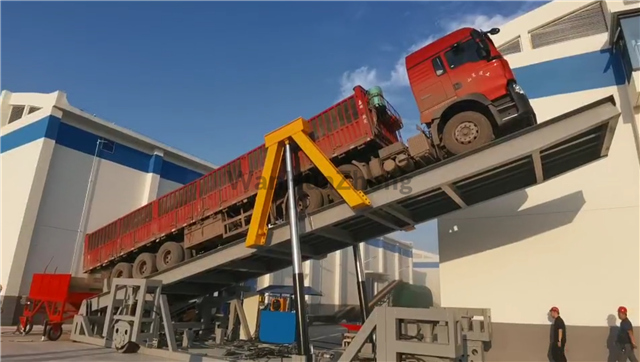

Mobile hydraulic truck unloader in grain depot

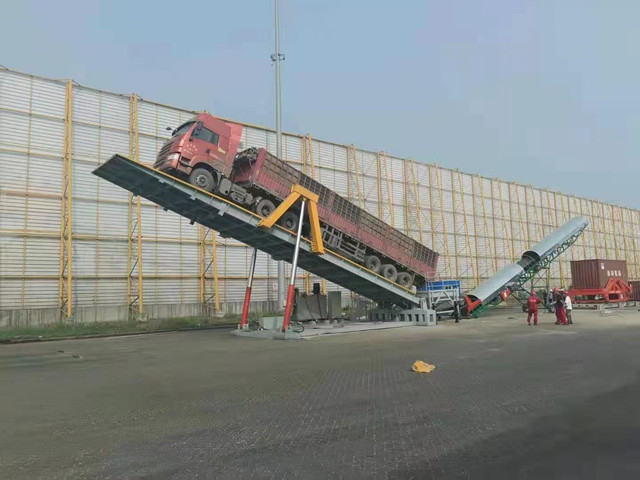

Mobile hydraulic truck unloader unload grain in the pier

Security Assurance Measures

1. The hydraulic control system of the mobile hydraulic truck unloader is designed with an emergency manual pullback function. When the system is accidentally powered off, the mobile hydraulic truck unloader will stop working and stay in the current state. With the manual pullback function, the hydraulic platform will slowly drop to the initial position, ensuring the safety of personnel, equipment, and vehicles.

2. Explosion-proof valve is used at the bottom of the oil cylinder of the mobile hydraulic truck unloader to prevent accidents caused by the bursting of the oil pipe.

3. In the electronic control system of the mobile hydraulic truck unloader, the action of the  wheel stopper mechanism and the lifting motion of the platform are designed to be interlocked. The two cannot be performed at the same time, which prevents the operator from misoperation and eliminates safety accident .

4. The PLC controlled lifting cylinder can automatically stop when the deviation value is exceeded, and an audible and visual alarm device is installed outdoors to remind the operator to deal with it in time to avoid accidents.

5. The rear unloading platform of the hydraulic unloader equipment is equipped with a special safety chain to prevent accidental sliding of the vehicle.

6. In an emergency, the hydraulic system of the mobile hydraulic truck unloader can stop running and automatically issue an alarm. In the event of a power failure or a rupture of the hydraulic pipe, the hydraulic system of the equipment can automatically lock itself.
