Product Description
The mobile grain truck probe for sale （can also be called grain sampler ）is a mature type grain sampler of china grain storage equipment manufacturer Huazhong Machinery. It is suitable for automatic grain sampling equipment such as on-board grain packages and bulk grain transport vehicles without cover.
It is suitable for automatic grain sampling for carry-mounted packaged grain, bulk grain uncovered truck, etc. The grain varieties that can be detected include wheat, rice, corn, soybean, rapeseed, sorghum and other granular raw grains. It can rotate automatically along the Z axis (column) and move automatically along the X axis. The mobile grain truck probe is the key equipment for sampling and testing the on-board grain.

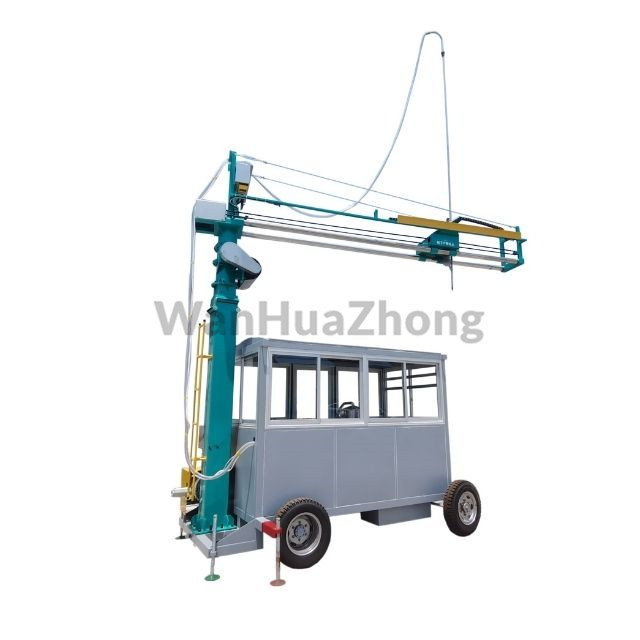

Characteristics of mobile grain truck probe for sale:
The mobile grain truck probe for sale （can also be called grain sampler ）is equipped with 4 walking wheels, which can realize automatic walking. The whole system of the post prototype has good rigidity and high degree of automation, can realize remote control for sampling, easy to use, adjust and maintain, stable and reliable performance, single person can operate, reduce labor.

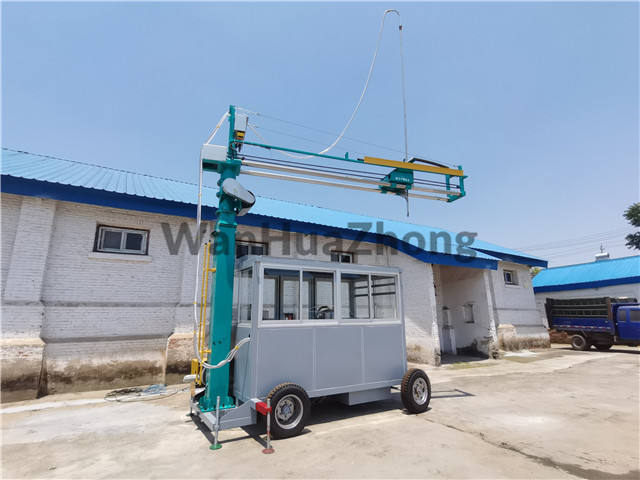

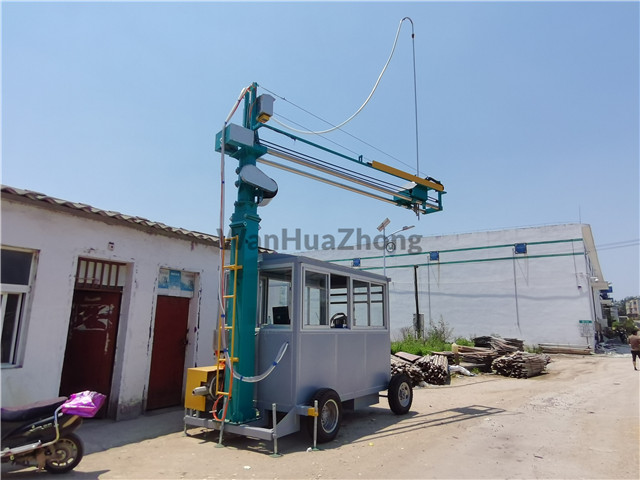

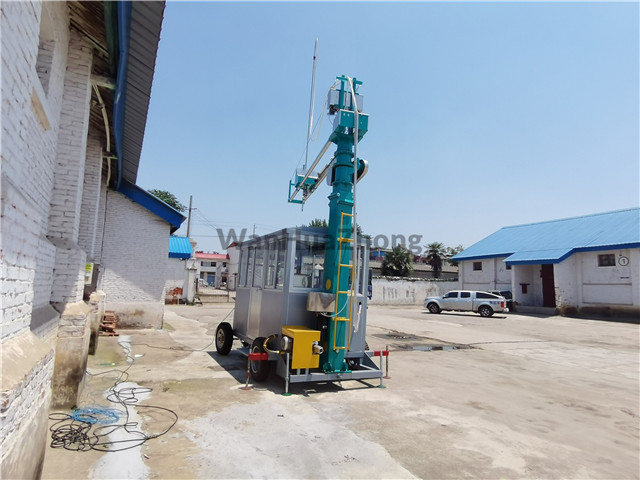

Mobile grain truck probe in the grain warehouse
Mobile grain truck probe working picture

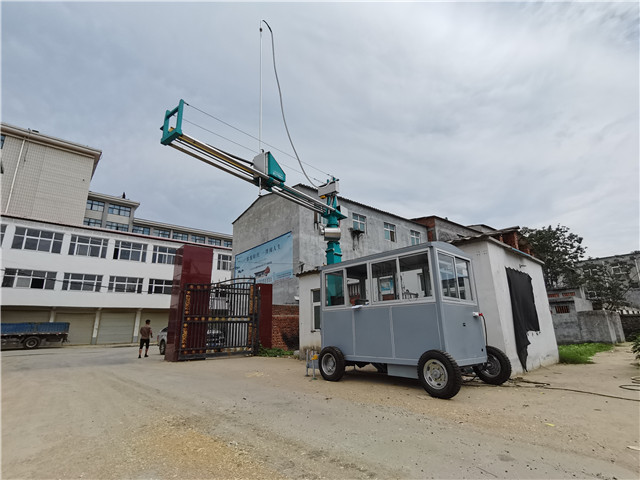

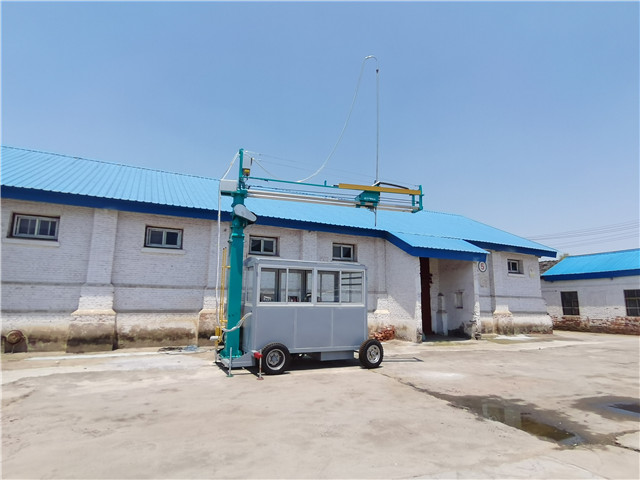

Mobile truck probe is on the position(normally installed close to the door )
Product parameter
| Product name： | Mobile grain truck probe | Model： | HZYQ |
| Rotary arm length: | 5000mm | Sampling rod length: | 4500mm |
| Swing angle: | 0-270° | Remote control switch board power supply: | 380V |
| Remote control battery model: | 9# battery | Rotating motor: | 380V 0.55kW |
| Lifting motor of Sampling rod: | 380V 0.75kW | Main column lifting hydraulic motor: | 380V 3kW |
| The moving motor of the mobile Sampling car: | 380V 0.75kW | Walking motor: | 380V 2.2kW |
| Grain suction motor: | 380V 3kW | Place of production: | China Anhui |
| Warranty service: | video technical support, online support | After-sales service: | video technical support, online support |
| Certification: | ISO45001，ISO14001，ISO9001 | Warranty period: | Warranty within 1 year |
| Applicable industries: | Grain depots, port terminals, feed mills, grain processing plants | Applicable objects: | Corn, rice, soybean, wheat and other bulk materials |
Product structure
Customized mobile grain truck probe in the grain warehouse

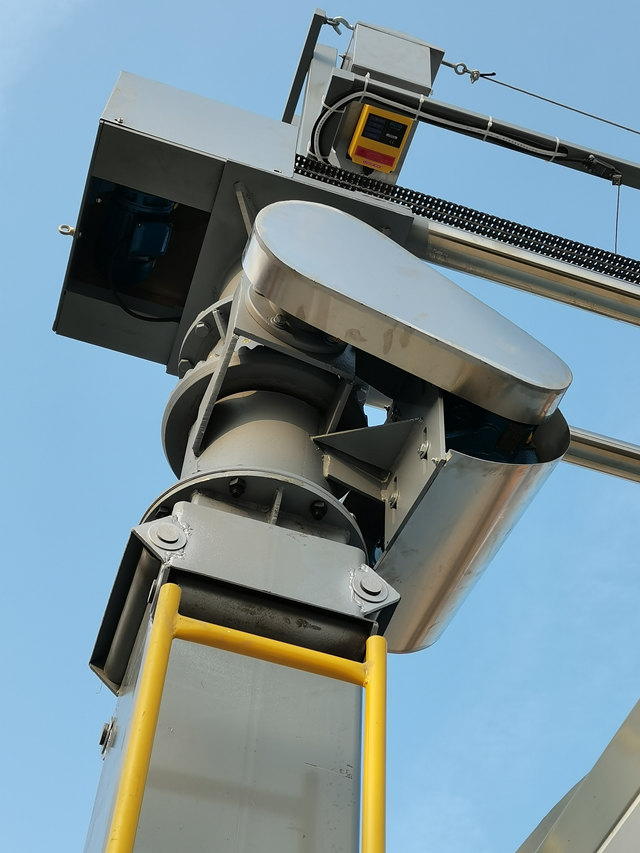

Detail of grain truck probe

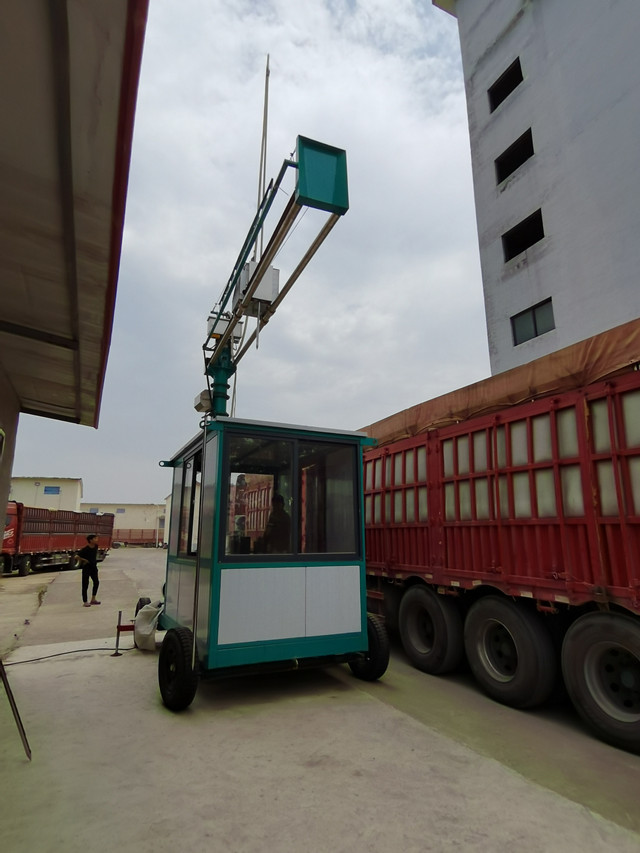

Customized mobile grain truck probe is working
Customized mobile grain truck probe is working
The mobile grain truck probe is composed of three parts: a mobile device, a walking mechanism and an electronic control system.
1. Mobile device of mobile grain truck probe
The three parts of the sampling car, the rotating arm and the column form a mobile grain truck probe, which can realize movement in three coordinate directions. The rotation of the rotating arm, the forward and backward movement of the sampling car and the up and down movement of the sampling rod are all realized by electric power.
2. The walking mechanism of the mobile grain truck probe
The mobile grain truck probe is equipped with 4 walking wheels and a walking motor, which can realize automatic walking in the field.
3. Electric control system of mobile grain truck probe
The electric control system is composed of the main circuit of the motor and buttons.

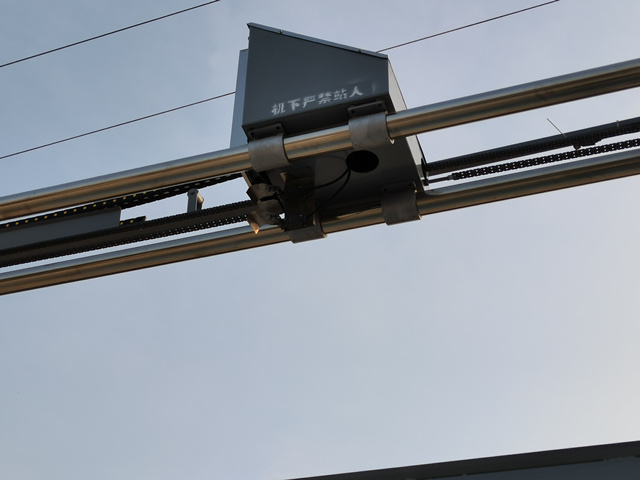

Sampling car of mobile grain truck probe

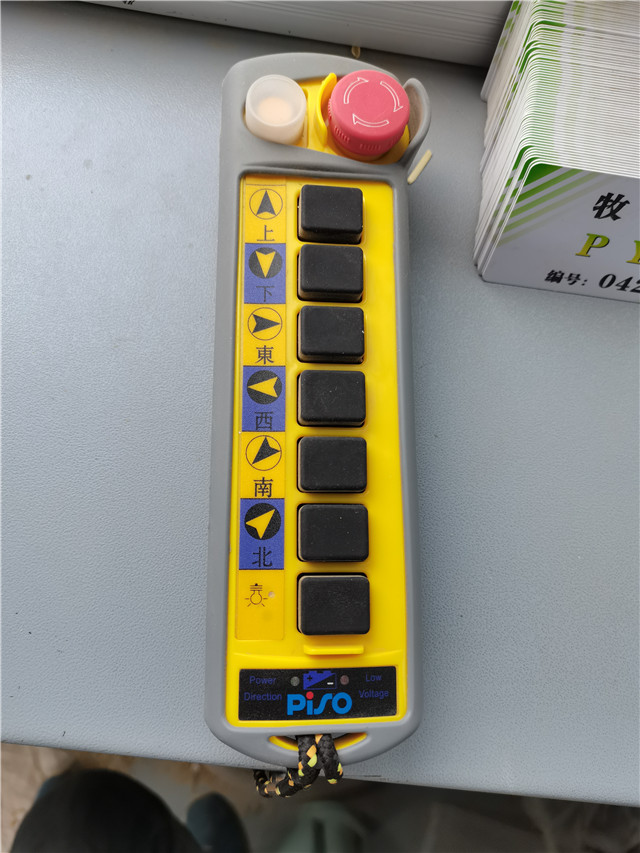

Remote control machine

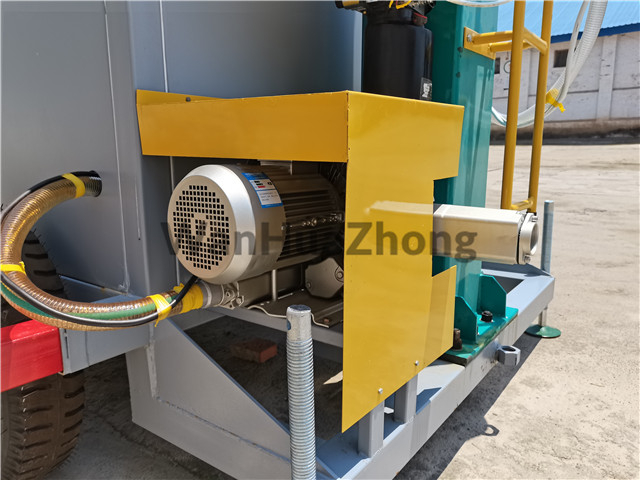

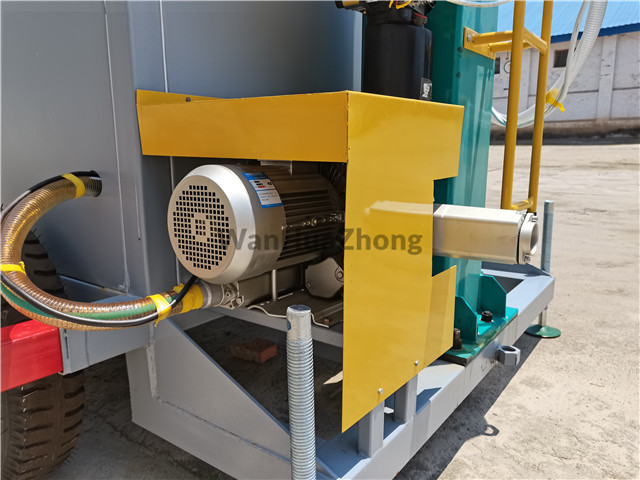

Motor of mobile grain truck probe
The working principle of the mobile grain truck probe
1. The rotation of the rotating arm of the （can also be called mobile grain sampler ）relies on the rotating motor to drive the spiral bevel gear to drive the steering column to rotate, thereby driving the rotating arm to rotate.
2. The mobile motor of the sample trolley of the mobile grain truck probe is driven by a chain so that the sample trolley can move back and forth.
3. The lifting motor of the mobile grain truck probe drives the drive plate of the sample rod and drives the sample rod to move up and down.
4. Sampling process: When the sampling point is selected, first start the grain suction fan, then start the sampling rod lifting motor, and press the down button on the console. When the sampling rod is inserted into the grain, the grain aspirator makes the suction tube and the sampling rod form a certain negative pressure. At this time, the grain enters from the sampling hole, and then enters the grain aspirator through the grain suction pipe, and the whole sampling operation is completed .

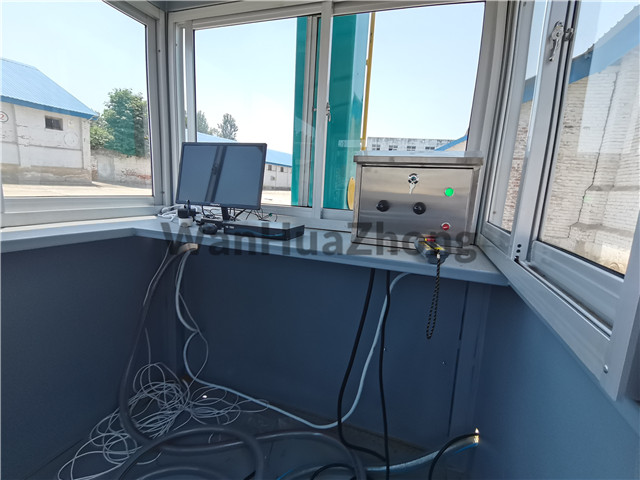

Inner view of mobile grain truck probe
Equipment transportation
1. Equipment transportation of mobile grain truck probe
When transporting the mobile grain truck probe, first move the sampling car to a position close to the column and move the sampling rod to the lowest position. Avoid scratching accidents during transportation, and pay attention to the safety of equipment and people.
2. Equipment installation of mobile grain truck probe
When installing the mobile grain truck probe, you should align the flange bolt holes under the column with the anchor bolts, and then tighten the nuts ；The supporting feet of the truck probe should be installed also. At the same time, pay attention to whether the rotation space of the rotating arm is sufficient. After the truck probe is installed, connect the grain suction tube to the micro suction tube.

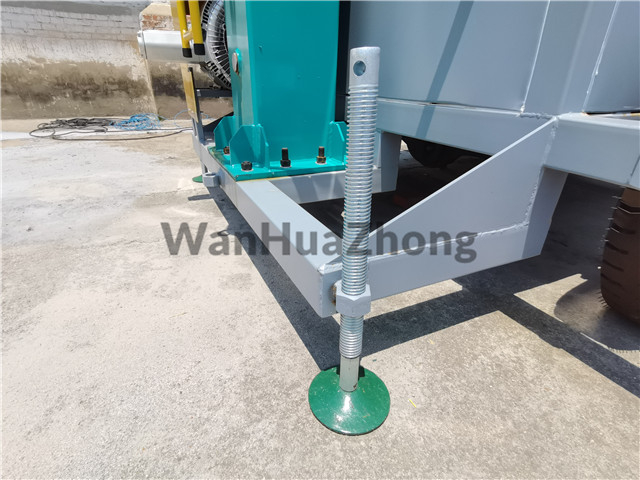

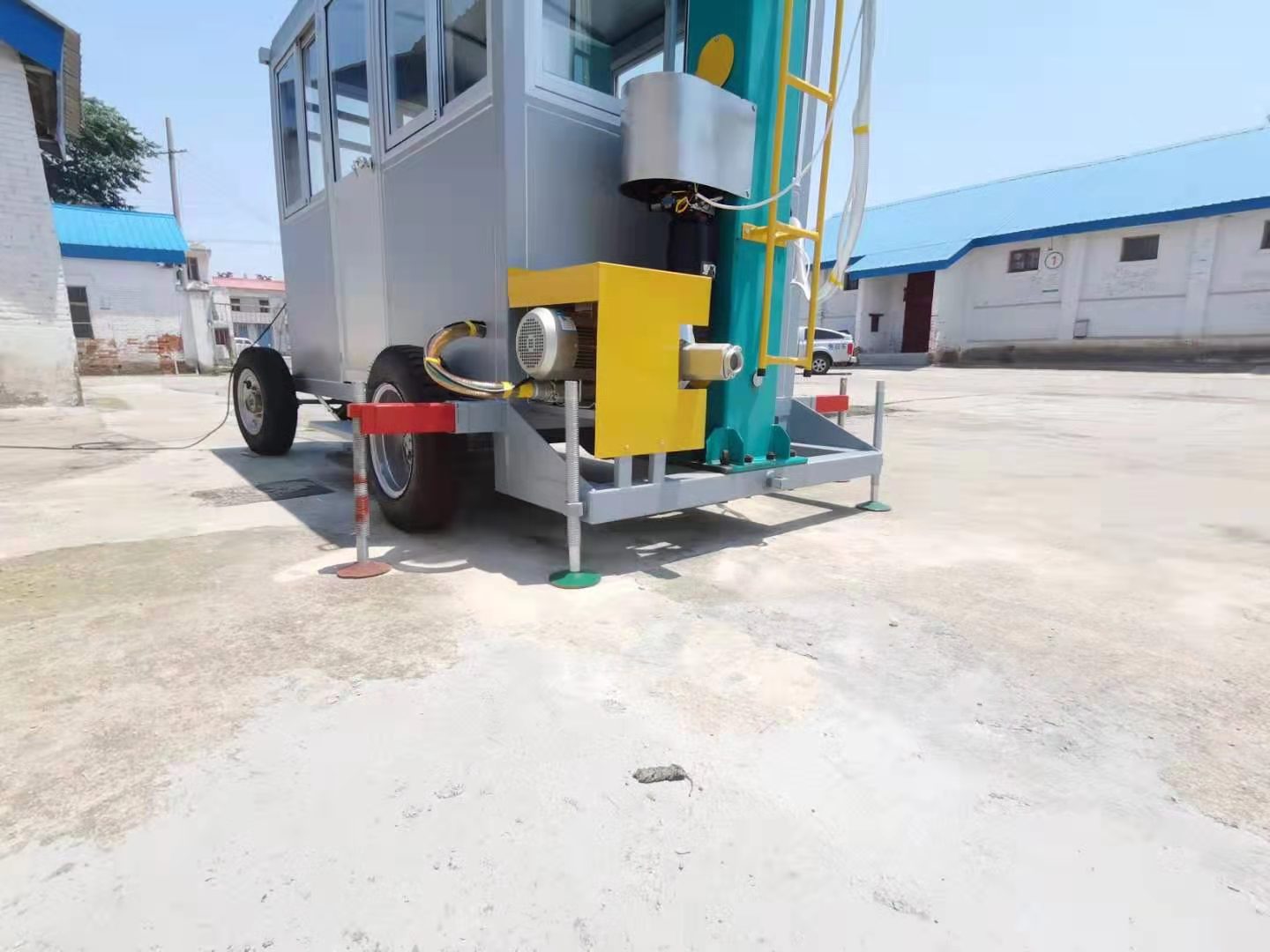

Supporting feet of mobile grain truck probe

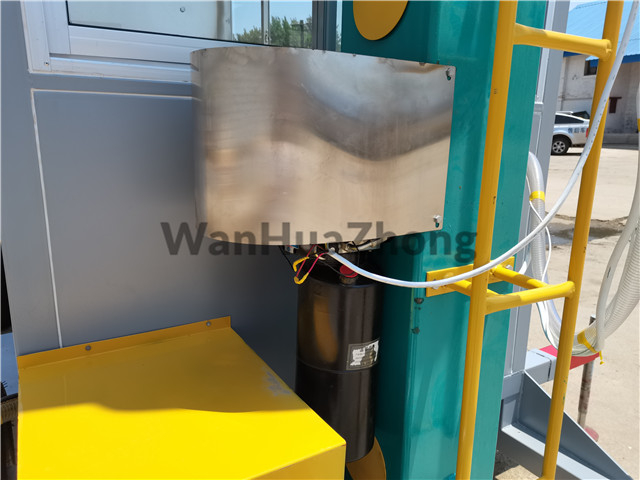

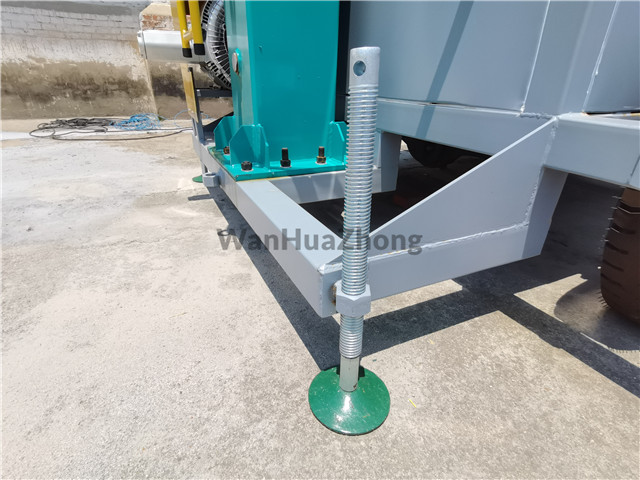

Supporting system of mobile grain truck probe
Manual control operation of mobile grain truck probe
1. Manual control operation of mobile grain truck probe
1) Turn on the power of the mobile grain truck probe.
2) Start the grain aspirator of the mobile grain truck probe.
3) The work of the mobile grain truck probe can be controlled by the buttons on the workbench panel, such as the lifting and lowering of the sampling rod, the front and back movement of the sampling car, and the rotation of the steering arm to the left and right.
2. Remote control operation of mobile grain truck probe
When the operator leaves the operation table of mobile grain truck probe, the remote control can be used to operate the sampling rod, the movement of the sampling car, and the rotation of the steering arm.
3. Maintenance of mobile grain truck probe
1) After long-term use, the chain of the mobile grain truck probe must be lubricated with oil.
2) The filter inside the filter cartridge of the mobile grain truck probe must be cleaned after every 50 cartons of grain are sampled.
3) The user and keepers of the mobile grain truck probe should always check whether the suction pipe of the mobile grain truck probe is leaking due to wear and tear. If similar problems occur, they should be replaced in time.
4) After the sampling of the mobile grain truck probe is completed, the sampling rod of the mobile grain truck probe should be placed at the lowest position, the sampling car should be placed close to the column, and the rotating arm should be placed above the non-channel.
5) During use, the operator of the mobile grain truck probe should periodically check whether the connection points of the electric control circuit are falling off or loose. If it is found, should be excluded immediately.
