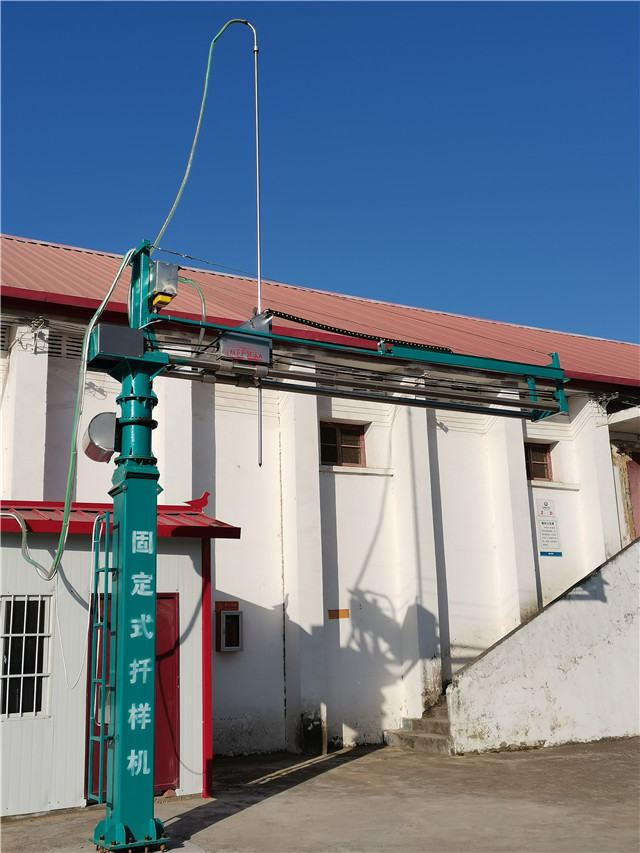

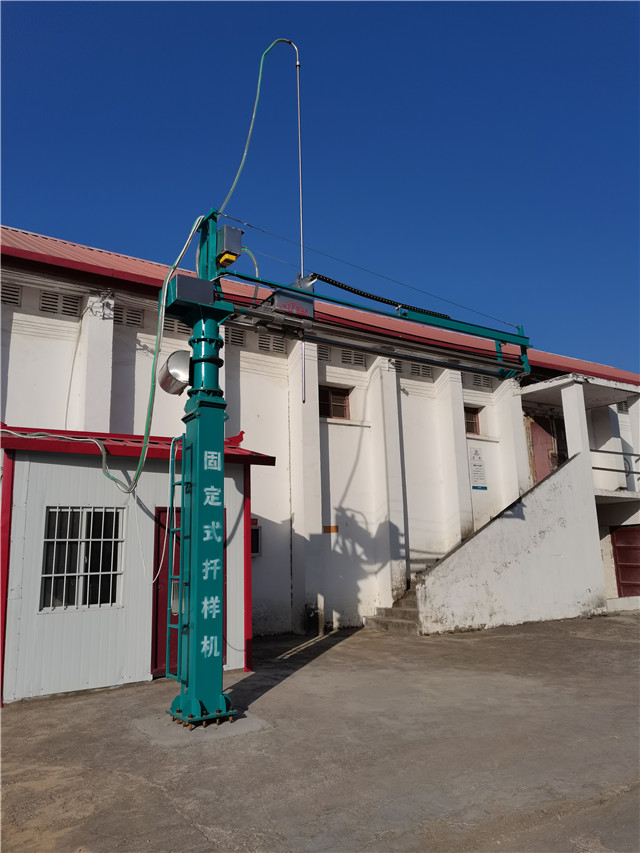

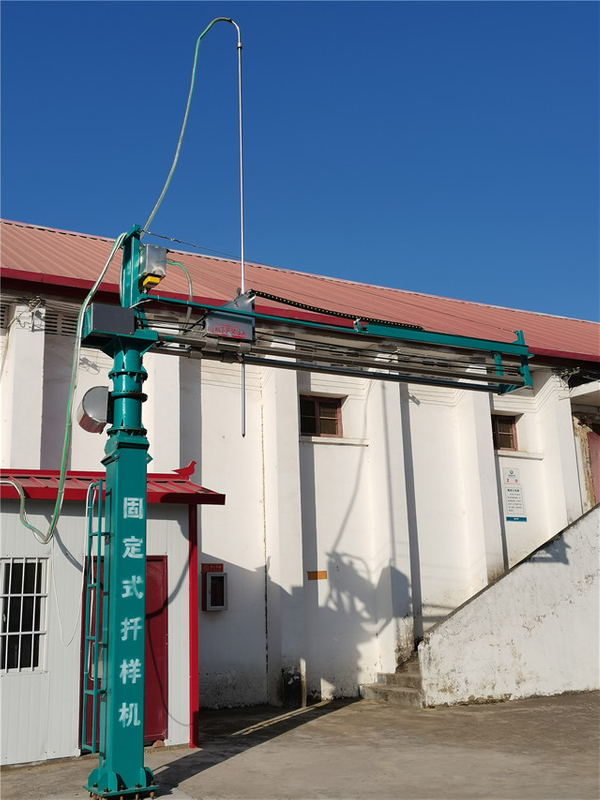

Fixed grain truck probe  in the grain depot

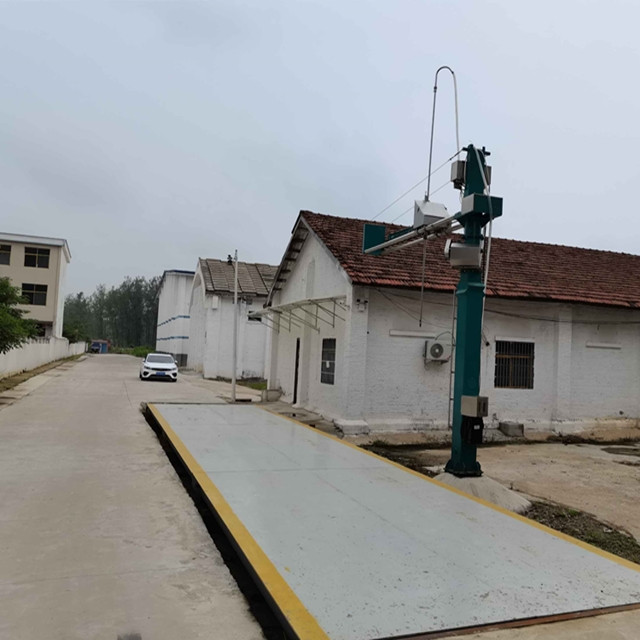

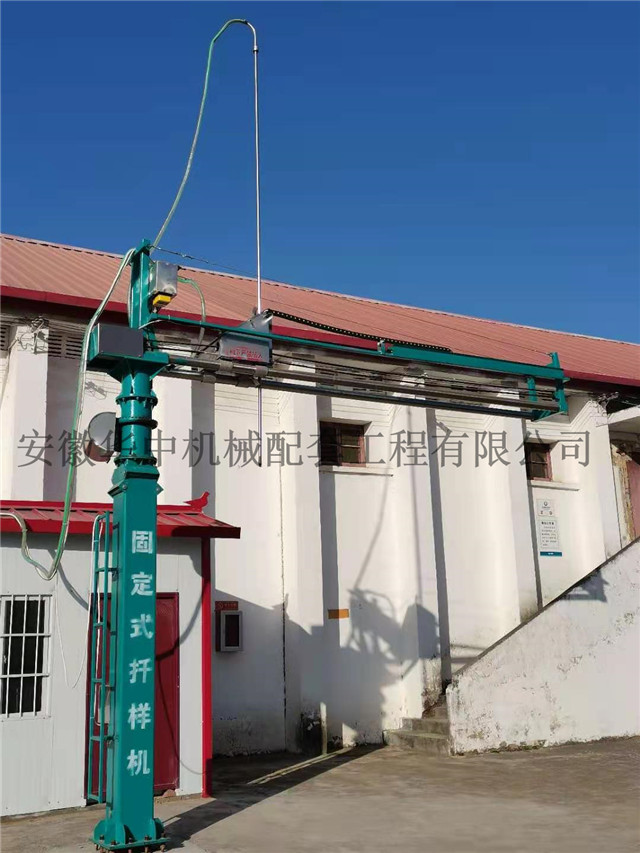

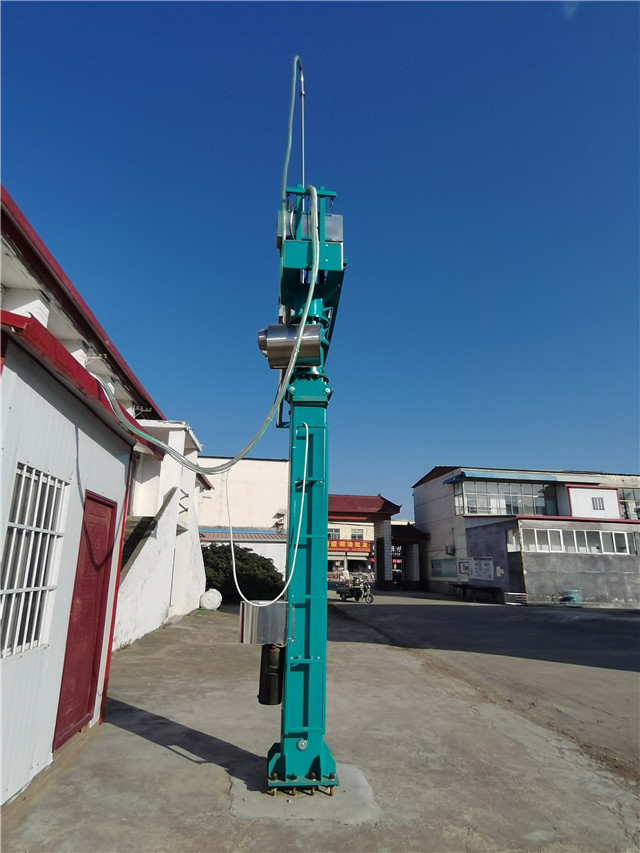

Fixed grain truck probe  in the grain depot

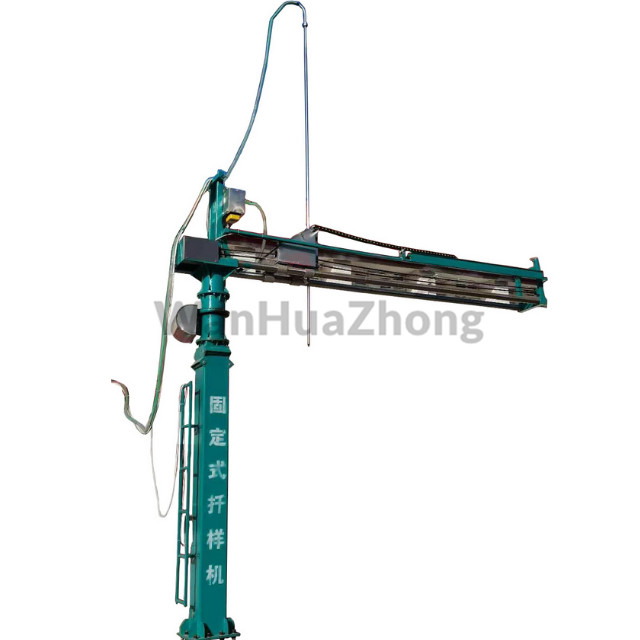

Introduction of Fixed grain truck probe

Fixed grain truck probe for sale (can also be called grain sampler) is a mature product that sells well in the China domestic market for many years .The technology is mature,the use range is wide.

It is suitable for automatic grain sampling for carry-mounted packaged grain, bulk grain uncovered truck, etc. The grain varieties that can be detected include wheat,  rice, corn, soybean, rapeseed, sorghum and other granular raw grains. It can rotate automatically along the Z axis (column) and move automatically along the X axis. The fixed grain truck probe  is the key equipment for sampling and testing the on-board grain.

Characteristics of  fixed grain truck probe:

The whole system of the fixed grain truck probe(can also be called grain sampler) has good rigidity and high degree of automation, can realize remote control for sampling, easy to use, adjust and maintain, stable and reliable performance, single person can operate, reduce labor.

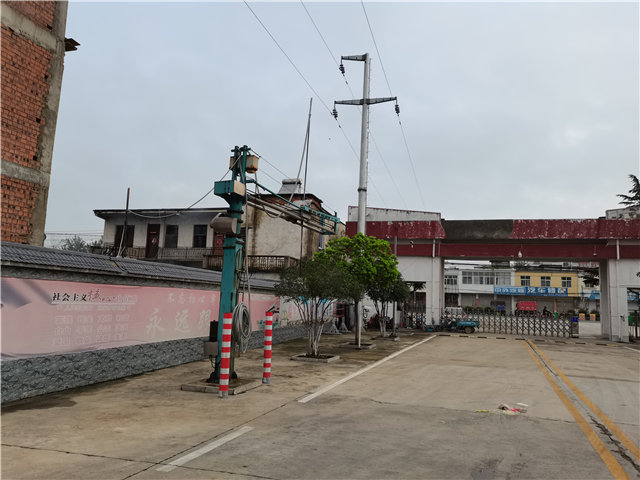

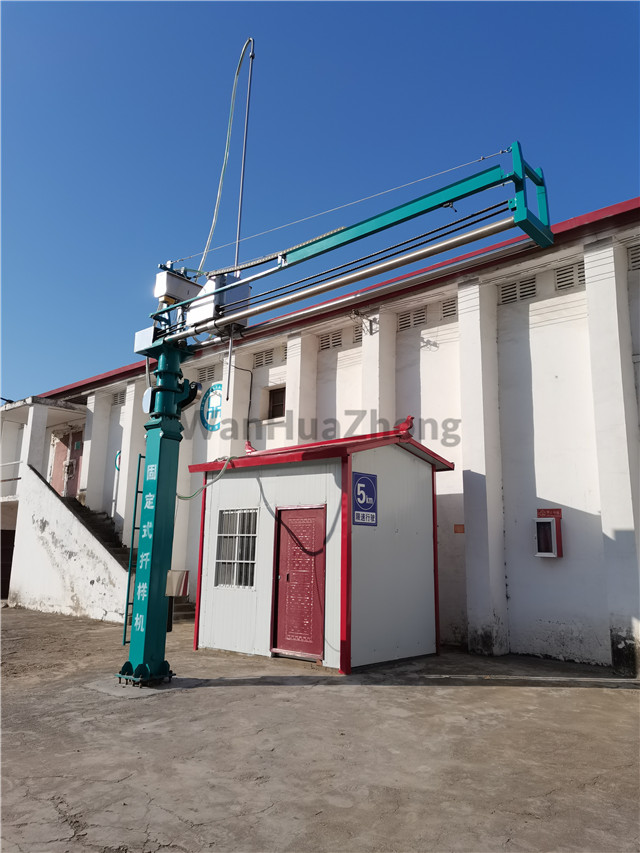

Fixed grain truck probe  in the grain depot（Usually installed at the door, it is the first process of grain Acquisition）

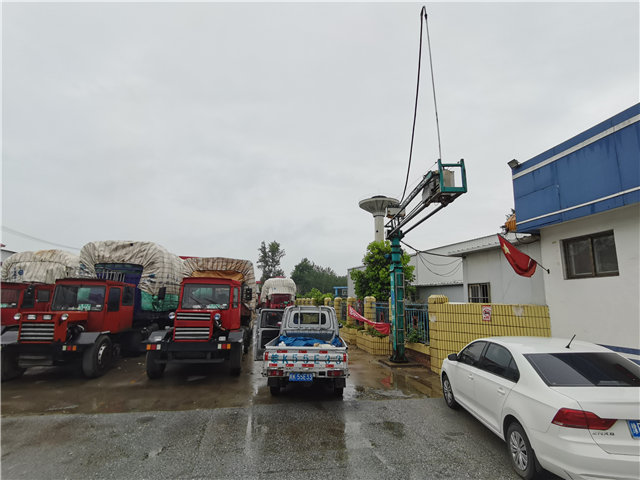

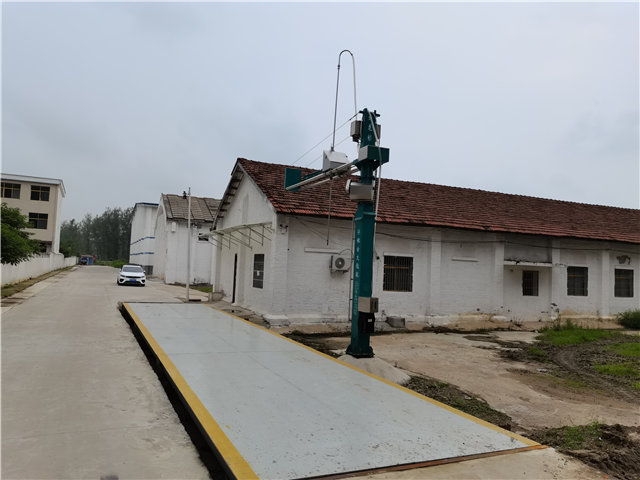

Fixed grain truck probe  in the local grain depot

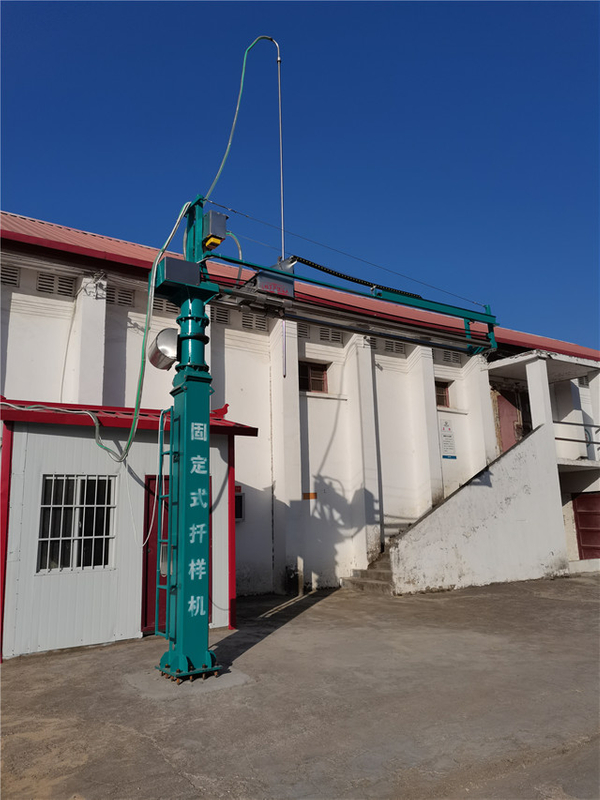

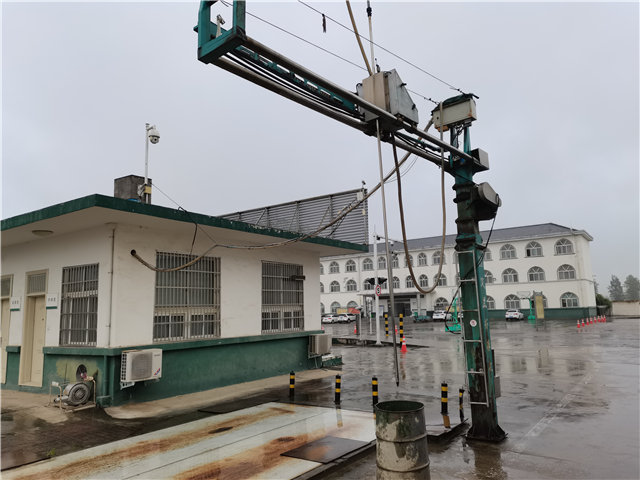

Fixed grain truck probe  in the national grain depot

The fixed grain truck probe (can also be called grain sampler) is composed of two parts: a mobile device,  an electronic control system.

1，The mechanical device of the fixed grain truck probe

The mechanical device of the fixed grain truck probe is mainly composed of two parts :rotary arm and the column.which can realize movement in three coordinate directions. The rotation of the rotating arm, the forward and backward movement of the sampling car and the up and down movement of the sampling rod are all realized by electric power.

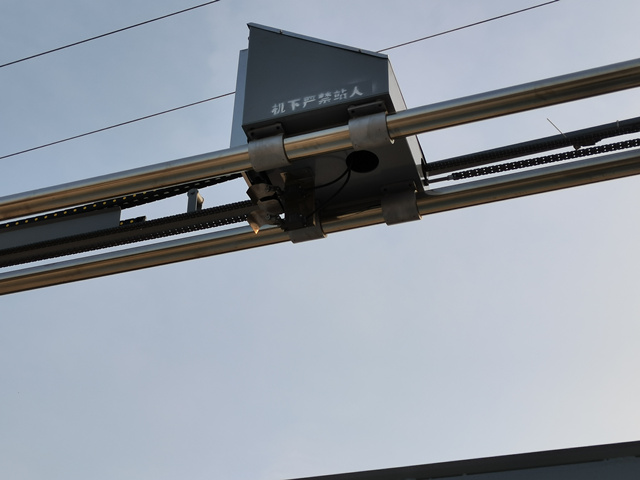

Sampling car of fixed grain truck probe

2. Electric control system of fixed grain truck probe

The electric control system is composed of the main circuit of the motor and buttons.

Fixed grain truck probe in the Rice mill company

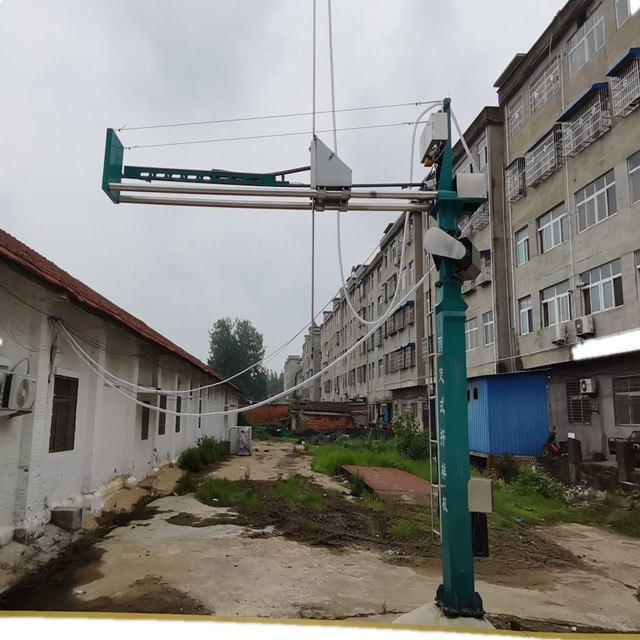

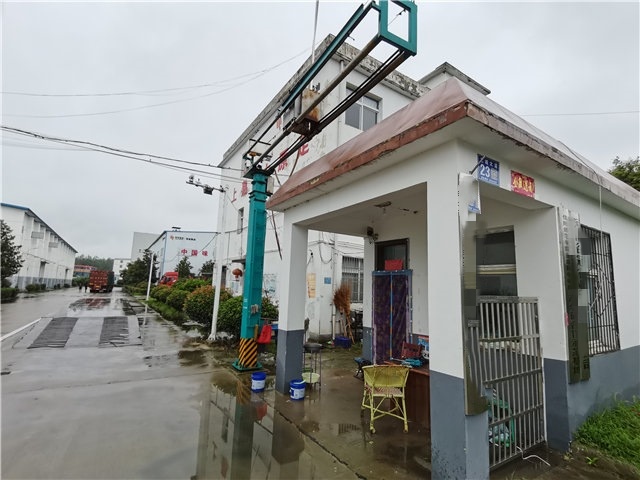

Fixed grain truck probe in the outside the Ethanol plant factory gate

1. The rotation of the rotating arm of the fixed grain truck probe relies on the rotating motor to drive the spiral bevel gear to drive the steering column to rotate, thereby driving the rotating arm to rotate.

2. The mobile motor of the sample trolley of the fixed grain truck probe is driven by a chain so that the sample trolley can move back and forth.

3. The lifting motor of the fixed grain truck probe drives the drive plate of the sample rod and drives the sample rod to move up and down.

4. Sampling process: When the sampling point is selected, first start the grain suction fan, then start the sampling rod lifting motor, and press the down button on the console. When the sampling rod is inserted into the grain, the grain aspirator makes the suction tube and the sampling rod form a certain negative pressure. At this time, the grain enters from the sampling hole, and then enters the grain aspirator through the grain suction pipe, and the whole sampling operation is completed .

Equipment transportation and installation

1. Equipment transportation of fixed grain truck probe(can also be called grain sampler)

When transporting the fixed grain truck probe, first move the sampling car to a position close to the column and move the sampling rod to the lowest position. Avoid scratching accidents during transportation, and pay attention to the safety of equipment and people.

2. Equipment installation of fixed grain truck probe

When installing the fixed grain truck probe, you should align the flange bolt holes under the column with the anchor bolts, and then tighten the nuts. At the same time, pay attention to whether the rotation space of the rotating arm is sufficient. After the truck probe is installed, connect the grain suction tube to the micro suction tube.

1. Manual control operation of mobile grain truck probe

1) Turn on the power of the mobile grain truck probe.

2) Start the grain sucker of the truck probe.

3) The work of the mobile grain truck probe can be controlled by the buttons on the workbench panel, such as the lifting and lowering of the sampling rod, the front and back movement of the sampling car, and the rotation of the steering arm to the left and right.

2. Remote control operation of mobile grain truck probe

When the operator leaves the operation table of mobile grain truck probe, the remote control can be used to operate the sampling rod, the movement of the sampling car, and the rotation of the steering arm.

3. Maintenance of mobile grain truck probe

1) After long-term use, the chain of the mobile grain truck probe must be lubricated with oil.

2) The filter inside the filter cartridge of the mobile grain truck probe must be cleaned after every 50 cartons of grain are sampled.

3) The user and keepers of the mobile grain truck probe should always check whether the suction pipe of the mobile grain truck probe is leaking due to wear and tear. If similar problems occur, they should be replaced in time.

4) After the sampling of the mobile grain truck probe is completed, the sampling rod of the mobile grain skewer should be placed at the lowest position, the sampling car should be placed close to the column, and the rotating arm should be placed above the non-channel.

5) During use, the operator of the mobile grain truck probe should periodically check whether the connection points of the electric control circuit are falling off or loose. If it is found should be excluded immediately.

6) When the truck probe does not suck grain smoothly, check whether the sample rod is blocked and clean the sample hole.

7) When this grain sampler is stuck and cannot go up and down, turn the rotating arm once to escape the dead point.

8) Regularly check the tightness of the pressing block of drive plate and sampling rod during use.

9) The hydraulic oil and lubricating oil used should be selected according to the different cold and heat of the regional climate.

10) The installation power supply adopts three-phase four-wire power supply.
