HZT5-1.1kw HZT5-2.2kw
WanHuaZhong
Product Description

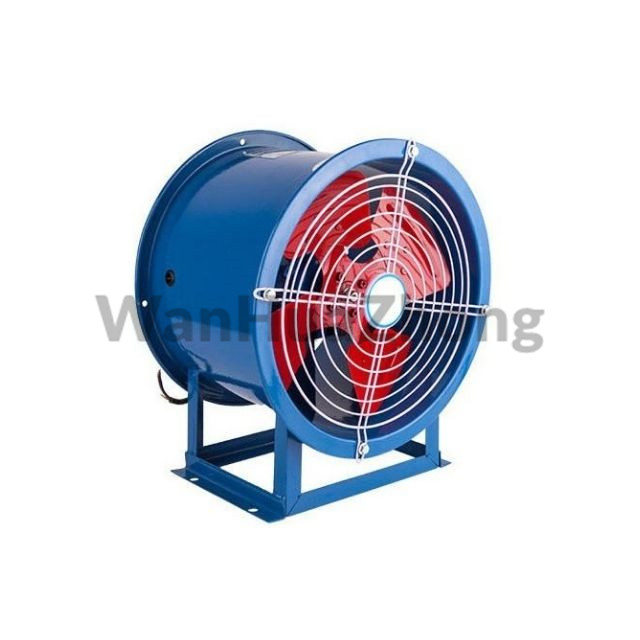

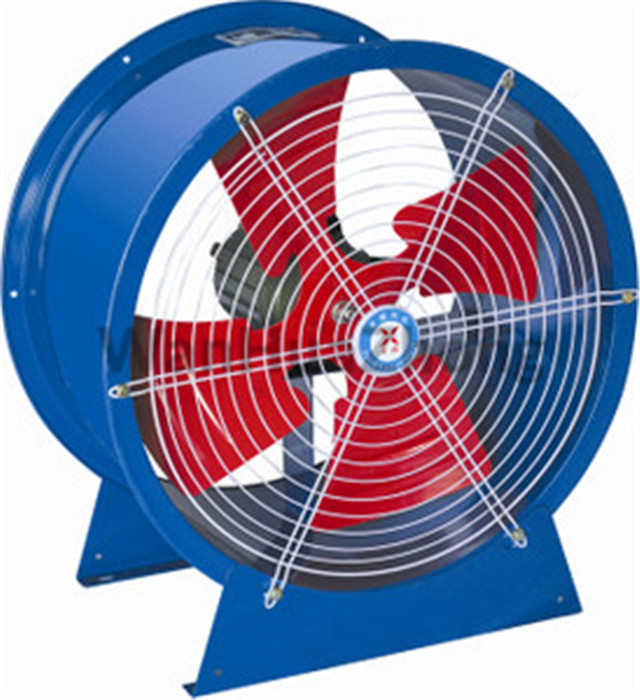

Introduction of dedicated grain depot axial fan for sale:
Based on the traditional mobile axial fan driven by a three-phase motor, Anhui Huazhong Machinery has conducted extensive research, listened to users’ suggestions, absorbed advanced new technologies for storage and ventilation at home and abroad, and developed special research and development for the characteristics of domestic grain depots and granaries. A new type of energy-saving axial flow fan is produced, which has an air volume increase of 10-30% compared to the original axial flow fan sold in the industry, reduces power consumption by more than 20%, and has a low noise of 3-10 decibels.
Product features of dedicated grain depot axial fan: compact structure, small size, light weight, low noise, large air volume, stable work, safe use.

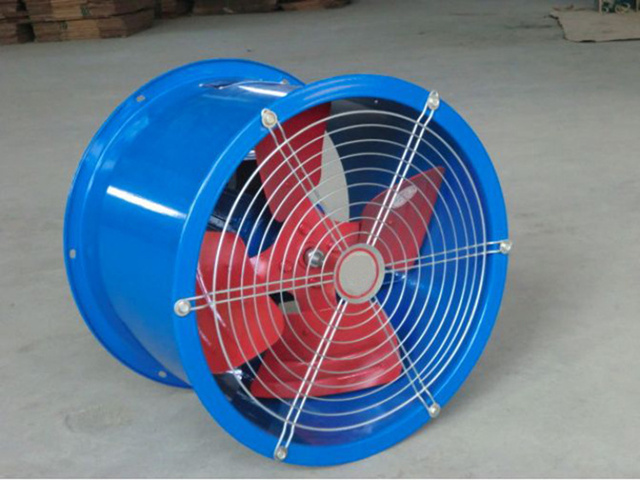

HZT5-1.1kw type dedicated grain depot axial fan

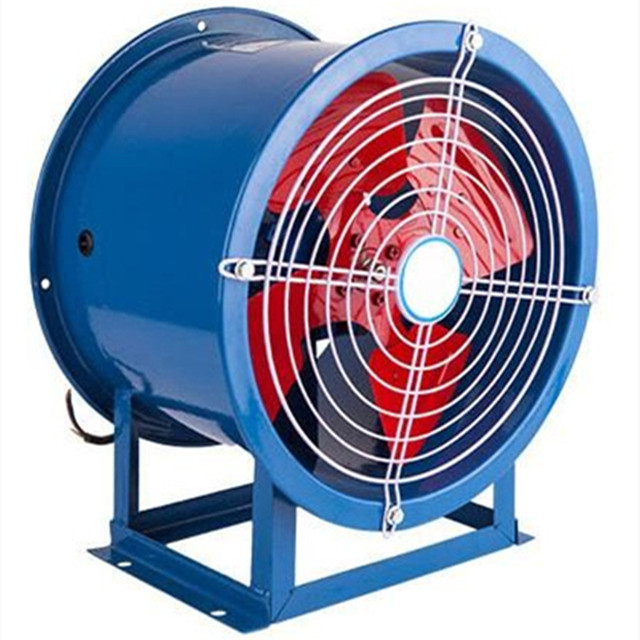

HZT5-2.2kw type Dedicated grain depot axial fan
Product parameter
| Product name： | Dedicated grain depot axial fan | Model： | HZT5-1.1kw HZT5-2.2kw |
| Manufacturer： | HuaZhong Machinery | Brand: | WanHuaZhong |
| Air volume: | 11682 m³/h，17845 m³/h | Rotation: | 186Pa，193-242Pa |
| Wind pressure: | 1460r/min | Power： | 1.1kW，2.2kW |
| Material characteristics: | Strong and wear-resistant | Whether to move: | Customized according to customer needs |
| Warranty service: | Video technical support, online support | Warranty period: | Warranty 1 year |
| Certification: | ISO14001，ISO45001，ISO9001 | Place of production: | Jieshou,China |
| After-sales service: | Video technical support, online support | Applicable industries: | Grain depots, Grain warehouse |
working principle
1. When the impeller rotates, the gas enters the impeller axially from the air inlet, is pushed by the blades on the impeller to increase the energy of the gas, and then flows into the guide vane. The guide vane changes the deflected airflow into an axial flow, and at the same time import the gas into the diffuser tube, further converts the kinetic energy of the gas into pressure energy, and finally import it into the working pipeline.
2. The working mode of the blades of the dedicated grain depot axial fan for the granary is similar to that of the wings of an airplane. However, the latter applies lift upwards on the wings and supports the weight of the aircraft, while the axial fan fixes the position and moves the air.
3. The cross section of an axial fan is generally a wing section. The blade can be fixed in position, or it can rotate around its longitudinal axis. The angle between the blades and the airflow or the distance between the blades may not be adjustable or adjustable. Changing the blade angle or pitch is one of the main advantages of axial fans. A small blade pitch angle produces a lower flow rate, while increasing the pitch can produce a higher flow rate.
Surface treatment and painting of steel components
Grease, dirt, oxide scale, iron-zinc and paint coatings and other attachments. Any remaining traces are only small spots or lines.
The primer of dedicated grain depot axial fan adopts iron oxide zinc chromium primer, and the dry paint film thickness is greater than 40µm.
The topcoat is acrylic paint, sprayed with three layers, and the total dry film thickness is ≥100µm.
The primer of dedicated grain depot axial fan is brushed and the topcoat is sprayed.
The coating of the primer and the intermediate layer paint has no defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
