HZT4-72
WanHuaZhong
Product Description

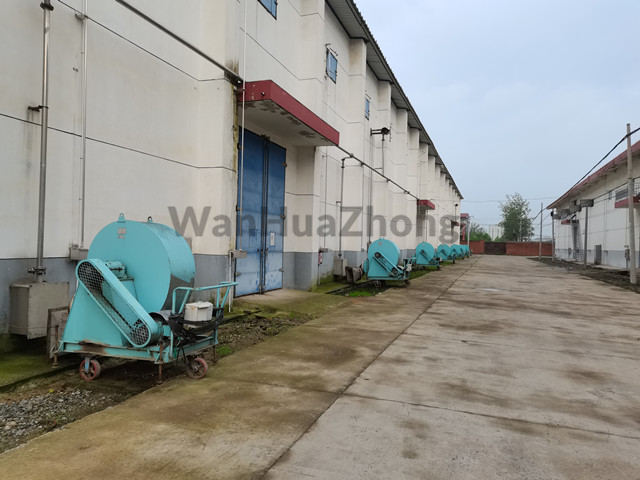

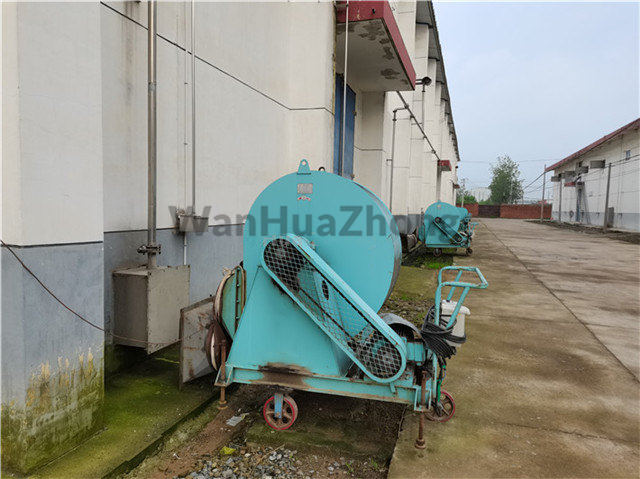

Mobile centrifugal fan in use

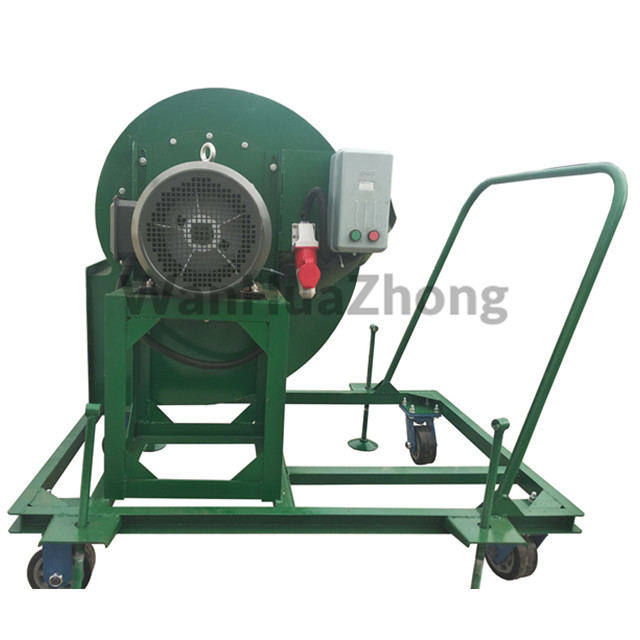

T5-72-1.1kw Mobile centrifugal fan for sale of HuaZhong Machinery

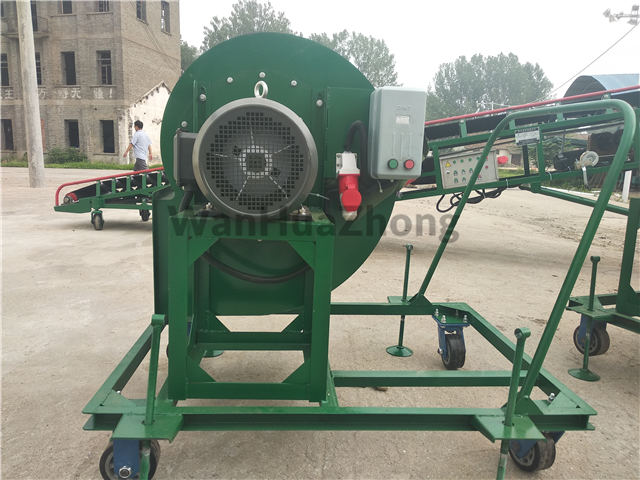

T5-72-2.2kw Mobile centrifugal fan
Mobile centrifugal fan for sale is a ventilation equipment that depends on the mechanical energy input from the outside to improve the pressure of the gas and discharge the gas to the outside.
It is a driven fluid machine.In China, centrifugal fans are widely used in factories, mines, tunnels, cooling towers, vehicles, ships and buildings for ventilation, dust and cooling; Ventilation and ventilation of boilers and industrial furnaces; Cooling and ventilation of household electrical equipment and air conditioning equipment; Drying and sorting of grain; Aerating and propulsion of wind tunnel air source and hovercraft.
Main application of mobile centrifugal fan:
Mobile centrifugal fan is a mature ventilation fan in the series of mechanical ventilation equipment in China. It is mainly used for ventilation and cooling of national standard grain depots and non-standard grain depots. The equipment has a compact structure. It is convenient to move and can meet different working conditions. It is a special ventilation fan designed for grain depots.
Welcome customers to contact us, choose to meet your requirements of centrifugal fan products (products can be customized according to customer needs).
Parameters
| Product name: | Mobile centrifugal fan | Model: | T5-72-1.1kw T5-72-2.2kw |
| Fan speed: | 1800r/min or 2000r/min | Power supply: | 380V 50Hz |
| Working environment temperature: | -40°~+45° | Power: | 7.5kW or 11kW |
| Air pressure: | 1760-2989Pa | Air volume: | 8288-16576m³/h |
| Dimensions: | 1.4m×1.2m×1.6m | Motor electric box: | dust-proof and explosion-proof, with refueling (equipped with a 5-hole socket) |
| Material characteristics: | strong, wear-resistant, | Weight: | 335kg |
| Warranty service: | video technical support, online support, manual service | After-sales service: | video technical support, online support, manual service |
| Warranty period: | Warranty within 1 year | Certification: | ISO45001，ISO14001，ISO9001 |
| Applicable industry: | Grain depot, granary | Place of production: | JieShou,China |
Surface treatment and painting of steel components
1. The surface of the steel components of the mobile centrifugal fan is shot blasted, and the steel surface is free of visible grease, dirt, oxide scale, iron, zinc, and paint coatings. Any remaining traces are only points. Slight stains like striated or streaks.
2. The primer of mobile centrifugal fan adopts brushing process, and the top coat adopts spraying process.
3. The coating of primer and middle layer of mobile centrifugal fan are free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
4. The primer of mobile centrifugal fan adopts iron oxide zinc chromium primer, and the thickness of the dry paint film is greater than 40µm.
5. The top paint of the mobile centrifugal fan adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.

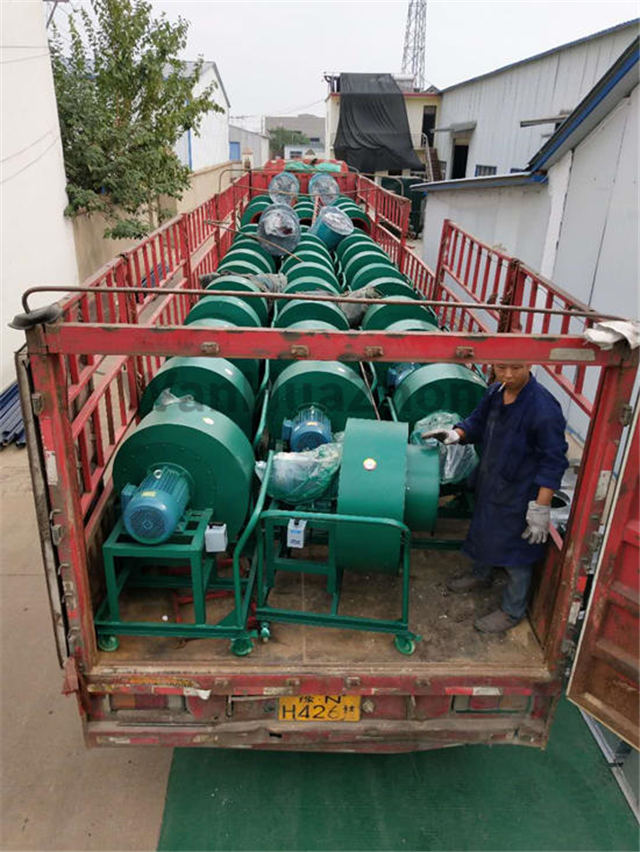

Mobile centrifugal fan for transporting

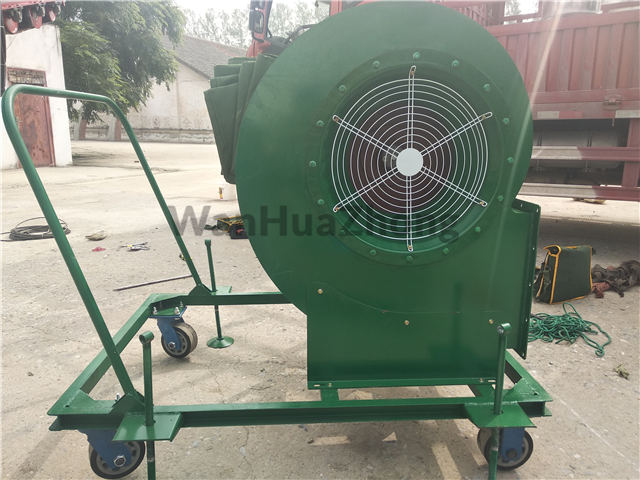

Mobile centrifugal fan for sale in grain depot
Repairs and maintenance
1. The surface of the steel components of the mobile centrifugal fan is shot blasted, and the steel surface is free of visible grease, dirt, oxide scale, iron, zinc, and paint coatings. Any remaining traces are only points. Slight stains like striated or streaks.
2. The primer of mobile centrifugal fan adopts brushing process, and the top coat adopts spraying process.
3. The coating of primer and middle layer of mobile centrifugal fan are free of defects such as pinholes, bubbles, cracks, wrinkles, shedding, sagging, and paint leakage. The finish is uniform, bright and complete.
4. The primer of mobile centrifugal fan adopts iron oxide zinc chromium primer, and the thickness of the dry paint film is greater than 40µm.
5. The top paint of the mobile ventilation fan adopts acrylic paint, sprayed with three layers, and the total thickness of the dry film is ≥100µm.

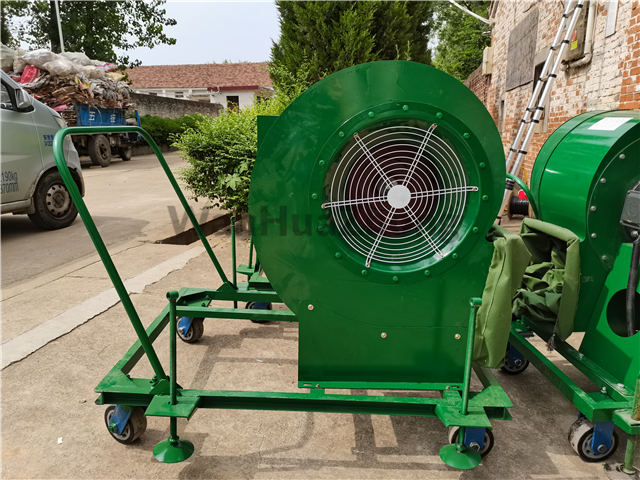

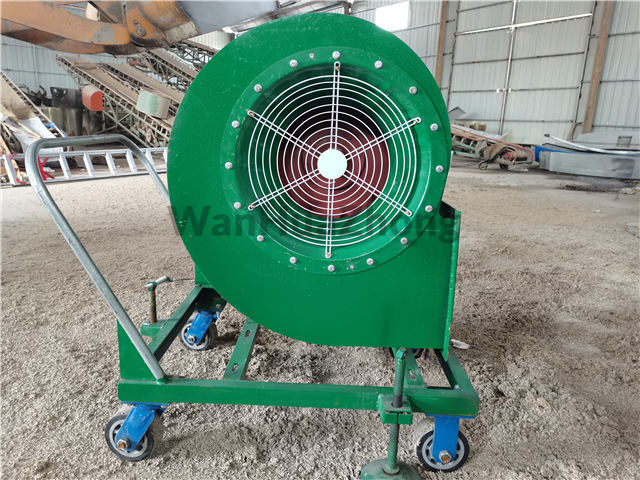

Mobile centrifugal fan arrived in grain depot
Matters needing attention for mobile centrifugal fan
1. The power supply of the motor of the mobile centrifugal fan must be reliably grounded.
2. The motor power cord of the mobile centrifuge fan should be equipped with a separate power supply cable,with the calculation method of the current of 4A to 5A per 1 mm 2 copper core wire.
3. Do not allow the mobile ventilation fan to exceed the load of the motor during use, and the load current cannot be greater than the motor rated current.
