Intelligent grain turning-over machine

Introduction of intelligent grain turning-over machine

The  intelligent grain turning-over machine is a mature type grain storage equipment launched by Anhui Huazhong Machinery Co., Ltd. according to the market demand and the actual application needs of the grain storage department. Mainly used in the range of 3 meters below the grain surface of the horizontal grain warehouse,the intelligent grain turning-over machine can turn over the grains with high moisture content, temperature rise, and endangering food security under the grain layer of the grain warehouse from the bottom of the grain layer to the surface of the grain layer.

It can effectively improve the ventilation of the grain layer, and can reduce the temperature and moisture of the grain layer; at the same time, it can also loosen the compaction on the surface layer of the grain pile in the grain store.

It is an intelligent grain storage equipment that is urgently needed by the grain storage department when the grain crisis needs to be relieved.

The main application of the Intelligent grain turning-over machine:

In the past, as the temperature increased, the weather gradually became muggy. At this time, it is necessary to turn over the grain in the grain depot to prevent the impact on the grain storage due to the increase in temperature. Fever and mildew are the main problems in grain storage. Now, with the ground cage ventilation duct, the fan blows up at the bottom of the grain. However, in the middle of many grain piles, the grain on the upper part of the grain pile cannot be blown sufficiently, which causes the problem of heat generation and agglomeration in the upper part of the grain layer.

Intelligent grain turning-over machine uses augers to turn the middle and lower grains of the grain pile to the upper layer to achieve the purpose of ventilation, heat dissipation and cooling.

Intelligent grain turning-over machine is a mature grain storage product of HuaZhong Machinery in recent years. It has the advantages of high degree of automation, fast turning over speed, good turnover effect, etc. Different grain turning over depths can be selected according to the depth of the high temperature layer of the grain depot.

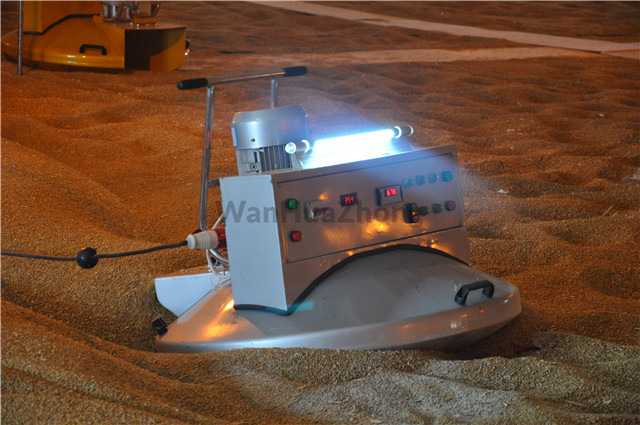

front view of Intelligent turning-over machine

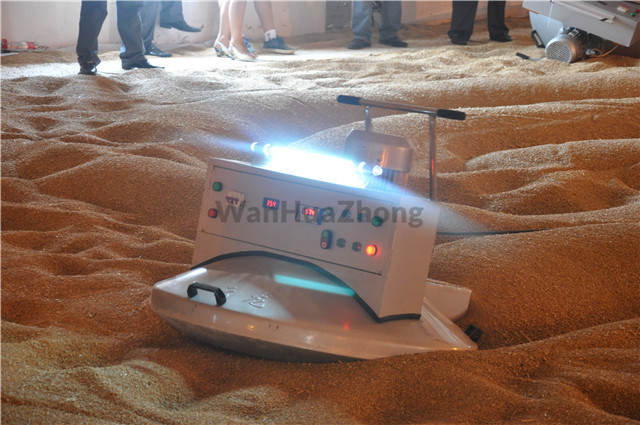

Intelligent turning over machine working picture

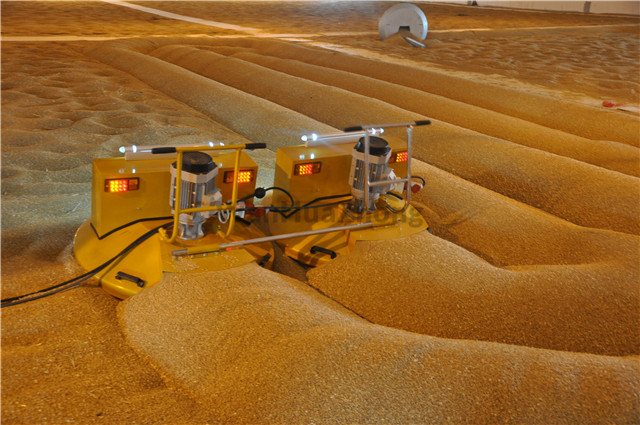

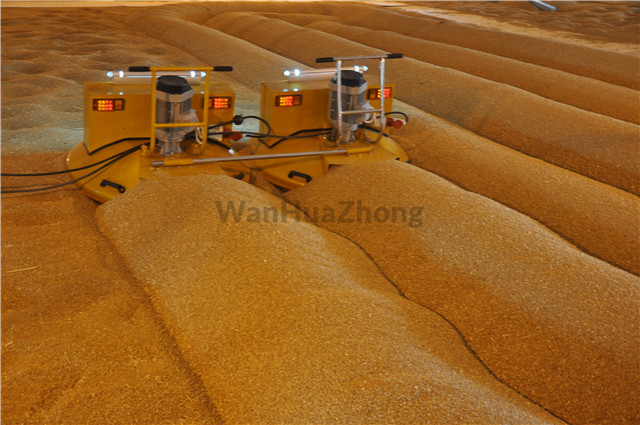

Dual machine combined use working photo

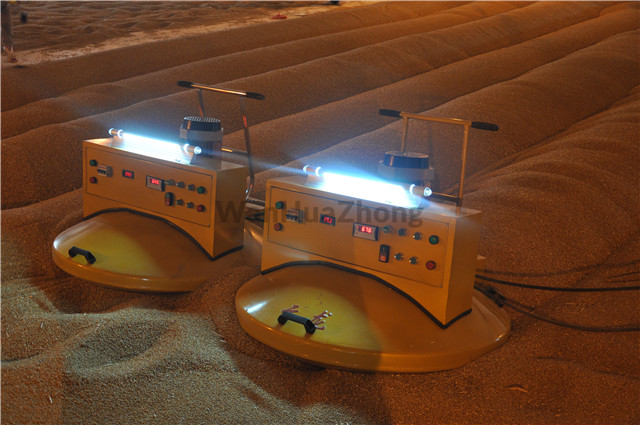

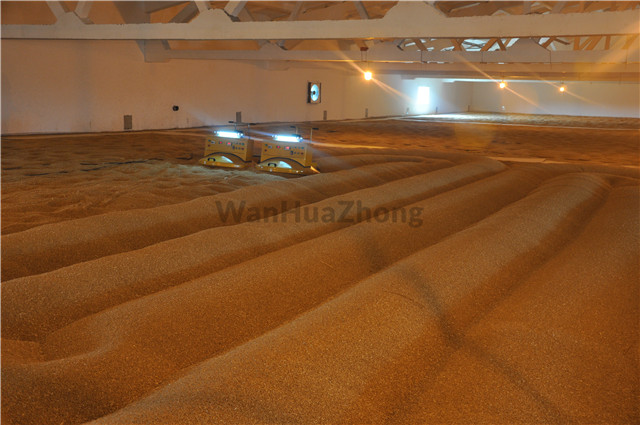

Dual machine combined use working photo

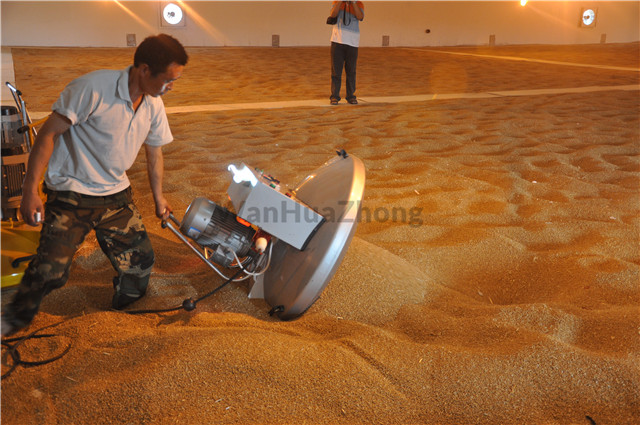

The worker is operate the intelligent turn-over machine

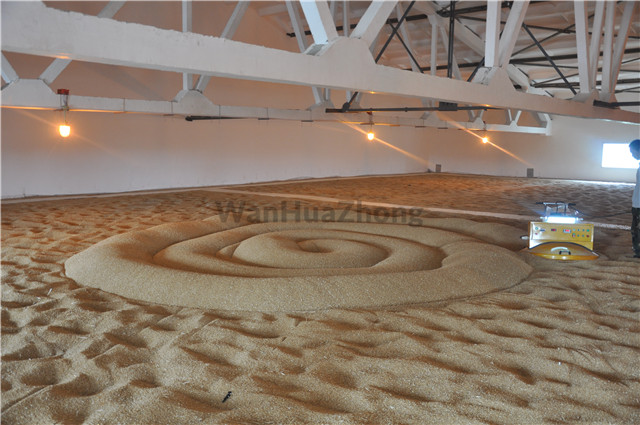

Working picture of overall view of intelligent grain turn over machine

The working area of the two-machine connection is 4m² per minute, which greatly improves the working efficiency and is the ideal equipment for the mechanized operation of the grain storage unit.

• High degree of automation, which can realize intelligent turning-over, without a lot of manpower, improve the efficiency of grain turning-over , and save the cost of grain turning-over.




• Two grain intelligent turning-over machines can be connected together to increase the area of warehousing turning-over , greatly improving the efficiency of large granaries.




• Hydraulic mold streamline forming forging, to ensure the overall structure of the equipment is stable.




• Automated continuous special welding operation, with plasma CNC machine tool welding process to improve welding quality.




• Using encrypted stainless steel paint, and assembled with a production line and has a beautiful appearance.

The intelligent grain turning-over machine is mainly composed of a drive motor, a balance plate, and a screw conveyor. The drive motor is placed on the top of the balance plate. The screw conveyor is connected to the drive motor through the balance plate. The adjustment board is installed symmetrically on both sides of the drive motor on the top of the balance plate,

The upward and downward movement of the adjusting board is controlled by a separate motor, which is used to control the walking direction and turning of the intelligent grain turning-over machine.

The working walking and steering of the intelligent grain turning-over machine are controlled by the remote control to realize automatic operation. It can also detect the temperature of the grain in the warehouse in real time, as well as the current and voltage of the main motor of the intelligent grain turning-over machine.

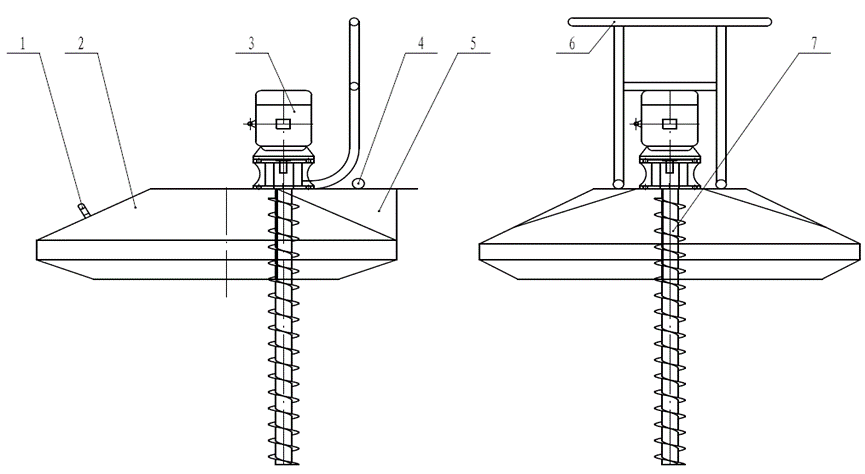

1- Handle     2- Balance plate     3- Drive motor    4- Multi-machine connecting pipe    5- Grain discharge port

6- Manual handle   7- Screw conveyor

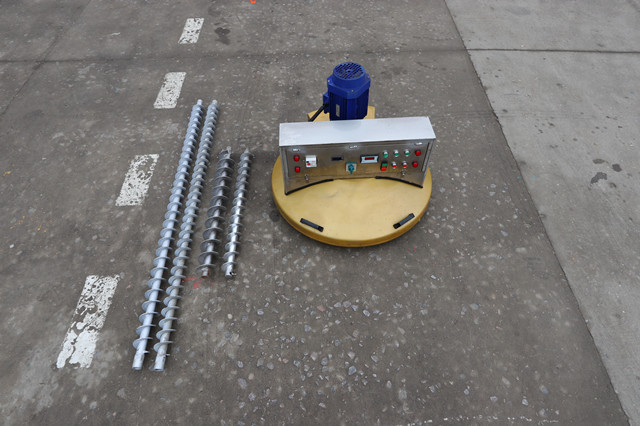

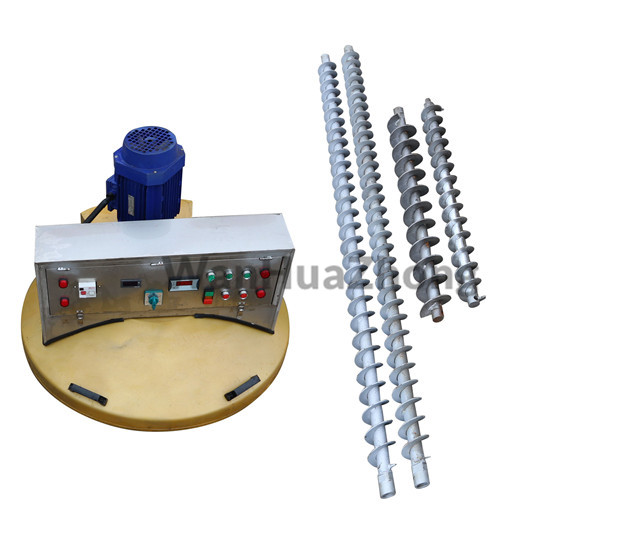

Physical map of intelligent grain turning-over machine

Working principle

The rear side of the balance plate of the intelligent grain turning-over machine is equipped with a grain discharge port. Under the action of the drive motor, the screw conveyor transports the grain at the bottom of the grain pile from the deep part of the grain layer to the grain discharge port and generates a forward thrust to push the intelligent grain turning-over machine to drive.While the screw conveyor conveys the grain upwards, the grain inside the grain layer is constantly experiencing "convection" phenomenon.

It can not only loosen the compaction on the surface of the grain layer, but also improve the ventilation effect of the grain pile.In particular, the moisture gradient value of the grain near the grain surface changes more obviously. The balance plate is also equipped with multi-machine connecting pipes, which can realize the combination of multiple intelligent grain turning-over machine and use them together.

First put all the intelligent grain turning-over machine and its components on the surface of the grain floor of the granary, and place the drive motor horizontally.

And make sure that the grain discharge port of the equipment is facing downwards. At this time, connect the screw end of the screw conveyor to the drive motor and tighten it. Then turn on the external power supply of the warehouse turning machine, stand at the motor end and observe whether the screw conveyor rotates clockwise. If it rotates clockwise, it is normal.Then pull up the manual handle of the intelligent grain turning-over machine,so that the screw conveyor can be slowly inserted into the grain layer, until you feel that the intelligent grain turning-over machine has a tendency to automatically insert downwards in your hand.you can release the manual handle and operate the remote control. When the balance plate of the intelligent grain turning-over machine is close to the horizontal position, the product starts to walk. During normal walking, all the left and right boards are raised to the highest point. When the product needs to turn to the left, the remote control left board is down, and when it turns to the required position, the left board is raised again. The same goes for turning to the right.

When the intelligent grain turning-over machine is finished and needs to be shut down, do not cut off the power of the equipment first. You should step on the top plate of the grain outlet of the product,and at the same time pull the manual handle and handle until the screw conveyor is lifted out of the surface of the grain layer. Turn off the power again.

When you need to work continuously, change the warehouse for operations, or when the equipment is not in use and need to be stored, you need to use a special tool to separate the screw conveyor and the drive motor.
